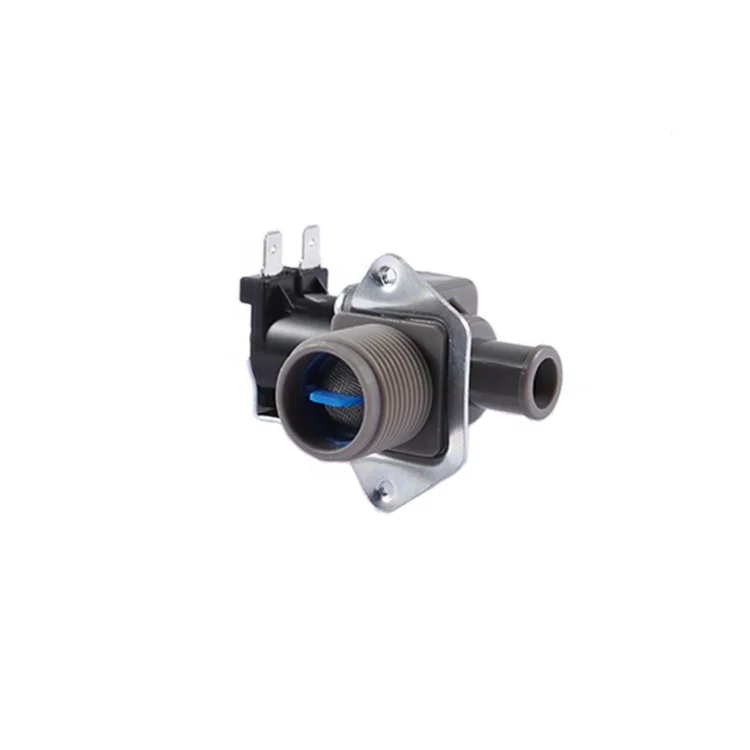

AC110-120V 220-240V электромагнитный клапан впускной воды для стиральной машины запасные

 Wuhu Lejia Electric equipment Co., Ltd

 We are factory!

-Our control standard: Same as Omron!

-Our capacity: 2500,000 pcs per year!

-Our Quality:Zero customer complaint within 3 Years!

We have 2 senior engineers, 2 doctors, 3 engineers and 10 technicians, with strong technical strength.

Our aim is to do brand products, integrity services.

We are a model enterprise combining production, training, research and development and cooperation. We adopt the intelligent manufacturing mode and have a high degree of automation in the industry.

Coil Terminal Direction :  0°(360°)/90°/180°/270°

Outlet Numbers      :

 D : single outlet    S : more than 1 outlet

Inlet and outlet angle  :

 P : parallel type     C : vertical type

Parameters

Performance

Parts

Material

Rated Voltage & Rated current

AC220V,50Hz   &   ≤ 45mA

Stress circle

EPDM

Apply water pressure

0.02-1.0MPa

Diaphragm

EPDM

Flow characteristics

water pressure(MPa)

0.02

0.5

0.8

Max

Iron core

SUS430

Flow rate(1/min)

> 3

> 12

> 21

<35

Sealability

Apply 2.5Mpa water pressure to the water inlet valve for 5 minute without dripping;

Guide rod

PP+GF5

Insulation resistance

The conductive part, the leaked metal part, and the non-metal part are all greater than 100MΩ

BMC Sealing

Resin for enameled wire insulation

Coil resistance

4.7±0.3KΩ

The piston cap

EPDM

Noise

Sound pressure level is less than 40dB (A)

The diaphragm plate

POM

G3/4 Thread strength

Unbreakable with 2Nm torque

The valve

PP
