Портативная цветная ручная машина для маркировки Волоконным лазером 10 Вт 20 30
- Категории: Laser Marking Machines >>>
- Поставщик: Jinan,Mastec,Machinery,Co.,Limited
Поделиться:
Описание и отзывы
Характеристики
10W 20W 30W 50W Color Portable Handheld fiber laser marking machine
Buying Tips:
The following information is necessary for us to recommend the suitable laser marking machine series solutions:
1 | What’s the processed material? ( stainless steel, aluminum, wood, plastic etc....) Hint: Fiber laser marking machine is for marking metal part and CO2 laser marking machine is for marking non-metal part. |
2 | Effective marking size? Hint:110*110mm, 200*200mm, 300*300mm or customized size. |

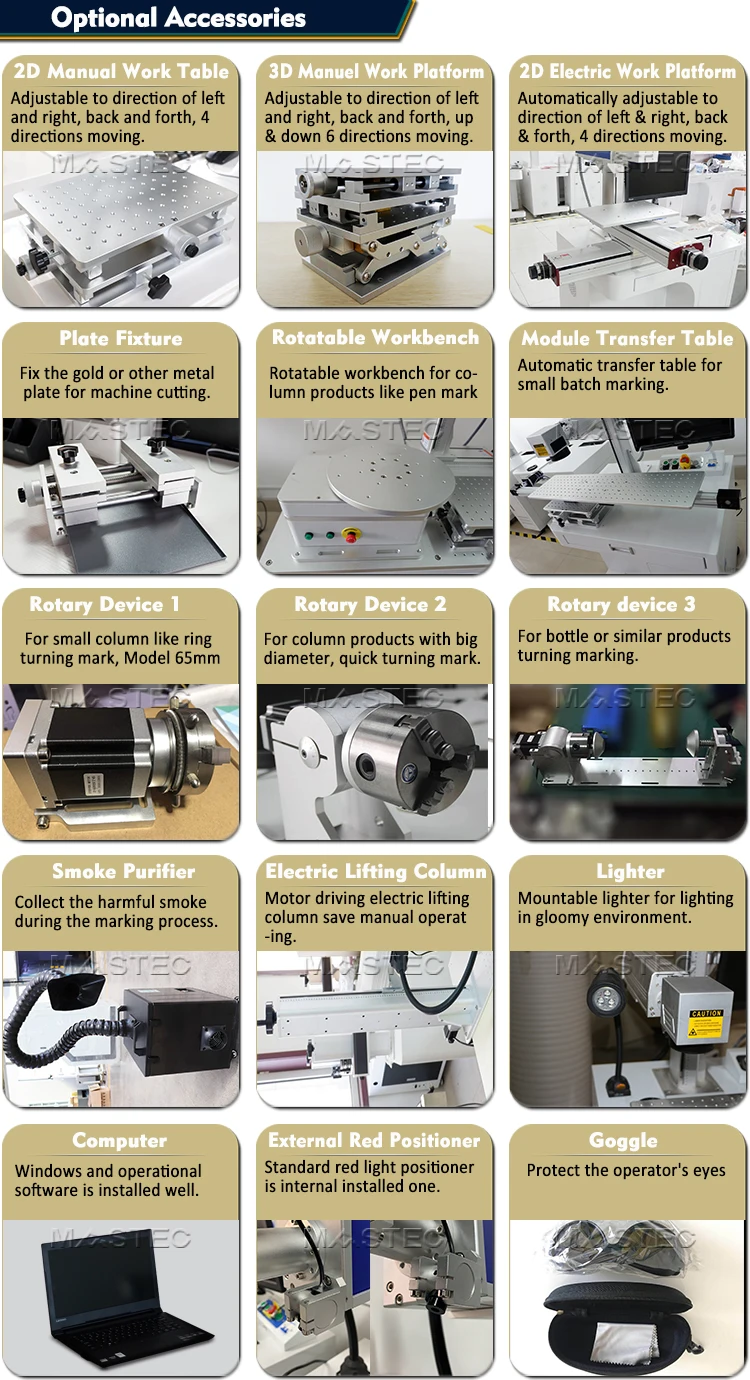

3 | Do you need to mark on cylindrical or round surface? Hint: Standard models can mark on flat surface, if curved surface marking is needed, you need a rotary fixture(USD200) |
4 | What is your marking depth? Hint: All laser marking depth is less than 1mm, but if you keep marking and marking repeatedly, it will be deeper. |
5 | Do you buy for personal use or selling? Hint: The distributor must be authorized by us in each country. |
Product Description

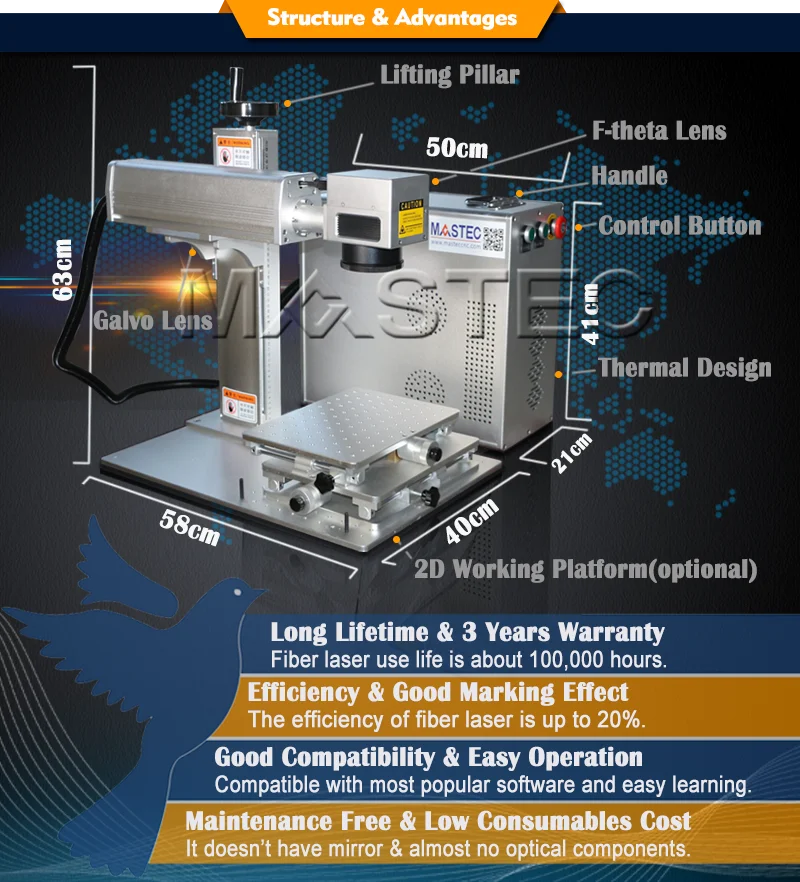

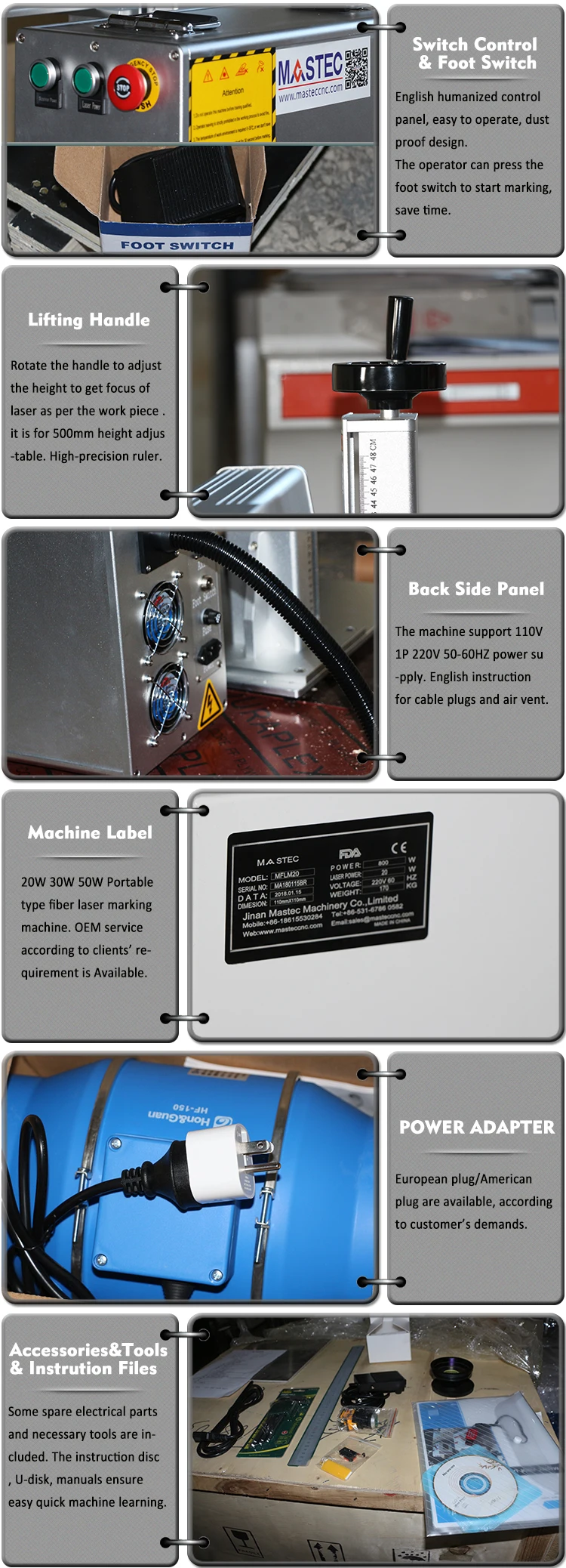

Machine Details
Technical Parameter
Technical parameters | ||
Laser Parameters | Optical laser | Raycus laser or IPG |
Laser wavelength | 1064nm | |
Average output power | 20W, 30W, 50W (optional) | |
Modulation frequency range | 20kHz~80kHz | |
Galvo Parameters | Marking speed | 7000mm/s |
Resolution | 0.001mm | |
Repositioning precision | 0.003mm | |
Cooling System | Cooling way | Air cooling |
Laser power supply | 0.5KW/AC220V/50Hz | |
Manual working table stroke | Movements itinerary 285 mm (desktop type) | |
Environmental | 0 ~ 35 ° C, 90% or humidity | |
Optical Output Characteristics | Marking range | F = 160 mm, range 110 x 110 mm |
Minimum line width | 0.01mm | |
Minimum height of characters | 0.2mm | |

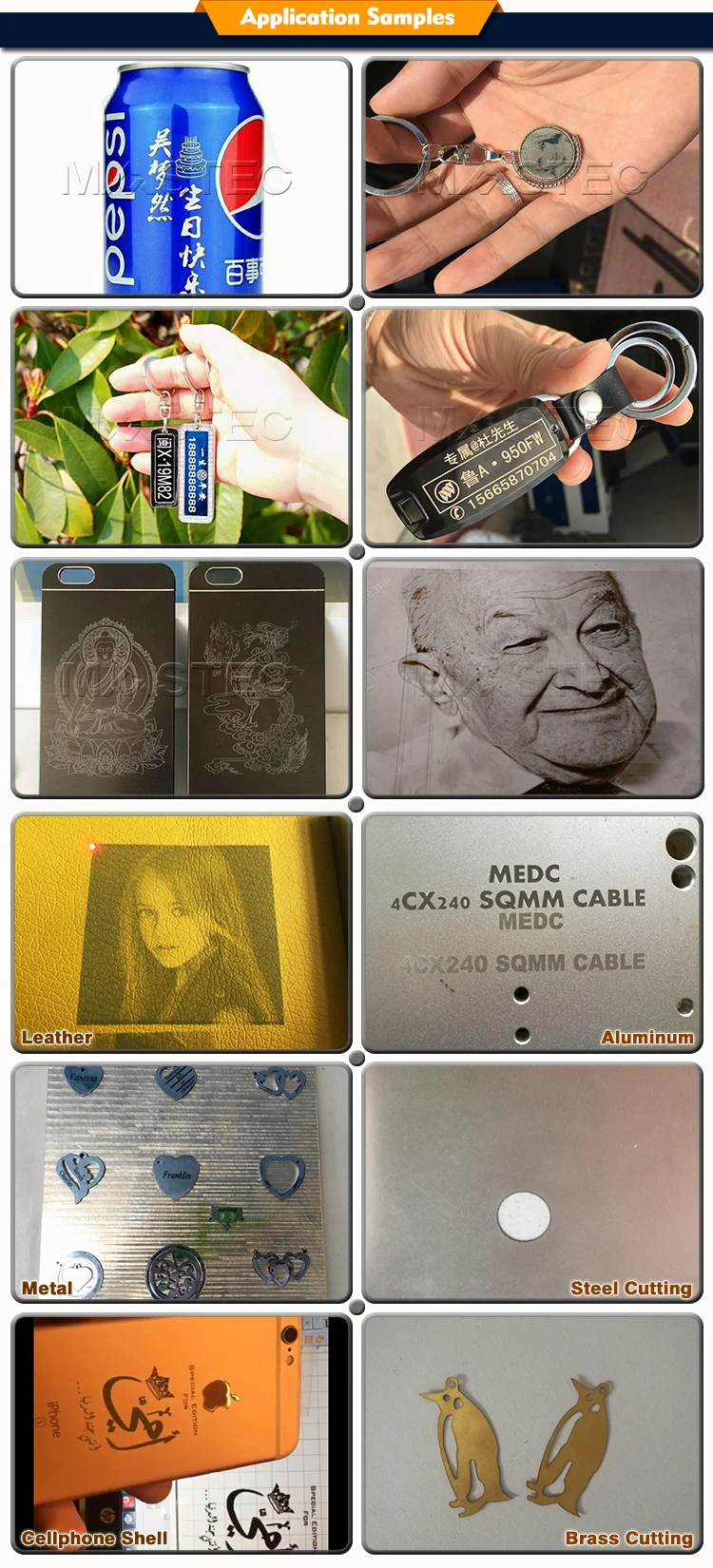

Application
1). Application Materials for fiber laser marking machine:
Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )
Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)
2).Application Industry for fiber laser marking machine:
Jewelry, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.
Packaging & Shipping
Company Information
FAQ
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet with your requirements or not. Then we can recommend you with the suitable model by our accumulated experiences.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you the instruction manual and guide video in English, it can teach you how to operate the machine. If you still can’t learn how to use it, we can help you by online help software "Teamviewer". Or, we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?

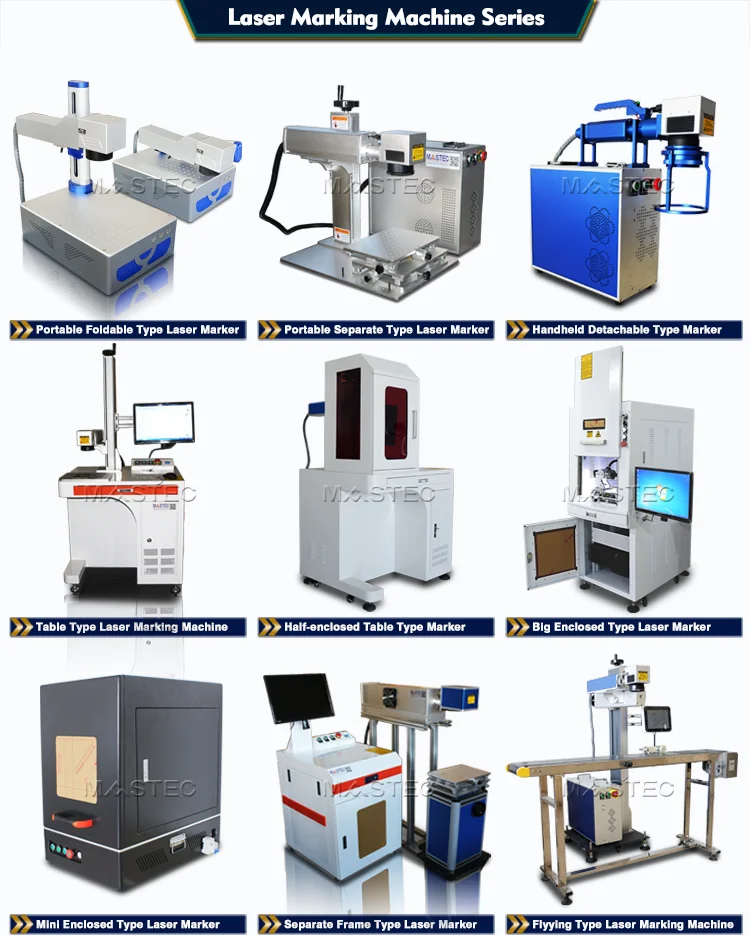

Yes, we can supply many models, such as separate portable, table type, enclosed type, mini portable, fly type etc.
Replacement of some part based on your need. The above are the most popular. If it can’t meet with your requirements, then tell us, customized service is available for you!
Q5:What's the guarantee, in case the machine breaks down?
The machine has two years' guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client's feedback. Parts (except for consumable parts) will be replaced for free if the problems are caused by quality fault.
Q6:How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, TNT etc., including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q7:How long is the delivery time?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days.
Q8:How's the payment?
Telegraphic Transfer(T/T). Alibaba trade assurance order.(T/T, E-checking, Credit card etc)
Q9:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB and CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or by their agents.
Q10:How is the packing?
There are 3 layers of package:
waterproof thickening plastic bag, foam to protect from shaking, solid export wooden case.
