Заводская поставка хорошее качество водонепроницаемый IP67 герметичный корпус для бытовой техники
- Категории: Micro Switches >>>
- Поставщик: Huizhou,Grandye,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

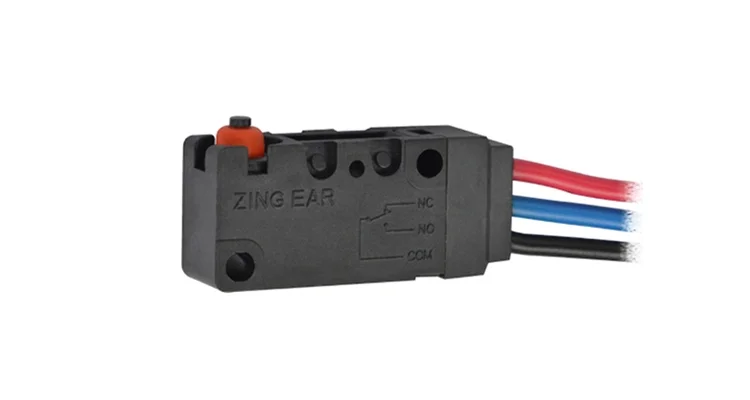

G5W11 Waterproof Micro Switch
* Features
- Water Proof and Dust Proof
- Tight Structure、SmallContactGap SnapAction、HighSensitivity
- Long Life、high Precision and Reliablity
- Widelyuseedin Auto,AgriculturalEquipment、 Applications、0ffice Equipmentetc
- Max ApprovedCurrent at ENEC/UL is 10A
- Home Appliances
- Automatic Equipments
- Auto Electronics
Products Description
Product Parameters
Rating W1 | ENEC 0. 1A 48VDC, 0. 1A 125/250VAC, 40T85, 5E4, u UL 0. 1A 48VDC, O. 1A 125/250VAC, T85 | ||||||
Rating W2 | ENEC: 5A 48VDC, 0. 1A 125/250VAC, 40T85, 5E4,u UL: 5A 125/250VAC, 5A 30VDC T85 | ||||||
Rating W3 | ENEC 10 (2) A 125/250VAC, 0. 5A 125VDC, 0. 25A 250VDC, 40T85, u, 2e4 UL 10. 1A 1/10HP 125/250VAC, 0. 5A 125VDC, 0. 25A 250VDC, T85 | ||||||
0perating Frequency - Electrical | 10~30 time/min | ||||||
0perating Frequency - Mechanical | 60 times/min | ||||||
Contact Resistance (Intial Value) - with terminal type | 50m Ω Max | ||||||
Contact Resistance (Intial Value) - with wire type | 100m Ω Max (Depends on the length of the wire) | ||||||
Insulation Resistance | at 500vdc, 100M Ω Min. | ||||||
Dielectric Strength - Between terminals | AC 1000V 50-60Hz 1min | ||||||
Dielectric Strength - terminals and housing | AC 1500V 50-60Hz 1min | ||||||
Storage Temperature | -40° C^+85° c | ||||||
Strorage Humidity | 85%RH Max | ||||||
Protection Grade - With terminal type | IEC IP67 (exclude terminal) | ||||||
Protection Grade - With wire type | IEC IP67 | ||||||
Electric-shock safeguard grade | Class II | ||||||
E - Life | 2E4~10E4 cycles (depends on P/Ns) | ||||||
M - Life | over 500, 000cycles 1, 000,000cycles(60cycles/min) | ||||||
Unit Net Weight | Approx. 7g (with terminals type and without lever) | ||||||

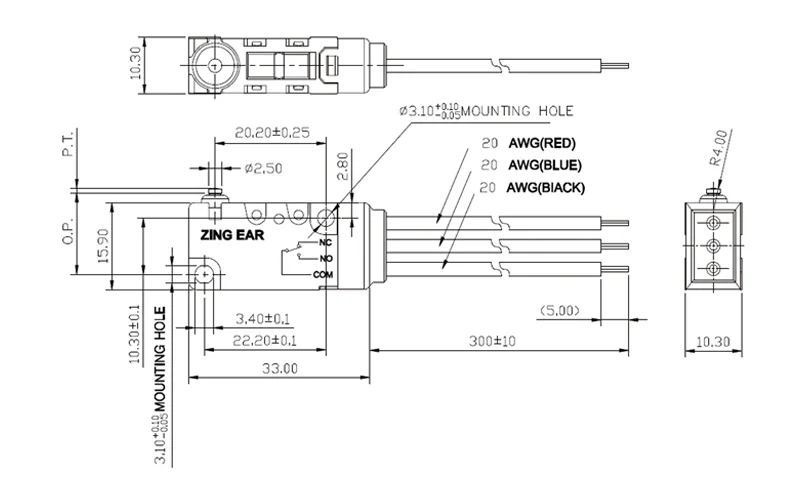

Product size
Related Products
Our Exhibition
We have to participate in famous electrical exhibitions all over the world every year.
2019 Micro Switch in India Electronic & Smart Appliances Expo
HongKong-Electronics-Fair
2019 Micro Switch Indonesia Electronics Fair Micro Switch Shanghai Exhibition-Day 1 Chengdu International Auto Parts Exhibition Company in March 9th -3 11 in Shanghai New International Exp
Company Information
2019 Micro Switch Indonesia Electronics Fair Micro Switch Shanghai Exhibition-Day 1 Chengdu International Auto Parts Exhibition Company in March 9th -3 11 in Shanghai New International Exp
Company Information
Company Information
Our Advantage
1.30 years manufacture experience
2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by SGS,TUV
4.ALL of our goods have acquired TUV,CE,SEMKO,ENEC,CQC certification
5.We use 3D software UG to design and develop our products
2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by SGS,TUV
4.ALL of our goods have acquired TUV,CE,SEMKO,ENEC,CQC certification
5.We use 3D software UG to design and develop our products
Packing&Shipping
FAQ
Q1: Are you a trading company or manufacturer?
A: yes.we are an original manufacturer specializing in micro switches over 30 years.
Q2: What is your MOQ?
A:Normally,We have only accept the MOQ is 100pcs.
Q3: what is the warranty time?
A: It is about 1-2 years.
Q4: Could you offer us free samples?
A: yes, Afrer the certain design or items is confirmed,free samples could be provided within 2-5 days.
Q5. what is the leading time of mass production?
A: About 2-4 weeks.
Q6: what is the capacity per month?
A:It is over 8 million pieces per month for micro switch series,and over 20 million pieces per month for keyboard switch series.
A: yes.we are an original manufacturer specializing in micro switches over 30 years.
Q2: What is your MOQ?
A:Normally,We have only accept the MOQ is 100pcs.
Q3: what is the warranty time?
A: It is about 1-2 years.
Q4: Could you offer us free samples?
A: yes, Afrer the certain design or items is confirmed,free samples could be provided within 2-5 days.
Q5. what is the leading time of mass production?
A: About 2-4 weeks.
Q6: what is the capacity per month?
A:It is over 8 million pieces per month for micro switch series,and over 20 million pieces per month for keyboard switch series.
