Product Description
molex 2510 2.54mm pitch electric male female cable wire Connector
SCT2541 Series are replaced by Molex 2510 connector. 2.54mm pitch, wire to board crimp terminal style with low contact resistance.
Compatible: Molex 2510 Connector
Pitch: 2.54mm
Poles: 2-20P
Current rating: 3A (AWG#22-#28)
Items | Specifications |
Part Number: | SCT2541 |
Compatible: | Molex KK254 series connector |
Pitch - Mating Interface: | 2.54mm |
Circuits: | 2-20P |
Applicable wire: | AWG#22-#28 (Max.OD:1.7mm) |
Current Rating: | 3A |
Voltage Rating: | 250V |
Temperature Range: | -25°C~+85°C |
Contact Resistance: | 20M Omega Max |
Insulation Resistance: | 1000M Omega Min |
Withstanding Voltage: | 1000V AC/minute |
Wire & Cable Assemblies: | Customized |

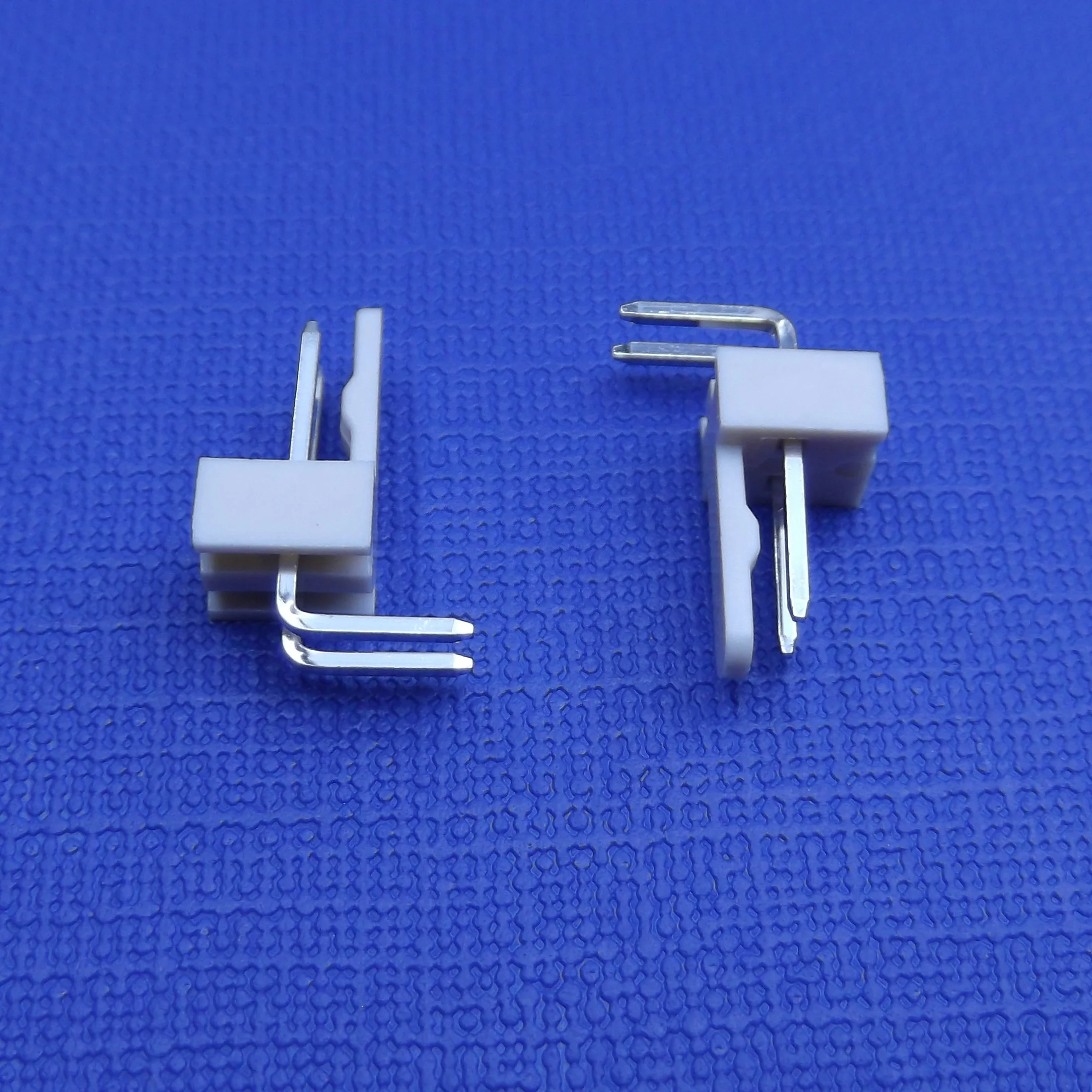

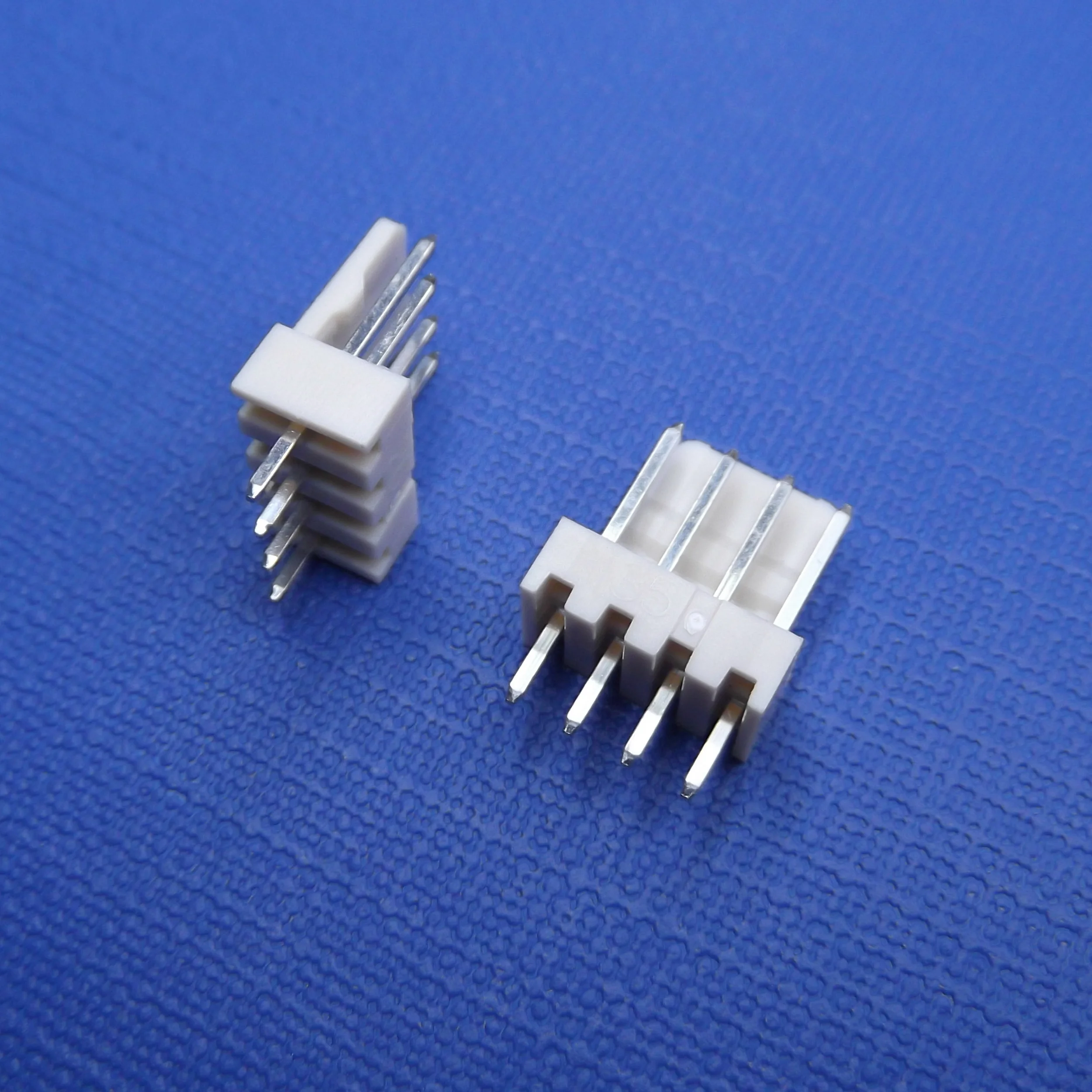

2.54mm female terminal | 2.54mm housing | 2.54mm vertical header | 2.54mm right angle header |
Compatible: Molex 2759 | Compatible: Molex 2695 | Compatible: Molex 171856 | Compatible: Molex 171857 |
2-20P | 2-20P | 2-20P | 2-20P |
