Product Description
1. Nominal pressure: 1.6Mpa
2. Working medium: hot and cold water
3. Working temperature: -20℃≤T≤100℃
4. Standard: Test pressure meets ISO5208 standard
Pipe thread conforms to ISO228 standard
5. Certification: ISO9001

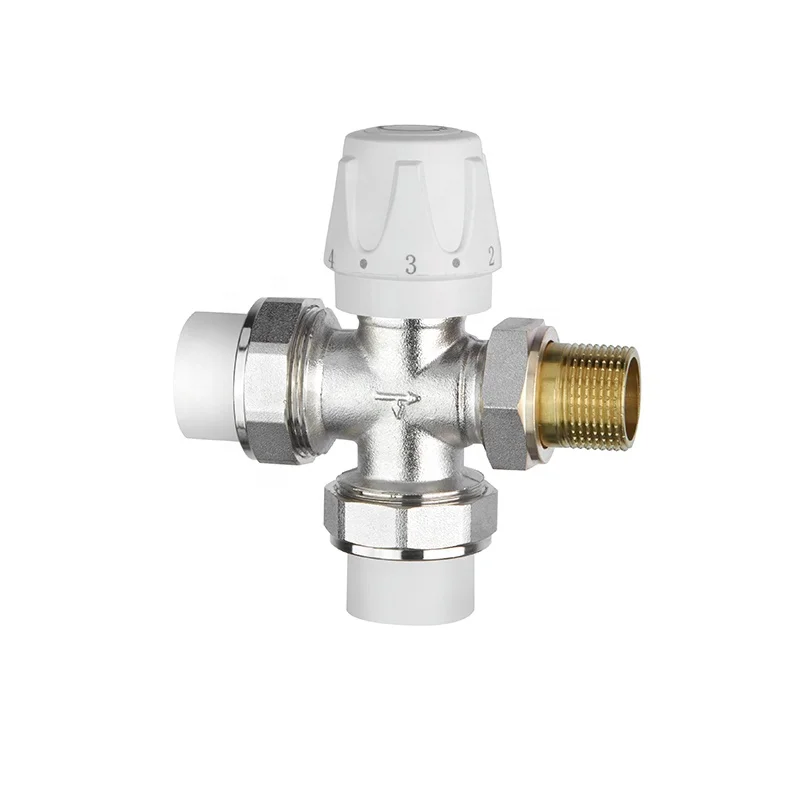

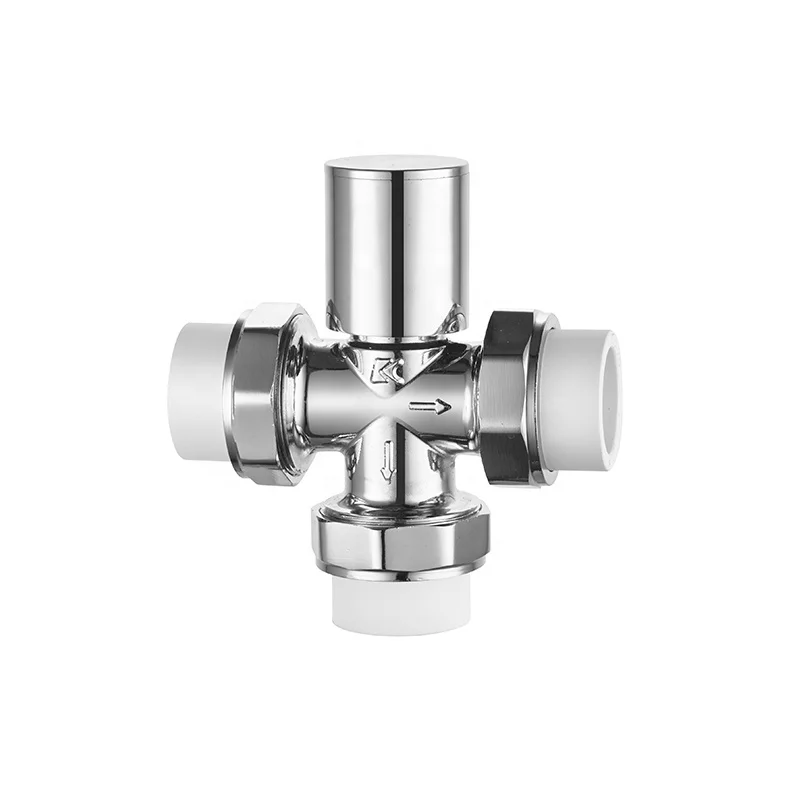

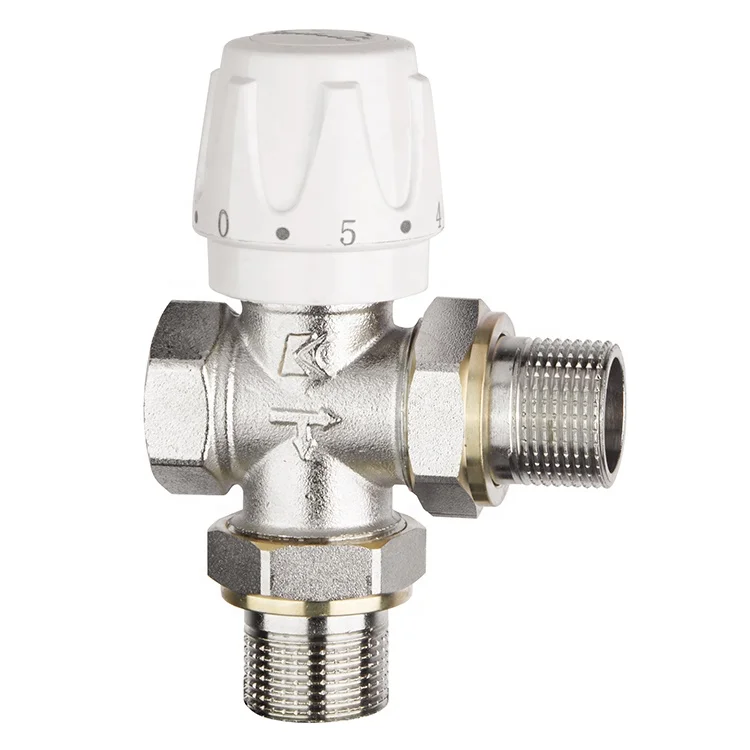

Product Name | HVAC nickel plated brass 3way hand operatedfor temperature control inline union male thread thermostatic radiator valve 1 inch |
Material | Brass 59-1 57-3 |
Color | Nickel plating |
Standard | ISO9001 Test pressure: ISO5208 Pipe thread: ISO228 |
Grade | WK-2020 |
Thread | Three-way Live connection External thread |
Products Dimensions
DN | SIZE | H | L | B | D |
15 | 1/2" | 104 | 80 | 15 | 44 |
20 | 3/4" | 125 | 85 | 15 | 44 |
20 | 1" | 136 | 97 | 15 | 44 |
Products Advantage
Radiator valve
The company's patented product never leaks the temperature control valve core, adopts four imported EPDM high temperature resistant, anti-aging O-rings, and then adds the top pressure cap packing structure. The packing is made of high temperature resistant and wear resistant polytetrachloroethylene. . Even if all four O-rings are damaged during use, it is easy to solve the problem of maintenance difficulties caused by leakage of the product during the heating season by pressing the cap.
Packing & Delivery
Quantity (pieces) | ≤50000 | >50000 |
Est. Time (Days) | 30 | To be negotiated |
Our Company

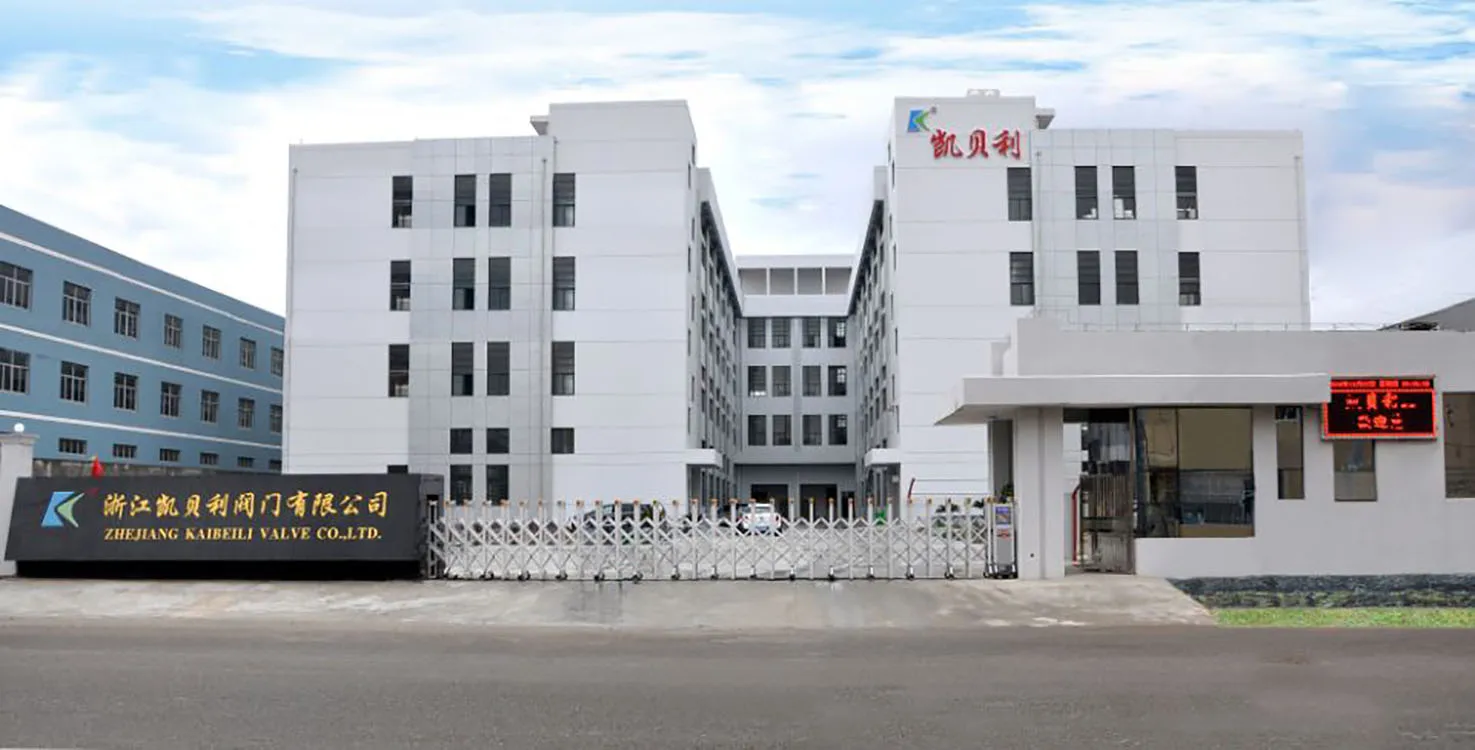

Factory
Workshop
Warehouse
Team
Certifications
In 2009, Kaibelli introduced advanced Spike spectrum analyzers from Germany for material analysis of raw materials and accessories, and purchased internationally advanced valves, nozzles, hoses, life, flow, hot and cold, and pull Extruded melt index and blasting test machine with 30 standardizers.
Cooperation Case
Beijing Victoria Garden
Xi'an Chang'an University
Shanghai Maritime Building
FAQ
Q: Can you give me a disount?
A: As you know, we are manufactory, so please believe us our price is competitive.
If the quantity is big, we can consider give you a discount.
Q: How about your capacity?
A: As you know, we have 70 employees and have 30 CNC machine tools for quality inspection. So please believe that we can deliver the valve according to your order.
Q: What do you do if the product has quality problems?
A: We will be responsible for all quality issues.
