Otg Поддержка android сканер отпечатков пальцев считыватель

Описание и отзывы

Характеристики

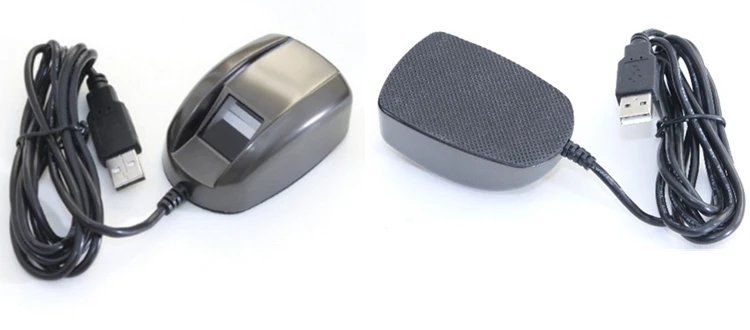

SF4000  otg support android fingerprint scanner reader SF4000





Features:



1. USB interface. And can customize Micro USB for bulk orders.

2. Support ISO international standard format

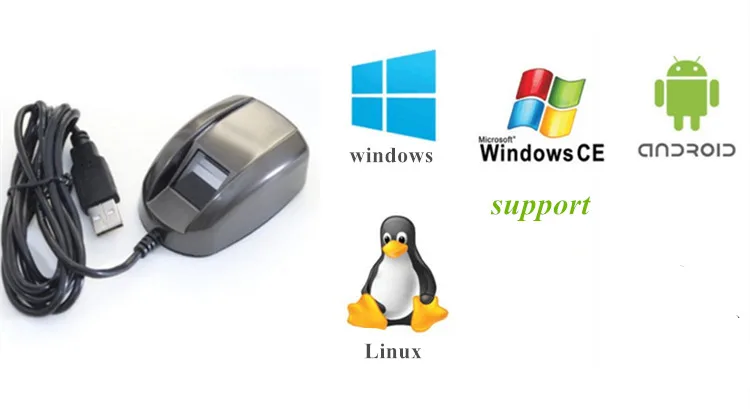

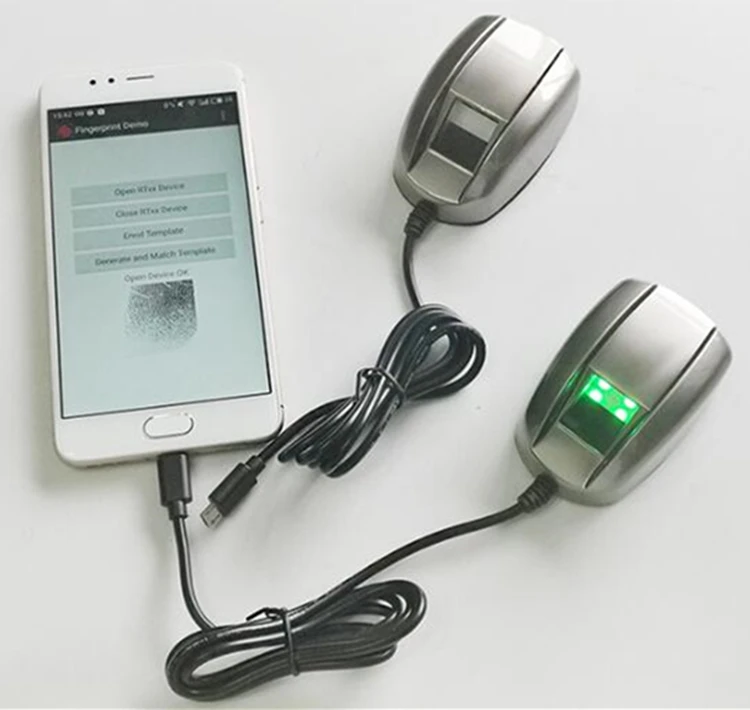

3. Support Linux, Windows, Android OS

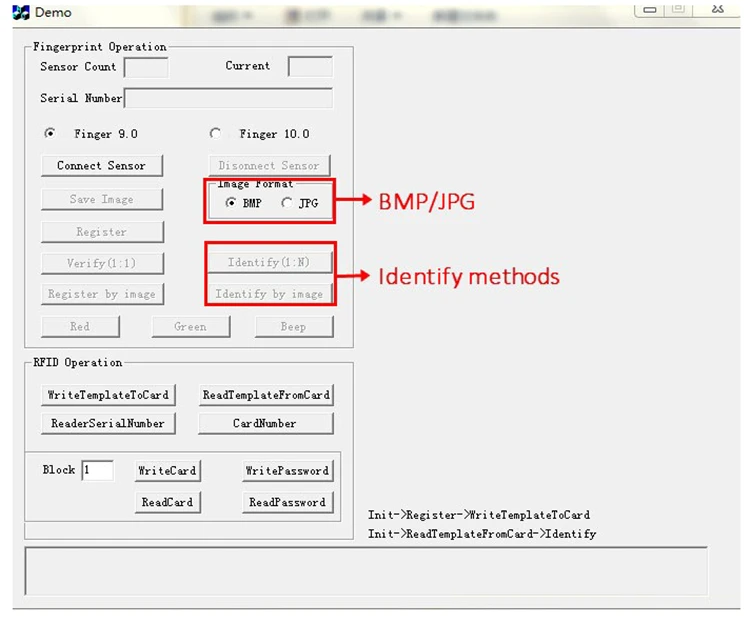

4. SDK&Demo and Technical support provided



Programming Language support:

CB, VB, VC, Delphi, PB8, VBdemo, VFP, VB.net, C++, C# , asp.net, JSP, PHP etc.

Support JAVA development platform.



Application:



1. Financial teller fingerprint identification system;
2. Bank voucher fingerprint identity authentication system;
3. Vehicle dispatching fingerprint identity authentication system;
4. Public security police fingerprint identification system;
5. Candidate fingerprint authentication system;
6. Driving school training fingerprint management system;
7. Medical social security fingerprint management system;
8. OA office fingerprint authentication system;
9. Network fingerprint authentication system

10.Communication company identification
11.National election identification



Specification:

Resolution	500DPI
Image size	256*288
Compatible	USB2.0, RS232/RS485/UART/SPI
Sensor	Optical Sensor
FRR	0.01%
FAR	0.0001%
Operating Temperature	-20°C - 70°C
Operating Humidity	0-98%
Average speed of matching	<1s
Fingerprint capacity	Internal: 100-3000pcs;server: unlimited
Workig voltage	3.3 - 6V
Image format	RAW/BMP/JPEG
Anti-static	> 15 KV
Fingerprint engine	Built-in high performance fingerprint matching engine
Size of Fingerprint template	512BYTE
Detection Skin	Can only identify dermis, avoiding artificial fingerprint
Surface	Metal
Image format	Compatiable ISO template standard
