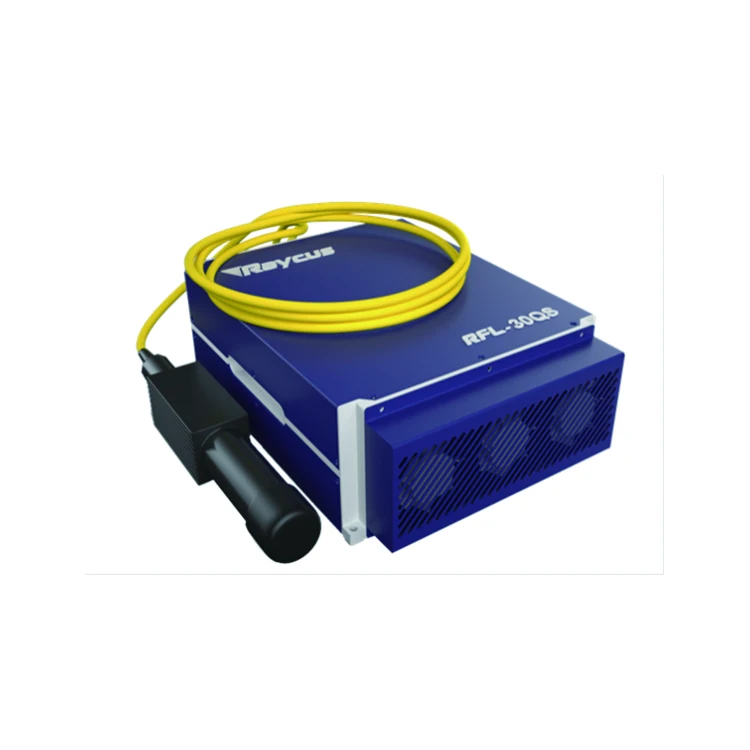

Волоконный лазерный источник 20 Вт 30 50 100 500 1000
- Категории: Запчасти для лазерного оборудования >>>
- Поставщик: Riselaser,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
2. Superior reliability, long lifetime.
3. No shadow or virtual open circuit phenomenon when processing on special materials.

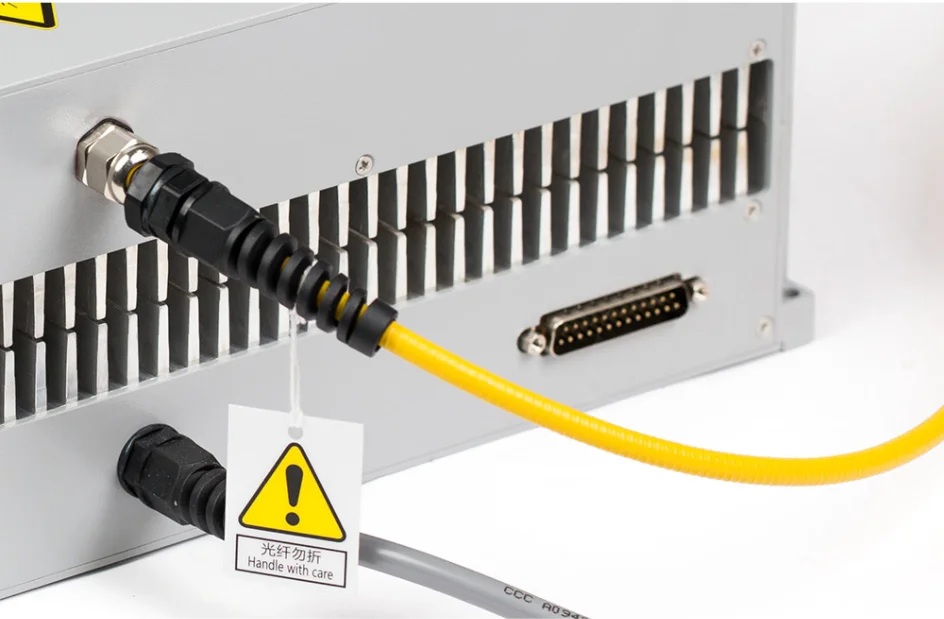

4. Universal DB-25 interface.
Average utput Power | 20W | 30W | 50W | 100W | |||
Central Wavelength | 1064nm | ||||||
Frequency Range(kHz) | 30-60 | 30-60 | 50-100 | 20-200 | |||
Output Power Stability | ＜3% | ＜3% | ＜3% | ＜5% | |||
Output Beam Diameter(mm) | 7±1 | 7±1 | 7±1 | 6.5±1 | |||
Pulse Width(ns) | 90-130 | 90-130 | 90-150 | 50-130 | |||
Power Supply | 24V | ||||||
Power Range | 10-100 | ||||||
Power Consumption | 170W | 240W | 340W | 450W | |||
Dimensions(mm) | 391*260*120 | 391*260*120 | 391*260*120 | 396*260*123 | |||
Cooling | Air Cooling | ||||||
Operating Temperature | 0-40℃ | ||||||
Details
Technical Feature:
1. Highly stable laser output
2. High single-pulse energy
3. High marking efficiency
4. Short pulse setup time
5. High reliability
6. Maintenance-free operation
Certification
Related Products
Company Introduction
FAQ
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q3: What's the guarantee, in case the machine breaks down?
The machine has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q4: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q3: What's the guarantee, in case the machine breaks down?
The machine has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q4: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
