Mining Agitation tank
US $1000-$2000
Горячая Распродажа в Африке резервуар химической мешалки для линии обработки золотой
- Категории: Чан для выщелачивания >>>
- Поставщик: Henan,Xingyang,Mining,Machinery,Manufactory
Поделиться:
Описание и отзывы
Характеристики
Hot Sale In Africa agitator tank For Gold Beneficiation
| Product description of Hot Sale In Africa double impeller leaching agitator tank For Gold Beneficiation |
| Brand |
XKJ |
Effective Volume |
| 0.098-38m3 |
| Motor Power |
| 1.1-45KW |
| Applications |
| Gold, copper, platinum, iron ore, lead, Zinc, etc |

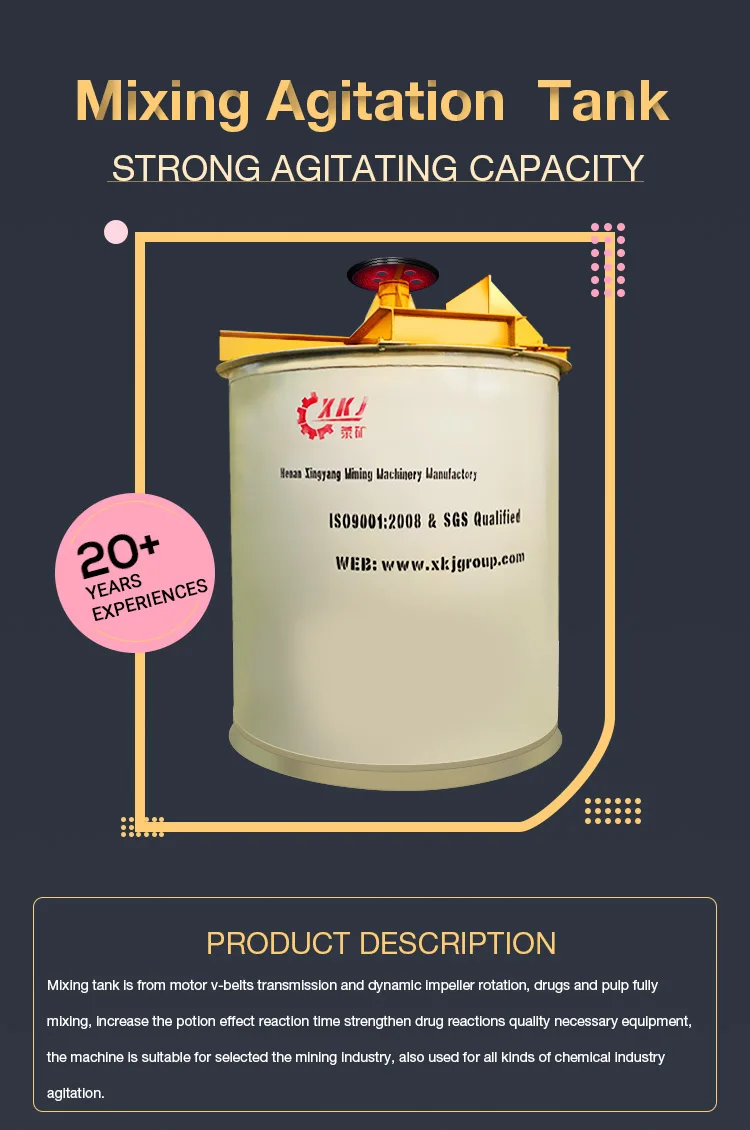

| Introduction |

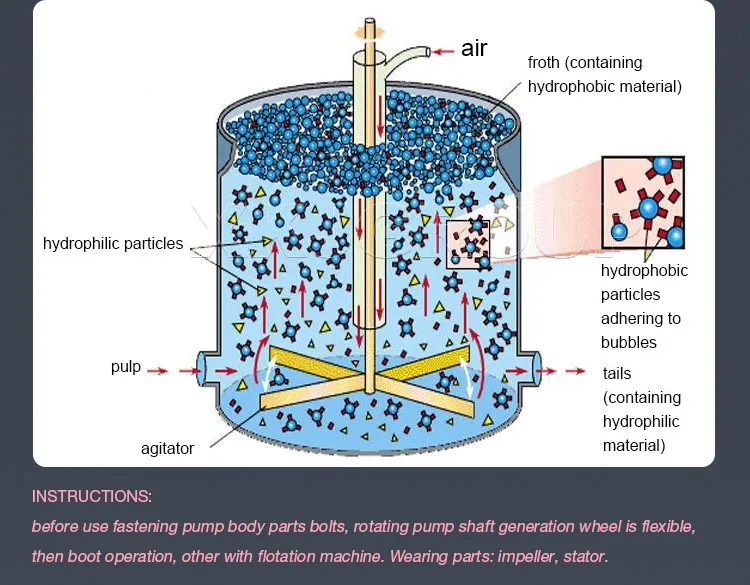

| Gold mixing tank is used for mixing chemical and slurry before the flotation process, increase the reaction time of the reagent and strengthen the quality of the reagent reaction. This machine is suitable to be used in ore beneficiation industry and also for stirring the ingredients in all various industries. |
| Features |
1. Strong agitating capacity and Low consumption 2. Easy maintenance and outstanding mixing performance 3. High mixing and circulating ability 4.Imporved cycling effect and completely mixing pulp and medicine
|
| Technical parameters of agitator tank For Gold Beneficiation |
| Model | Tank inner diameter (mm) | Tank inner height (mm) | Effective volume (m3) | Impeller RPM (r/min) | Impeller diameter (mm) | Motor model | Motor power (kw) | Dimension (L*W*H)(mm) | Weight(t) |
| XB-1000 | 1000 | 1000 | 0.58 | 530 | 255 | Y100L-6 | 1.5 | 1173*1138*1491 | 1.0 |
| XB-1200 | 1200 | 1200 | 1.4 | 340 | 400 | Y132S-6 | 2.2 | 1354*1310*1742 | 1.1 |
| XB-1500 | 1500 | 1500 | 2.2 | 320 | 400 | Y132S-6 | 3 | 1656*1572*2171 | 1.2 |
| XB-2000 | 2000 | 2000 | 5.6 | 290 | 550 | Y132M2-6 | 5.5 | 2380*2162*2850 | 2.3 |
| XB-2500 | 2500 | 2500 | 11.2 | 280 | 650 | Y180L-6 | 15 | 3036*2716*3543 | 3.4 |
| XB-3000 | 3000 | 3000 | 19.1 | 210 | 700 | Y255S-8 | 18.5 | 3604*3216*4250 | 4.9 |
| XB-3550 | 3550 | 3550 | 30 | 230 | 850 | Y255M-8 | 22 | 3940*3755*5386 | 7.3 |
| XB-4500 | 4550 | 4550 | 38 | 122 | 1000 | Y280M-8 | 45 | 4720*4800*6600 | 9.7 |

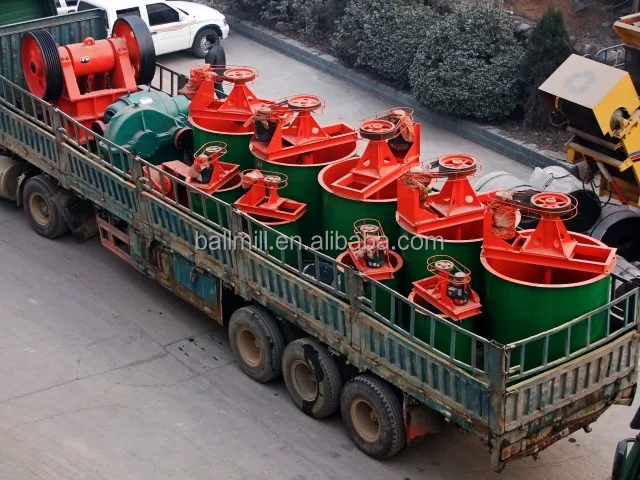

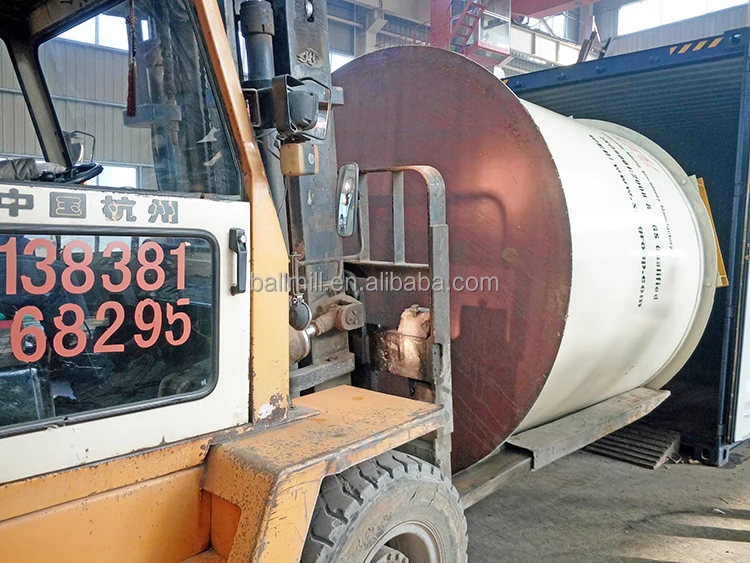

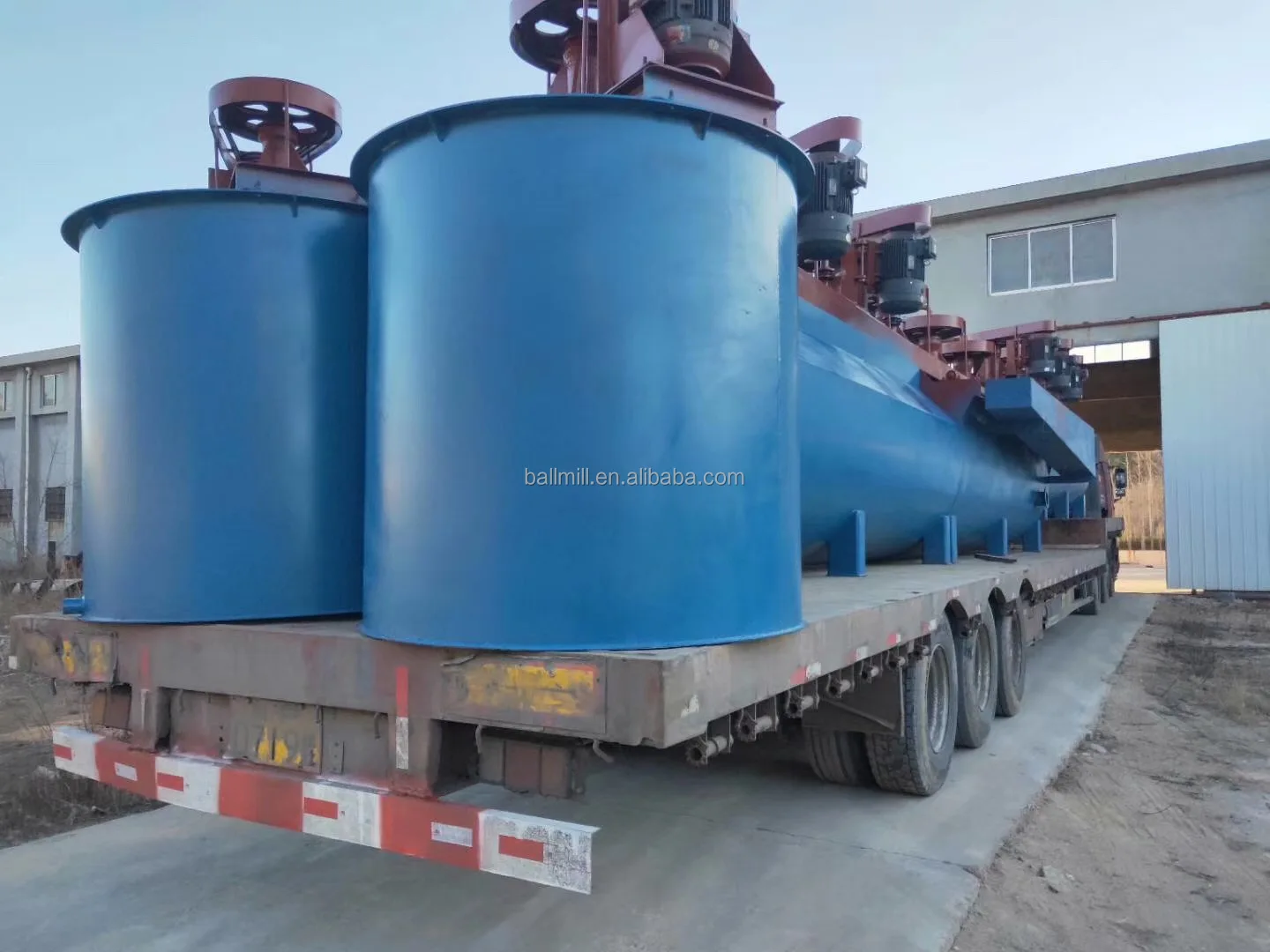

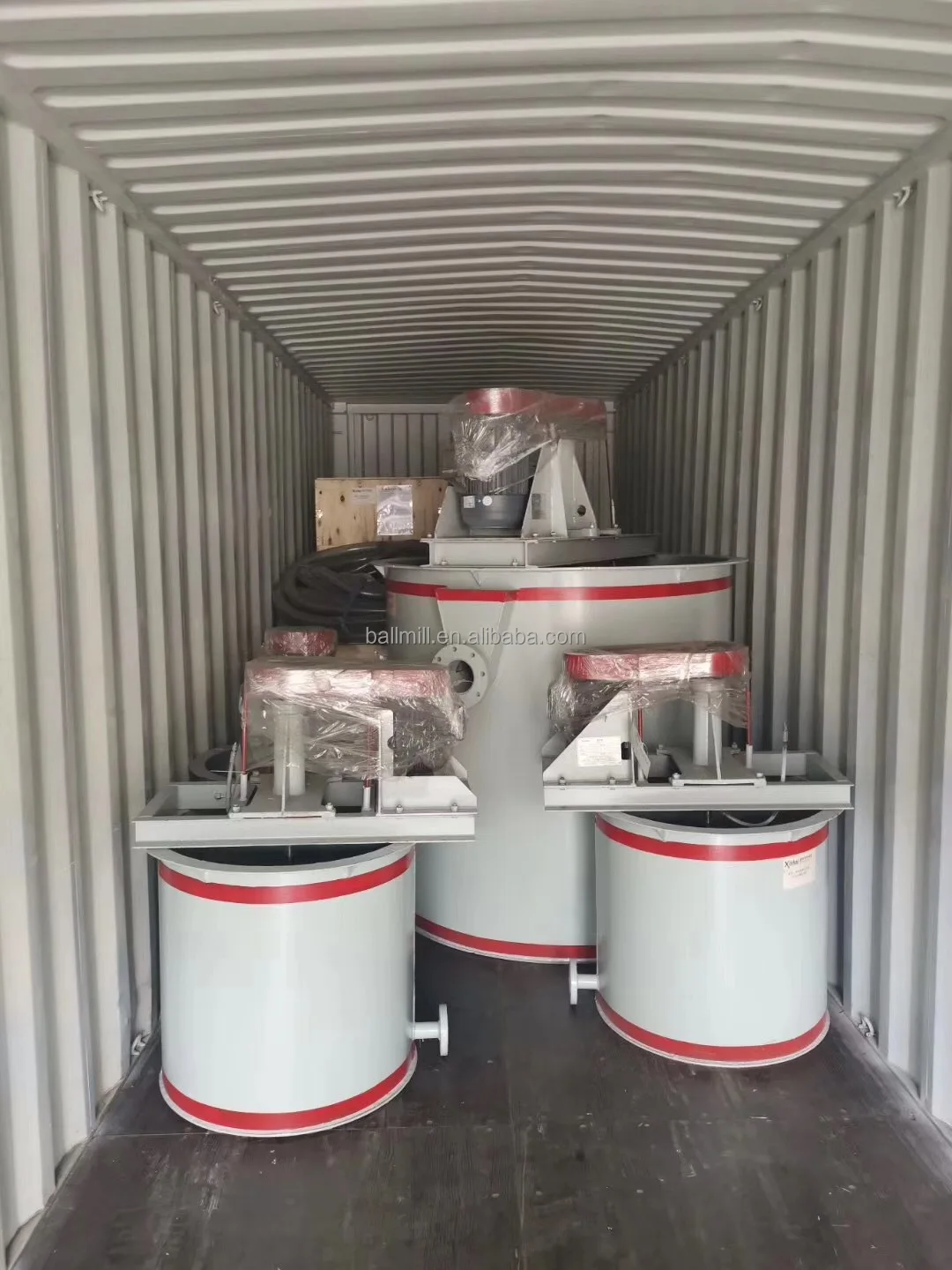

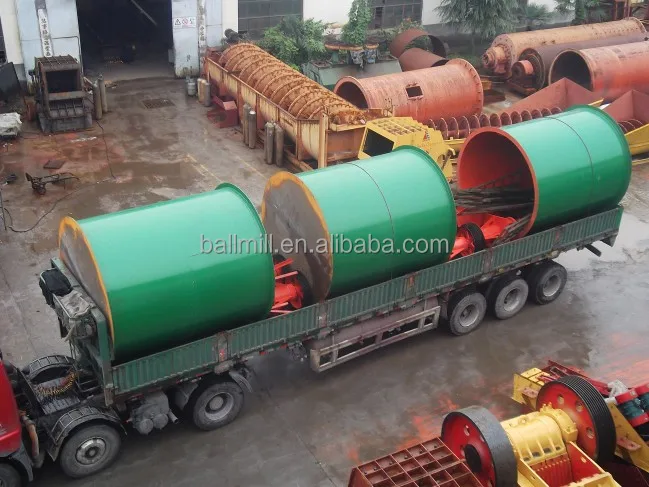

| Delivery Site of Hot Sale In Africa agitator tank For Gold Beneficiation |

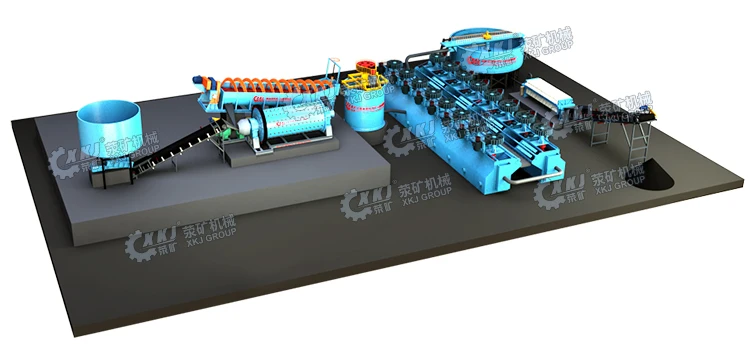

| Working site of Hot Sale In Africa double impeller leaching agitator tank For Gold Beneficiation |
| FAQ |
| 1.How about your products' Quality? |
All The products from XKJ company have passed the test before delivery. we produce it in accordance with the requirement of contract or Chinese national standard. Every equipment has own Quality record tracing card. |
2.How about your products' price? |
| We have manufactured the mineral processing products for more than 20 years. we think the quality counts for more than price, and moreover we can offer the lowest price with same quality. |
| 3.Do you provide beneficiation flow chart? |
| Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, etc. |
| 3.How about your products' service ? |
| Our experienced engineer will be available all hours. The warranty period is 12 months long since installation, It can be extended to 24 months if customers ask. |

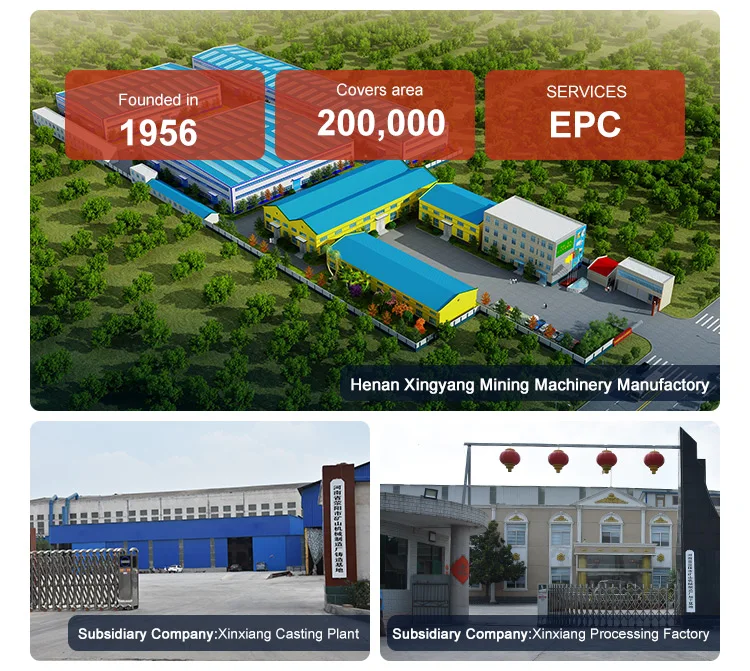

Company Information
Zhengzhou xingyang mining machinery co., LTD has created a legend in mining machinery industry from establishment, development, growth step into the international market competition, while our culture is the main motivation for our people to make great progress.
Our company acts as the parent company and we have branches like Mineral Processing Heavy Equipment, Crushing And Grinding Equipment, Agricultural Machinery, Tibet Company. Also we have offices in Shanxi, Yunnan, Sichuan, Qinghai, and Henan Nanyang City. Our products have export to Middle Asia, the Middle East, Southeast Asia, South Africa, Europe, South America etc. We are stepping into mineral processing, metallurgy, chemical industry, electricity power and environment protecting. Our people insist the operation principle of "Quality first, Service first". We enjoy a good reputation in home and abroad, especially for the crushing equipment, magnesium metal equipment, and mineral beneficiation plant.
Customers' visit
The certificates
Contact Us
Send Message or Chat Now for Latest price!!!
Tips: please show me your material and capacity to become our quality clients which will have 5%-10% discount
please tell me the following questions, so we can send you accurate quotation with additional discount:
♥ What is the raw materials you will process
♥ What is capacity you want tons per hour? such as 2TPH, 10TPH, 20TPH.
♥ Your email address or phone number
Now, leave a message and we'll contact you right away !!!
↓↓↓↓
