Product Description

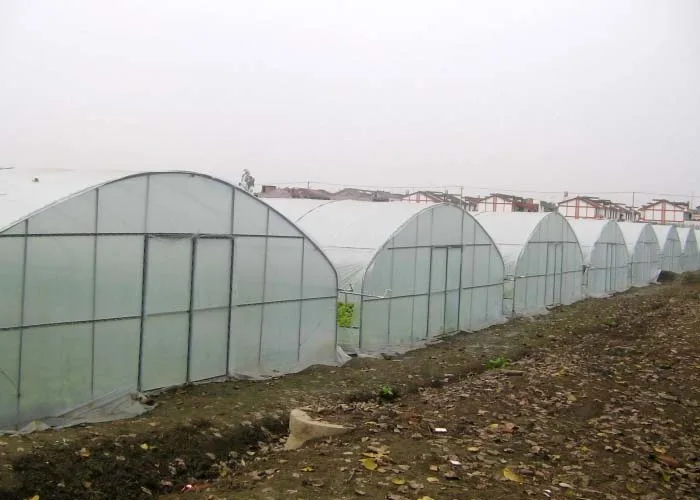

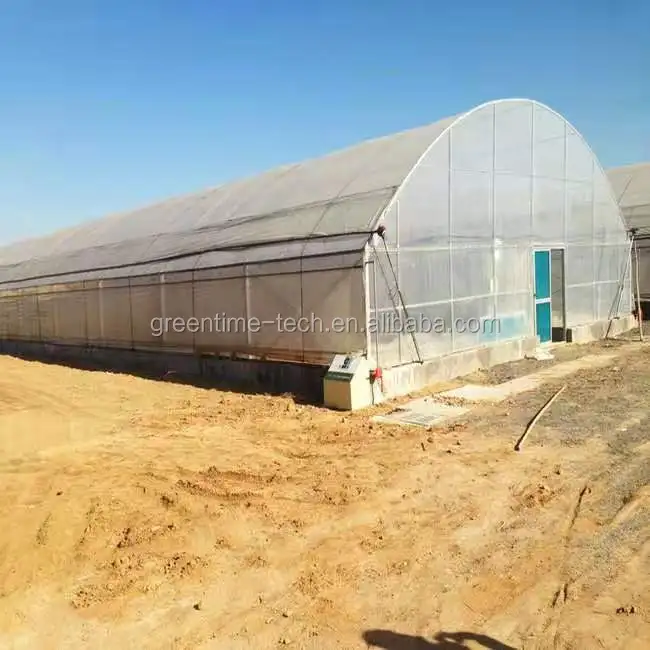

The tunnel greenhouse is also called cold greenhouse or bread greenhouse. The top is arc and convenient to build and dismantle. The investment is small and be suitable to many regions. In the slight cooler areas, the property of tunnel greenhouse is a little lower comparing to the normal winter-warm greenhouse, so the second or third layer of film should be equipped inner it to improve the temperature in the night.
Product Paramenters
All the parameter can be changed to meet your requirements.

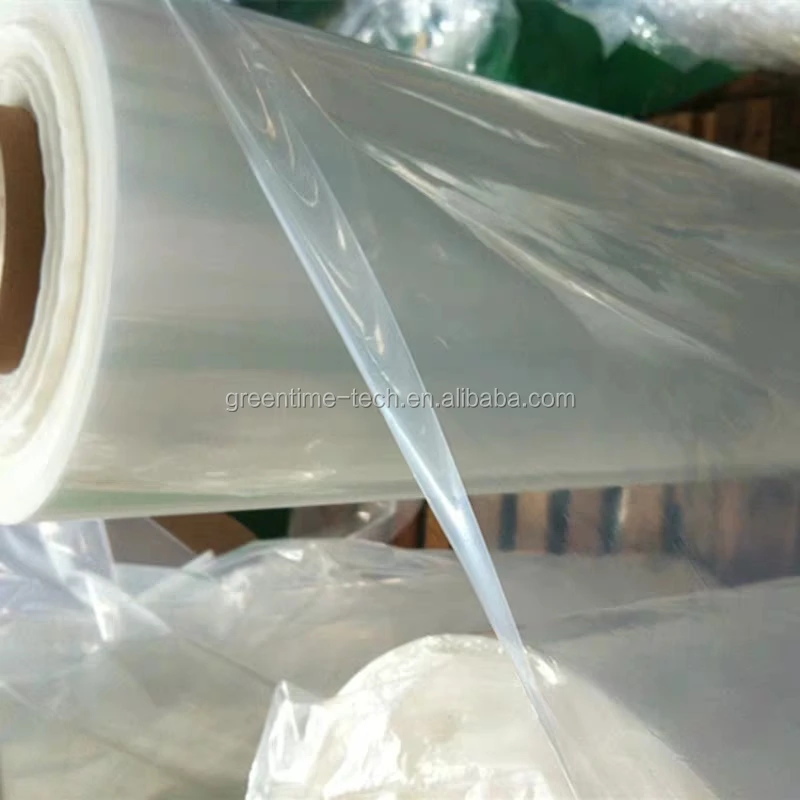

Covering material:longevity dripless film
Film thickness:0.10mm,0.12mm,
Film thickness:0.10mm,0.12mm,
0.15mm,0.18mm,0.20mm for option
Structure formation: Arc shape
span: 6m-15m
Top height: 3m-4.5m
Structure formation: Arc shape
span: 6m-15m
Top height: 3m-4.5m
The roof material should be 0.15mm PO film or crystal film of which the outer layer could be anti-UV and the inner layer could be
anti-condensation. The film around could be PO film or crystal film of 0. 15mm.
anti-condensation. The film around could be PO film or crystal film of 0. 15mm.

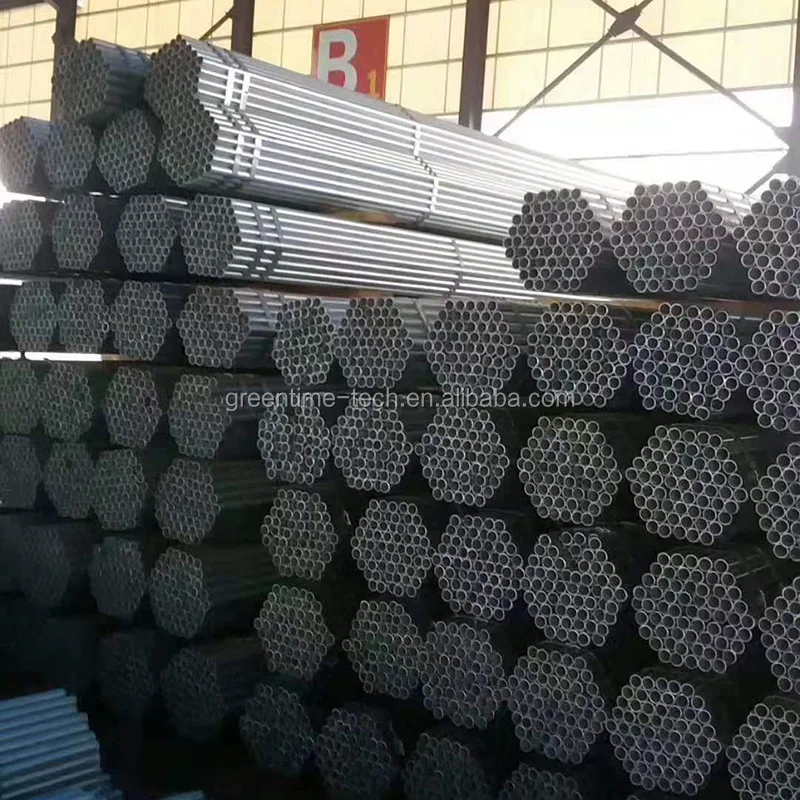

Its main structure is hot-galvanizing pipes connected by hot-galvanizing bolts, which made it has a good performance in corrosion
proof.
proof.
Complementary Equipment:
Greenhouse ventilation system is divided into two kinds, natural and forced ventilation. Film greenhouse use the method of rolling
film on both sides to ventilate. Forced ventilation is achieved through installing blowers. In general, we install the cooling
system of fans and cooling pad.
film on both sides to ventilate. Forced ventilation is achieved through installing blowers. In general, we install the cooling
system of fans and cooling pad.

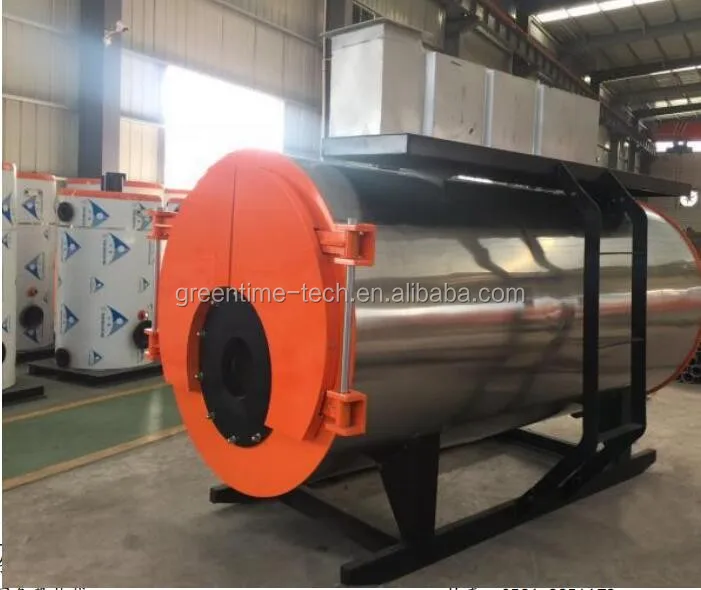

Heating System of Greenhouse refers to a set of suitable heating facilities chosen to meet the heating demands, consisting of
heating source,heat-radiating facilities, heat-transmitting facilities. The main accessories include, transmission pipeline,
circulating water, radiator and sorts of controlling or regulating valves, etc.
heating source,heat-radiating facilities, heat-transmitting facilities. The main accessories include, transmission pipeline,
circulating water, radiator and sorts of controlling or regulating valves, etc.

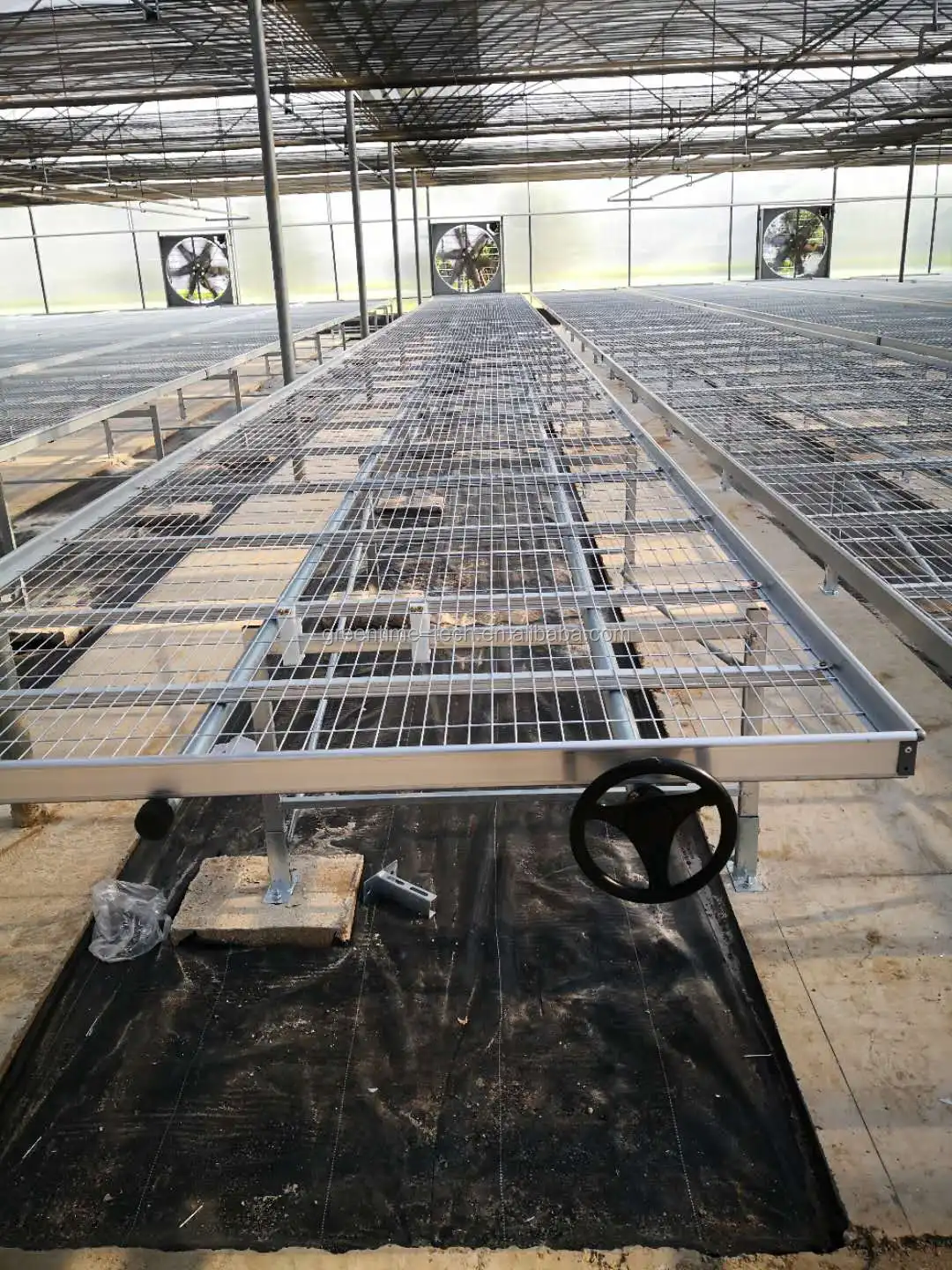

Seedbed system
Seedbed system of greenhouse includes fixed seedbed and mobile seedbed. The fixed seedbed is single-layer, angle steel as the
support, steel-wire mesh set on the surface. The support of mobile seedbed is made by galvanized steel tubes, outline of the
seedbed aluminum-alloy material. The surface of the mesh applies the anti-corrosive treatment by the cladding layer. Height of it
can be slightly adjusted, and it is equipped with the anti-overturn device and location-limiting device. The width of the working
passage, 0.8m, can be created. The seedbed system can promote the utilization rate effectively of the greenhouse, usually up to
about 85%
support, steel-wire mesh set on the surface. The support of mobile seedbed is made by galvanized steel tubes, outline of the
seedbed aluminum-alloy material. The surface of the mesh applies the anti-corrosive treatment by the cladding layer. Height of it
can be slightly adjusted, and it is equipped with the anti-overturn device and location-limiting device. The width of the working
passage, 0.8m, can be created. The seedbed system can promote the utilization rate effectively of the greenhouse, usually up to
about 85%

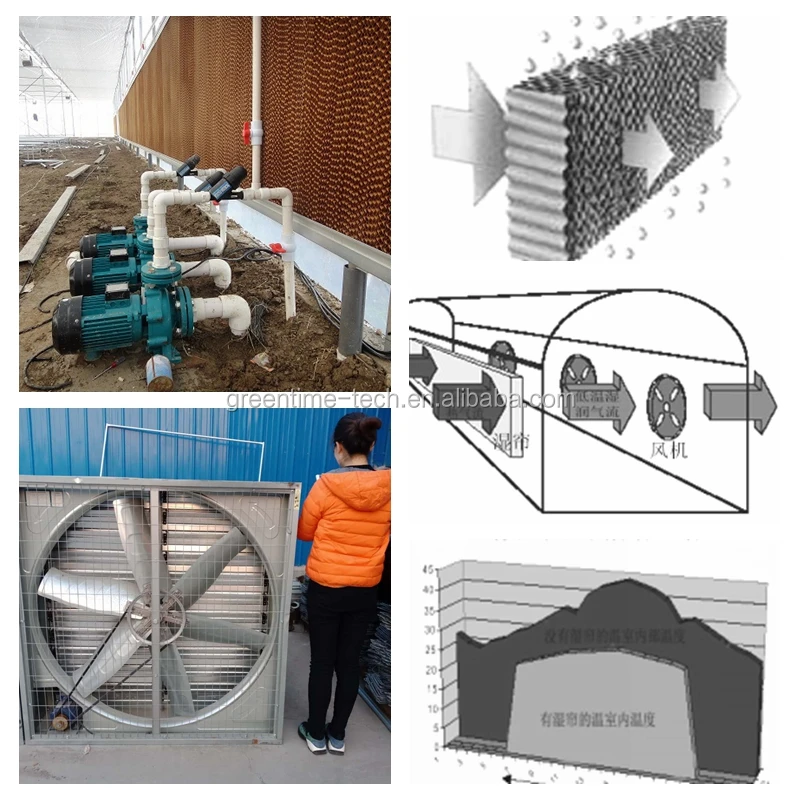

Automation / Wet curtain fan1)The cooling pads are installed on one side of the green house. 2)The exhaust fans eject the air from
the greenhouse negative pressure formed in the greenhouse. 3)The air enters the greenhouse through the cooling pads, resulting in
the effects of cooling, moistening.
the greenhouse negative pressure formed in the greenhouse. 3)The air enters the greenhouse through the cooling pads, resulting in
the effects of cooling, moistening.

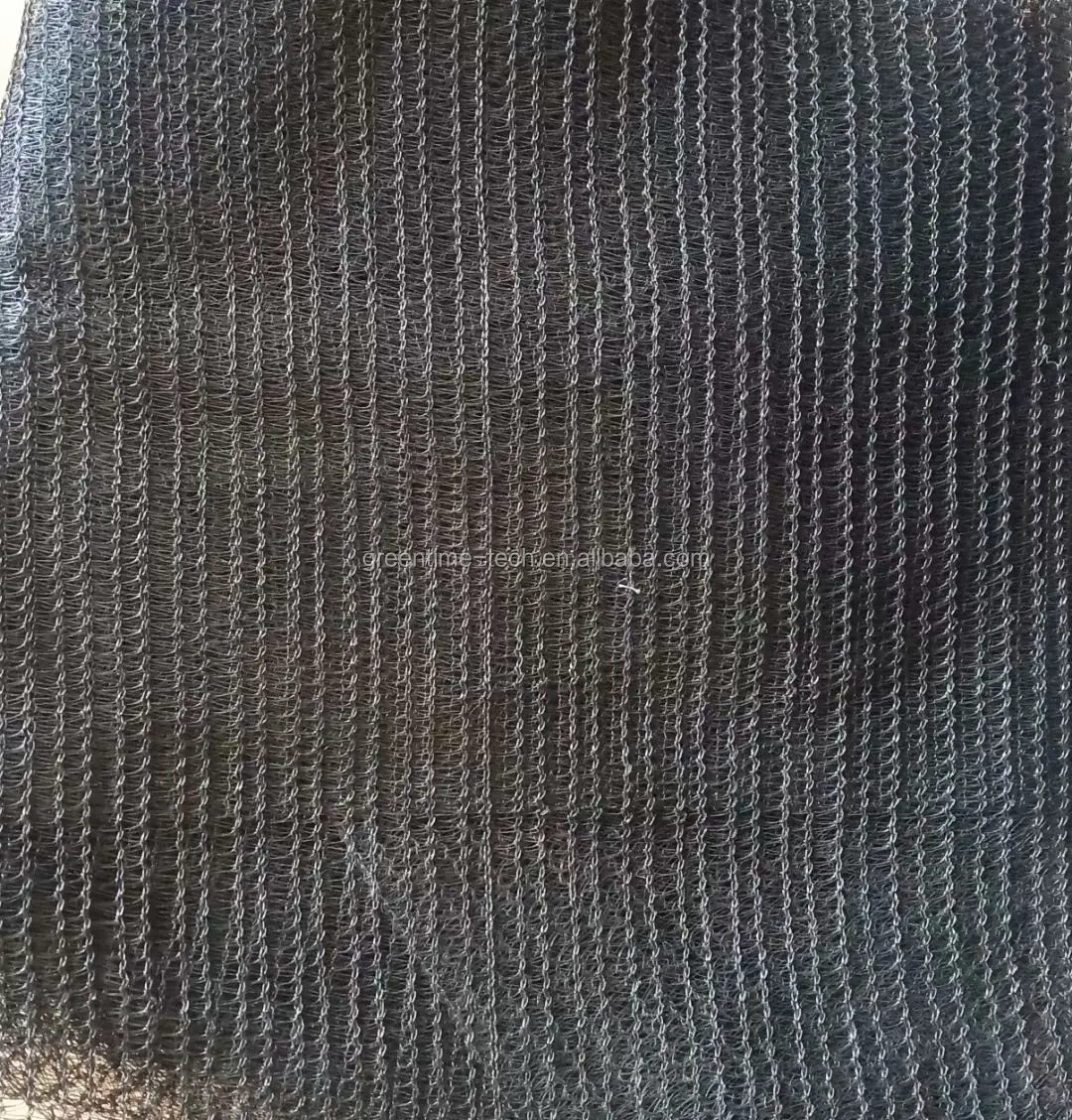

Outside Shading System
Outside Shading System is fixed of greenhouse, supported by the uprights and beams. Outside shading net is made by black and
round-wire materials and fastened by black polyester strings
round-wire materials and fastened by black polyester strings

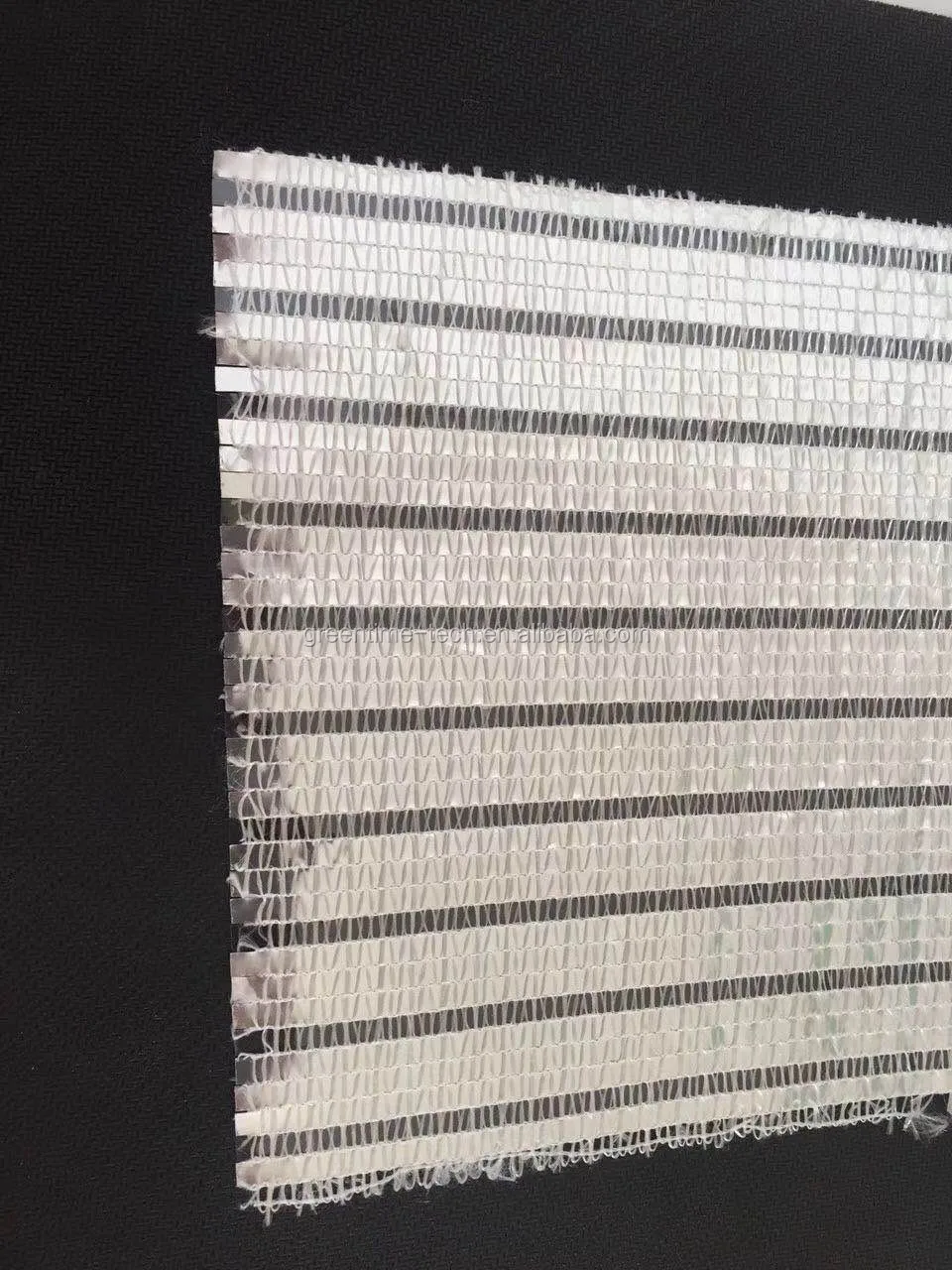

Inside Shading System is installed in the greenhouse, fixed on the truss and with the frame of greenhouse. Inside shading net is
made by white aluminum-alloy materials, fastened by white polyester strings.
made by white aluminum-alloy materials, fastened by white polyester strings.
Advantages
1 | Have factory in Shouguang |
2 | Experienced engineers and workers |
3 | Fast Delivery Time |
4 | Best Quality & Service |
5 | Modern product technology |
6 | High Quality Raw Material |
7 | The operation in it is convenient to mechanized farming |

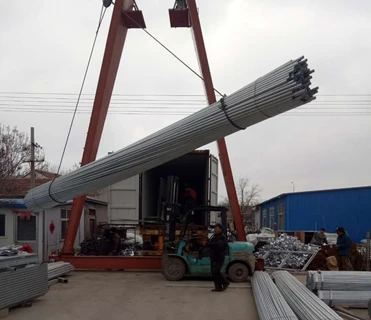

Product packaging

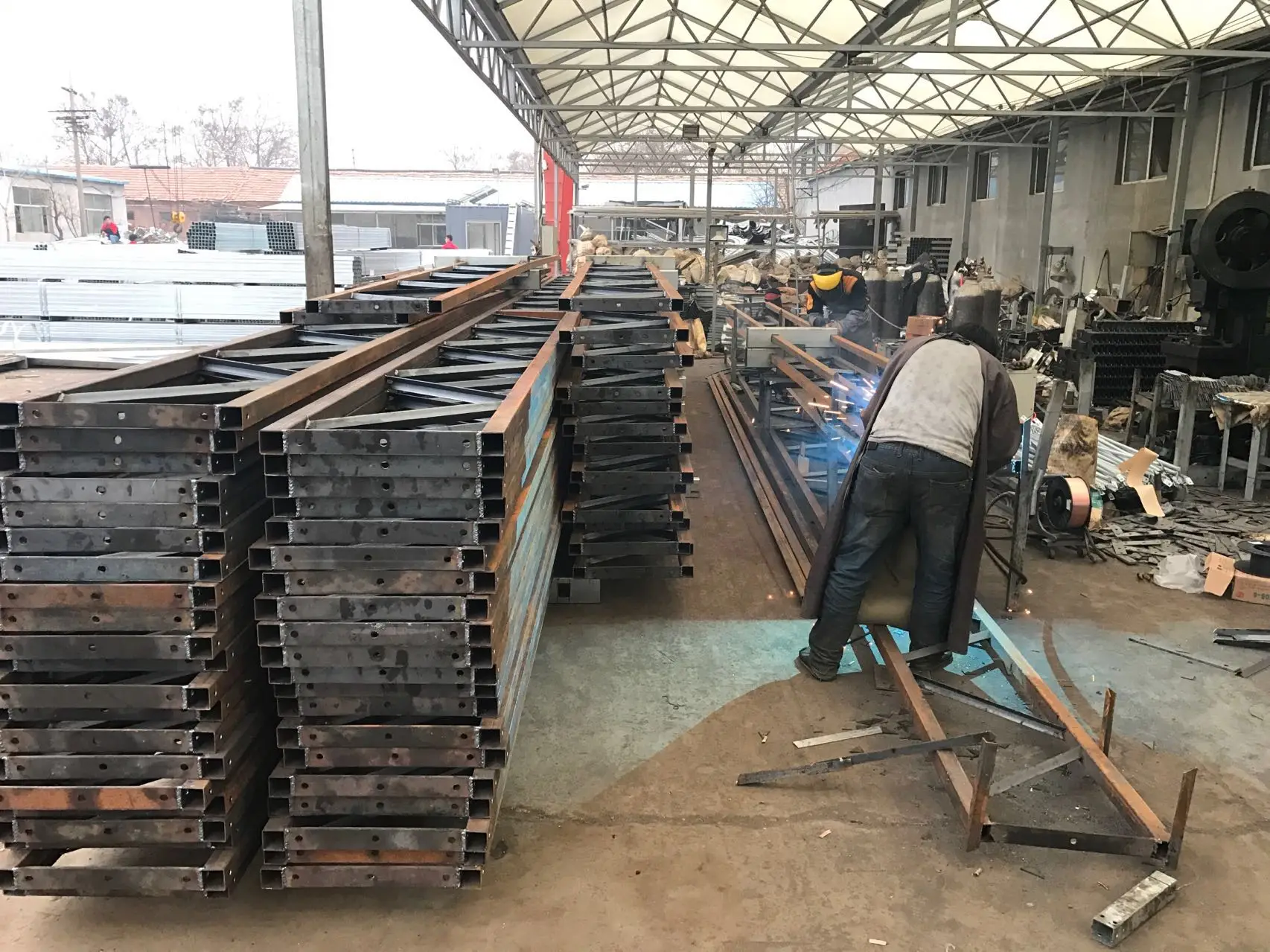

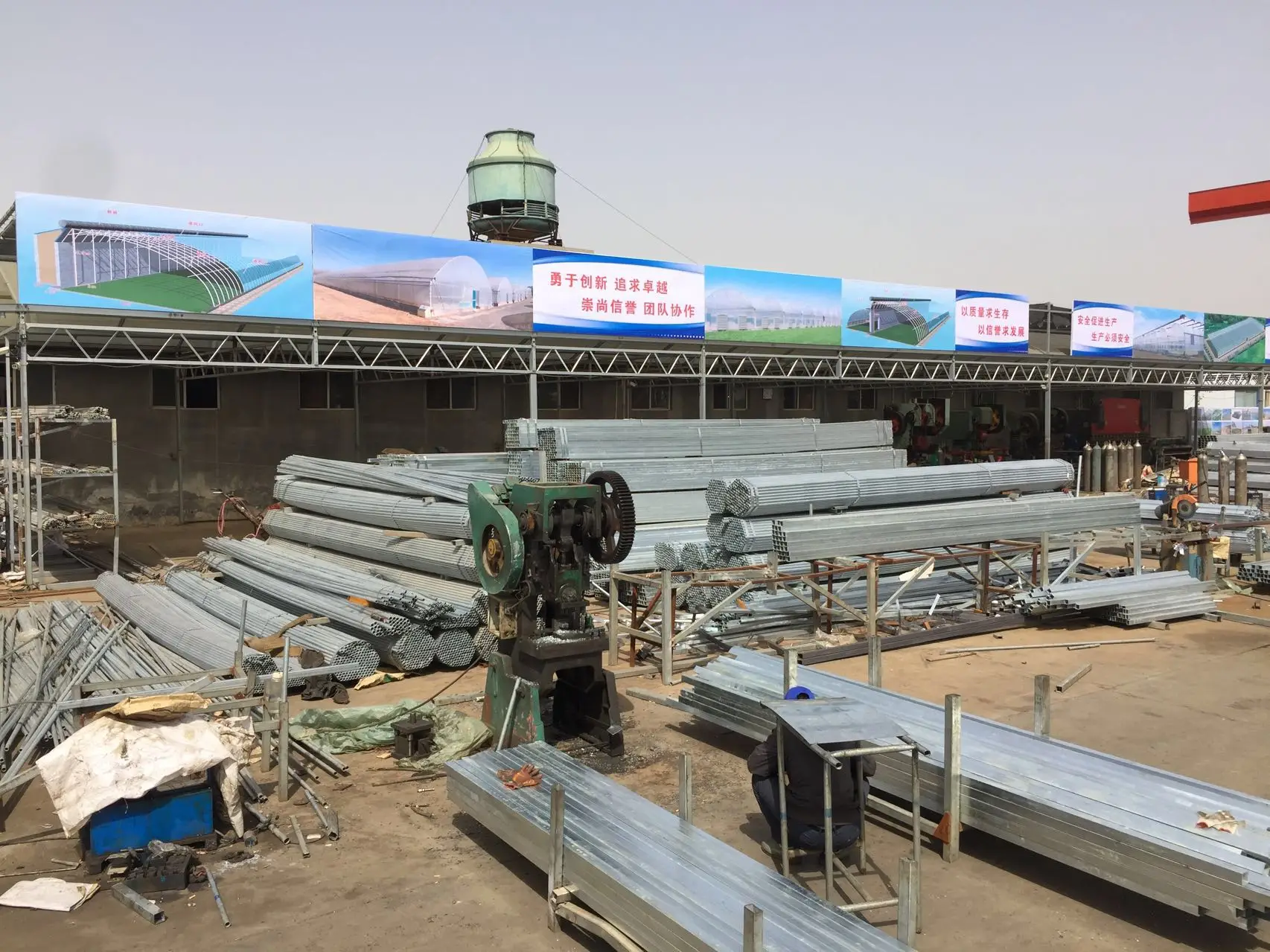

Our Factory
Company introduction
Located to the eastern side of Shouguang Vegetable High Technology Demonstration Park, Shouguang Taiyuan is a company specialized in the design and construction of the greenhouse with a registered capital of RMB3000,000. We have our own base of demonstration and production lines of skeleton for the greenhouse.
Company introduction
Our company can supply the one-stop including the choosing location design, whole construction, suppling of agriculture material, germchit, vegetable planting technology and vegetable sales. In the cooperation with the government , we constructed more than 120 bases of vegetable greenhouse and modern nursery plant of high standard in ShanXi, Jiangsu, Hebei, Neimenggu, Gansu, Xinjiang and Ningxia province.
FAQ
1.How can I get the price?
Within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2.How to assembly the hot-galvanizing steel pipes for greenhouse when you have already buy?
Each hot-galvanizing steel pipes are same ,but please take careful to looking at each step and be sure each step is correct.
3.When installing, what cost should we pay?
Our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication
4.Do you have warranty of your products?
Yes. Different products supply different years warranty. For example, usually the electric machine guarantee 1 year, the steel structure 5years, glass 1 year, sunshade net 2-3 years, etc
5.Do you offer customized greenhouse?
Of course.As long as you offer details of local climate and requirements of the greenhouse you want ,we will offer free design program and quotation to you.
