Линейные шарикоподшипники серии LBBR Линейный шарикоподшипник 30-2LS

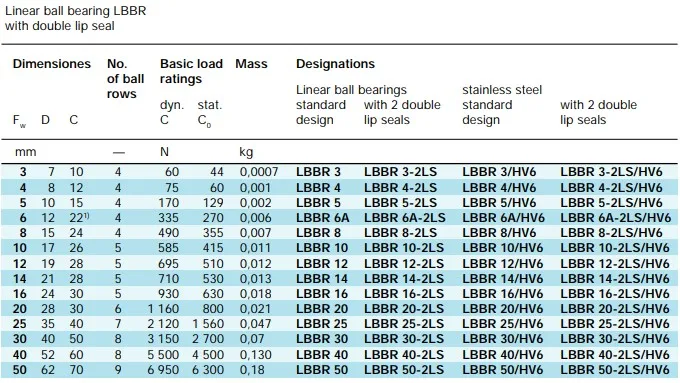

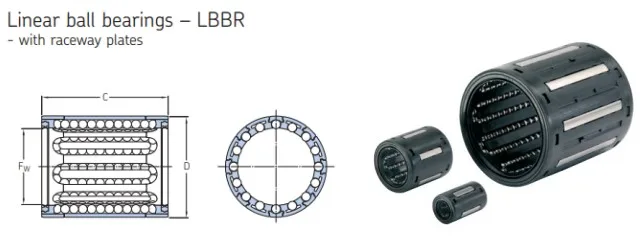

LBBR30-2LS LBBR Linear bushing bearing is of a patented design. The bearing comprises a plastic cage carrying hard- ened steel raceway segments and guiding the ball sets. The bearing conforms to dimension series 1 of ISO 10285. The LBBR raceway segments have been designed to maximise the length of the load carrying zone. A high load bearing capacity is therefore possible with a resulting long service life. The design of the plastic cage is entirely new and has been optimised.

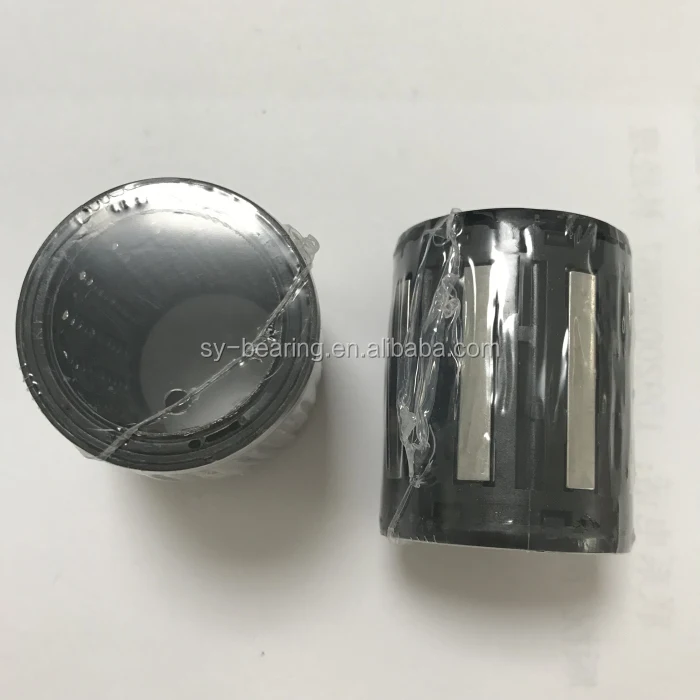

Linear Ball Bearings LBBR series Linear ball Bearing LBBR 30-2LS LBBR30 2LS photos reference :

Bearing packages :

1) Inner Plastic Bag+ Paper Box + Carton(+Pallet);

2) Small sizes:Plastic Tube + Carton

3) Big sizes:Wooden Case

Widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.

a. Auto wheel hub, Auto engine, Auto axle

b. Agricultural machinery, Rotary plow bearings, Tractor, Water pump, Oil engine harvester, Seeder, Tricycle, Farm vehicle, Cultivator

c.Engineering machinery, Excavator, Dozer, Paver, Loader, Hoisting machinery, Piling soil machinery

d. Steel mill machinery, Oil field machinery, Motorship machinery

e. Hardware tool, Electric power tool, Household appliance industry

f. Electronic toys, Fitness equipment, Building machinery

g. Series Of Pumps, Antiseptic Pump, Water pump, Submersible pump, Sewage pump
