Малые производственные машины производственная линия салфеток
- Категории: Оборудование для производства бумаги >>>
- Поставщик: Henan,Fuyuan,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
High Speed Paper Making Machine Napkin Paper Machine
Our service
Pre-sales Service
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
After-sales Service
1.Highly inspecting machine in every working procedure, quality comes first;
2. Fast Safe Delivery;
3. Assisting our clients for foundation construction of machine;
4. Dispatching engineers to install and debug machine ;
5.Training the first-line operators one site;
Product Description
Napkin paper making machine is used to making napkin paper by embossing,printing ,folding .And the embossing and printing style can be customized,the printing color can be 1 or 2 color (optioned).Variable choices will be provided to you ,we are confident that our product will meet all of your requirements.
Main feature:
1)PLC control,easy operation
2) With embossing roller, picture can customized
3) Perforating function, paper can cut easy
4) Paper core can load automatic
5) Jumbo roll load by pneumatic
1)PLC control,easy operation
2) With embossing roller, picture can customized
3) Perforating function, paper can cut easy
4) Paper core can load automatic
5) Jumbo roll load by pneumatic

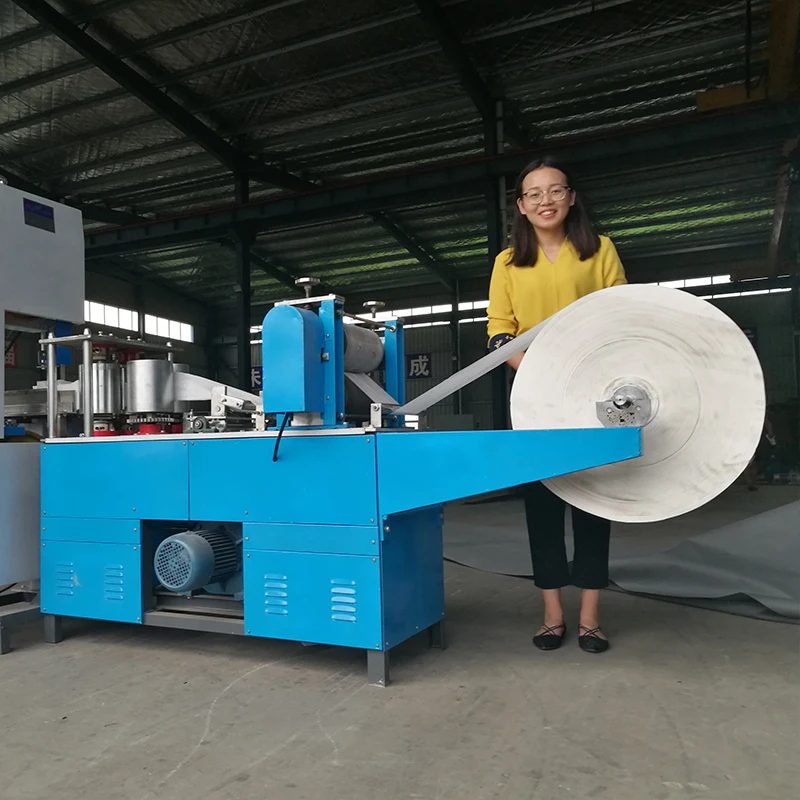

Napkin machine
The high-speed napkin machine is used for embossing, folding, electronic counting, cutting and processing into a square napkin.The production process is automatically embossed and folded without manual folding. The pattern of the napkin can be made according to the needs of users. Different clear and beautiful patterns.Technical Parameters
Machine Model | FY 180-500 |
Finished Size(mm) | 180mm*180mm-460mm*460mm |
Paper Size(mm) | ≤φ1300mm |
Paper Core Inner Dia | φ75mm Standard(Other Size are Available) |
Embossing Roller End | Cots,Wool Roll,Steel to Steel |
Counting System | Electronic Counting |
Power | 4-8kw |
Dimensions | 3200mm*1000mm*1800mm |
Weight | 1000kg-3500kg |
Speed | 0-900sheets/minute |
Optional Items | Automatic Paper Feeding,Synchronous Conveying and Printing |
Use of Power | Frequency Control,Electromagnetic Speed |
Production process

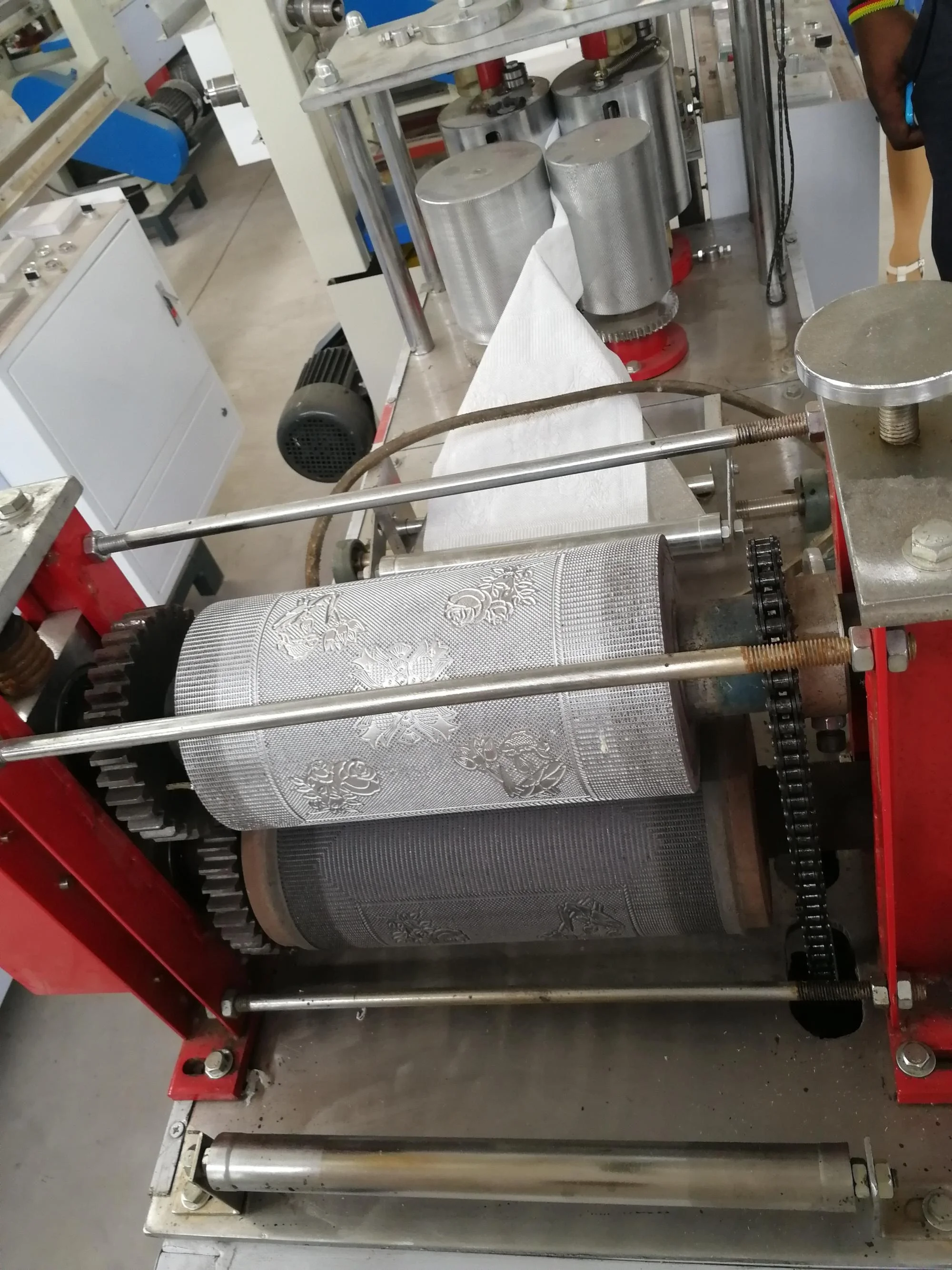

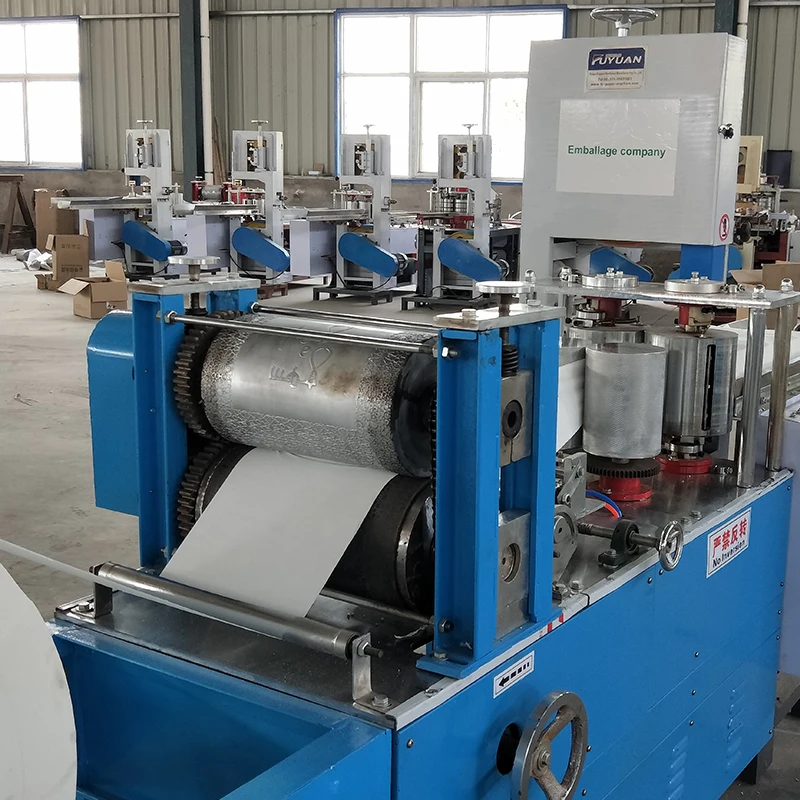

1. EMBOSSING UNIT
The embossing roller is steel to wool roller ,high plasticity and abrasion resistance ,good surface elasticity to achieve a good embossing effect.
The embossing roller is steel to wool roller ,high plasticity and abrasion resistance ,good surface elasticity to achieve a good embossing effect.
2..FOLDING UNIT
The folding type can be N,M,V folding .Customers usually choose the v folding (1/4 folding ).Different Folding type can be achieved by changing the folding plate .
The folding type can be N,M,V folding .Customers usually choose the v folding (1/4 folding ).Different Folding type can be achieved by changing the folding plate .
3.PRINTING UNIT
Customers can choose 1 or 2 color printing ,the printing method is rubber placte printing .the Rubber plate mold has a low product cost .The printing process is finished by the rubber plate after accross the pigment tank .It can be used to printing company logo or advertisment on the napkin.
Customers can choose 1 or 2 color printing ,the printing method is rubber placte printing .the Rubber plate mold has a low product cost .The printing process is finished by the rubber plate after accross the pigment tank .It can be used to printing company logo or advertisment on the napkin.

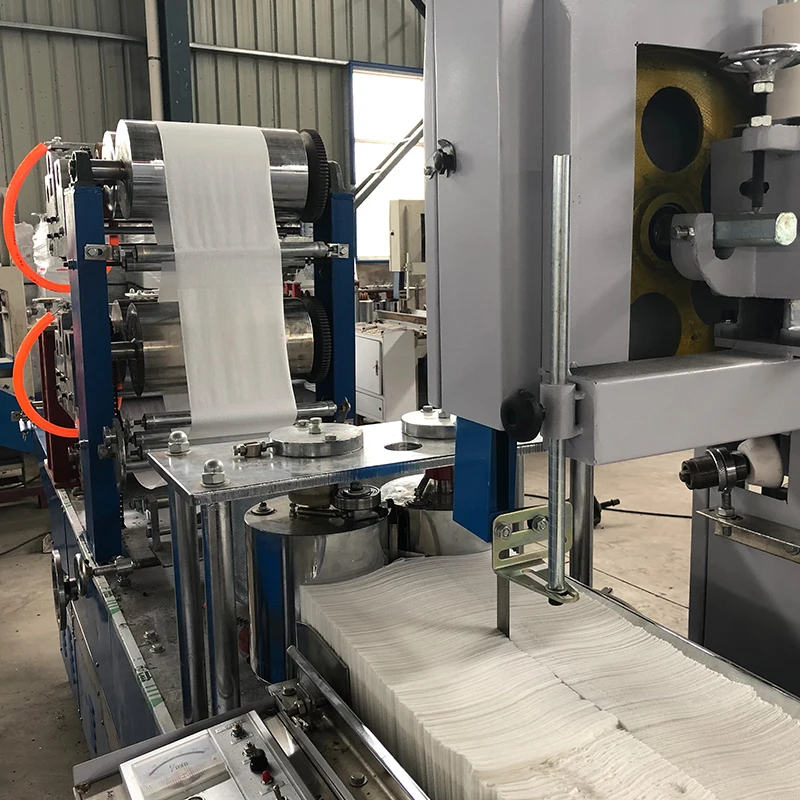

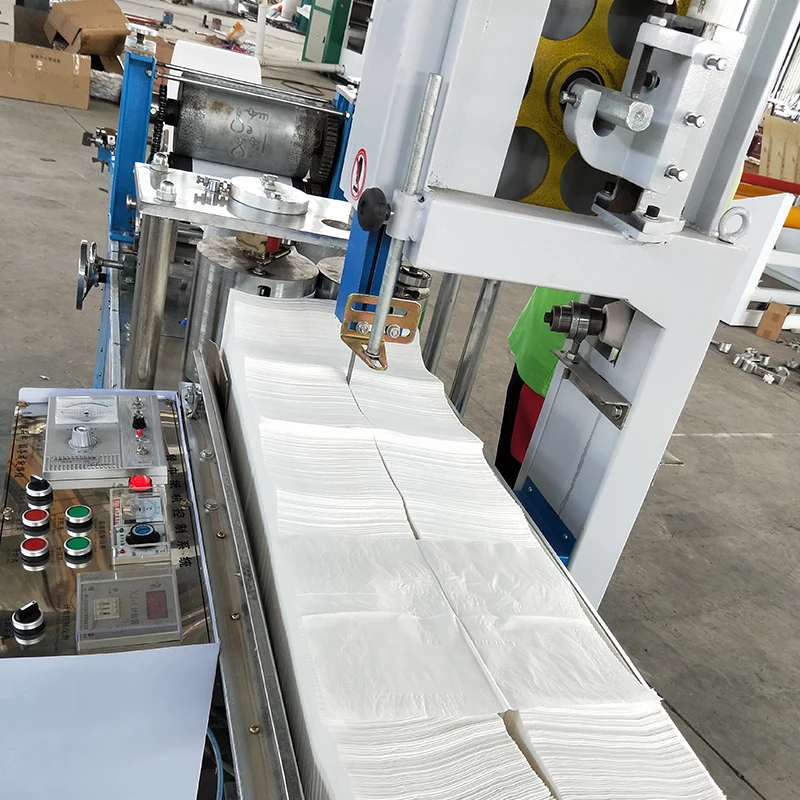

4.CUTTING UNIT
Cutting process is finished by the band saw blade driven by independent motor.As per request ,auto counting and outputting in alignment can be materiallized.
Cutting process is finished by the band saw blade driven by independent motor.As per request ,auto counting and outputting in alignment can be materiallized.
Recommend Products
FAQ
Remarks Before Buying :
1.What is your unfolding size of the napkin?
2.Do you need embossing or printing (one color or two color)?
3.Could you please kindly tell me your normal voltage in your country ?industry voltage or daily voltage ?
Remarks on Buying :
1.The printing style can be customized ,but one machine can make just one style napkin.If you need to change the printing style
,you need to change the rubber plater on the printing unit.
2.The embossing roller is steel to wool roller ,the wool roller will be pre-pressed with the steel roller.if you change the
embossing style ,you need to change all set of the steel roller and wool roller ,because the embossing on the wool roller is
uncoverable and it has big influence on the embossing effects.
3.If the voltage in your country is not stable ,you may need a voltage stabilizer.(prepared by client)
Remarks after Buying :
1.Our machine is including one year warranty except for the wearable parts,and we will provide long term 24 hours technical
support online.
2.Please kindly us all your special requirement about the machine advancely , the normal language on the operation plate is
english.Other language ,we can translate for you .
1.What is your unfolding size of the napkin?
2.Do you need embossing or printing (one color or two color)?
3.Could you please kindly tell me your normal voltage in your country ?industry voltage or daily voltage ?
Remarks on Buying :
1.The printing style can be customized ,but one machine can make just one style napkin.If you need to change the printing style
,you need to change the rubber plater on the printing unit.
2.The embossing roller is steel to wool roller ,the wool roller will be pre-pressed with the steel roller.if you change the
embossing style ,you need to change all set of the steel roller and wool roller ,because the embossing on the wool roller is
uncoverable and it has big influence on the embossing effects.
3.If the voltage in your country is not stable ,you may need a voltage stabilizer.(prepared by client)
Remarks after Buying :
1.Our machine is including one year warranty except for the wearable parts,and we will provide long term 24 hours technical
support online.
2.Please kindly us all your special requirement about the machine advancely , the normal language on the operation plate is
english.Other language ,we can translate for you .

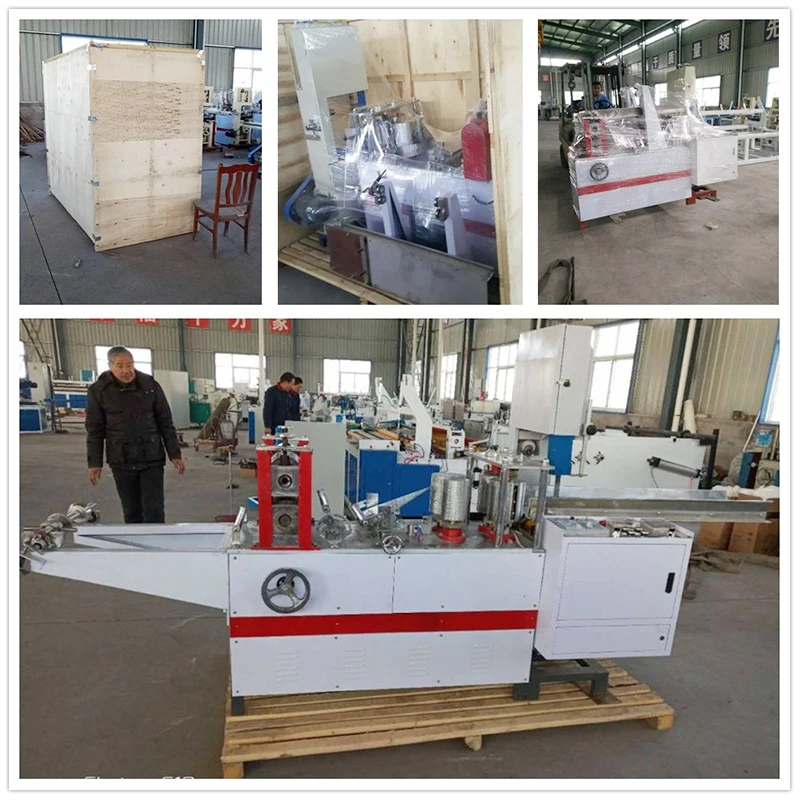

Product packaging
Company profile
Henan Fuyuan Machinery Manufacturing Co., Ltd located in Zhengzhou City,Henan Province.Our factory is founded in 1984 with rich experience in paper making machine and egg tray making machinery. Our main products include: pulping machine,toilet paper machine,cultural paper making machine,Kraft paper machine,corrugated medium paper machine,different capacity egg tray making production line and other grouped equipment. After 34 years of development, our company has developed into a large enterprise
integrating scientific research, production and trading,our factory covers an area more than 33,000 square meters, construction area more than 16,000 square meters, existing staff more than 200 workers, including 5 senior engineers, 22 engineers, and more than 38 technical staff. We are committed to provide customers with a complete solution for paper making project and paper egg tray making production line,welcome the friends to visit us over the world.
integrating scientific research, production and trading,our factory covers an area more than 33,000 square meters, construction area more than 16,000 square meters, existing staff more than 200 workers, including 5 senior engineers, 22 engineers, and more than 38 technical staff. We are committed to provide customers with a complete solution for paper making project and paper egg tray making production line,welcome the friends to visit us over the world.
