Модель Mdg L-образный Электрический подъемник однобалочный козловой кран с

Product description:

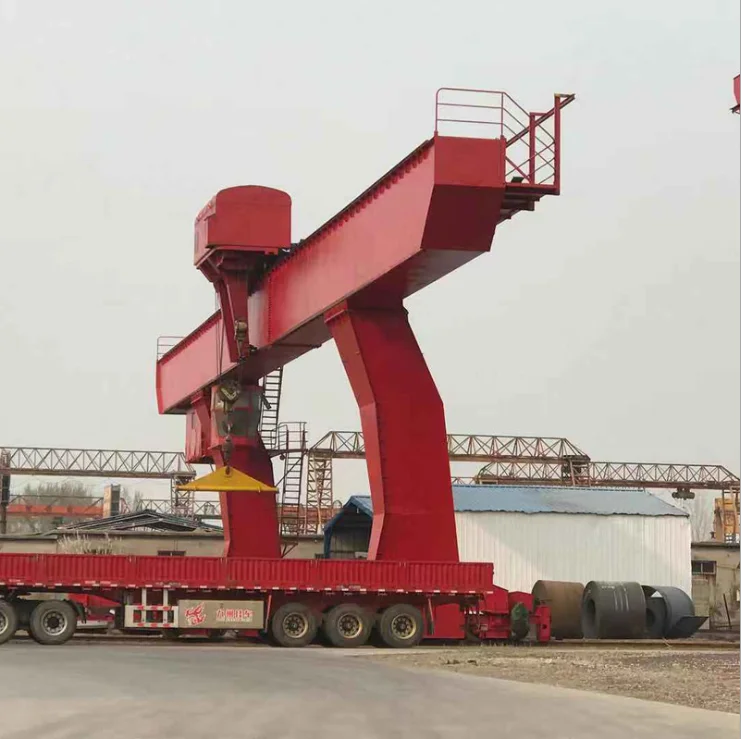

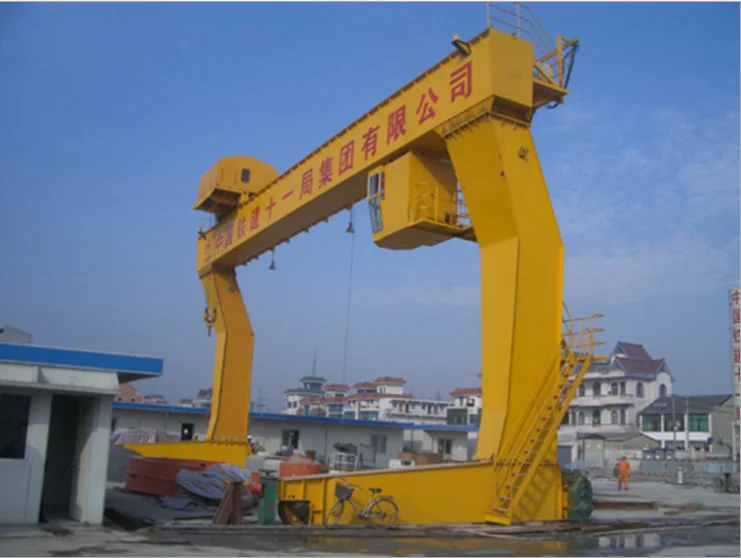

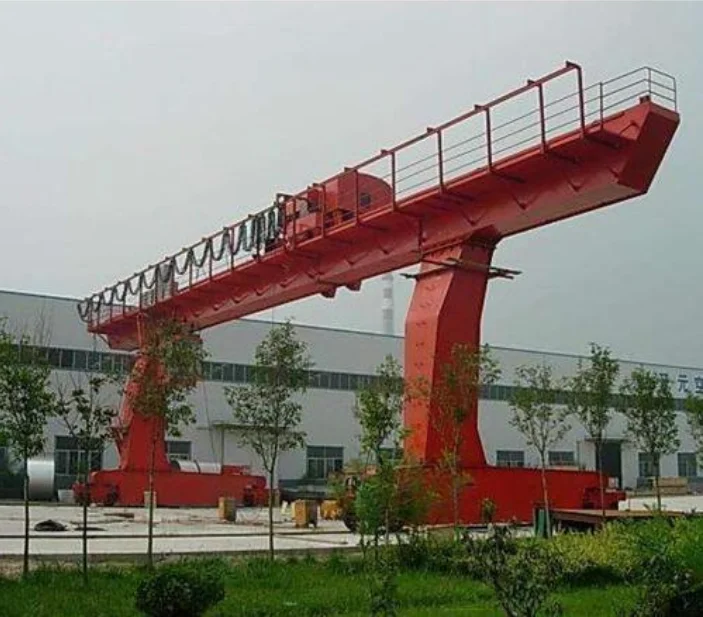

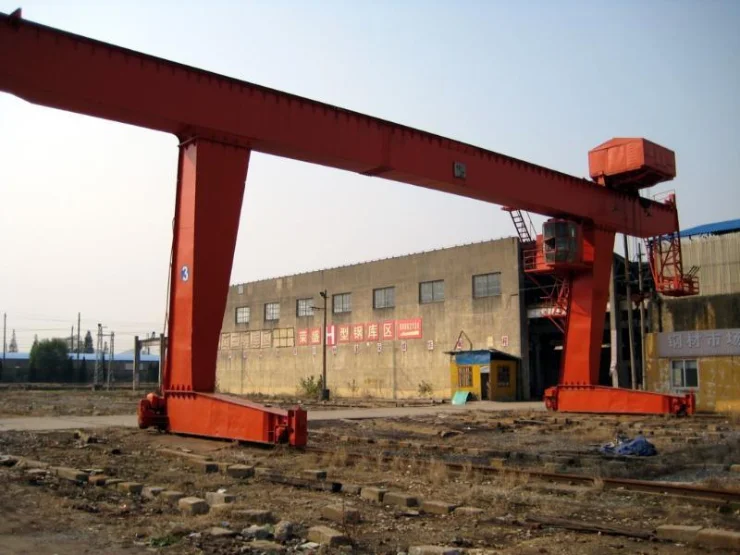

1. L single main beam hook hoist gantry/door crane is mainly composed of gantry, crane crab, and trolley traveling mechanism, cab and electric control system.
2. The gantry is of a box-shape structure. The crab adopts vertical reaction wheel when the lifting load is below 20t, and horizontal reaction wheel when above 20t to run at the girder side.
3. The girder is of single-girder bias track and the leg is L-shaped, so that the lifting space is large and the spanning ability is strong, making it easy to covey articles from the span to under the jib.
4.The closed cab is employed for operation, where there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air conditioner, acoustic alarm and interphone which can be furnished as required by users.

 Product parameters:

 Features of L type Single Girder Gantry Crane:

1. Box type girder, L type legs with weld structure, Increasing he work space, and convenient for installation and maintenance;

2. Trolley power supply adopts profiled rails, safety slide line and the cable conductive device system;

3. Components standardization, seriation and generalization;

4. Crane power supply can be from cable reel (left and right) and sliding line( left and right);

5. Good operation vision of cab, equipped the internal linkage control console, flexible and comfortable operation, install of fan, heater, cooler, air-conditions and intercom  according to the customers' requirements;

6. Customized according to the users' needs of working environment, types of power source and the other technical requirements. Also design and manufacture span according to users' requirements.

Gantry Crane Classification:

Single Girder Gantry Crane

* Lifting capacity is 5 to 20 ton.

* Span is 12 to 30 meters

* Lifting height is 6 to 12m

* Appication: used at open or room ground and warehouses, yards etc.

Double Girder Gantry Crane

* Lifting capacity is up to 500ton.

* Span is 12m to 35m.

* Lifting height up to 12m.

* Applied large outside workshop warehouse or railway, road, subway building, etc.

Semi Gantry Crane

* Lifting capacity: 2 to 10 tons

* Span: 10~20m

* Lifting height is 6 to 12m

* Application: it could be used in outdoor or indoor warehouse for loading and unloading

(Single Girder) L type Gantry Crane

* Loading capacity is from 5 to 32t

* Span is from 12 to 30m

* Application: used in outdoor warehouse for loading and unloading

 Contact us:

Zhongye cranegreat (Henan) Co., Ltd. is located in Changyuan City, Henan Province, which is the crane manufacturing base of the People's Republic of China. The base is the largest in the lifting industry, with the highest concentration and the most complete chain. Crane manufacturing center. Zhongye Company specializes in the import and export of lifting equipment and accessories. As the earliest enterprise to enter this field, Zhongye Company has more than 20 years of industry experience and is a team with comprehensive technology and services and united and enterprising.

 Gantry crane ordering instructions
About the product: Please tell us the following data so that we can confirm your needs faster!
                          1. Lifting capacity.
                          2. Span (track center to guide center)
                          3. Lifting height (hook center ground)
                          4. Whether overhang is required (please provide overhang length)
                          5. Do you need rails and cables? (Please provide running length)
                          6. Other special requirements
    If you have more detailed information, please inform, we will give the price more accurately!
