Цена:200,00 $ - 210,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Paramanters







Product introduction

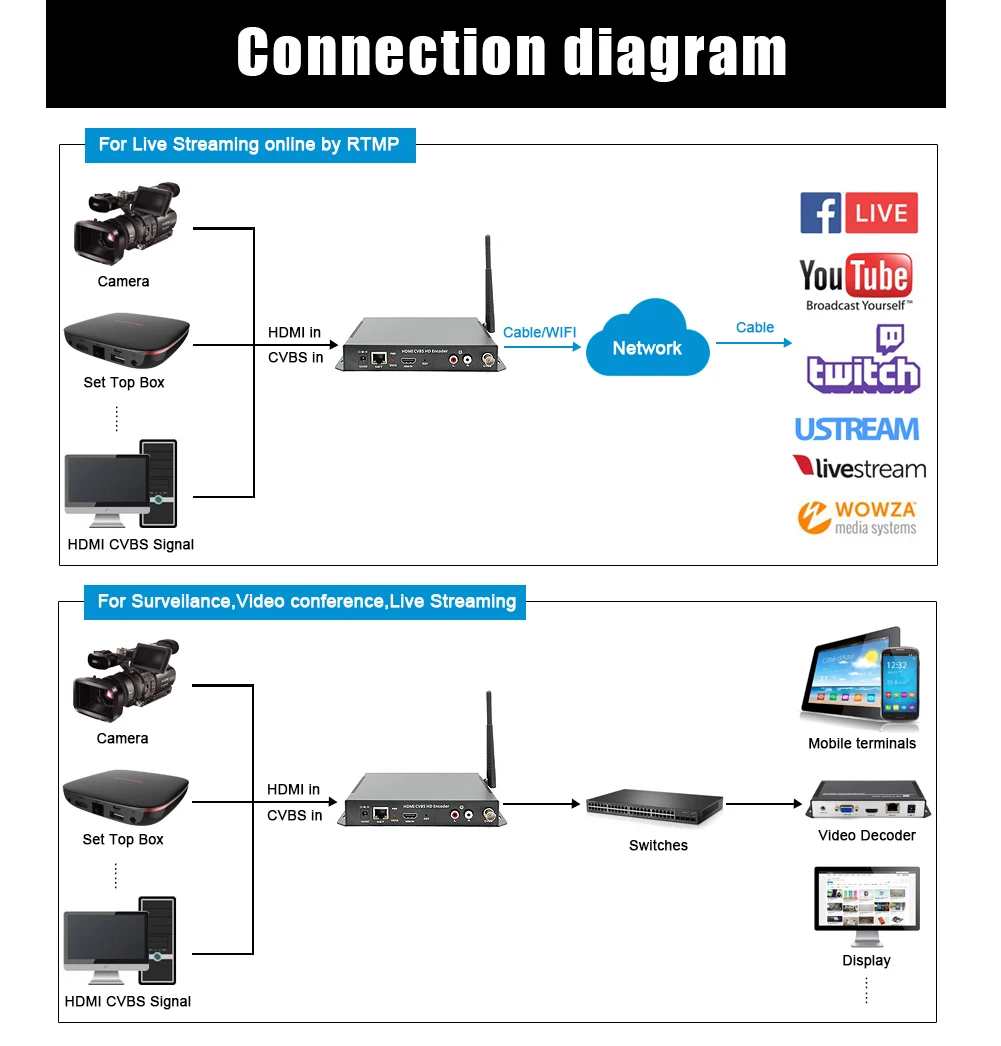

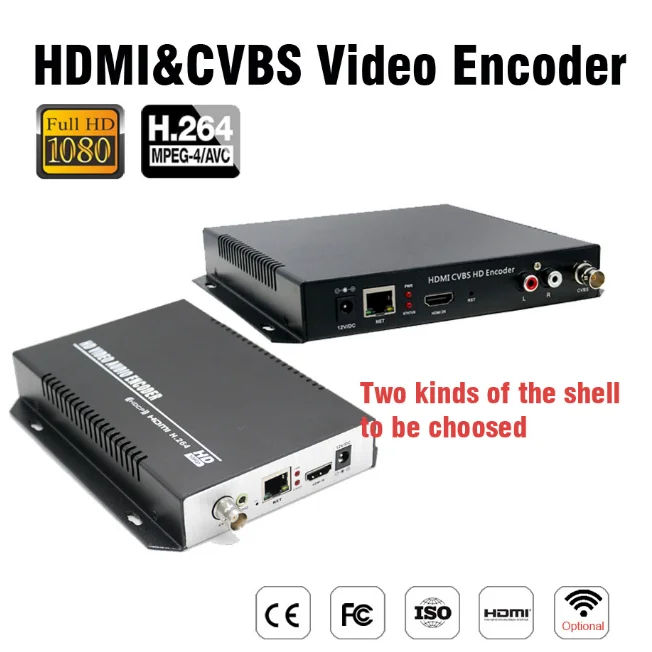

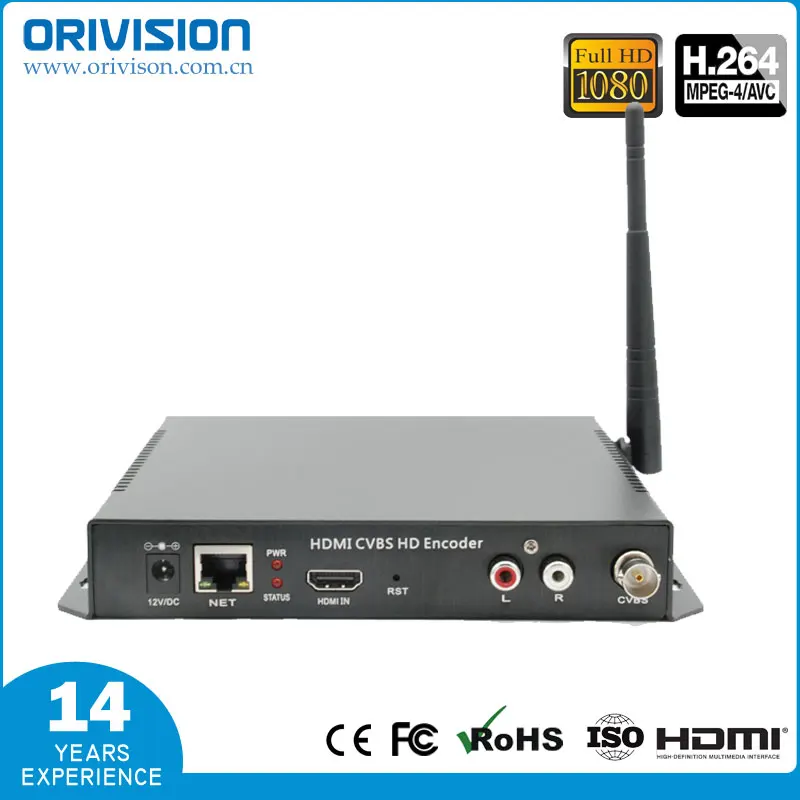

The H.264 HDMI +CVBS WIFI video encoder is our professional HD audio and video encoding device with powerful functionality. It is equipped with 1 channel HDMI and 1 channel CVBS input supporting H.264 /AVC high profile /main profile /baseline profile coding format and two video streamings output, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, RTMPS,ONVIF, HLS, FLV.Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.


Model
ZY-EHC001W
Video
Input interface
1×HDMI, 1×CVBS(BNC)
Support resolution
1080P\\1080i\\720P,1600x1200\\1400x1050\\1440x900\\1280x1024\\1280x960\\1280x800\\1024x768\\800x600 etc.
Frame rate
30/60 frame
Output interface
1×Ethernet port(RJ45)
Video encoding
H.264 Baseline Profile
H.264 Main Profile
H.264 High Profile
Code Rate control
16kbps- 12Mbps
Code Rate
CBR/VBR
Audio
Input interface
1×Analog audio interface
Audio encoding
ACC, MP3
Sampling rate
Auto
Bit-rate Option
32k,44.1K,48K,64K,96K,128K,160K,192K,384K
Sampling Accuracy
24 Bit
Audio Data-rate
64Kb/s to 384Kb/s
Network
RJ45
10M/1000M Ethernet port
Program streaming
HTTP, RTSP, RTMP, RTMPS,HLS, FLV,ONVIF(UDP/RTP)

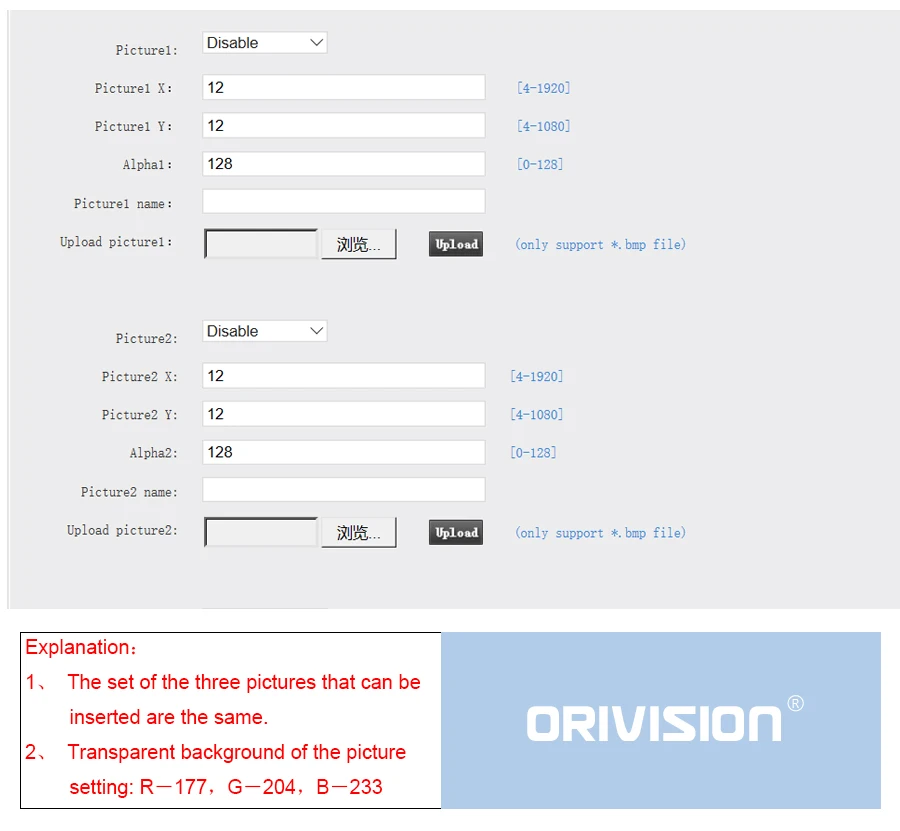

Control Panel
Web panel ( Language is English), remote upgrade
Firmware Update
Enable by uploading files to the dashboard
General

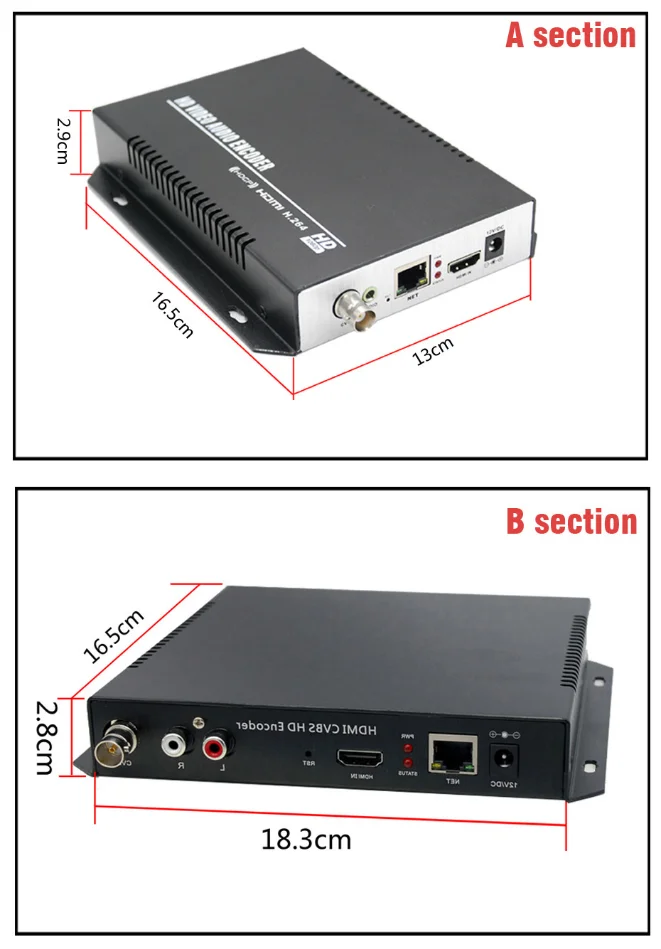

Dimension(W*L*H)
18.2*16.2*2.8cm
Gross Weight
0.3kg
Temperature
0 ~ 45℃(for working),-20~60℃(for storing)
Humidity
<90%, non-condensing
Input Voltage
DC 12V/1A
Power Consumption
5W















Company profile
Orivison is the export brand of Nantong ZYDZ Electronic Co. Ltd. Nantong Zeal Young Electronic Co. Ltd. is a manufacturer and trader focus on H.265 & H.264 HDMI/SDI/VGA encoders and decoders, HDMI/VGA/SDI/DVI signal transmitters with IP/network/wiles/optical and so on. We are located in Nantong Jiangsu, a beautiful city nearby Shanghai, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.We are looking forward to forming successful business relationships with new clients around the world in the near future.
