Product Description
Products Description
freon r22 air cooled heat exchanger water chiller price for Refrigeration & Heat Exchange Parts

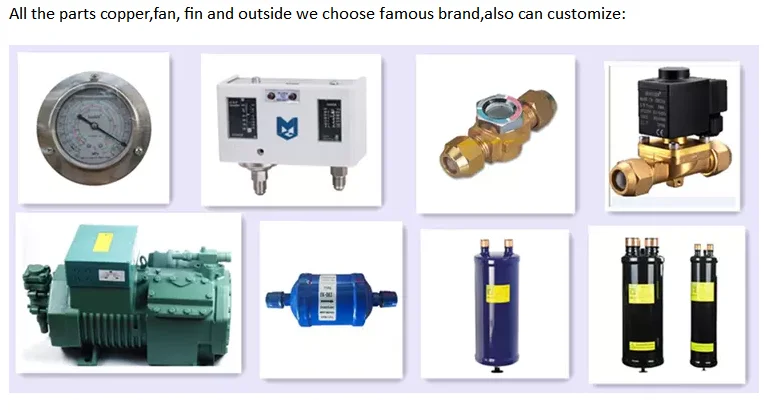

Main components of this 5HP Piston Water cooled Condensing unit:
1.Semi-Hermetic Piston Compressor
2.Water-cooled Condenser (Combined with Liquid Reservoir)
3.High and low pressure gauge
4.Pressure controller
5.Solenoid valve
6.Dying Filter
7.Refrigeration Oil
Liquid Sight Glass, Oil separator, Liquid-gas separator and Electric control box can be configured
1.Semi-Hermetic Piston Compressor
2.Water-cooled Condenser (Combined with Liquid Reservoir)
3.High and low pressure gauge
4.Pressure controller
5.Solenoid valve
6.Dying Filter
7.Refrigeration Oil
Liquid Sight Glass, Oil separator, Liquid-gas separator and Electric control box can be configured
min&high temp.bitzer semi-hermetic reciprocation air cooled condensing unit | ||||||||||||||||||
model | 005BZA | 007BZA | 010BZA | 015BZA | 020BZA | 025BZA | 030BZA | 045BZA | 050BZA | |||||||||
compressor model | 4FES5 | 4DES-7 | 4VES-10 | 4PES-15 | 4NES-20 | 4HE-25 | 4GE-30 | 6GE-40 | 6FE-50 | |||||||||
cooling capacity W | 11.54 | 17.5 | 23.2 | 32.1 | 37.9 | 50.4 | 58.4 | 86.8 | 104.5 | |||||||||
power w | 3.6 | 5.42 | 6.81 | 9.49 | 11.12 | 14.89 | 17.14 | 25.7 | 31.3 | |||||||||
refrigerant | R22 | |||||||||||||||||
power supply | 380v/3ph/50hz | |||||||||||||||||
air flow | 6000 | 7200 | 12000 | 18000 | 24000 | 24000 | 27000 | 36000 | 48000 | |||||||||
receiver volume | 10 | 15 | 17 | 22 | 25 | 40 | 40 | 45 | 75 | |||||||||
mounting size | 960*445 | 1140*755 | 1140*805 | 1140*805 | 1500*885 | 1260*420 | 1260*420 | 1000*420 | 1000*420 | |||||||||
min&low temp.bitzer semi-hermetic recriprocating air cooled condensing unit | ||||||||||||||||||
model | 003LBZA | 004LBZA | 005LBZA | 008LBZA | 010LBZA | 015LBZA | 020LBZA | 030LBZA | 040LBZA | |||||||||
compressor model | 4EES-4 | 4DES-5 | 4TES-9 | 4PES-12 | 4HE-18 | 4GE-23 | 6HE-28 | 6GE-34 | 6FE44 | |||||||||
3.84cooling capacity w | 3.84 | 4.68 | 7.33 | 8.5 | 12.48 | 14.52 | 18.72 | 21.8 | 26.4 | |||||||||
power w | 2.75 | 3.36 | 5.2 | 5.79 | 8.92 | 10.77 | 13.37 | 16.13 | 19.42 | |||||||||
refrigerant | R22 | |||||||||||||||||
power supply | 380V/3PH/50HZ | |||||||||||||||||
air flow | 6000 | 6000 | 6000 | 7200 | 12000 | 12000 | 24000 | 27000 | 36000 | |||||||||
receiver volume | 6 | 8 | 10 | 12 | 17 | 22 | 25 | 40 | 45 | |||||||||
mounting size | 960*445 | 960*445 | 960*445 | 1140*775 | 1140*775 | 1140*805 | 1500*865 | 1260*420 | 1000*420 | |||||||||
