14500/18650/26650/32650 Battery Positive Insulation Ring Electrical Adhesive highland barley Paper
Skype ID: YousanTape Bella
Product Description
Highland barley paper is a durable, flexible, electrical insulator that’s made of vulcanized fiber and used with motor windings and for gasket insulation.
Main Feature :
1. Heat-resistance:E class 120-200 degrees
2. High dielectric property,Rated Voltage: 6-7KV
3. Insulation & Flame retardant board.
4. Has good mechanical strength.
5. It is hard, wear-resistant cellulosic paper
6. More heat-resistant than many plastic materials
7. Retains greater flexibility than plastics at low temperatures
| Product model | P7015 | P7017 | P7020 | P7025 | P7030 | P7050 |
Total thickness(mm) | 0.15 | 0.17 | 0.2 | 0.25 | 0.3 | 0.5 |
| Nominal grammage(g/m2) | 155 | 180 | 210 | 255 | 300 | 600 |
| Film nominal thickness (um) | 25 | 25 | 25 | 25 | 25 | 25 |
| Tensile strength MD(N/10mm) | ≥100 | ≥110 | ≥120 | ≥120 | ≥150 | ≥150 |
| Tensile strength XD (N/10mm) | ≥70 | ≥75 | ≥80 | ≥95 | ≥105 | ≥105 |
| Elongation MD(%) | ≥2 | ≥2 | ≥2 | ≥2 | ≥2 | ≥2 |
| Elongation XD (%) | ≥8 | ≥8 | ≥8 | ≥8 | ≥8 | ≥8 |
| Electric breakdown voltage(KV) | ≥2 | ≥3 | ≥4 | ≥5 | ≥5.5 | ≥6 |
| Bond strength at 120± 2℃(10Min) | No delamination,no blister,no adhesive flow | |||||

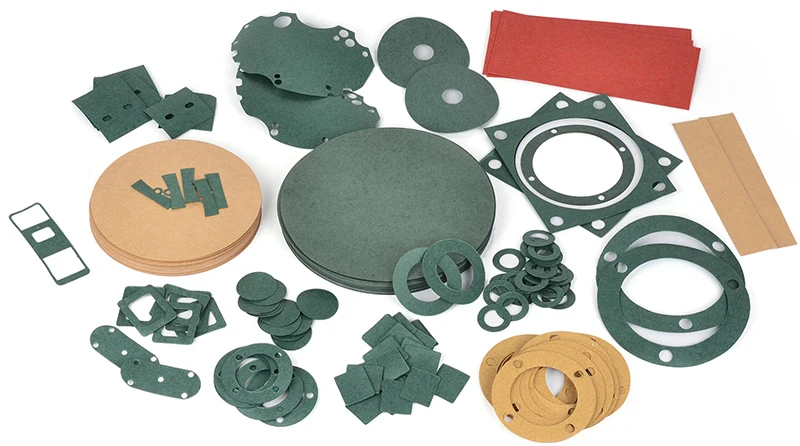

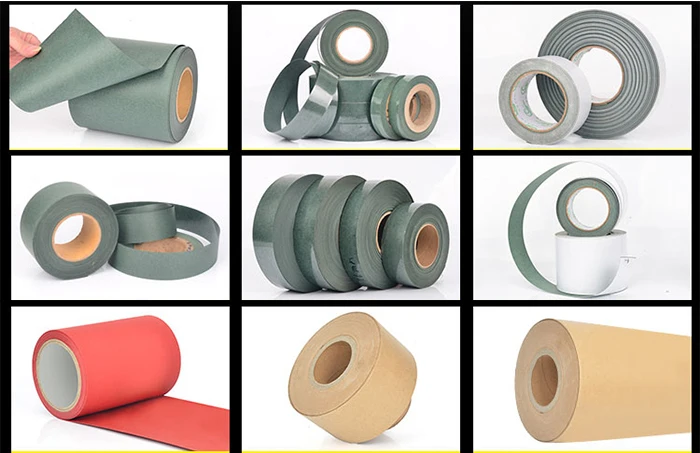

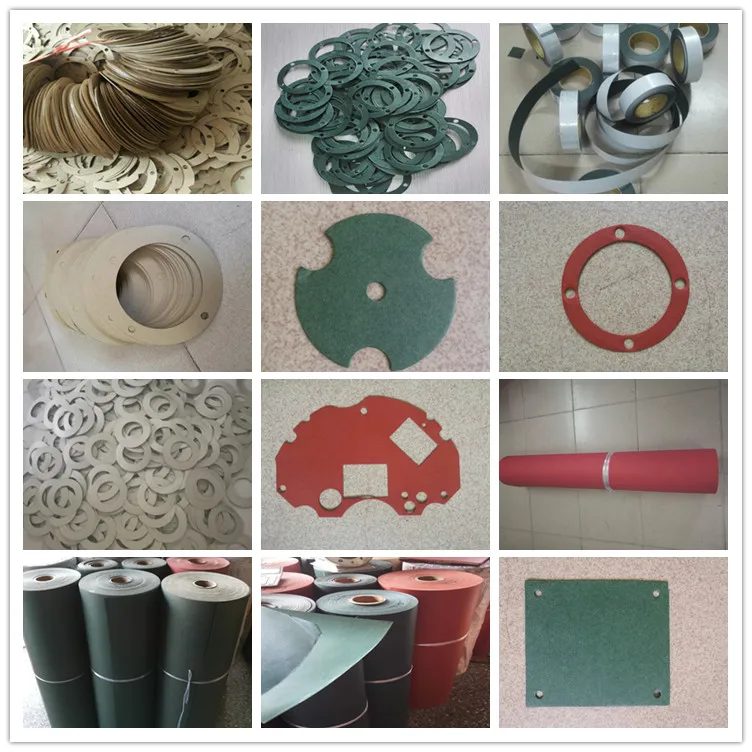

Photo Show:
Application
Adhesive highland barley Paper are widely used for :
(1) Hard metal parts used in indirect septa fits.

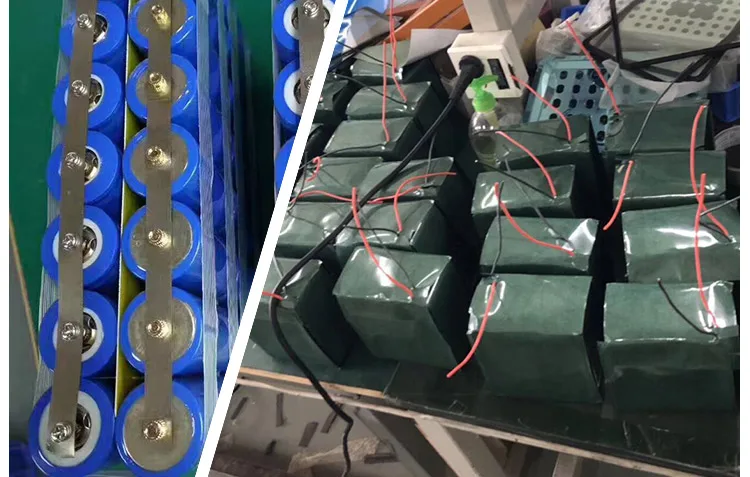

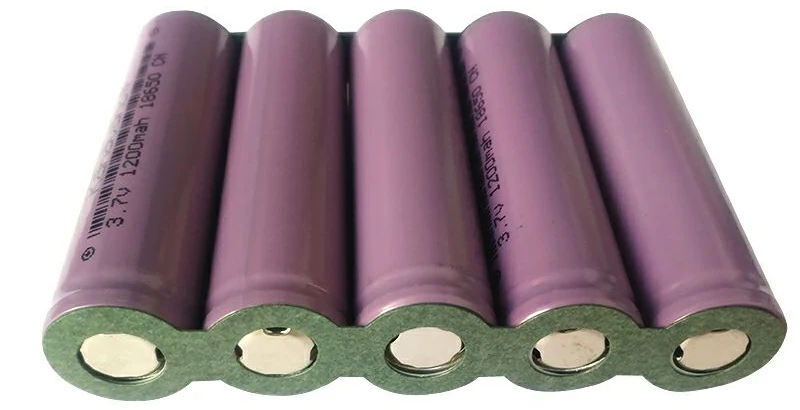

(2) Mechanical and electronic products,Power bank,18650, 18500 Battery etc
(3) Electrical insulating material machinery,electrical equipment,transformer.
(4) The lathe spindle pressure ring with the gearbox,between paper clip has barley.
(5) As household the ceiling fan wing and fan with screw fastening head of interval between a layer of barley paper.
(6) Composing 6520 laminated polyester film, clothes, shoes-making.packing and stationery .
(7) As slot, interturn and liner insulation for E-grade motors, generators and electric appliances.
(8) Also used for slot insulation, closures or covers, overhang, interphase insulation and layer insulations for Dry-type transoformers and motors.
