Product Description

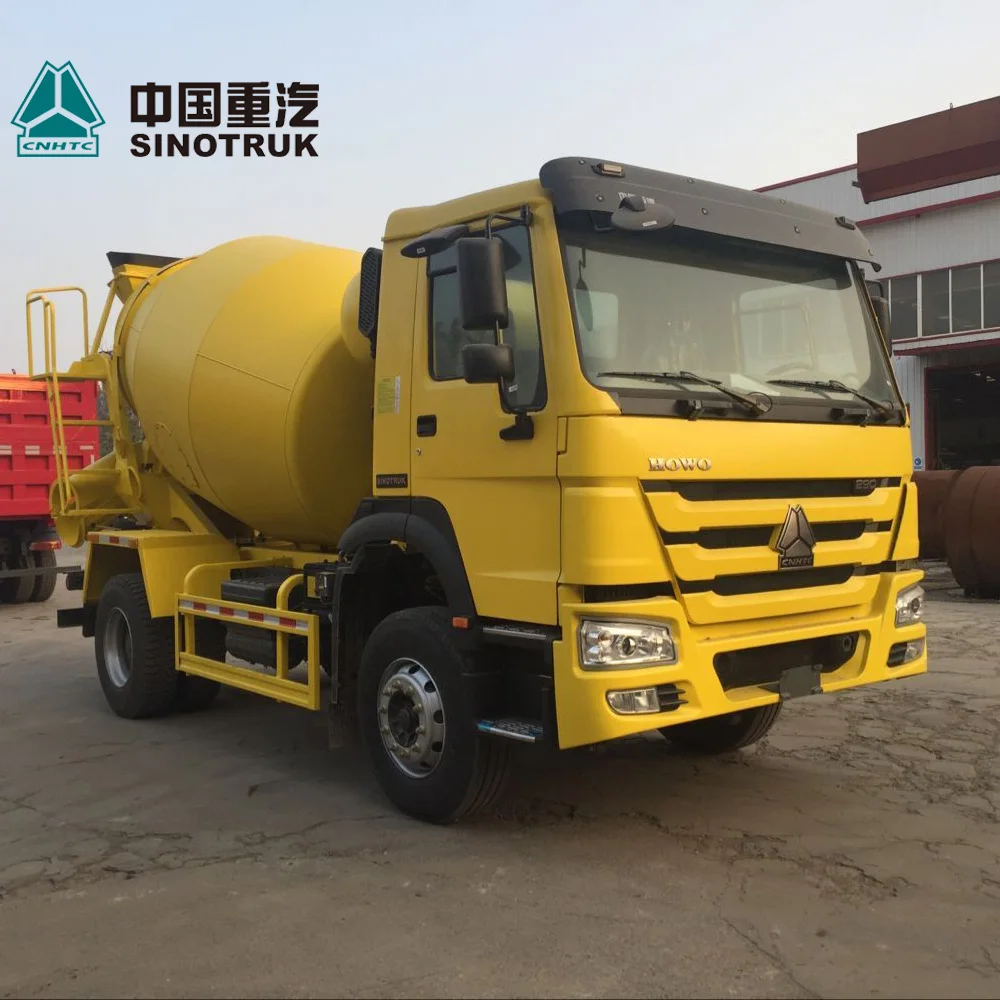

4x2 Concrete Mixer Truck

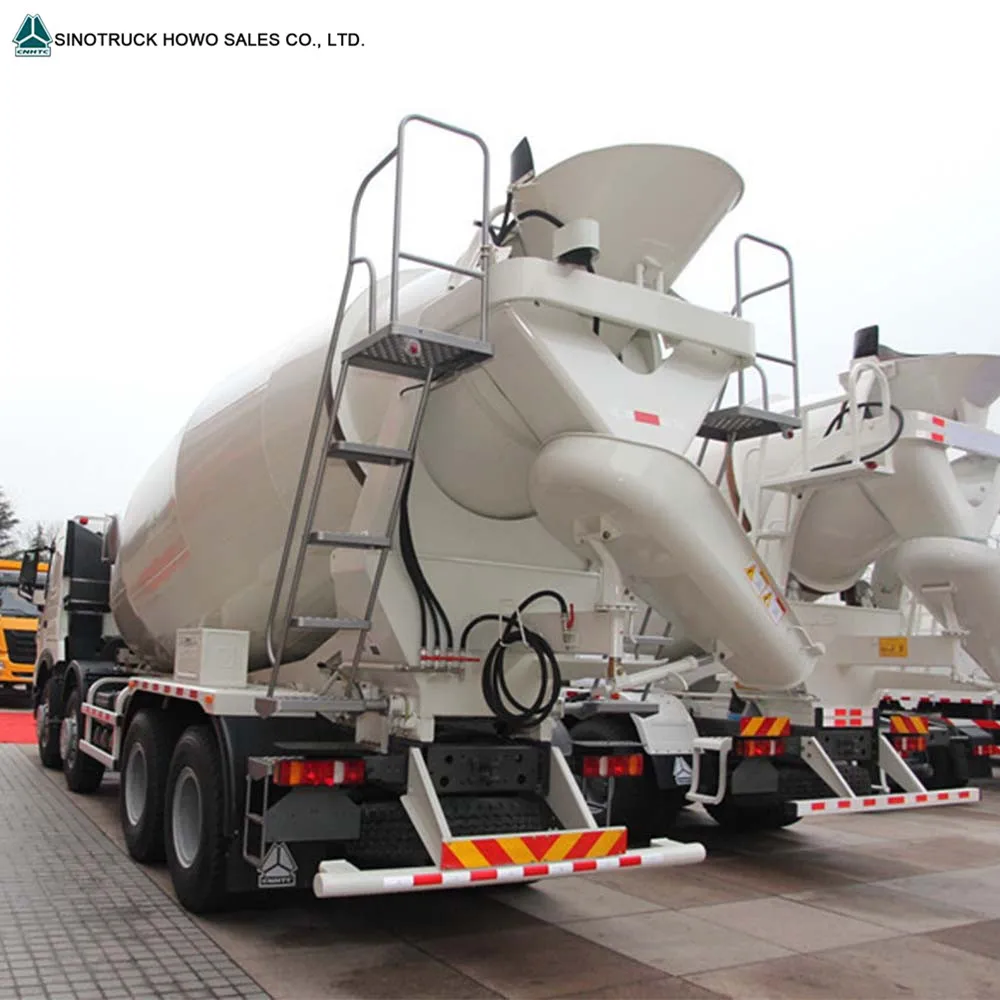

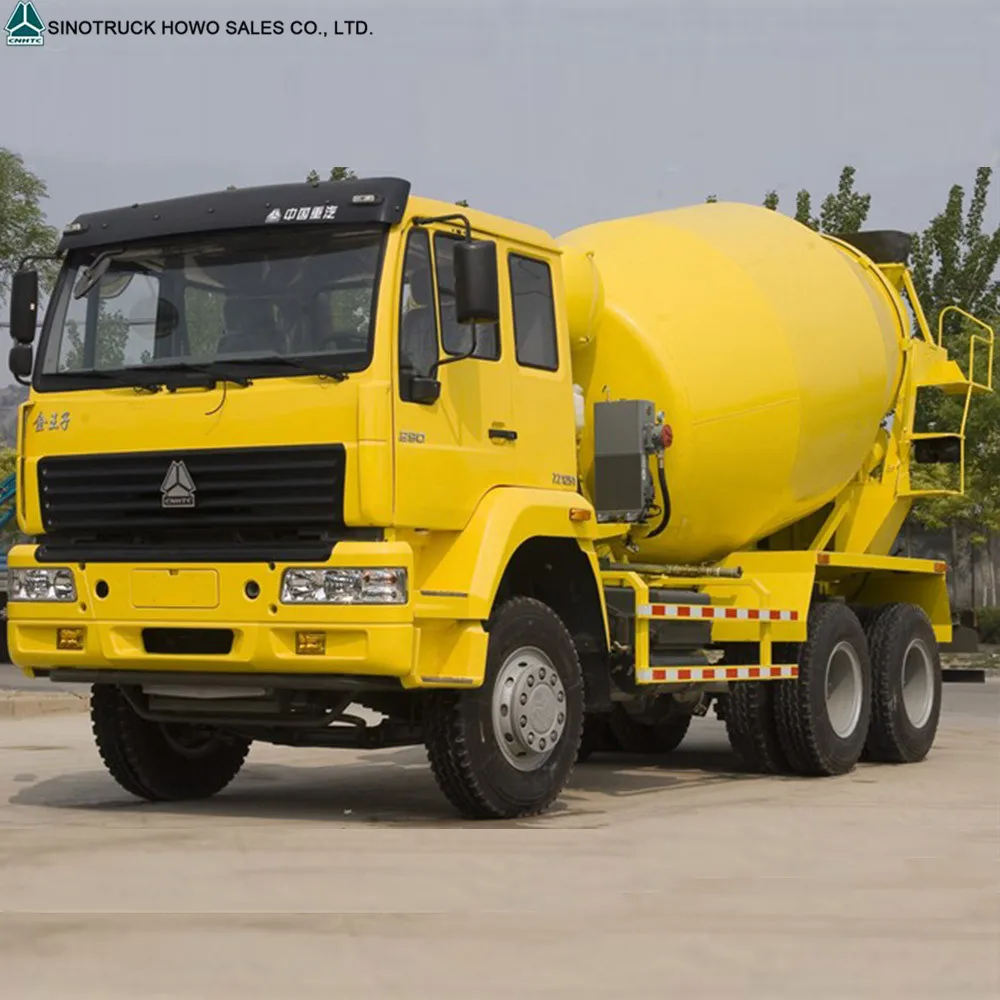

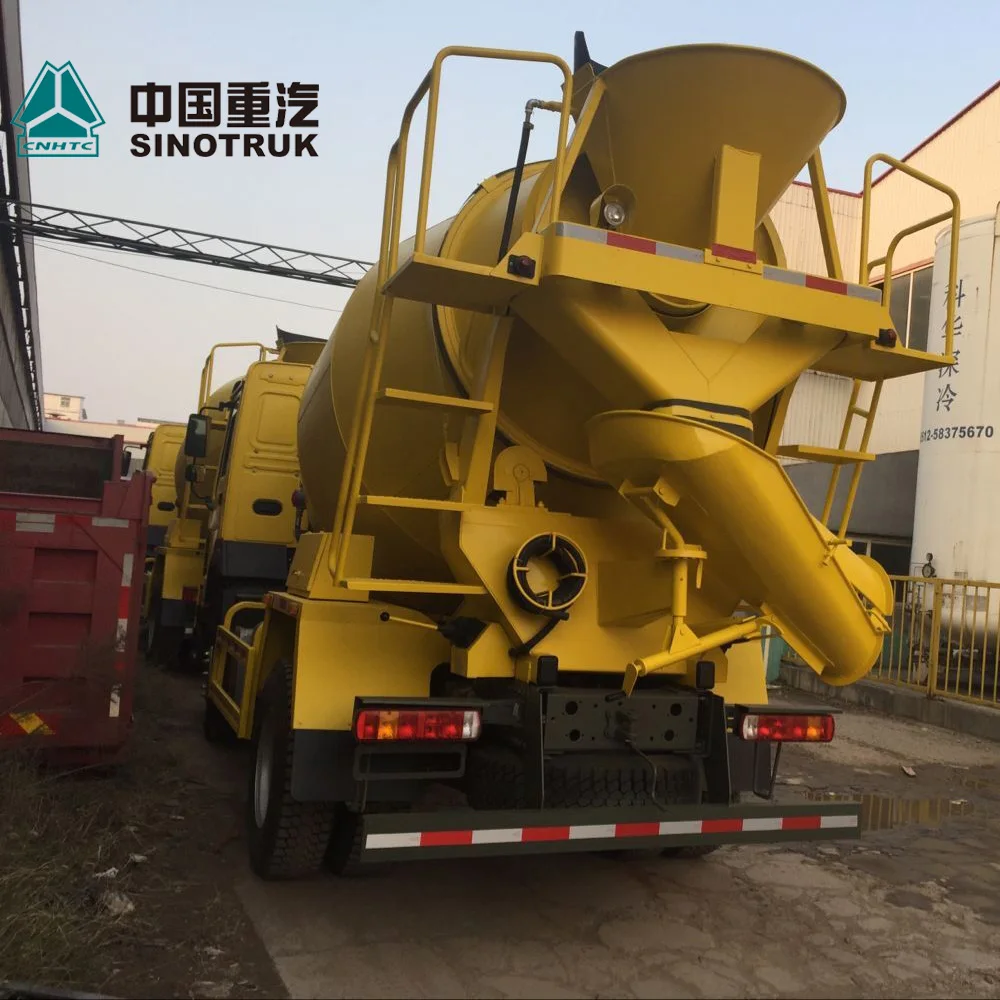

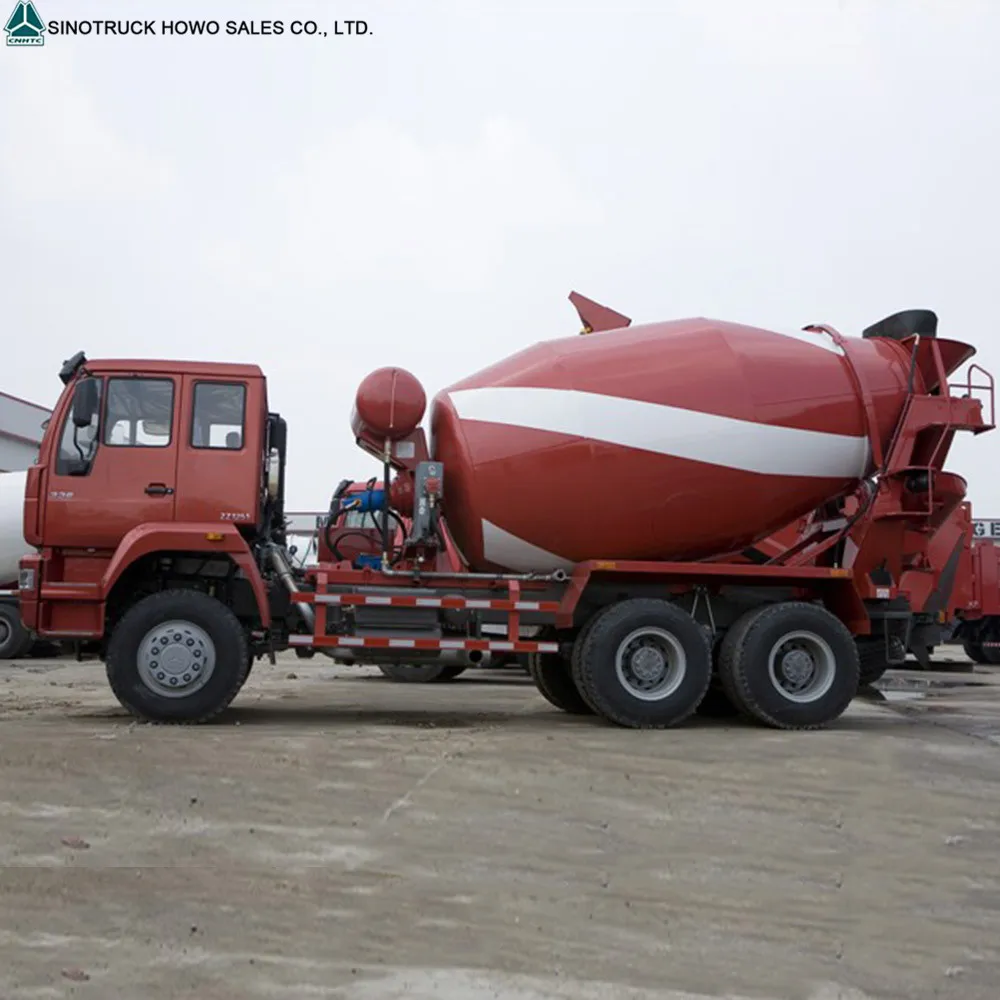

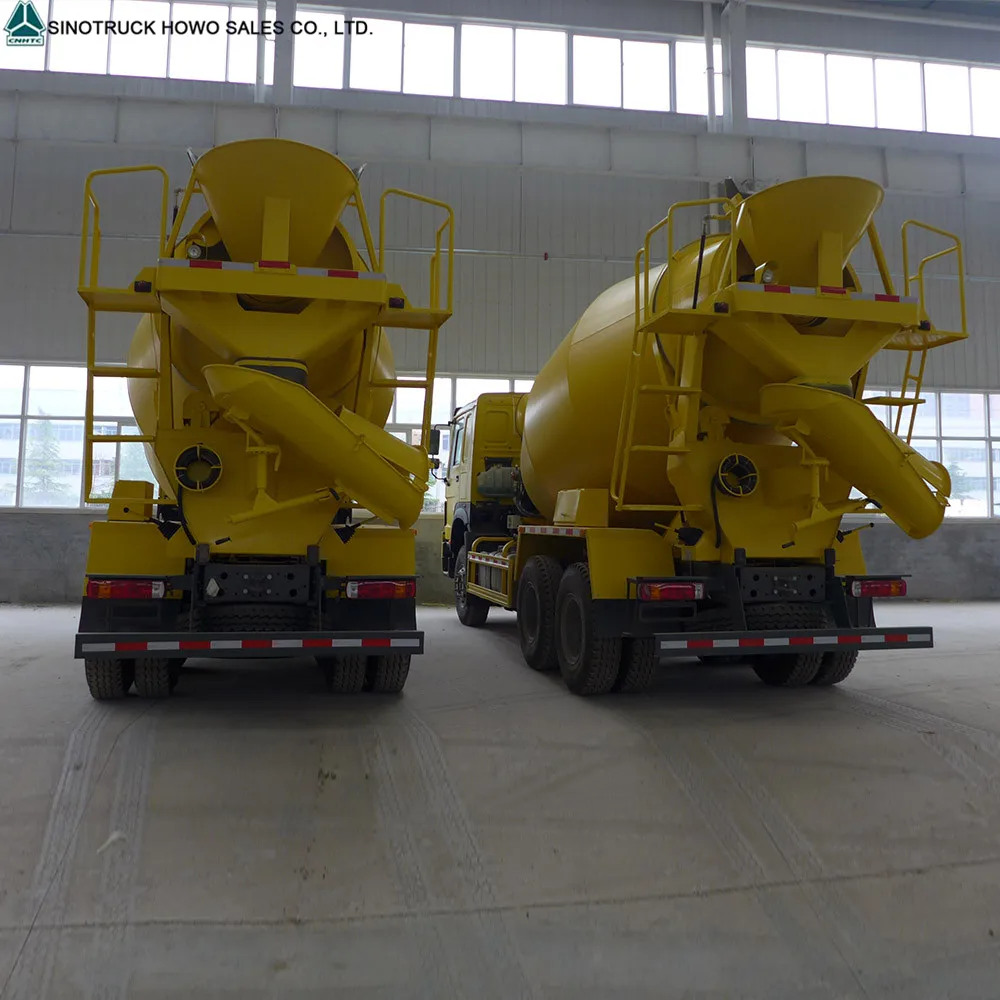

6x4 Concrete Mixer Truck

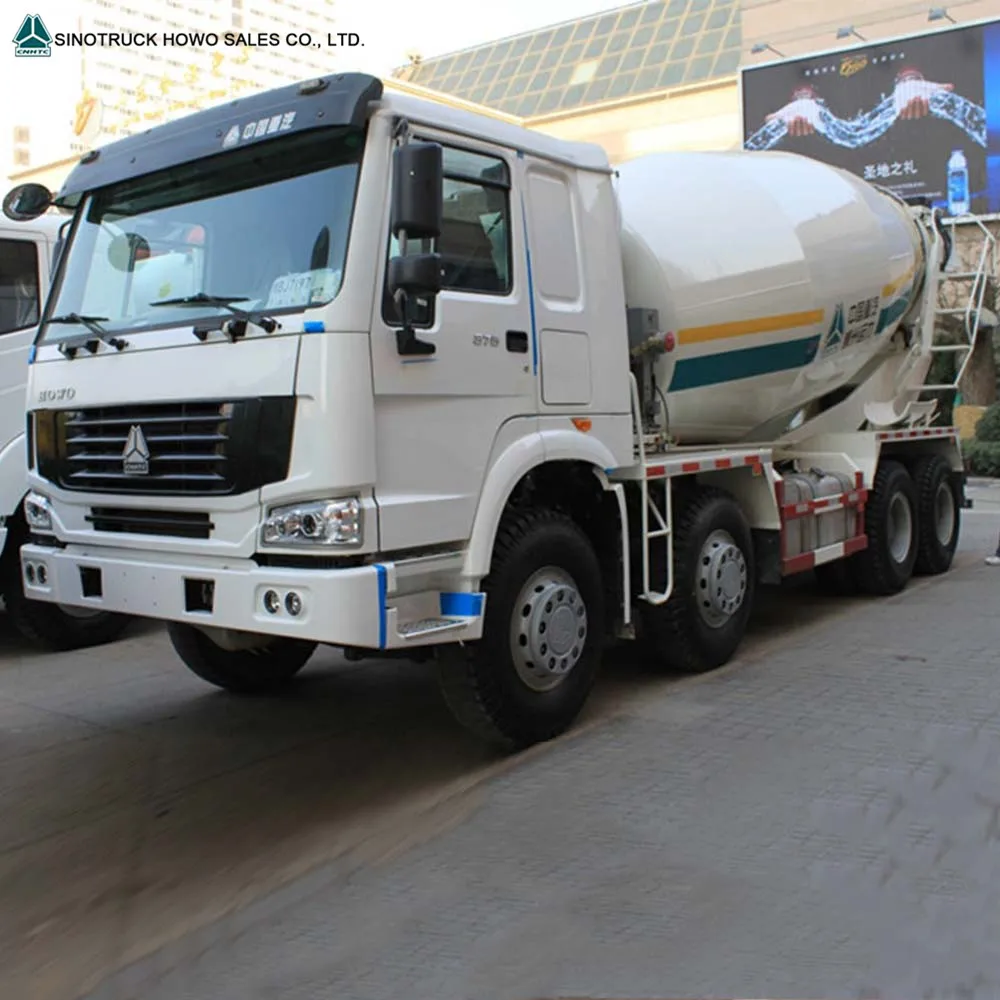

8x4 Concrete Mixer Truck
Parameter
Truck Model | ZZ1257M3641W ( Left Hand Driving Type) | |||||
Truck Brand | SINOTRUK –HOWO | |||||
Driving Style | Left Hand Driving | |||||
Dimension(Lx W x H)(unloaded)(mm) | 8375*2496*3950mm mm | |||||
Wheel base mm | 3625+1350 | |||||
Cabin | HW76, one sleeper with air-conditioner. | |||||
Engine | WD615.87, Euro 2, 290HP | |||||
Transmission | HW19110, 10F & 2R | |||||
Steering | ZF8118, power steering with hydraulic system. | |||||
Front Axle | HF9, 1x9000 KGS | |||||
Rear Axle | HC16, 2x16000 KGS | |||||
Tyres | 1200R20, 10+1tyres | |||||
Agitating Capacity | 8 Cubic Meters | |||||
Mixer Pump | Eaton (USA Brand) | |||||
Motor | Eaton (USA Brand) | |||||
Speed Reducer | Bonfiglioli (Italy Brand) | |||||
Geometric Volume | 13.1m3 | |||||
Drum rotating | 13.5° | |||||
Agitator rotaion speed | 0-18r/min | |||||
Feeding speed | >3m3/min | |||||
color | as you need | |||||
Water Tank Volume | 300L | |||||

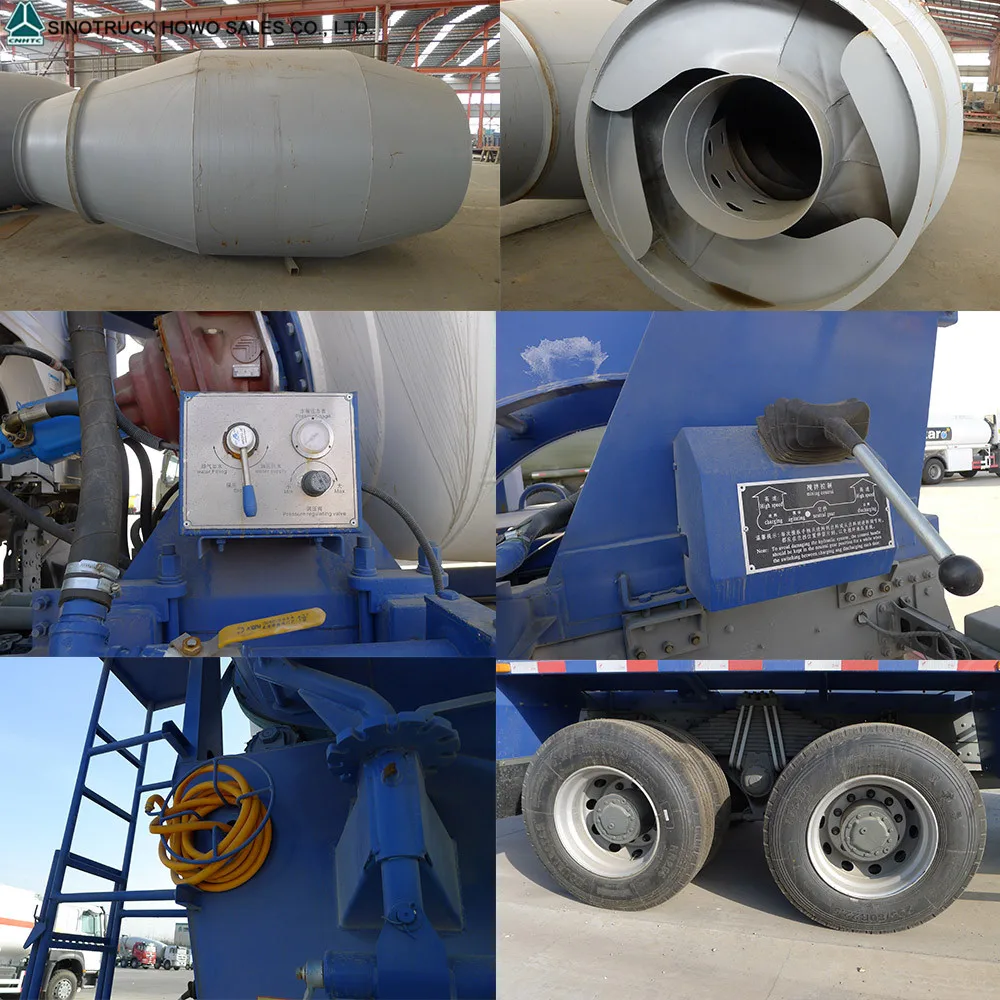

Detailed Images

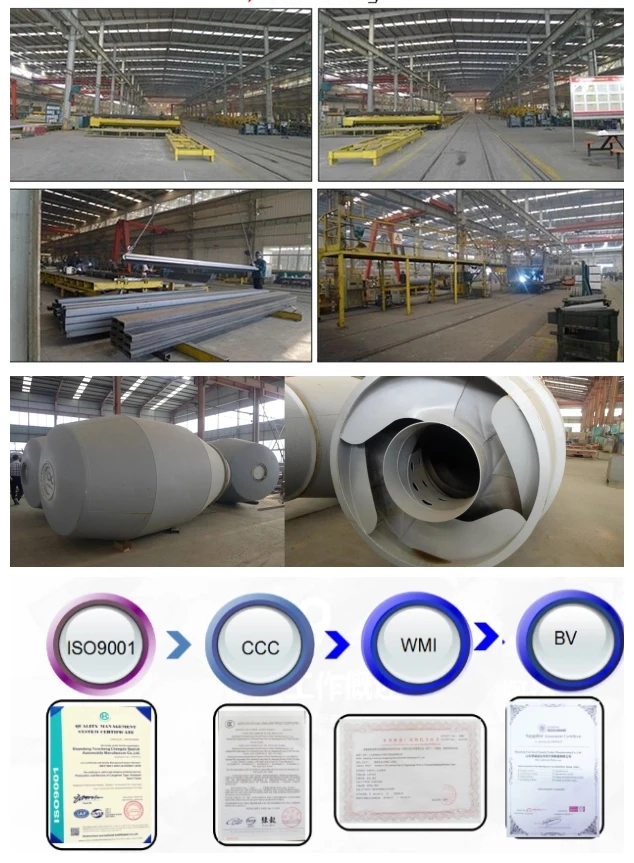

Box-cage model
Cylinder using high strength and wear-resistant steel, box-cage mold overall shape, to ensure that the flange, the segment cylinder and raceway coaxiality and roundabout, to ensure smooth operation of the vehicle
Double helical blade
Double helical blade in the tank body, moderate density, the front taper at the gate ball symmetrical mixing plate, the tank mouth
at the installation of dual-vane and the discharge guide vanes, the more uniform material, faster
at the installation of dual-vane and the discharge guide vanes, the more uniform material, faster
Famous brand mixer pump, reducer and motor
Mixer Pump Eaton (USA Brand)
Motor Eaton (USA Brand)
Speed Reducer Bonfiglioli (Italy Brand)
Motor Eaton (USA Brand)
Speed Reducer Bonfiglioli (Italy Brand)
\t\t\t\t\t\t\t\t\tRelated Product \t\t\t\t\t\t\t

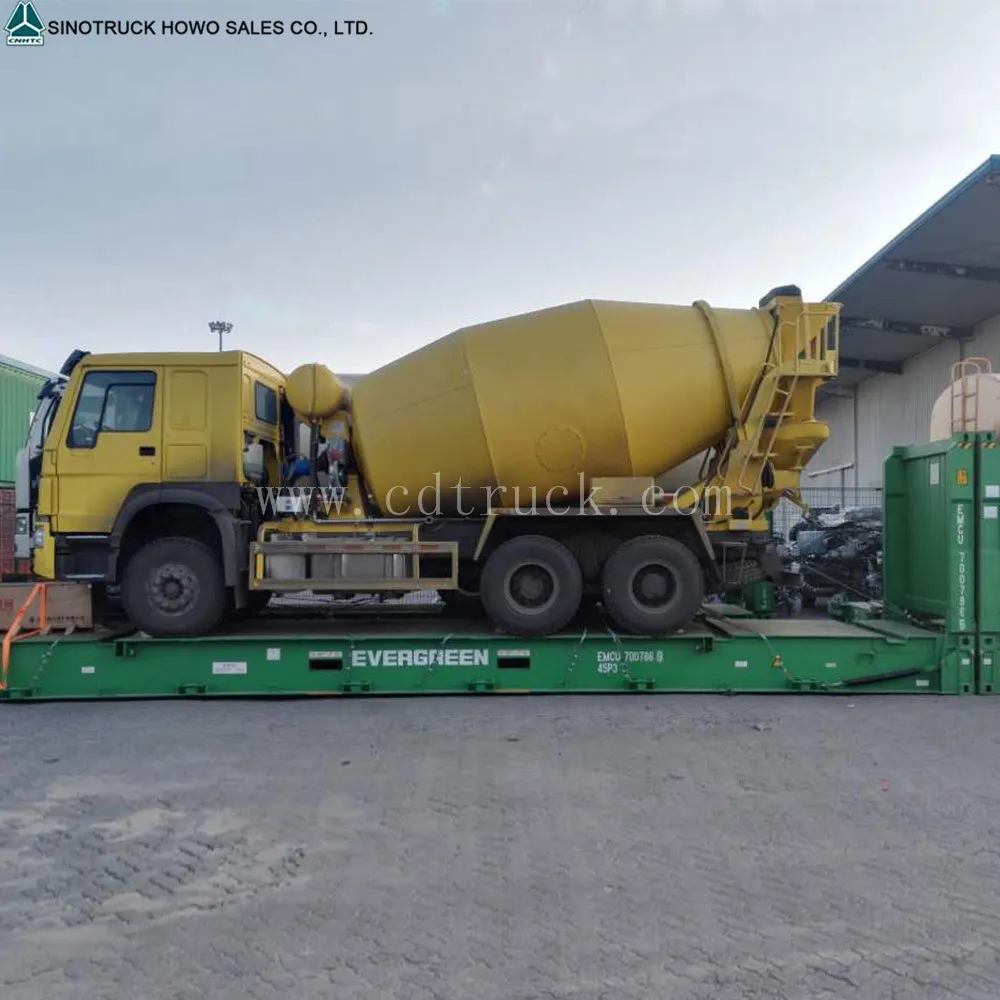

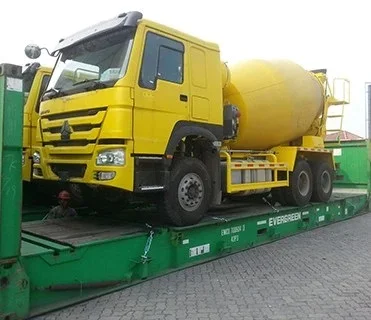

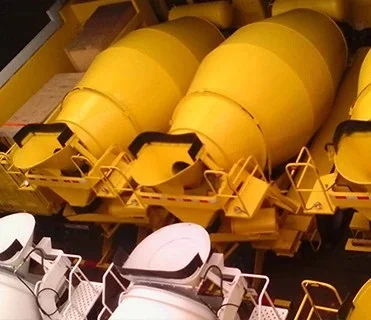

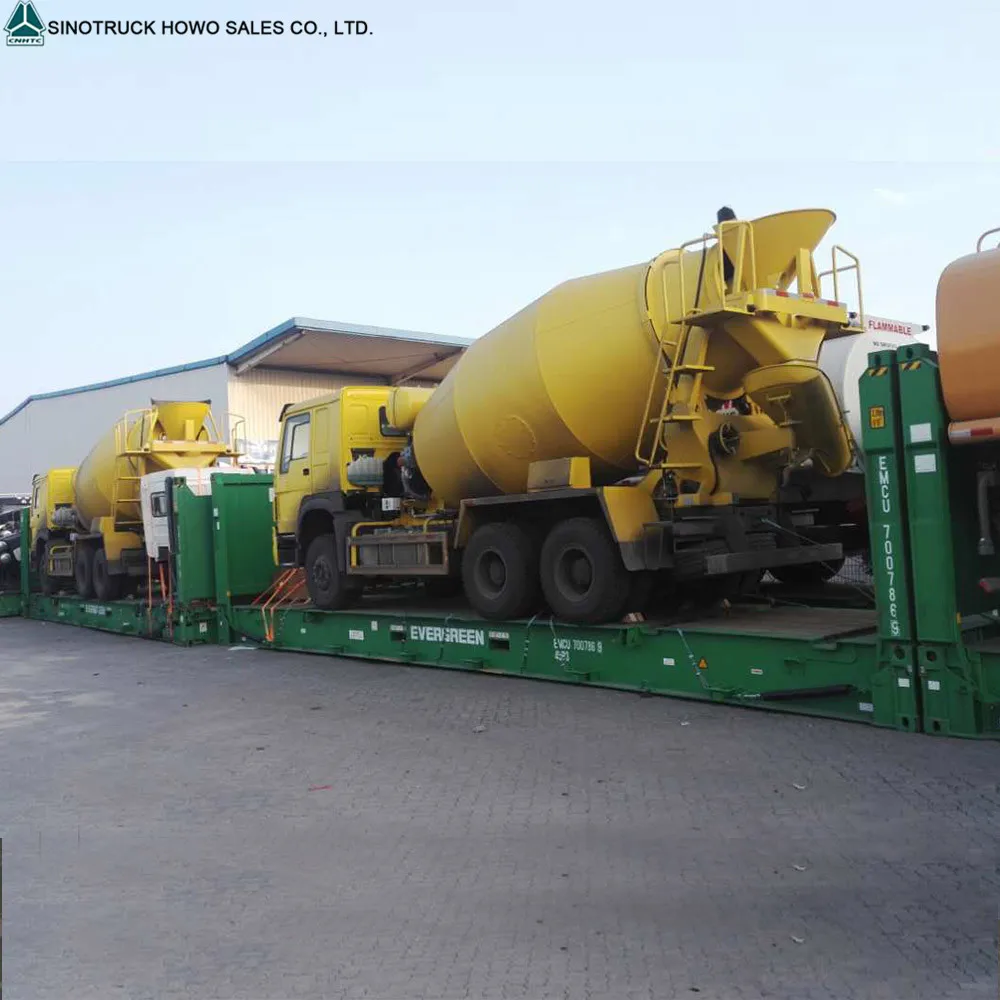

Packing & Delivery
Company Information
CNHTC) is located in Jinan city, Shandong Province, P. R. China. It is the cradle and leading production base of the heavy-duty truck industry in China. It is famous for developing and manufacturing the first heavy duty truck -- "HUANGHE" brand vehicle model JN150 in China, for successful introducing the "STEYR" heavy duty truck production project, and for setting up a joint venture with VOLVO to manufacture the heavy duty trucks with up-to-date international level.
CNHTC performed technique innovation; it has invested 4 billion to more than 100 programs to make man craft and scale production linked quickly with advanced enterprise in the world. Jinan Industrial Aera, Changqing Industrial Aera and Zhangqiu Industrial Area have been built up in succession; the digital frame line, new assembly line, HOWO welding line, painting line ect. Which are representatives of international advanced level have been put into use.C
