Переключатель термостата KSD301 250 в 16 А саморегулирующийся терминал кондиционирования воздуха
- Категории: Home Appliance Parts >>>
- Поставщик: Wuhan,Zhenguan,Industry,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
KSD301 250V 16A Thermostat Switch Self-control Air Conditioning Termostato Bimetal Overload
Product Description
1,electrical parameters: 10/250V (resistance loaded),
2,temperature range: 40 ~ 250C
3,service life: 10/250V 10000 cycle,
4,contact resistance than 50m Ω; :
5,insulation resistance: > Ω 100M

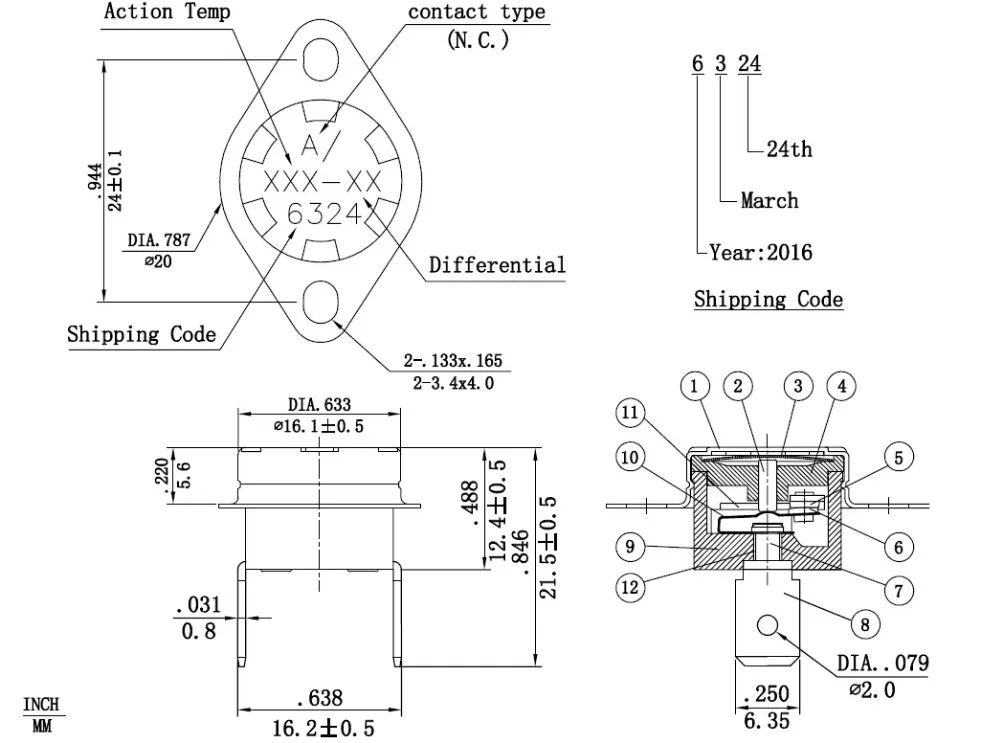

product drawing
Performance data
| Electric rated | Operation temp | Contact type | Circuit resistance | Operation life |
16A 250V 15A 125V 10A 250V | 40-250℃ | A,B,M | <=50mOhm | 100000@10A 250V |
A=Contact opens when temperature rises to set point(NORMAL CLOSED)
B=Contact closes when temperature rises to set point(NORMAL OPEN)
M=Manual reset
