Высокочастотный и мощный функциональный чип RK RK3288 одноплатный компьютер с 2 Гб оперативной памяти 8

hardware sources

CPU

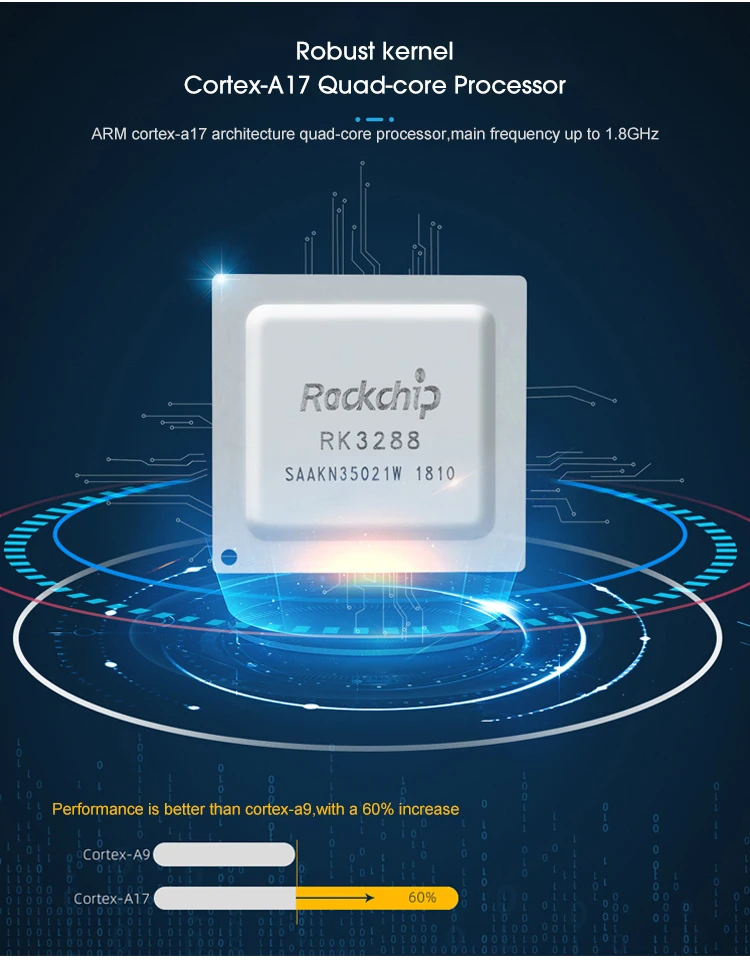

RockChip RK3288 processor, Cortex-A17 Quad core, Frequency reaches up to 1.8GHz.

GPU

Mali-T764GPU, to support AFBC( Frame buffer compression)

RAM

DDR3 SDRAM,4x512MB,totally 2GB ( 4GB optional)

FLASH

8GB eMMC (32GB in max.)

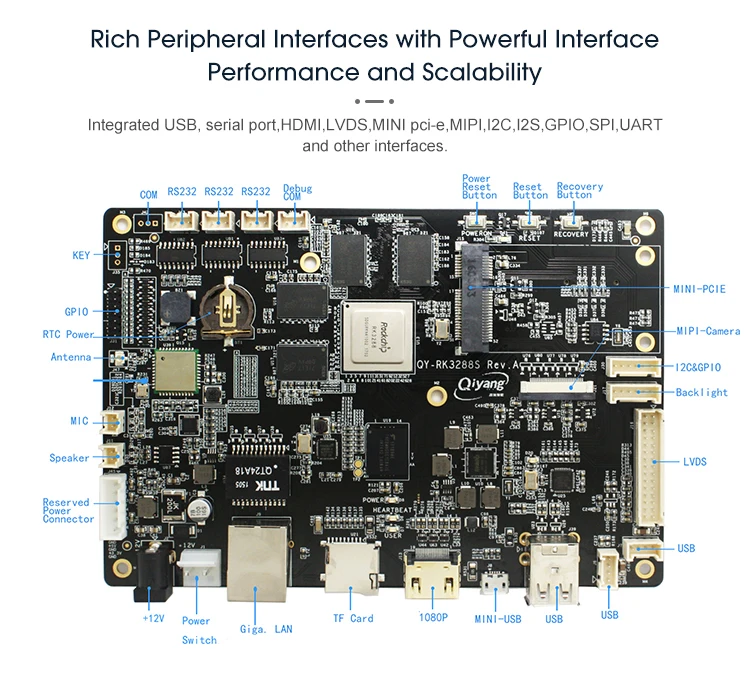

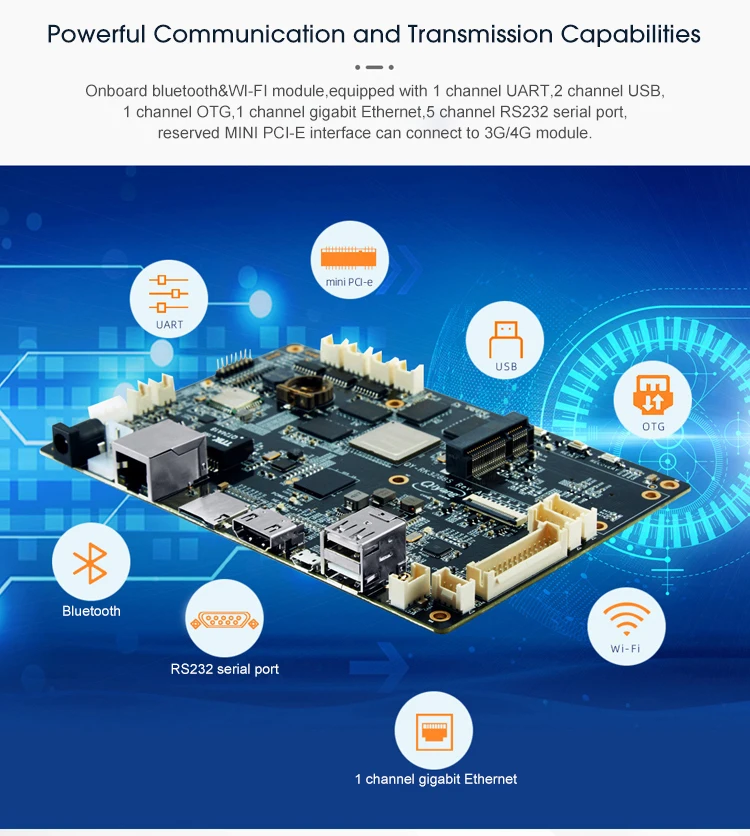

Communication

5-ch RS232, 1 port as the debug port

1-ch USB OTG, 4-ch USB host

1-ch 10/100/1000Mbps industrial Ethernet port, with ACT, LINK indicator

Onboard WI-FI/BT module

1-ch MINI PCI-e

2-ch SDIO 3.0

12-ch GPIO

Display

1-ch dual channel LVDS interface, support 30 bits

HDMI interface, support HDMI 2.0, the most resolution:4Kx2K@60Hz

MIPI interface(can connect Camera)

Audio

Speaker interface, MIC audio input interface

Input

Standard I2C capacitive panel Interface

Expansion

SIM card socket

Storage Interface

1-ch TF card socket.

Others

Reset, RTC, Watch Dog

Power Input

+12V power supply,  +9V~+16V wide voltage supported.

Software Resource

OS

Android 5.1

Electrical Specification

Materials

BSP,DEMO,APK

Size

156mm*106mm

Power Consumption

≤3W

Operation Temperature

-10℃~+60℃

Humidity

5%~95%, Non-Condensing
