Product Description
Title goes here.

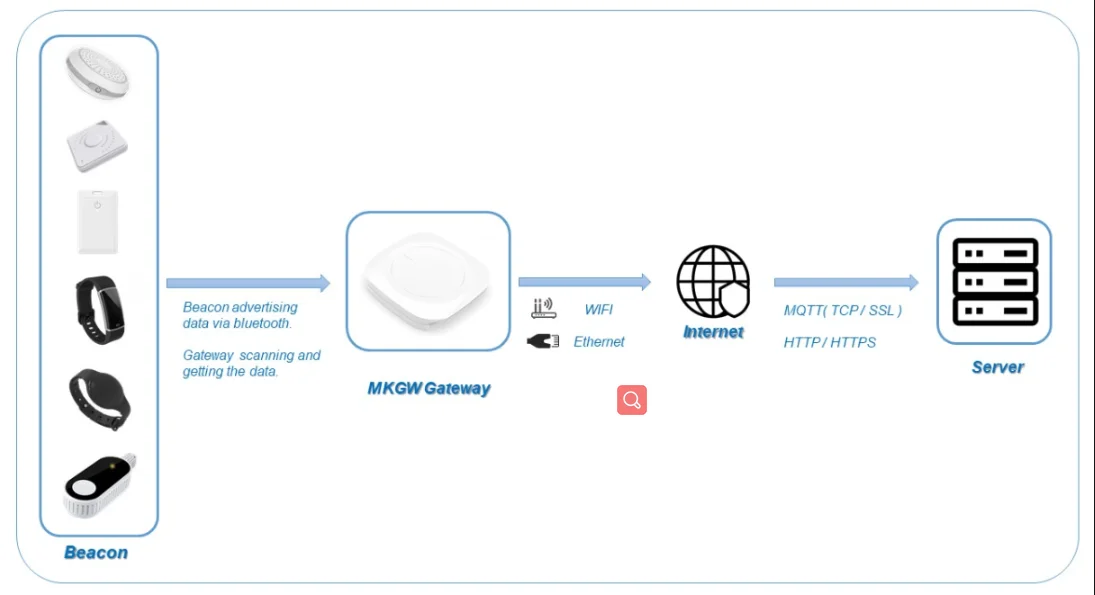

MKGW1 Bluetooth gateway is mainly used for the MOKO BLE series Beacon products. It is convenient for users to get the data of the
MOKO series Beacon, and advertising raw data of any Bluetooth device. It can upload the data to the server via MQTT or HTTP(S)
protocol.
MOKO series Beacon, and advertising raw data of any Bluetooth device. It can upload the data to the server via MQTT or HTTP(S)
protocol.

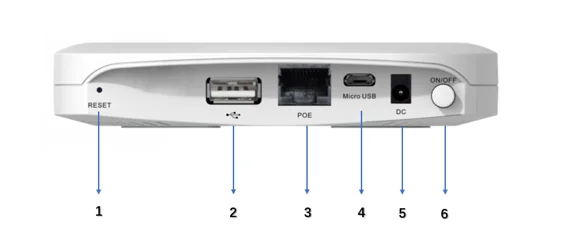

①Reset Button
②USB Port
③ PoE Port
④Micro USB
⑤DC Power Port
⑥Switch Button
②USB Port
③ PoE Port
④Micro USB
⑤DC Power Port
⑥Switch Button
Description
* MKGW1 can connect the standard MQTT Broker, Aws IOT, Azure IOT HUB, Aliyun IOT.

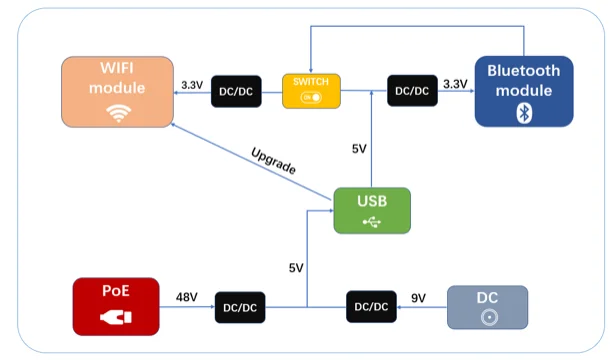

* PoE、DC and USB power supply.
* The WIFI data rate of MKGW1 can be 150Mbps.
* User can modify the gateway parameters on the web UI.
* Support Ethernet and WIFI internet access.
* PoE、DC and USB power supply.
* The WIFI data rate of MKGW1 can be 150Mbps.
* User can modify the gateway parameters on the web UI.
* Support Ethernet and WIFI internet access.
Details Images
Item | Value |
Colour | White |

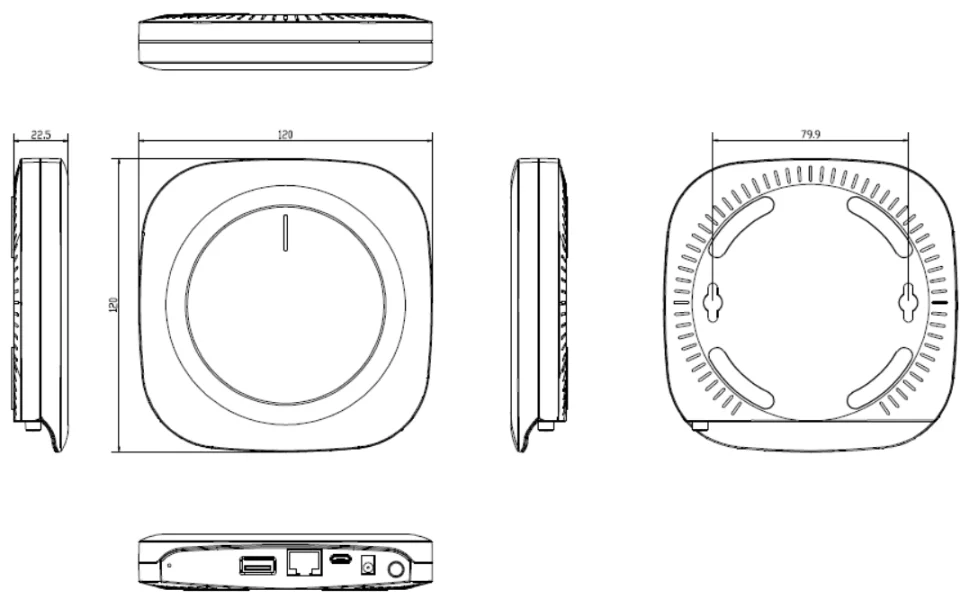

Dimension | 120mm x 120mm x 22.5mm |
Net Weight | 138.2g |
Interface | PoE Port DC Power Port Micro USB Port RJ45 Network Port USB Upgrade Port |
Operating Temperature | 0 ~ 55ºC |
Storage Temperature | 20 ~ 30ºC |
Wireless Standard | IEEE 802.11b/g/n |
WIFI Data Rate | 150Mbps |
WLAN Transmit power | 18dBm |
WIFI coverage | 300m |
How to use it
How to use it?
Step 1. Power on the gateway；
Step 2. Use PC or mobile phone, open WIFI to search gateway SSID (Default: MKGW-BW-XXXX), verify the password (Default: Moko4321)
and connect to the gateway；
Step 3. Use a browser① to open the link http://192.168.22.1 (Default）；
Step 4. Enter the password (Default: admin) to go to the gateway configuration web UI. Note that the configuration web UI will be
automatically logged out if there is no operation within 1 hour.
Step 2. Use PC or mobile phone, open WIFI to search gateway SSID (Default: MKGW-BW-XXXX), verify the password (Default: Moko4321)
and connect to the gateway；
Step 3. Use a browser① to open the link http://192.168.22.1 (Default）；
Step 4. Enter the password (Default: admin) to go to the gateway configuration web UI. Note that the configuration web UI will be
automatically logged out if there is no operation within 1 hour.
Hot sales
Company Profile
Certifications
FAQ
Q1: Do the Beacons work with IOS and Android phones?
A1: Yes, We will send the user manual to you to set up the beacon, you can
test the Beacon with IOS and Android phones.
Q2: Do you provide the technical support to the developers?
A2: Sure. The following technical data and documents will be provided.
①SDK ②API ③Configuration APP ④Instructions
Q3: Is the Beacons Certified ?
A3: Yes, all of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.
Q4: If the beacon can be managed remotely?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the paramters.
Q5: If there have monthly charge after we purchased the beacon from you?
A5: NO, we won't have monthly charge for our clients.
Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.
Q7: What's the warranty of the product?
Q7: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
Q8: Could we have an customized beacon?
A8: Yes, We offer the OEM/ODM service.
A1: Yes, We will send the user manual to you to set up the beacon, you can
test the Beacon with IOS and Android phones.
Q2: Do you provide the technical support to the developers?
A2: Sure. The following technical data and documents will be provided.
①SDK ②API ③Configuration APP ④Instructions
Q3: Is the Beacons Certified ?
A3: Yes, all of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.
Q4: If the beacon can be managed remotely?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the paramters.
Q5: If there have monthly charge after we purchased the beacon from you?
A5: NO, we won't have monthly charge for our clients.
Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.
Q7: What's the warranty of the product?
Q7: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
Q8: Could we have an customized beacon?
A8: Yes, We offer the OEM/ODM service.
