Parameter:
Saw blade diameter: 120~500mm
Saw tooth pitch: 3~30mm
Sharpening speed: Stepless speed regulation
Grinding wheel specifications: 150x32mm
Power rate: 0.65KW
Machine size: 570x700x1190mm
he machine is completely mechanically interlocked to complete the repair and sharpening of the saw blade: after the gear feed, the cylinder presses the saw blade, the gear needle is retracted, the grinding wheel is mechanically fed and ground, then retracted, the cylinder is released, and the gear is re-drilled Tooth feed, complete mechanical reciprocating motion automatically to achieve saw blade grinding function. It has the characteristics of intuitive structure, simple operation, easy to learn, high quality and low price.

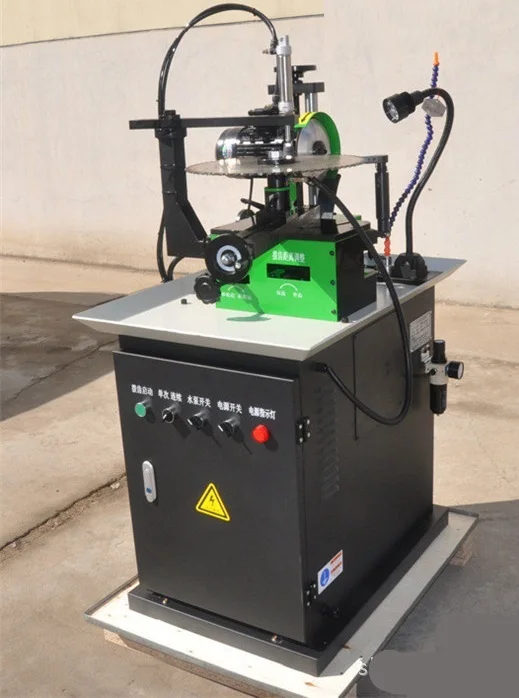

Automatic saw blade gear grinding machine
Packing by plywood case, suitable for long time transportation.
Automatic saw blade gear grinding machine
High-speed hacksaw blade gear grinding machine features:
1. Easy to operate and easy to learn, it can make newbies become professional technicians in a short time.
2. The cutting angle, tooth shape, and tooth depth of the saw tooth can be changed according to different chip requirements, and a sharp saw blade can be easily ground.
3. Grindable saw blades are: HSS saw blades, flying saw (manganese steel Mn) saw blades.
4.The outer diameter of the grindable saw blade is 120-600MM.
5, can grind a variety of tooth types. (Left and right teeth, arc teeth, triangular teeth, high and low teeth)
6. The grinding time of the saw blade can be adjusted quickly according to different cutting requirements.
7. The machine head can be arbitrarily adjusted upward or downward, and the chamfer can be repaired without changing the wheel.
8. The end of the mechanical feed jaw is welded with tungsten carbide, which can reduce wear: The improved design of the push arm ensures that the feed is accurate and in place.
9. After strict production control, the machine only needs routine maintenance to ensure the grinding accuracy.
1. Are you are factory or trading company
We have factory in our local, and we welcome your visiting us at any time.
2. What payment terms do you accept?
TT or west union
3. How about the quality assurance?
We test the machine many times before delivery from our factory, and we could assure the quality with no problem.
