Product Paramenters

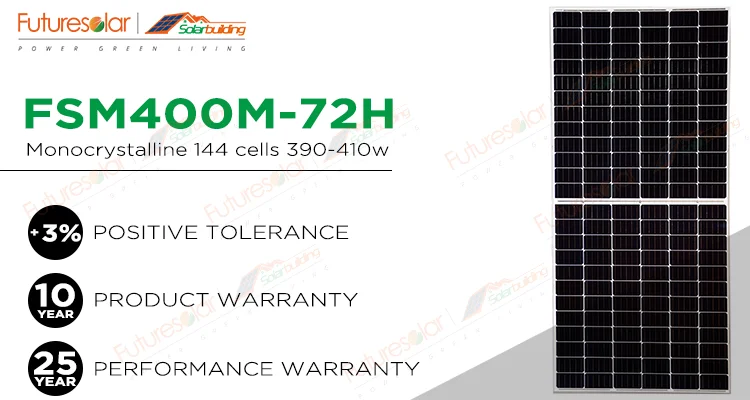

Model | FSM390M-72H | FSM395M-72H | FSM400M-72H | FSM405M-72H | FSM410M-72H | ||||
Nominal Power | 390W | 395W | 400W | 405W | 410W | ||||
Open-circuit Voltage(Voc) | 49V | 49.2V | 49.24V | 49.39V | 50.12V | ||||
Short-circuit Current(Isc) | 10.44A | 10.53A | 10.57A | 11.02A | 11.14A | ||||
Maximum Power Voltage(Vmp) | 40.8V | 41V | 41.17V | 41.45V | 41.76V | ||||
Maximum Power current(Imp) | 9.57A | 9.64A | 9.72A | 9.77A | 9.82A | ||||
Module Efficiency(%) | 19.79% | 20.04% | 20.61% | 20.87% | 21.13% | ||||
Power Tolerance | 0~+5W | ||||||||
Maximum System Voltage | 1000V / 1500V DC(IEC) | ||||||||
Operating Temperature | -40 ℃ to 85 ℃ | ||||||||
\t\t\t\t\t\t\t\t\tDetailed &Production \t\t\t\t\t\t\t
Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
