Поделиться:

Цена:149,00 $ - 199,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Products Description




UIP－T51 series Pressure / Differential Pressure Transmitters
UIP-T51 series differential pressure transmitter adopts latest differential pressure transmitter with a superior performance developed and manufactured taking the world's advanced technology. It uses fully enclosed chamber as a sensing element, and no mechanical moving parts have improved reliability. Differential pressure transmitter can accurately measure low gauge pressure, vacuum, liquid level, specific gravity and flow, widely used in petroleum, chemical, textile, electricity, food, paper, pharmaceutical and other industrial fields

Technical characteristics
1. high precision, good stability
2. two-wire system
3. range, zero external continuously adjustable
4. no mechanical moving parts, reliable, easy to maintain
5. One-way overload, great protection characteristics
6. Full range of unified structure, parts with good interchangeability
7. Explosion-proof structure, all-weather use
8. Can be easily upgraded to intelligent instrument

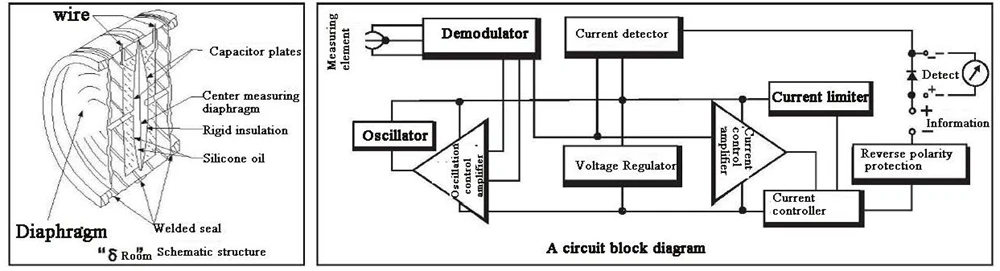

High and low pressure of the measured medium go into the high and low pressure chamber measuring element, acting on the diaphragm, filling liquid passing the pressure signal produced by the two separation membranes to the center measuring diaphragm which is a tension elastic element pressure difference on both sides acting thereon making center measuring diaphragm generate a corresponding differential pressure deformation. Deformation displacement is proportional to the measured pressure difference, having capacitor plates generate a corresponding change in electric kiln, which is detected, amplified and converted into a corresponding current signal of 4-20mA by electronic circuit. If the low-pressure chamber is open to the atmosphere, the high-pressure chamber connects to the measured medium when relative pressure of medium can be measured. Similarly, if the low-pressure chamber is under vacuum, high-pressure chamber connects to the measured medium when the absolute media pressure can be measured.




Product Paramenters




Pressure Measure range
0~420bar (0~6000PSI)
Flange/ Joints materials
SS316、Hastelloy C、Monel
Drain/exhaust valve materials
SS316、Hastelloy C、Monel
Diaphragm materials
SS316L、Hastelloy C、Monel、tantalum、
Power supply
24V DC
Accuracy
0.075%,0.1%,0.2%
Transmitter output
4-20ma、HART、RS485
Connection mode
Flange、thread、Tri Clamp
Explosion Proof
Exd ⅡCT6/ Exia ⅡCT6

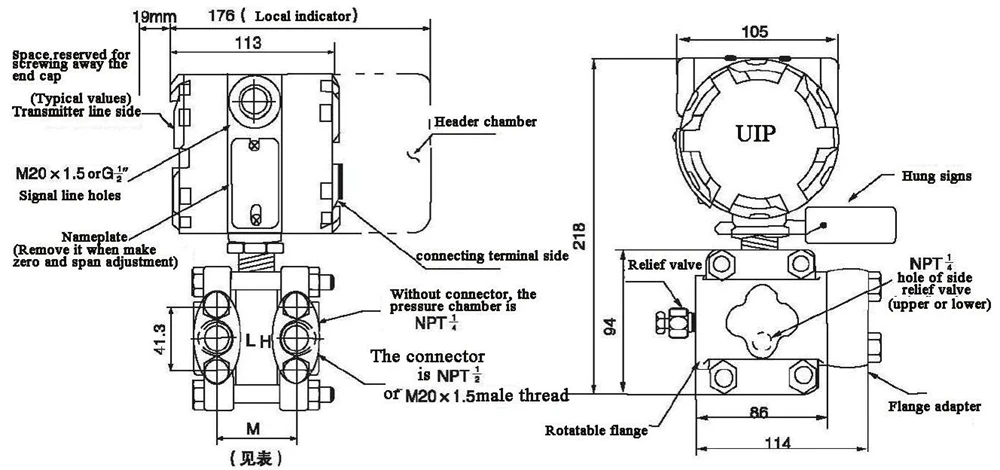

Dimensions




Measuring range (Code)
2、3、4、5、
6.7
8.9
0
M(mm)
54
56
57
59


Differential pressure transmitter model table

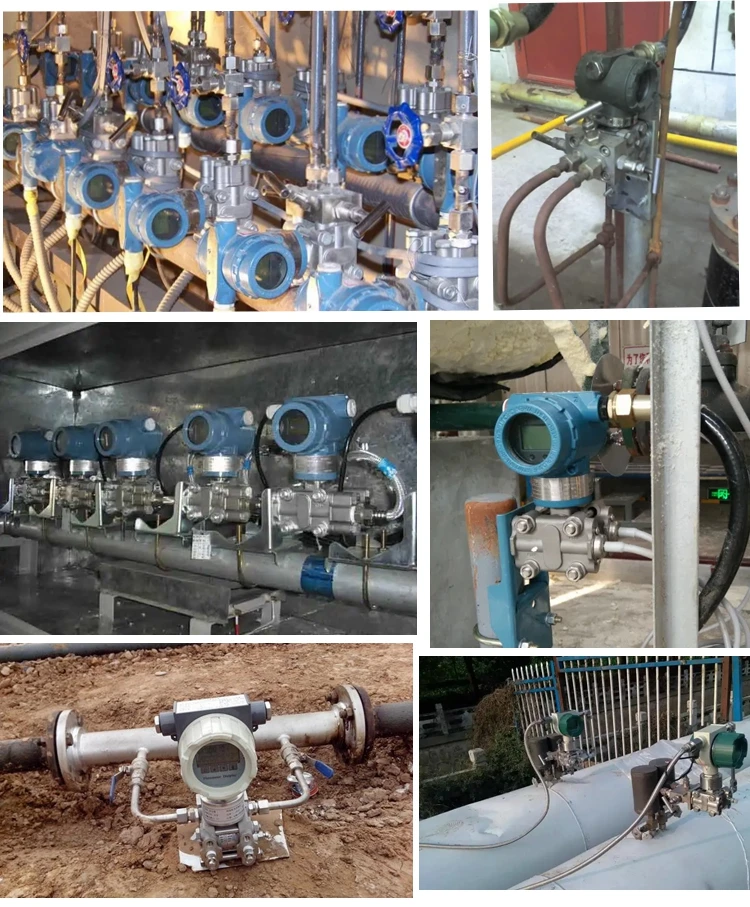

Product installation diagram




Company Introduction




Company introduction
Hebei Xukang Meter Manufacturing and Tianjin U-ideal Instrument Co., Ltd as a group, have more than 20years products research and development experience. And have 16years export experience, 5000m2 factory, tens of new machines.
Hebei Xukang Meter Manufaturing Co. Ltd adopts a combination marketing of domestic and foreign trade, having a marketing network across the country and abroad. We will try to provide customers the best quality and service through integrating the best resource and to become the excellence corporation. Our products strictly enforce the ISO9001 quality management system, and provide customer a safe product.

Our products range:
1. Flowmeter: Electromagnetic flowmeter, ultrasonic flowmeter, vortex flowmeter, gear flowmeter, rotor flowmeter, mass flowmeter, etc
2. Level gauge: Magnetic float level gauge, glass plate level gauge, glass tube level gauge, ultrasonic level gauge, oil level gauge, float switch, radar level gauge, etc.
3. Sight Glass: Straight sight glass, tube sight glass, flange sight glass, three way sight glass etc.
4. Strainers: Quick Open Basket Filter Strainer,Y Type,T Type,Basket Strainer,Self -Cleaning Strainer,Industrial Duplex Basket Strainer,Intelligent Control Self-Cleaning Piping Strainer,etc.
5. Valves: air valve, Strainer, gate valve, check valve, globe valve, ball valve, butterfly valve, pressure reducing valve, control valve, safety valve, angle valve, Titanium alloy valve, thermostatic valve, needle valve, plug valve, etc.
6. Flanges and Pipe fittings:all kinds of flanges, elbow, tee, caps, union,plug,coupling,reducer, pipes and steels etc.



Certifications




Company Profile




Packing




Carton
Wood cases


Transportation



For small order quantity,we can send them to you by express delivery,TNT,DHL,UPS OR EMS etc.
For big order quantity ,we will advise you to use Air Shipping or Sea Shipping through your nominated forwarder agent or our long-term cooperated agent.


FAQ


1. who are we?
We are based in Hebei, China, start from 2017,sell to Domestic Market(15.00%),Mid East(12.00%),South America(10.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),North America(9.00%),Northern Europe(8.00%),Africa(5.00%),South Asia(5.00%),Southern Europe(5.00%),Eastern Europe(5.00%),Central America(2.00%),Oceania(2.00%),Western Europe(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Level Indicator,Level sensor,Level Switch,Flow Meter,Pressure sensor

4. why should you buy from us not from other suppliers?
20 years export experience.
We are group company with Tianjin U-ideal Instrument Co., Ltd.
More than 20years for products Research and development.
5000m2 factory, high-precision machines.
Level gauge, flowmeter and pressure sensor have top quality

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
