Products Description
Product Application
Reaction kettles, extrusion forming equipment, rubber forming machinery, cast film production lines, cable extrusion production lines,the dies for precise plastic molding, the dies for the compression casting of magnesium/aluminum/zinc alloy, roller pressing applied in rubber/plastic and leather industries, crude oil heating of the oil sinks on tankships, paper making industry, bottle blowing, and so on. This Mold Temperature Control System has been designed to maintain a constant temperature, using water or oil as medium. Mold temperature controller is used to control temperature in various industrial fields.
型号 Model | FST-6-0 | FST-9-0 | FST-12-0 | ||
温控范围Control Temp Range | 常温Room temperature-160℃ | ||||
电源 Power source | AC200V/380V/415V/50Hz 3P+E | ||||
冷却方式 Cooling method | Indirect Cooling 间接冷却 | ||||
传统媒体 Fluid | Heat transfer oil 传热油 | ||||
加热能量 Heating Capacity (KW) | 6 | 9 | 12 | ||
泵马力 Pump Power | 0.37 | 0.37 | 0.75 | ||
泵流量 Max Pump Pressure (kg/cm) | 60 | 60 | 90 | ||
泵压力 Pump Power | 1.5 | 1.5 | 2 | ||
冷却水管直径 Cooling Water Pipe Diameter (kg/cm) | ½ | ½ | ½ | ||
热媒管径Process Fluid Pipe (inch) | ½×4 | ½×6 | ½×8 | ||
外形尺寸 Exter Dimension LxWxH(mm) | 650*340*580 | 750*400*700 | 750*400*700 | ||
重量 Weight | 58 | 75 | 95 | ||
Main Features
1. Adopted microcomputer controller ,easy to operate. P.I.D. multi-stage temperature control system can maintains an accuracy of
±0.1℃.
2. Adopted with high efficiency water cycle pump, which precise mold loop with minor diameter can achieve precise temperature controller and high efficient heat exchange.
3. Multiple safety devices including high-pressure protection, overheat protection, inlet water pressure deficit protection, safety pressure relieving, automatic water supplying, boot automatically exhaust & shut down automatically cooling protection functions.
4. Adopts indirect cooling method,which makes temperature controller more precise and realizes fast heat exchange.
5. Adopts magnetic pump with stable performance and no eakage.
6. Water manifolds and Teflon hose are optional.
7. Sufficient safety protection and visible alarm, easy for maintenance.
8. Isolated electric control box for long-term service life.

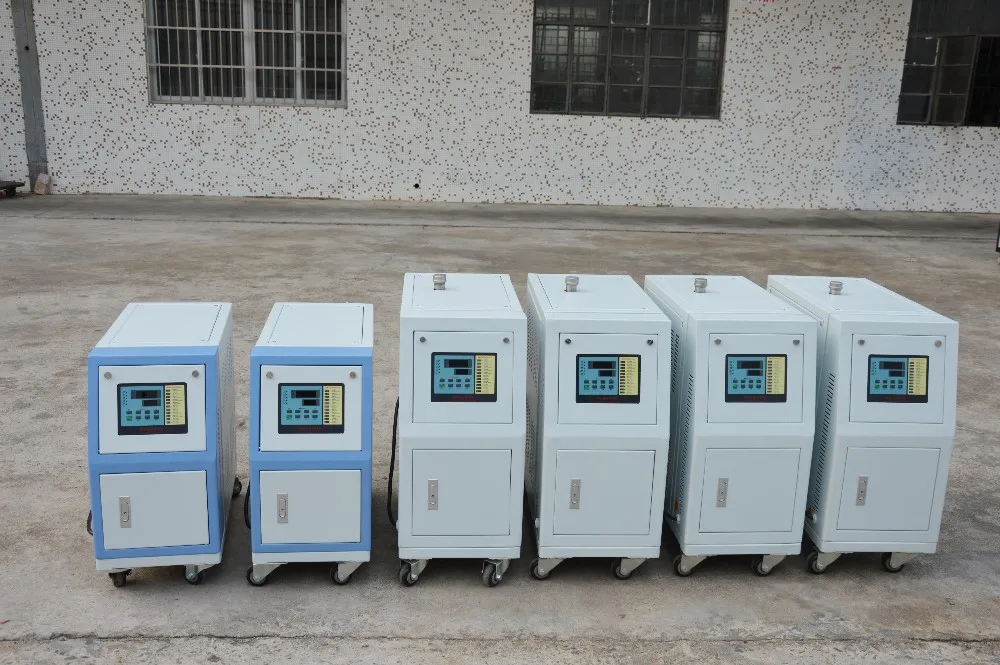

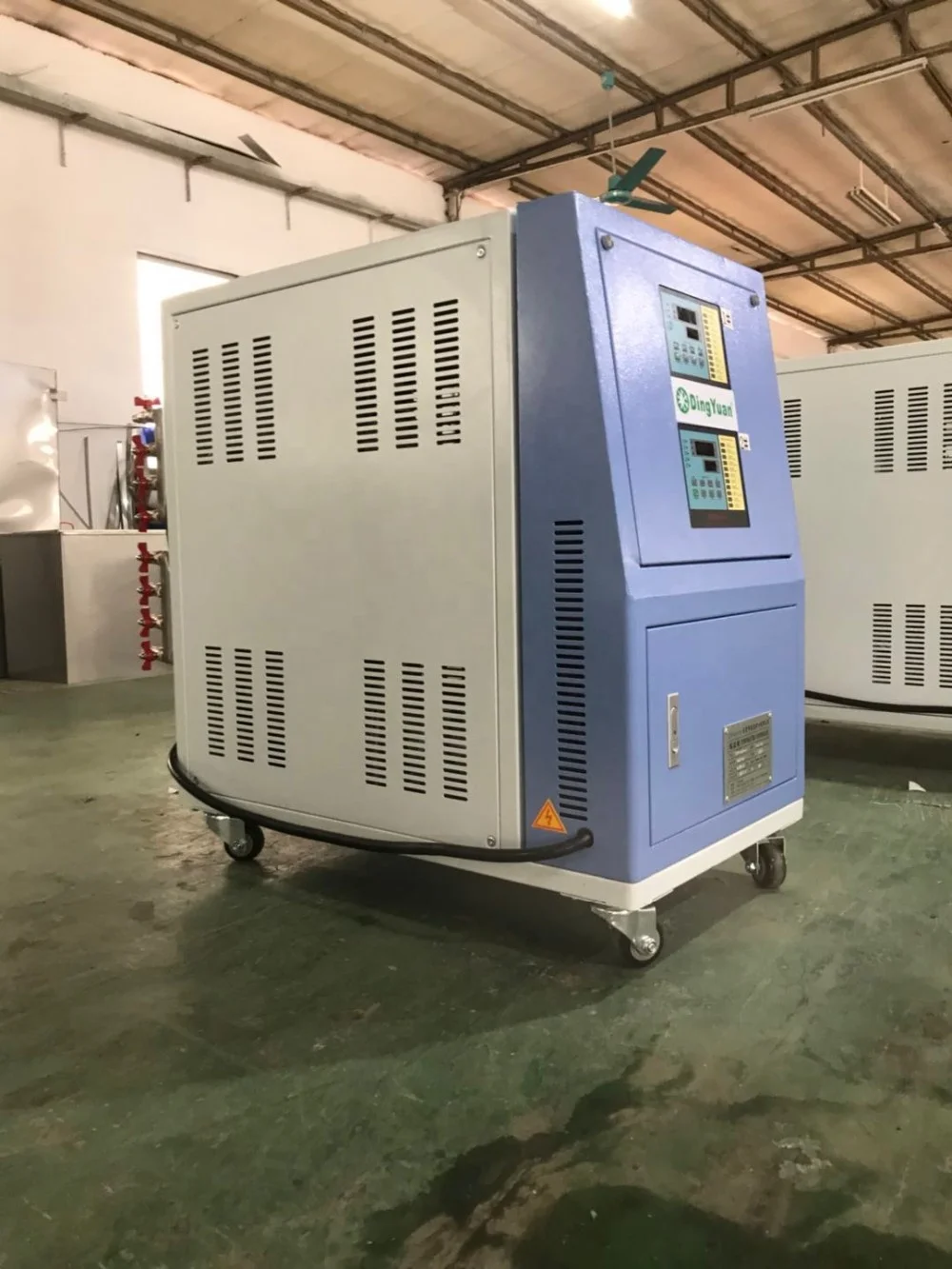

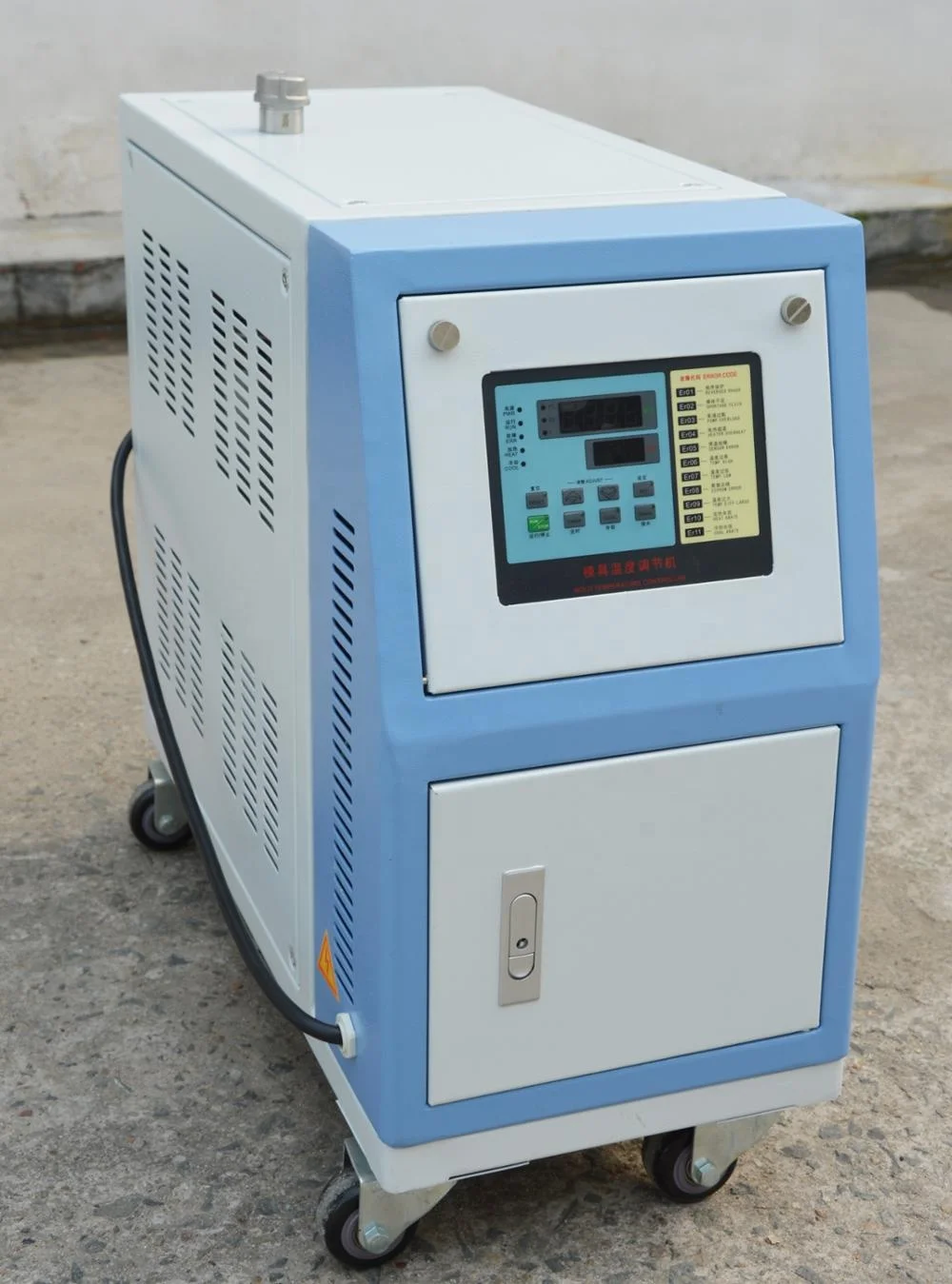

Product Shows
Factory Shows
About us
Dongguan Dingyuan Industrial Co...Ltd is established in 1993, located in Dongguan Guangdang. It is a professional manufac-turer of produce chiller, dehumidifier and other auxiliary machines, show the world a high-technological enterprice combining construction budget, technical consultation, product design, manufacturing and debugging service. There are 9 series, over 130 kinds of products covering the whole cooling system series and many auxiliary series products. Widely serve the plastic, electroplating, laser, chemical, packaging, pharmaceutical and other industries.
Packing & Delivery
Package:
1. Multiple packing: Proved by tests of the compression resistance, throwing. And highly secured.
2. Plywood case packing: High resistance of burst strength, ring crushing strength and tearing strength.
3. Wooden frame parking: Damp-proved and high resistance burst strength and ring crush strength.
2. Plywood case packing: High resistance of burst strength, ring crushing strength and tearing strength.
3. Wooden frame parking: Damp-proved and high resistance burst strength and ring crush strength.
Certificates
