 | New Ergonomics Design Great Flat Images Super High Resolution 20X-40X, 10X-120X |
Product Description
BD7024 Series Stereo Microscope is fully coated optical system with super high resolution. It offers sharp clear images with extremely great flatness and contrast. With the new ergonomics design and super large field of view, you can use this microscope for long time without fatigue.
It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.
Features
------New Ergonomics Design
---Great Flat & Contrast Images
---Super High Resolution
---Convenient for the observers with glasses
---Educational Teaching & Learning; Agricultural Research; Electronic Industrial Inspection & Research
Specification
Specification for BD7024 Series | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Objective 1X | Objective 2X | Objective 3X | Objective 4X | ||||
Working Distance 100mm | ||||||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/23mm | 10X | 20.0mm | 20X | 10.0mm | 30X | 7.5mm | 40X | 5.0mm |
15X/16mm | 15X | 16.0mm | 30X | 8.0mm | 45X | 5.0mm | 60X | 3.3mm |
20X/12mm | 20X | 12.0mm | 40X | 6.0mm | 60X | 3.3mm | 80X | 2.5mm |
25X/9mm | 25X | 9.0mm | 50X | 4.5mm | 75X | 3.0mm | 100X | 2.3mm |
30X/8mm | 30X | 8.0mm | 60X | 4.0mm | 90X | 2.7mm | 120X | 2.0mm |
Magnification | 20X-40X, 10X-120X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/23mm high-eyepoint, super wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/23mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm | |||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters | ||||||||
Illumination | Fluorescent lamp, LED ring light | |||||||
Product Details
 |
| Structure of BD7024-PS |
 |

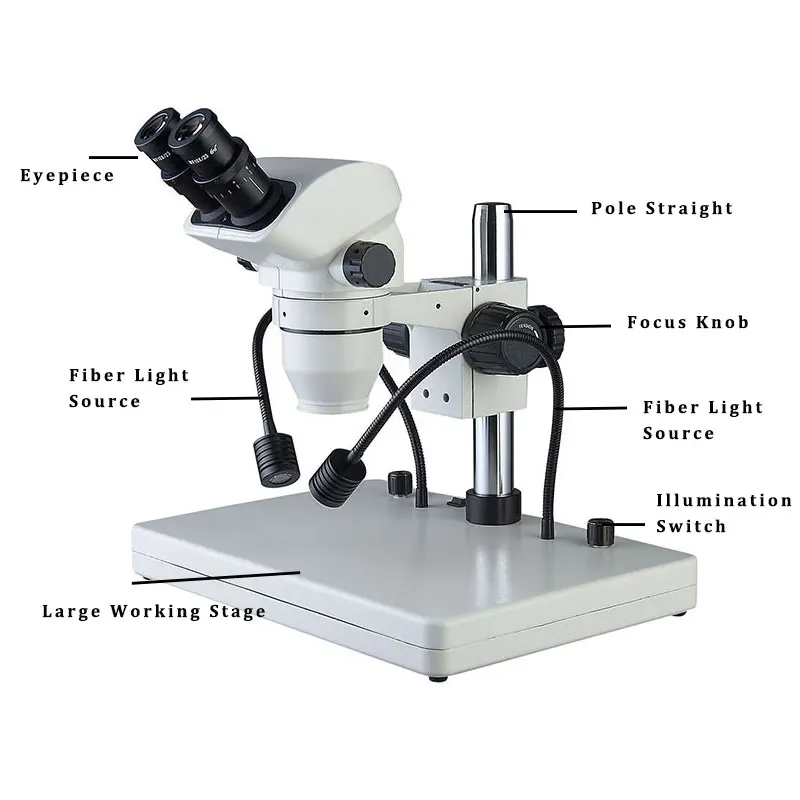

| Structure of BD7024-PLGL |

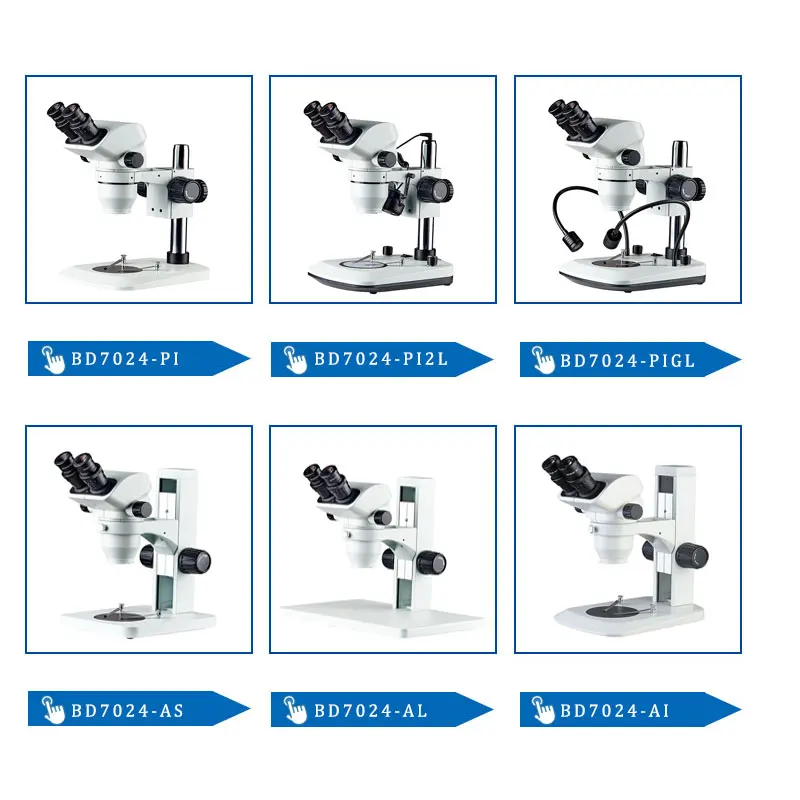

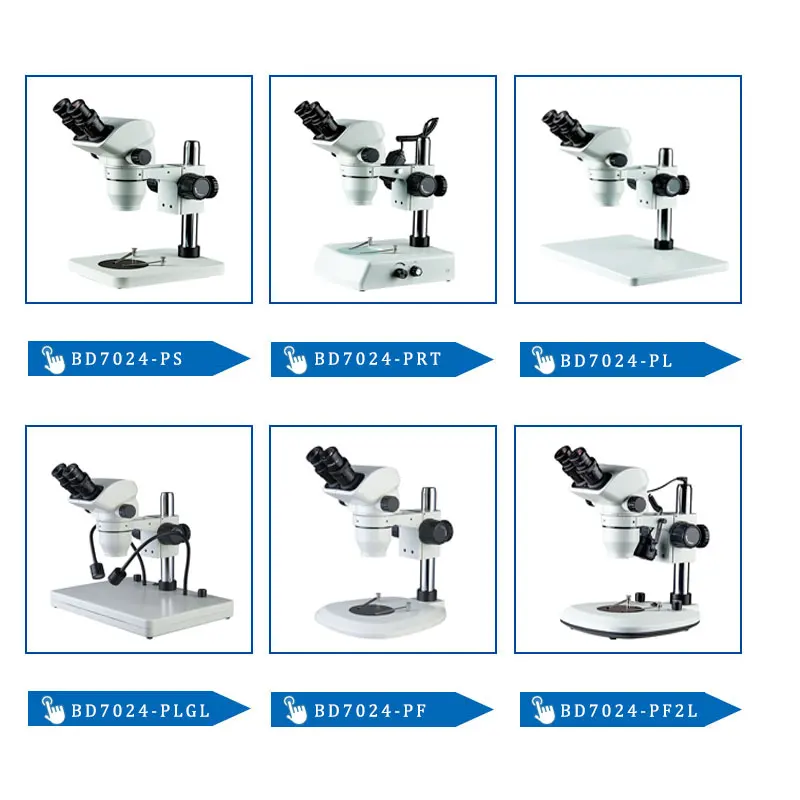

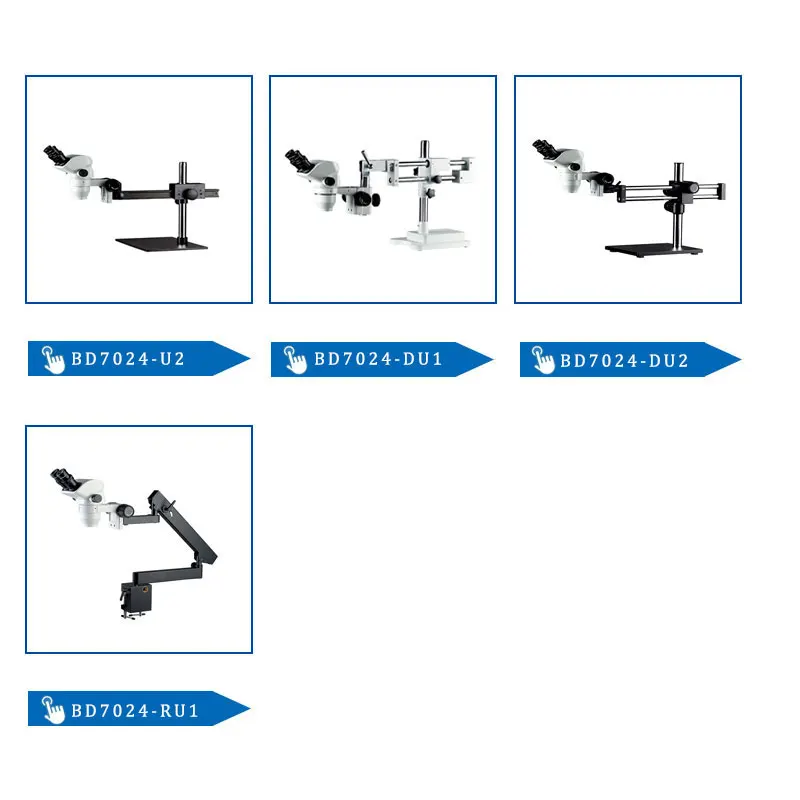

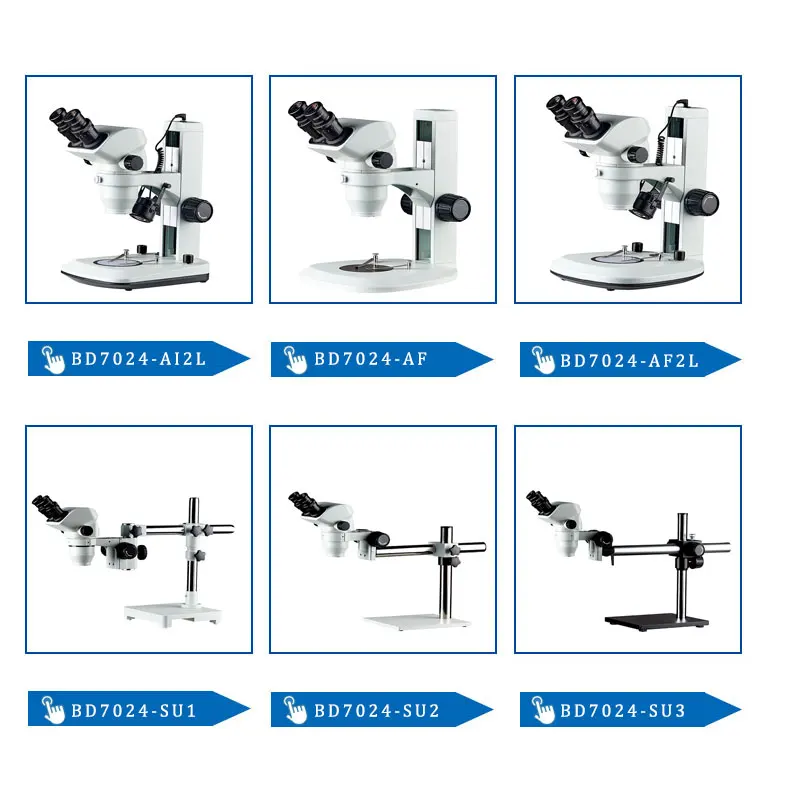

Products Display
 |
 |
 |
 |
Item | Illumination |
|---|---|
BD7024 -PS | Fluorescent lamp, LED ring light |
BD7024 -PRT | Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination |
BD7024 -PL | Fluorescent lamp, LED ring light |
BD7024 -PLGL | Double gooseneck LED illumination with independent switches and adjustable intensity |
BD7024 -PI | Fluorescent lamp, LED ring light |
BD7024 -PI2L | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity |
BD7024 -PIGL | Double gooseneck LED illumination with independent switches and adjustable intensity |
BD7024 -PF | Fluorescent lamp, LED ring light |
BD7024 -PF2L | Transmitted and reflected LED illumination with independent switches and adjustable intensity |
| BD7024-U2 | Fluorescent lamp, LED ring light |
BD7024-AS | Fluorescent lamp, LED ring light |
BD7024-AL | Fluorescent lamp, LED ring light |
BD7024-AI | Fluorescent lamp, LED ring light |
BD7024-AI2L | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity |
BD7024-AF | Fluorescent lamp, LED ring light |
BD7024-AF2L | Transmitted and reflected LED illumination with independent switches and adjustable intensity |
BD7024-SU1 | Fluorescent lamp, LED ring light |
BD7024-SU2 | Fluorescent lamp, LED ring light |
BD7024-SU3 | Fluorescent lamp, LED ring light |
BD7024-DU1 | Fluorescent lamp, LED ring light |
BD7024-DU2 | Fluorescent lamp, LED ring light |
BD7024-RU1 | Fluorescent lamp, LED ring light |
