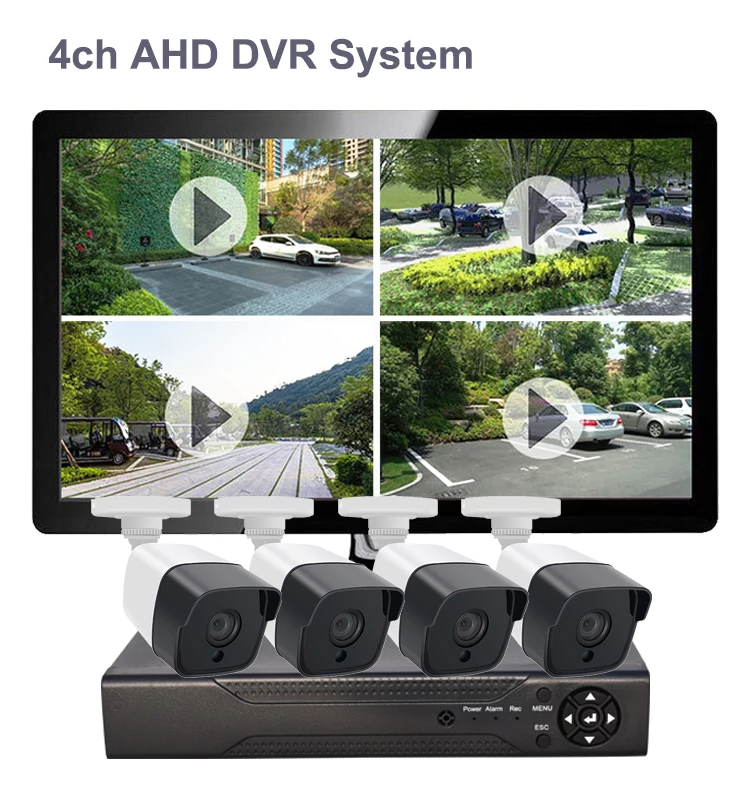

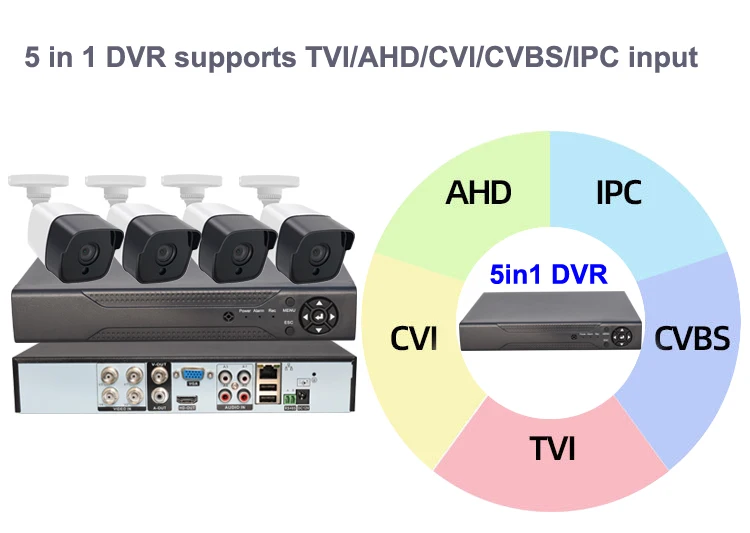

Видеонаблюдения сетевая камера системы 4ch 2MP камеры видеонаблюдения с

DVR Recorder

Video

Video compression

H.265

Preview

1/4/8/9

Monitor quality

VGA(1080P at most);HDMI(1080P at most)

Preview ability

4*5M-N@20fps(6 in 1)/4*4M-N@15fps(6 in 1)/4*1080P(6 in 1)default:5M-N

Encode ability

4*5M-N@20fps(6 in 1)/4*4M-N@15fps(6 in 1)/4*1080P@20fps(6 in 1)default:5M-N

Decode ability

2*5M-N@20fps(6 in 1)/2*4M-N@15fps(6 in 1)/4*1080P@20fps(6 in 1)default:5M-N

Motion detection

Support (depend on camera)

Record & Playback

Recording mode

Manual>Alarm>Motion Detection>Timing

Local payback

2ch(analog input mode)

Search mode

Search by Time/Calendar/Event/Channel

Storage & Backup

Record storage

HDD, Network

Backup mode

Network, USB hard disk, USB burner, SATA burner

External

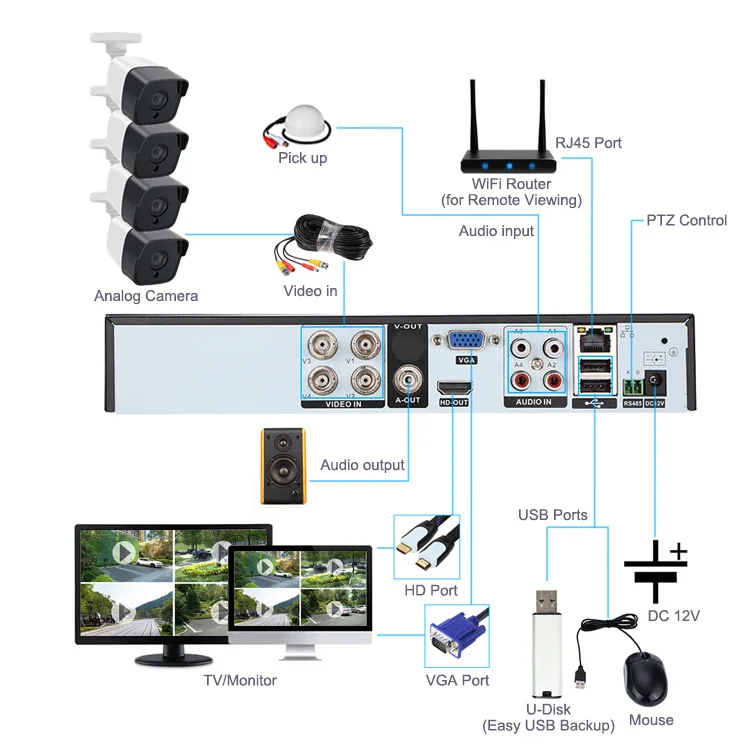

Interface

Video input

4ch BNC

Video output

1ch VGA, 1ch HDMI

Audio I/O

1/1

Alarm I/O

0/0

Network interface

1*RJ45 10M/100M Adaptive Ethernet port

PTZ control

Support kinds of PTZ protocols

USB interface

2*USB 2.0 ports

HDD

1 SATA Interface

HDD Capacity

up to 6TB capacity

General

ONVIF

Support

Power supply

DC 12V/2A

Power Consumption

< 15W(Without HDD)

Work environment

-10 °C to 55°C (14 °F to 131 °F);
10% ~ 90% non-condensing RH

Dimension

255mm x 210mm x 40mm

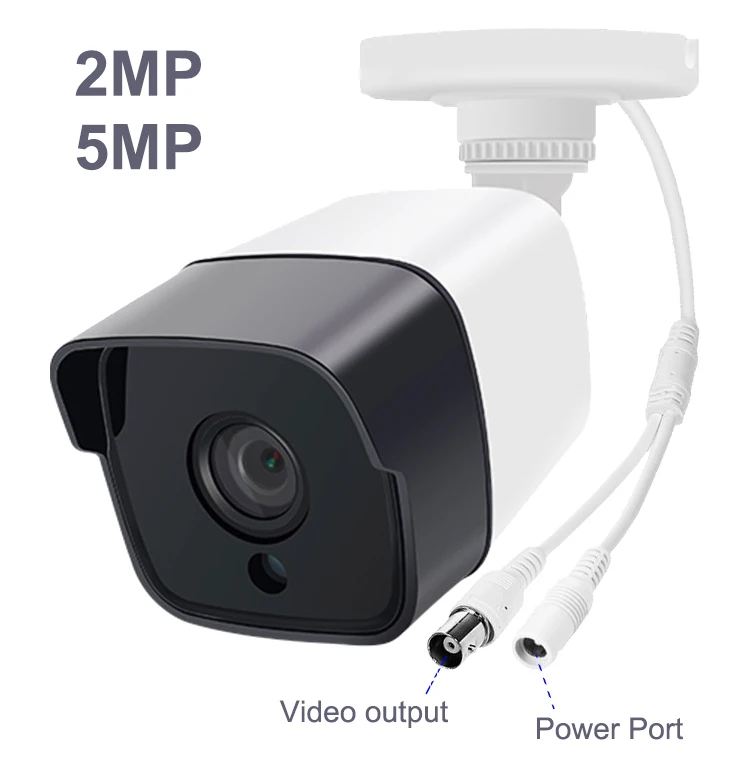

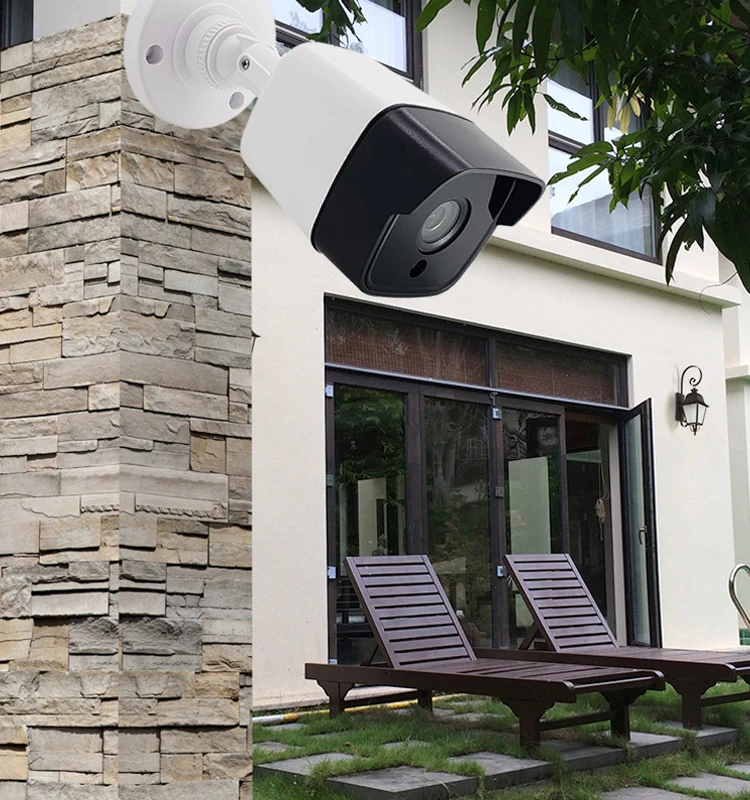

AHD Camera

Camera

Image Sensor

1/3" 2MP Megapixel Sensor

Min. Illumination

Color 0.01Lux (F1.2), black and white 0.001 Lux (F1.2)

Shutter

1/50(1/60) seconds to 1/10,000 seconds

Video Resolution

1920 ×1080

Signal System

PAL/NTSC

Lens

3.6 mm fixed

Day & Night

Support IR-CUT, Adjustable (OSD Control)

Max. IR Range

30 m / 100ft

IR LED Array

36 PCS IR LEDS

General

Housing

Plastic

Power supply

DC 12V 1A

Operating Conditions

-10 °C to 60°C (14 °F to 140 °F);
10% ~ 90% non-condensing RH

Waterproof grade

IP66

Dimension

60mm x 60mm x 160mm
