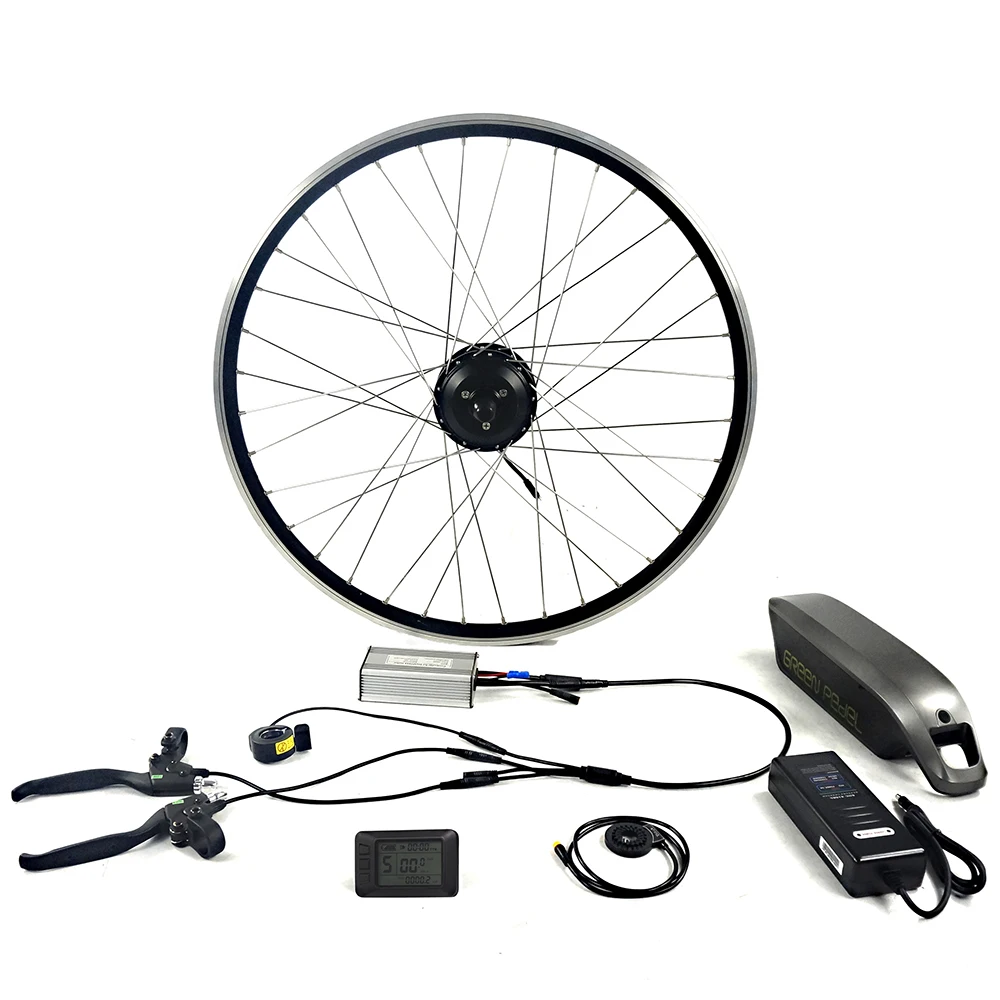

Product Description
Motor | 36V/48V 350W 500W 750W Rear DC wheel hub motor (GP-M58) 1. Brushless direct hub motor 2. Spoked with double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes 3. V Brake/ Disc brake available 4. Rated speed=25KM/H. 5. Load≤120Kg 6. Motor cable length=200mm,extension cable=200+1600mm. 7. Wheel size for options:20-29inch |
Controller | intelligent controller,low/over voltage and current protection,Bluetooth function is available(sine/square wave) |
Battery | 36V/48V 10Ah/13Ah/14.5Ah lithium-ion battery (Samsung 29E/LG M26/LG3200/Panasonic 2900 18650cell) All battery including 2A/3A charger and smart BMS |
Display | LED900/LED900S/LCD1/LCD3/LCD5/LCD6 display for options USB output is available for LCD3 and LCD6 |

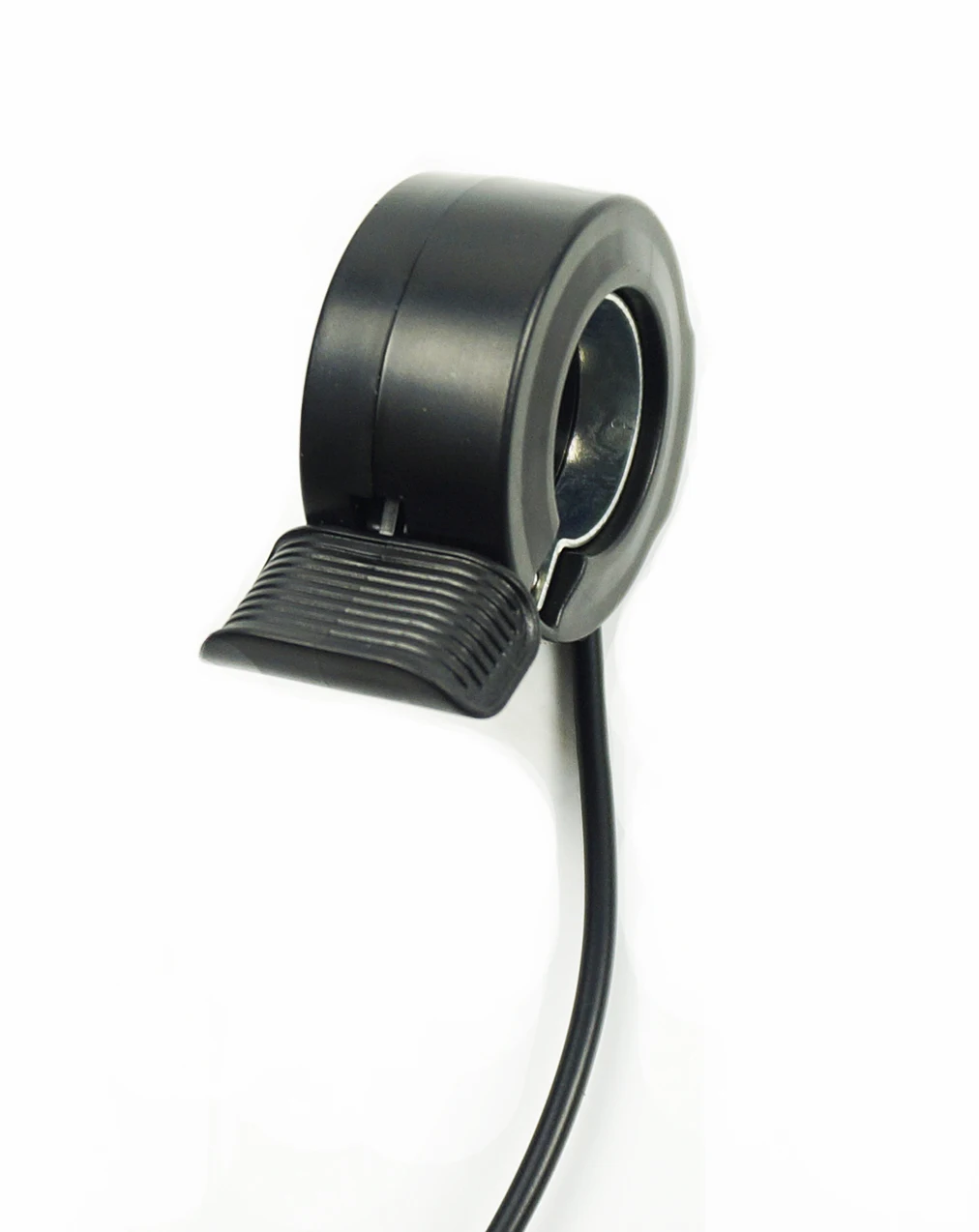

Throttle | Thumb throttle/Twist throttle |

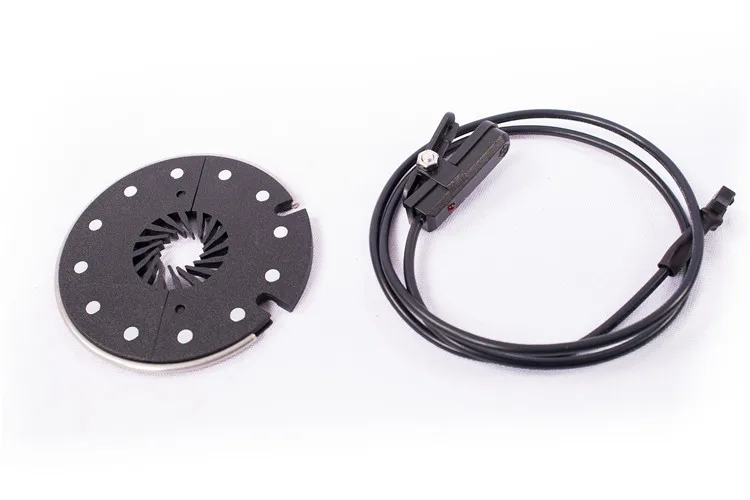

PAS | 8/12 magnet points pedal-assistance sensor(8P/D12/V12) |
E-brake | Electric brake levers/Brake sensor for cutting power off |
Details Images
brushless Geared Hub motor(35Km/h):
1). 27H aluminum stator and 0.35mm silicon steel sheet
2). Very light and low noise
3). 1:5 reduction ratio with high torque
4). OEM are warmly welcome
1). 27H aluminum stator and 0.35mm silicon steel sheet
2). Very light and low noise
3). 1:5 reduction ratio with high torque
4). OEM are warmly welcome

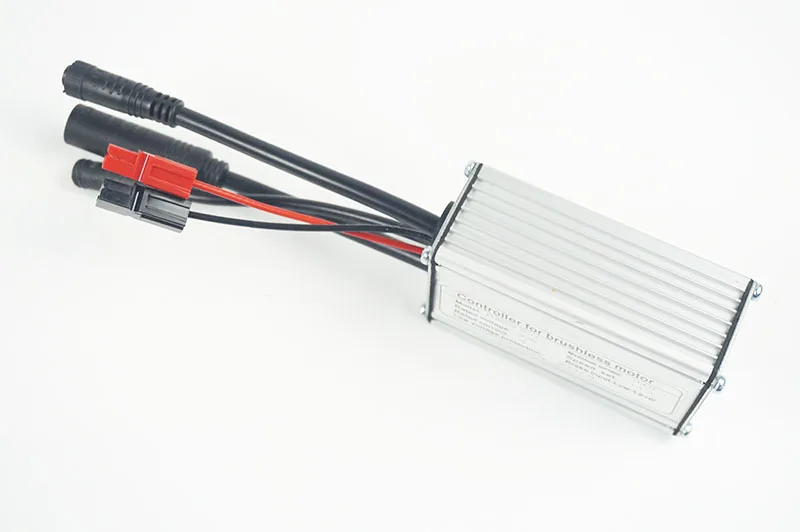

1). Inside with 6Mosfets good tube(sine wave or square wave for options)
2). 120 degree phrase position(120º)
3). Bluetooth/APP for options(IOS/Android)
4). Normal or Anti-water connector for options(pls tell us when inquiry)

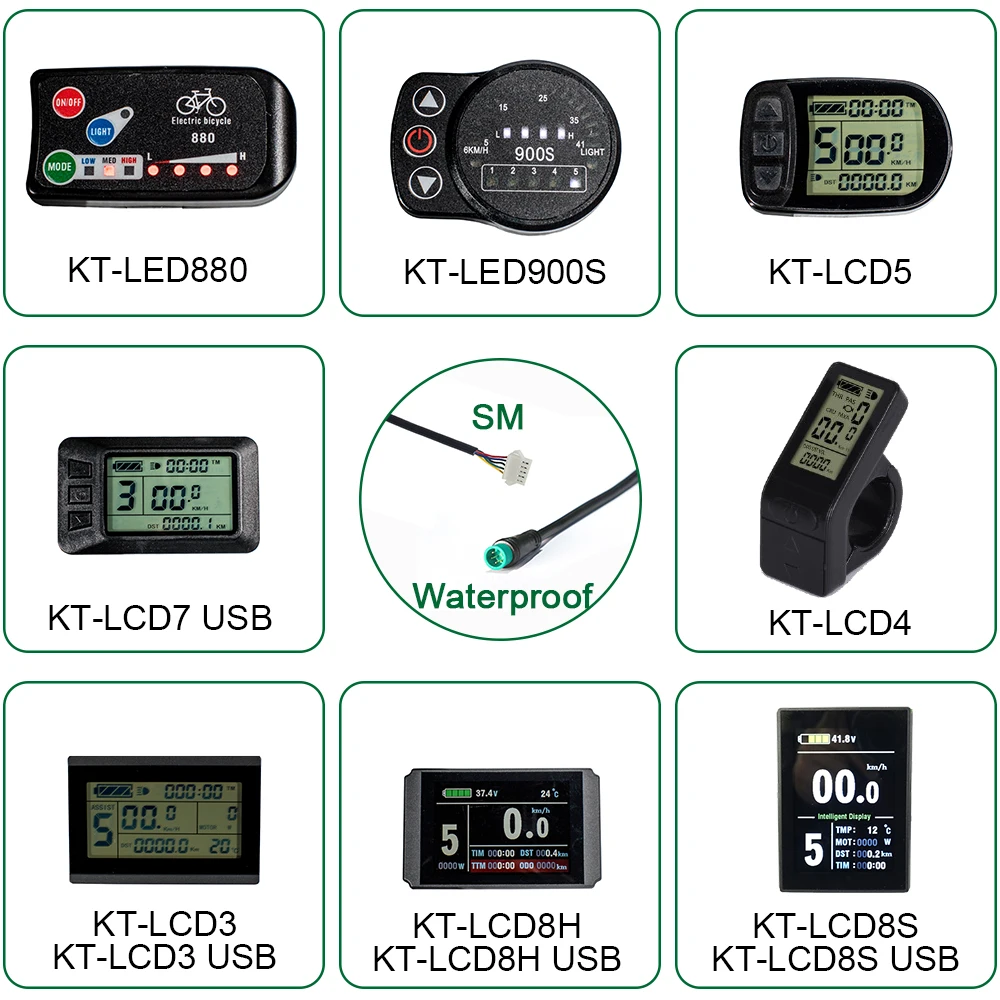

Optional display
1.LED890/LED900/LED900S is available
2. Single Max speed(MXS)+single Average Speed(AVS)
Temperature showing.
3.LCD Alarm for motor over heat. (USB function opitional)
4.Working and Cruise function is available
5.Colorful display is optional
2. Single Max speed(MXS)+single Average Speed(AVS)
Temperature showing.
3.LCD Alarm for motor over heat. (USB function opitional)
4.Working and Cruise function is available
5.Colorful display is optional
2). Power indicator/Lock/Reverse running/Alarm function available
3). Water proof system is available,pls tell us which system when inquiry

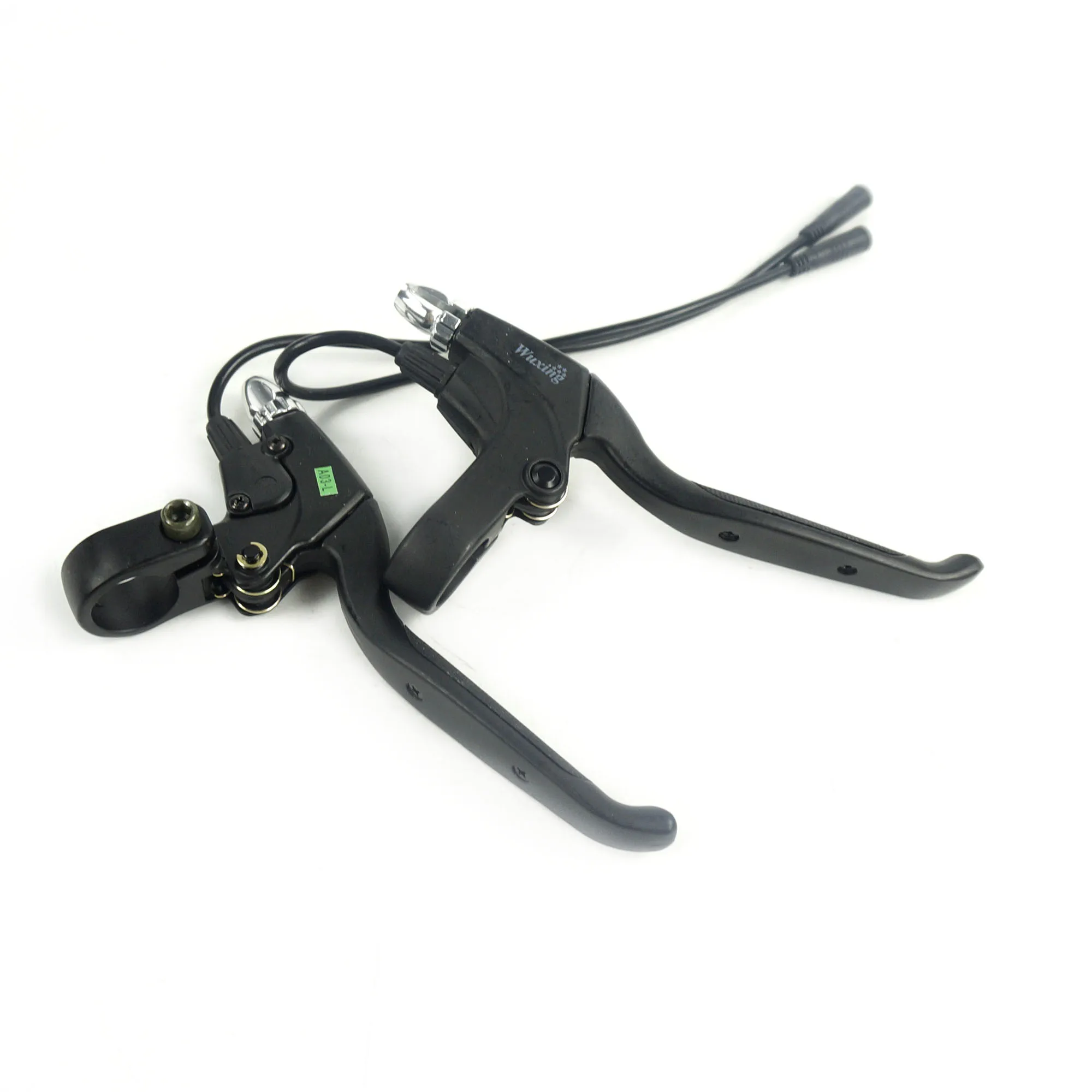

1). E-brake sensor is available
2). different ebrake levers is optional
2). Install not easy(8P),need to remove the bracket,except for D12 PAS
3). Good response speed and sensive for pedal assistance

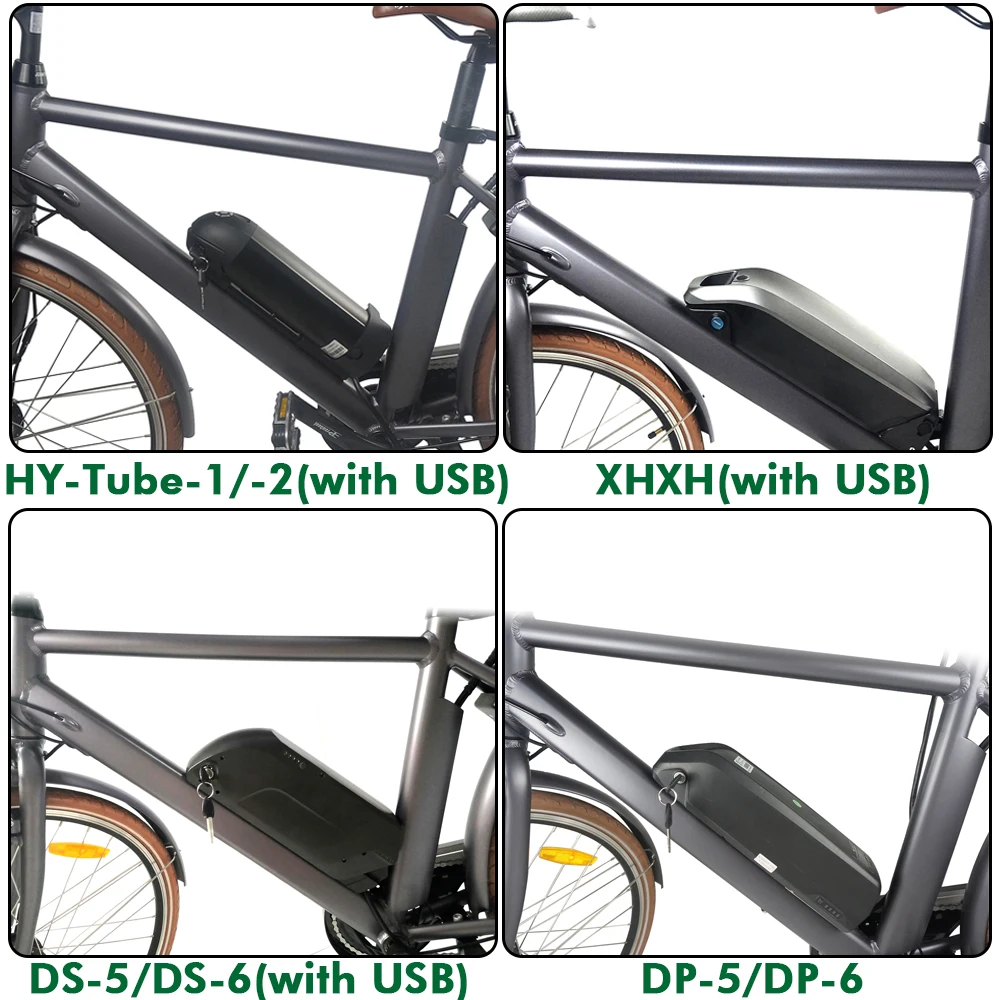

2)Our lithium battery capacity is from 8.8AH to 19.2AH
3) We have Chinese cell, Samsung cell, Panasonic cell and LG cell for option
Factory&Packing
Our Service
1.Warranty :motor is 3years ,battery is 2 years,other ebike parts are 1 year.
2.OEM &ODM are available as customers demand.
3.We have professional team on ebike parts ,10years working experience engineers and sales .
4.Workers are well trained ,testing every single parts before packing.
5.Sales reply to you within 24hours .online time is long ,easy to contact .
6.After service is fast ,send replacement parts as soon as you send fault parts to check.
2.OEM &ODM are available as customers demand.
3.We have professional team on ebike parts ,10years working experience engineers and sales .
4.Workers are well trained ,testing every single parts before packing.
5.Sales reply to you within 24hours .online time is long ,easy to contact .
6.After service is fast ,send replacement parts as soon as you send fault parts to check.
