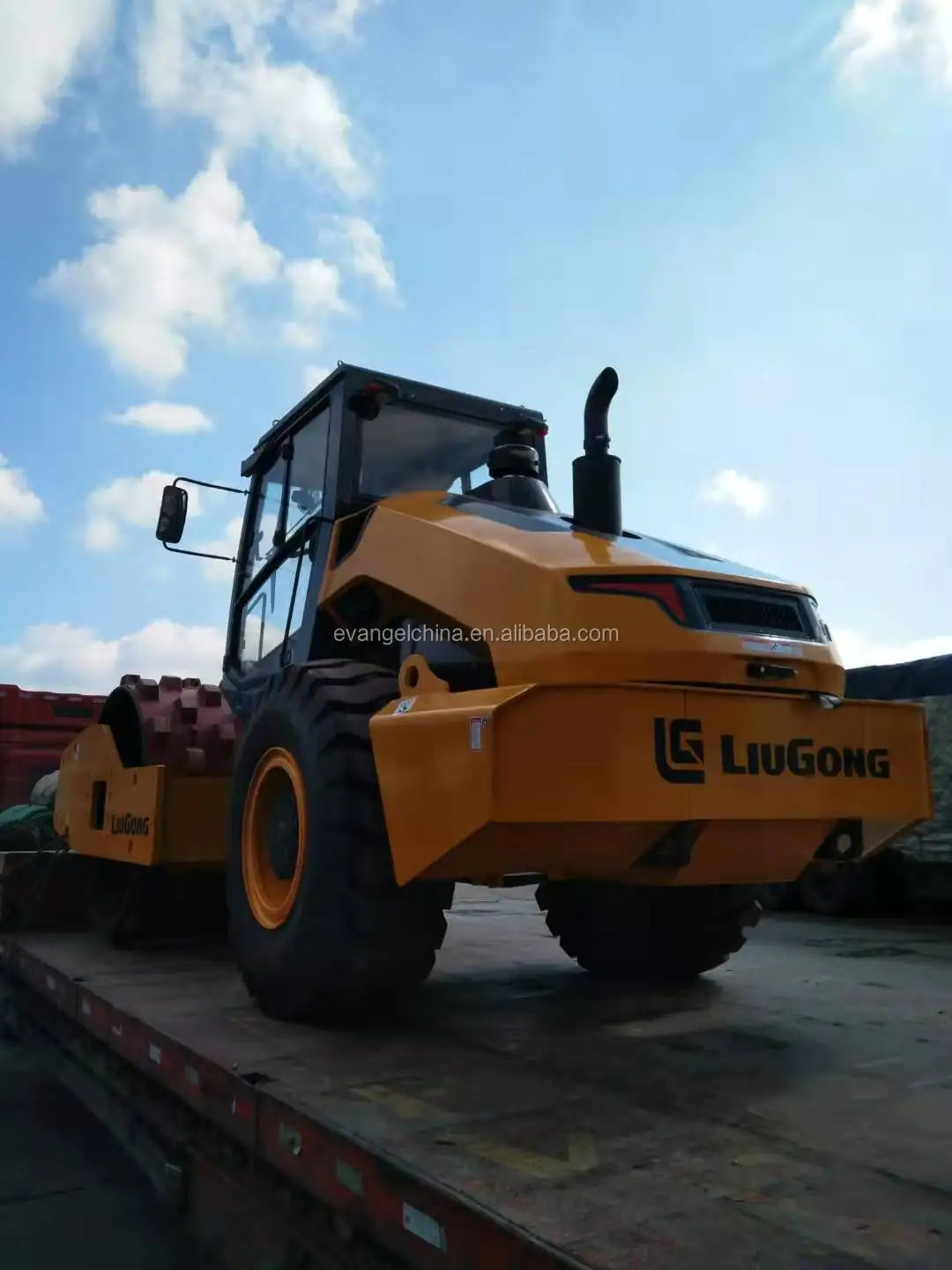

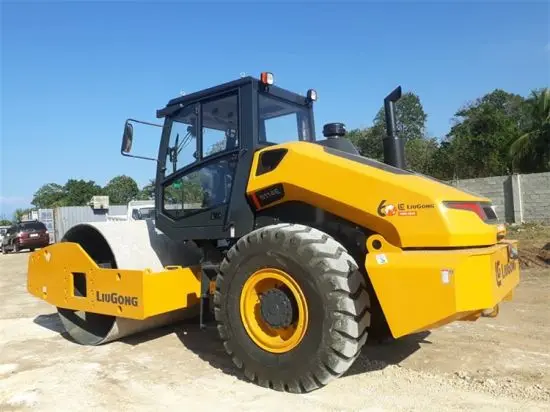

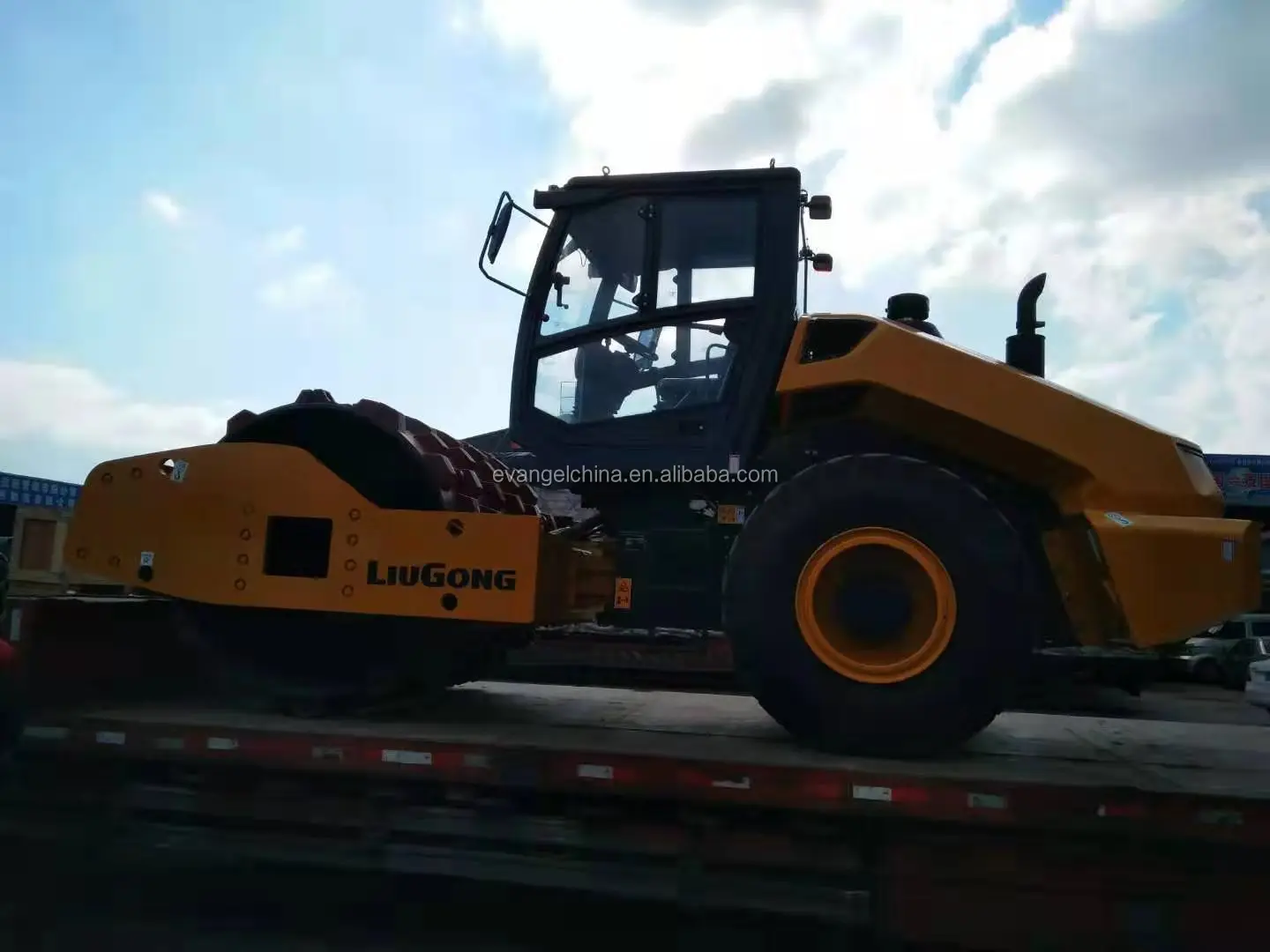

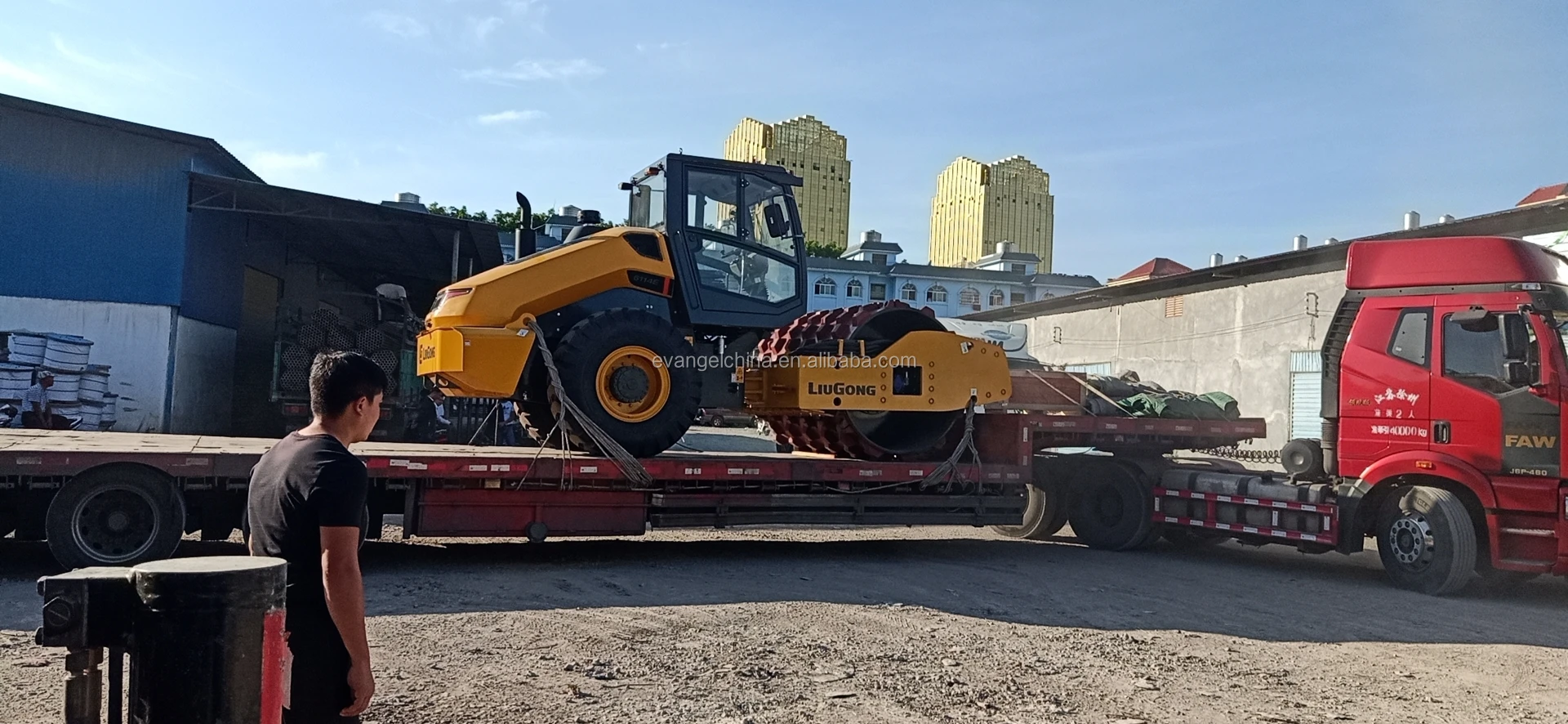

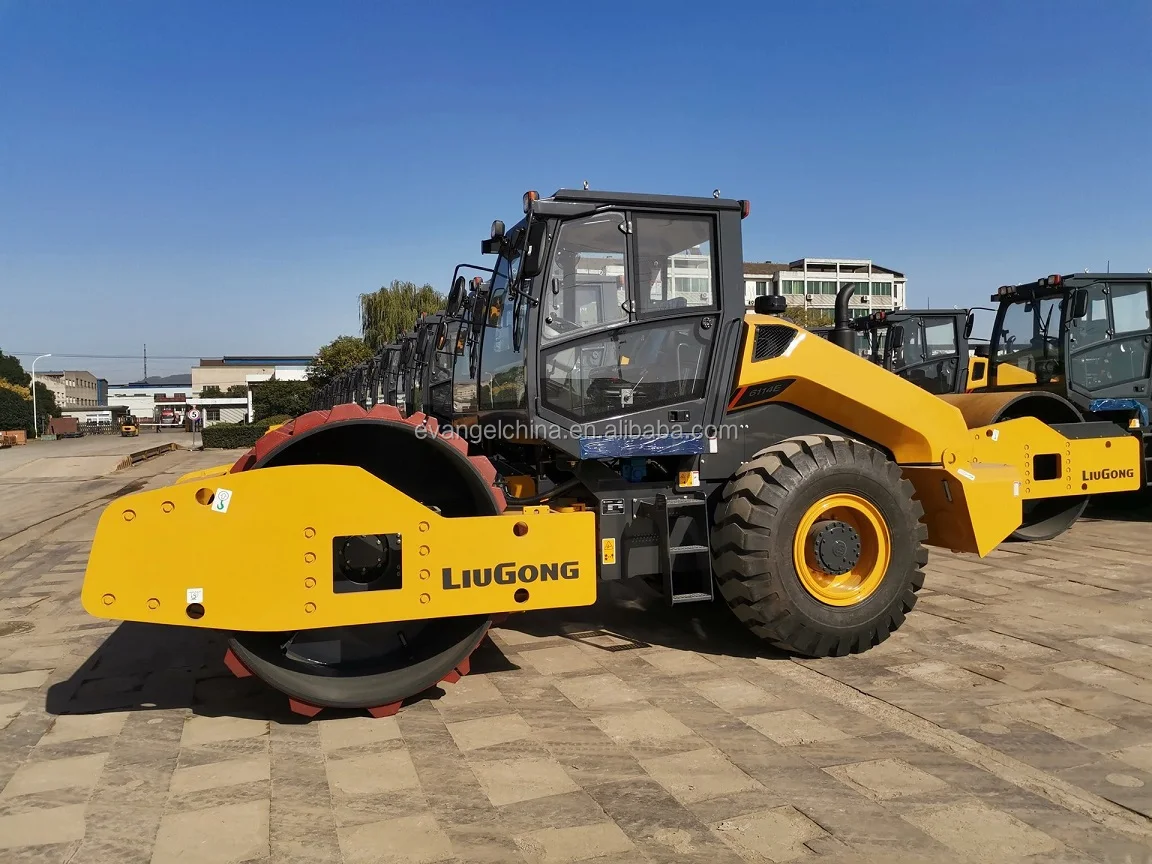

Liugong brand 14 ton single drum vibratory roller CLG6114E/6114 with air

Описание и отзывы

Характеристики

14 ton single drum vibratory roller CLG6114E Liugong brand mechanical operation hot sale in Myanmar

Built for Efficiency
Single Frequency Compaction
Good Fuel Economy
Large Fuel Tank
Parallel Gull-Wing Radiator

Easy to Maintain
Easy Engine Access
Convenient Maintenance Ports.
Easily maintained LiuGong Axle
Front Bump Cover Easy to Remove

Always Reliable
World Class Components
Parts, Service, Attachments to count on.
LiuGong axles with differential

Operator Comfort and Safety
Low Vibration & Noise
Ergonomic Design
Foot and Hand Throttles
Excellent Visibility



Unique Liugong non-shock vibration exciter, flexible start and stop vibration, avoid the impact of stop and shake of shaker exciter,

eliminate the risk of eccentric block break, effectively extend the service life of vibration bearings and eccentric shaft, and ensure high reliability of vibration system
Independent vibration chamber and active lubrication technology ensure high reliability of steel wheels and reduce maintenance costs;
With ECO energy-saving mode, to achieve dual power output of the engine, the overall fuel-saving effect of the whole machine is more than 12%;
Imported brand hydraulic pump and vibration motor, high stability and long service life;
The overall optimization and matching technology achieves greater excitation force of the same tonnage model and high work efficiency;
The engine is upside down for easy maintenance, wide rear vision and low maintenance costs.

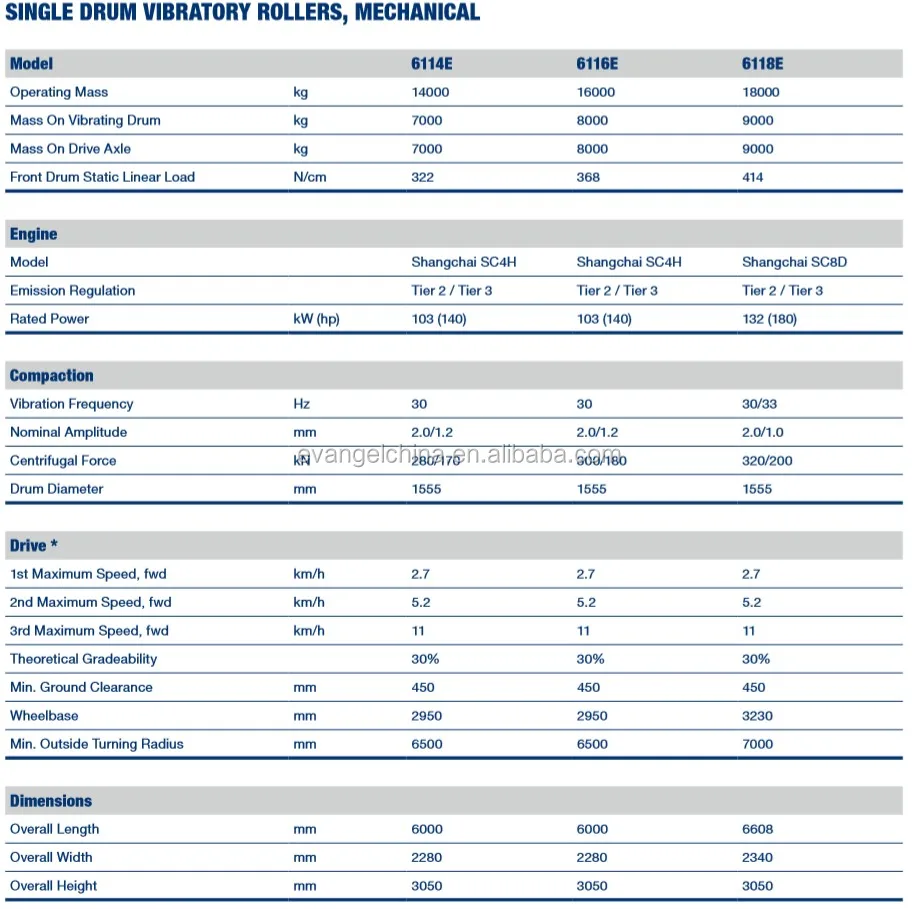

Mass		Operating Mass(kg)	15640
		Mass On Vibrating Drum(kg)	7000
		Mass On Drive Axle(kg)	7000
		Front Drum Static Linear Load (N/cm)	322
Compaction		Vibration Frequency(Hz)	35(2000rpm)
		Nominal Amplitude(mm)	1.7/0.9
		Centrifugal Force(kN)	300/185
		Drum Diameter(mm)	1500
		Drum Width(mm)	2130
		Drum Thickness(mm)	30
Drive		1st Maximum Speed,fwd(km/h)	2.7
		2nd Maximum Speed,fwd(km/h)	5.2
		3rd Maximum Speed,fwd(km/h)	11
		4th Maximum Speed,fwd(km/h)	\\
		Theoretical Gradeability(%)	30
		Min. Ground Clearance(mm)	470
		Wheelbase(mm)	3100
		Steering Angle(°)	±35
		Swing angle(°)	±10
		Min. Outside Turning Radius(mm)	6500
		Tyre Type	20.5-25-16PR
		Tyre Pressure(kPa)	200-220
		Overall Length(mm)	6180±50
		Overall Width(mm)	2280
		Overall Height(mm)	3050±50
Engine		Brand	Shangchai
		Model	SC5D130G2B1
		Emission Regulation	TierⅡ
		Rated Power(kW)	95
		Rated Rotation Speed(r/min)	2050
		Theoretical Fuel Consumption(g/kW.h)	226.5
		Torque(N.m)	490
		Number of Cylinders	4
		Displacement(L)	5.3
		Aspiration	Turbocharged
		Cooling Type	Water
Hydraulic	Travel Pump	Brand	\\
		Model	\\
		Displacement(mL)	\\
	Vibrating Pump	Brand	Per-mco
		Model	P5100
		Displacement(mL)	80
	Travel Motor	Brand	\\
		Model	\\
		Displacement(mL)	\\
	Vibrating Motor	Brand	Per-mco
		Model	M5100
		Displacement(mL)	70
	Reduction Gear	Brand	\\
		Model	\\
		Reduction Ratio	\\
Drive Axle		Brand	Fen-yi
		Model	PR50.23A
Volume		Battery(V/Ah)	24/200
		Alternator(V/A)	28/55
		Rear Axle(L)	18
		Vibrating Housing(L)	2.3×2
		Fuel Tank(L)	285
		Hydraulic Oil Tank(L)	120
		Engine Oil(L)	14
		Transimission/Torque Converter(L)	14.5
		Coolant(L)	32
		Tyre Wetting(L)	415×2
		Weight on Front Axle(T)	\\
		Weight on Rear Axle	\\

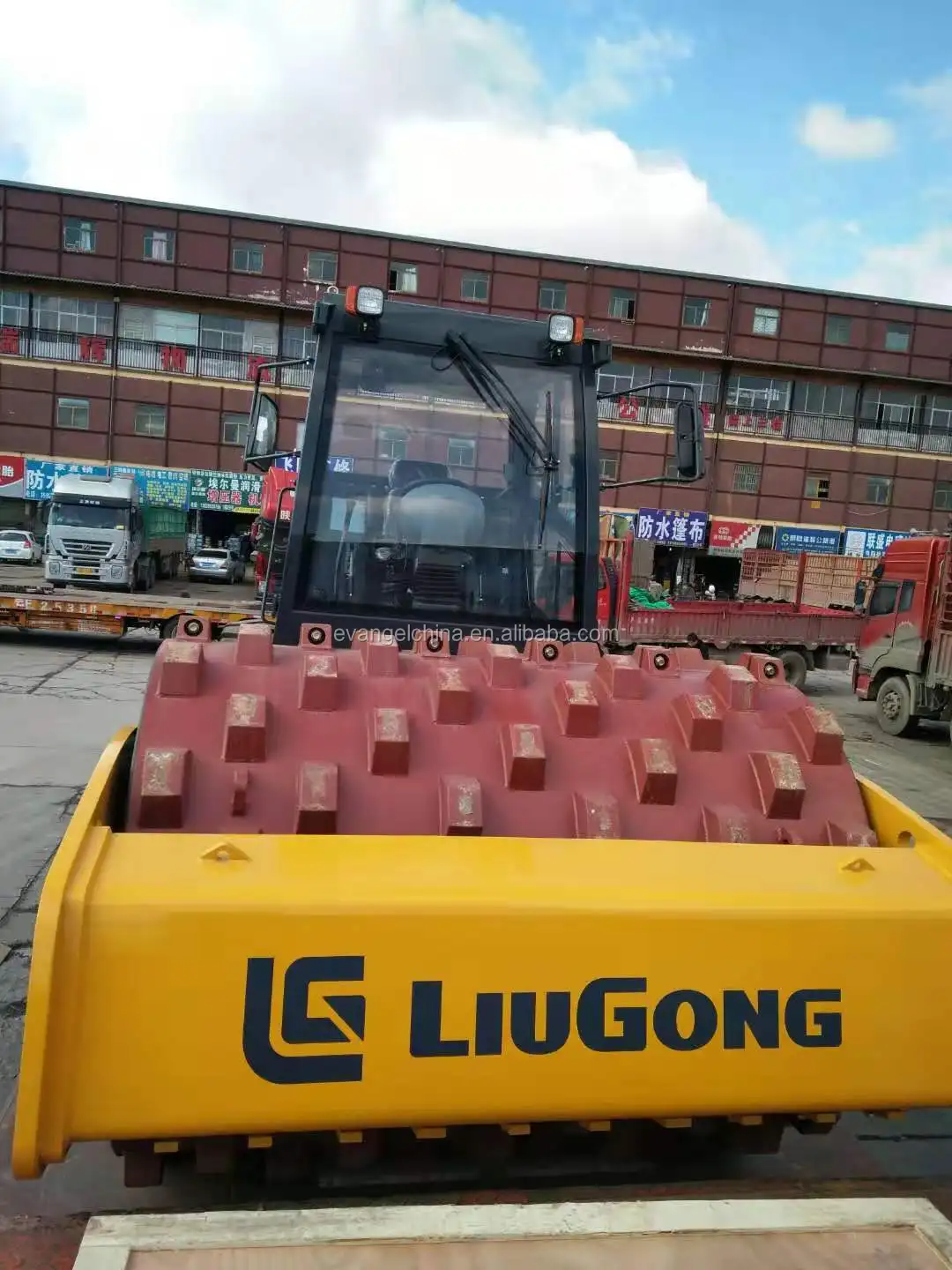

Padfoot		Padfoot Thickness(mm)	18
		Padfoot Height(mm)	80
		Unit Area of Per Padfoot(cm2)	110
		Grounding Area(cm2)	612
		Number of Padfoot	132
		Gross Weight of Padfoot(kg)	1100
File and Certificate		Introduce Document of Products	√
		Parts Manual	√
		Maintenance Manual	√
		Service Manual	\\
		CE Certificate	\\
		GOST Certificate	\\
		CUTR Certificate	√
		SONCAP Certificate	√
		I r a n ISO Report	\\
		Noises Report	\\
		ROPS Certificate	\\
		Type-test Certificate	\\
		Type-test Certificate Report	\\
