2 в 100 А свинцово-кислотный аккумулятор активатор разрядка испытательная машина для
- Категории: Battery Repair Device >>>
- Поставщик: Hangzhou,Zhechang,Power,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Feature: 1.Three functions of charging, discharging and activation. It can used online and offline; 2.Parameters such as charge-discharge current, upper and lower limits of charge voltage can be set freely; 3.Charging: adopt standard three stage charge method “constant current, voltage limiting →constant voltage, current limiting →floating charge”; 4.Discharging: according to set discharge, it carries on fixed constant-current discharge; 5.Activation: adopt the unique “impulse type” activation mode, effectively eliminate the sulfuric acid phenomenon of storage battery, maximum recover battery performance; 6.2V/12V compatible design; 7.Use LCD screen display in English, operation is simple and easy to use; 8.All the parameters are displayed in real time and automatically stored in the instrument, no lost when power off; 9.Multiple self-protection functions: reverse connection, fault connection and over-temperature; 10.It’s small and light and can be carried by one person, easy to use, safe and reliable. Product Parameter | ||
Model | ZC-D02/100 | |
Applicable battery type | 2V | |
Charge &discharge current | 0-100A | |
Current setting step | 0.1A | |
Precision of constant current | ±0.5% | |
Voltage Testing accuracy | ±0.5% | |
Communication interface | USB | |
Data storage | Built-in FLASH memory, support power off save | |
Power | 220V | |
Software | The operating system：Win2000 / XP / 7 | |
Remark | Other voltage levels, currents or special requirements can be customized | |

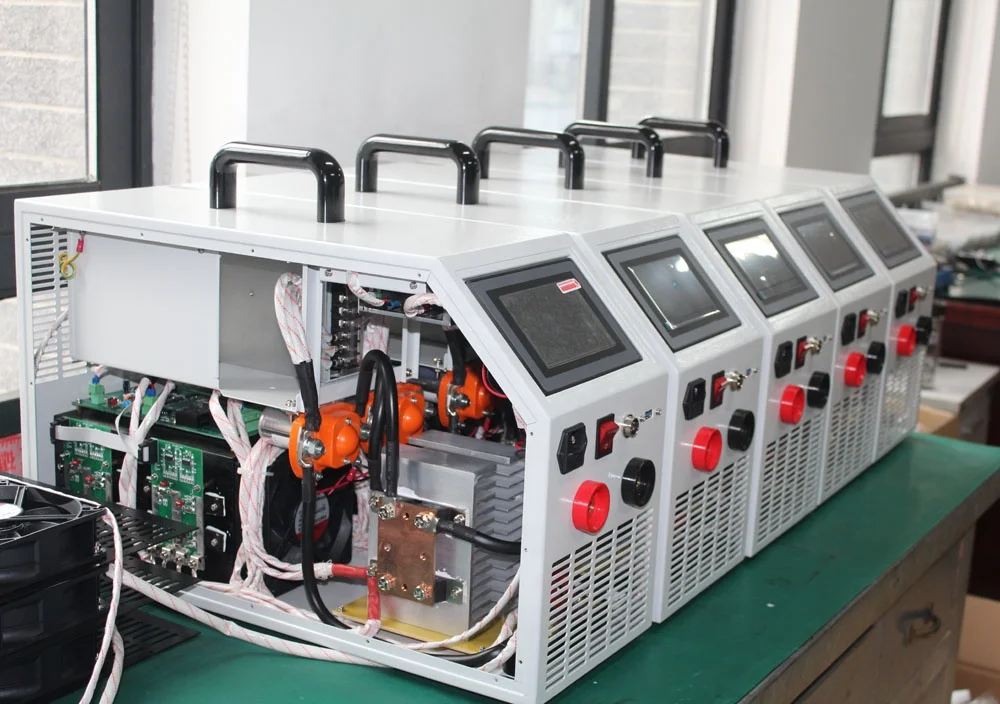

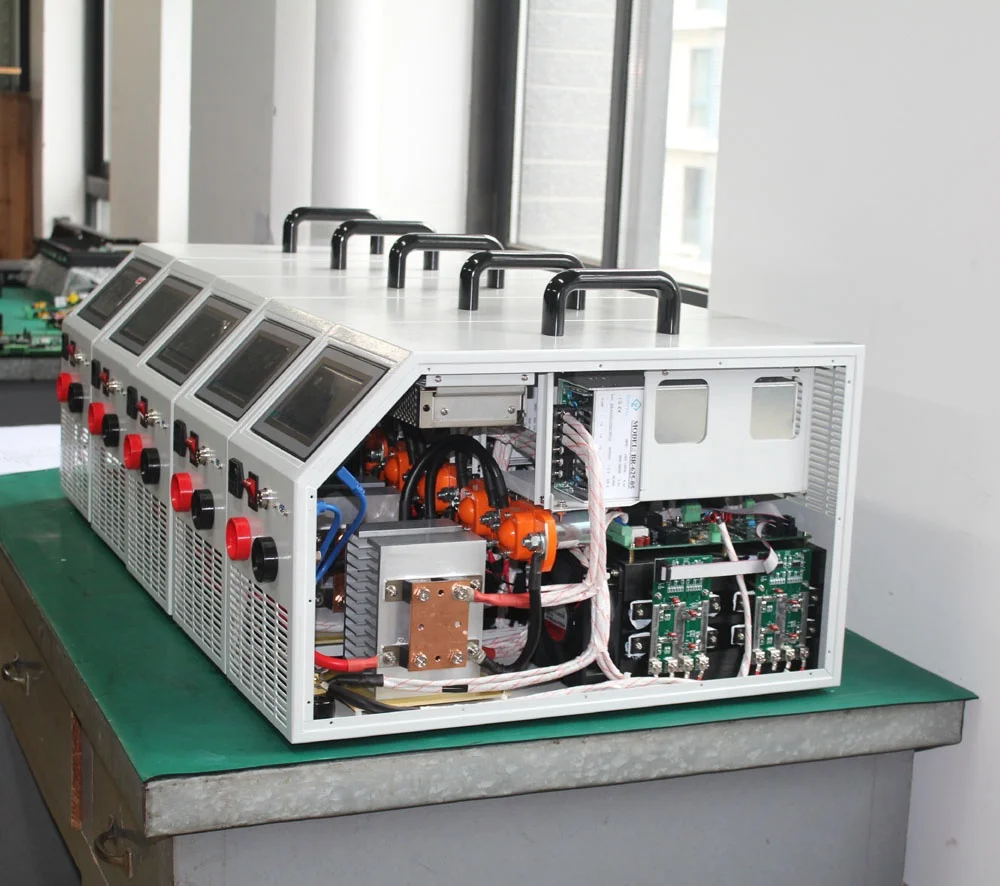

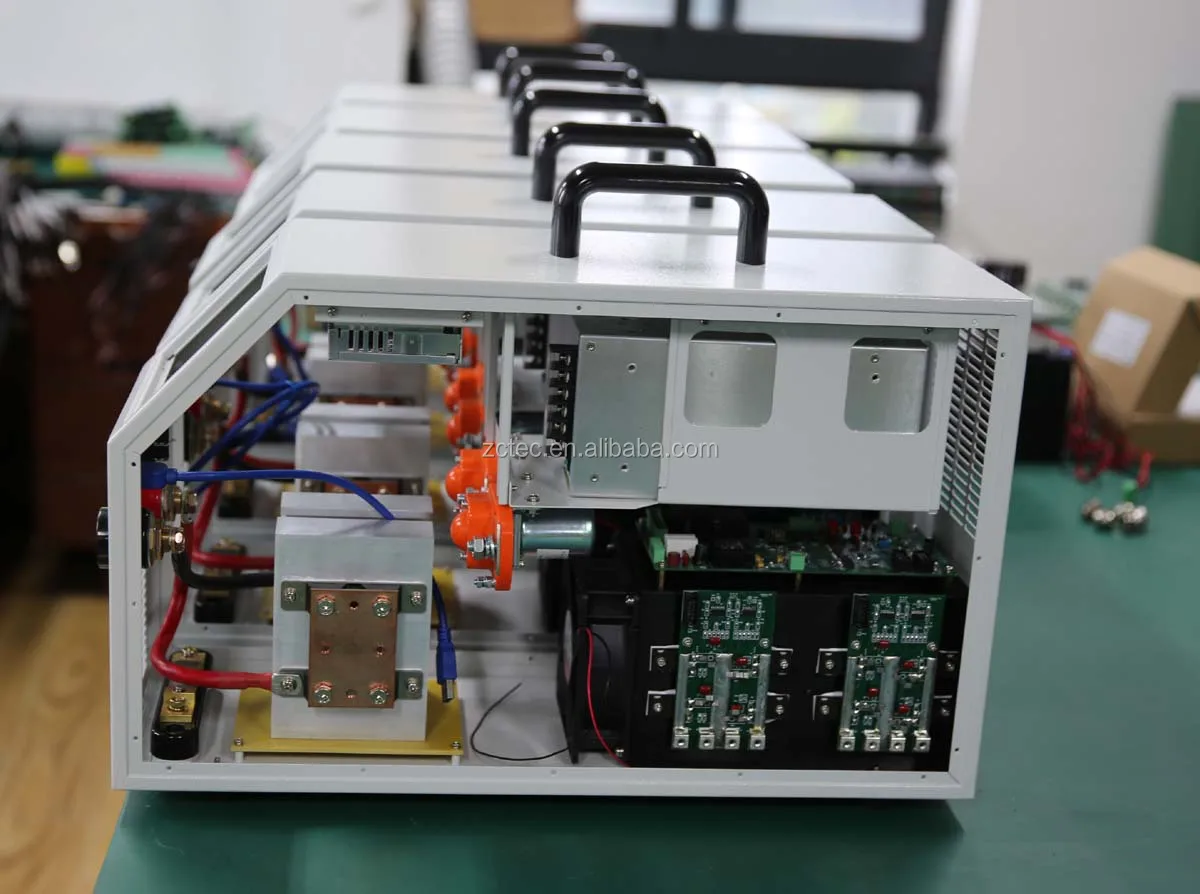

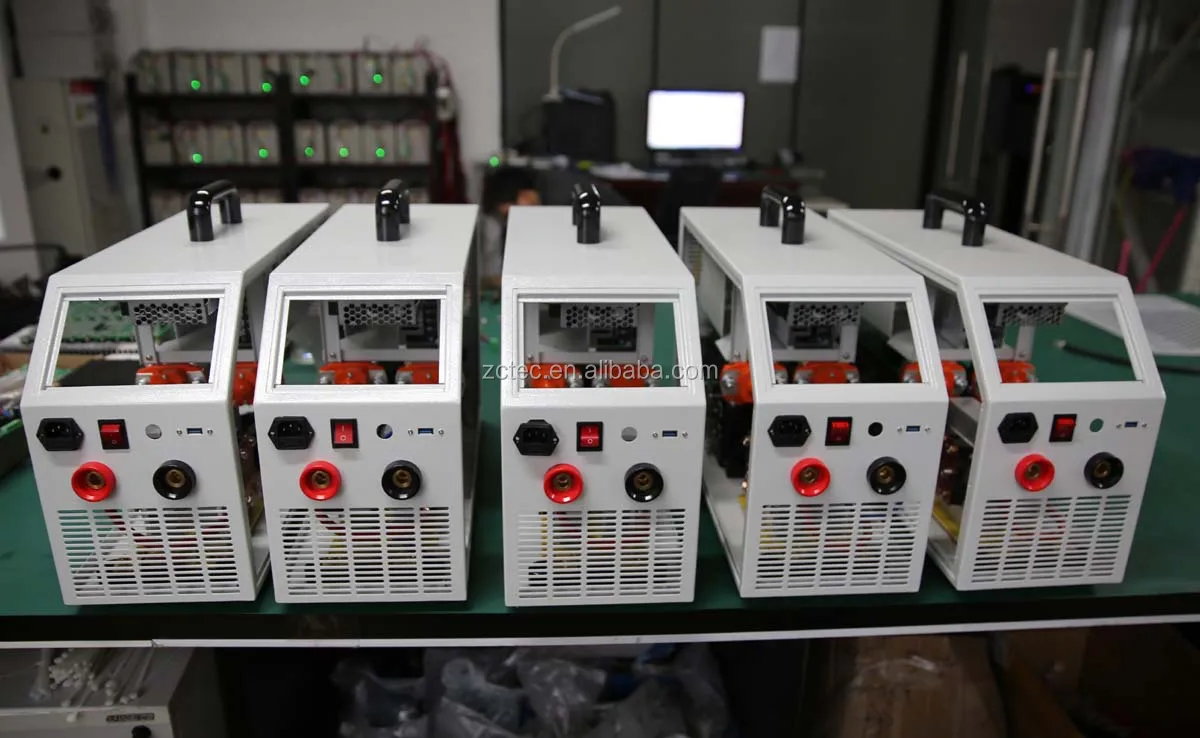

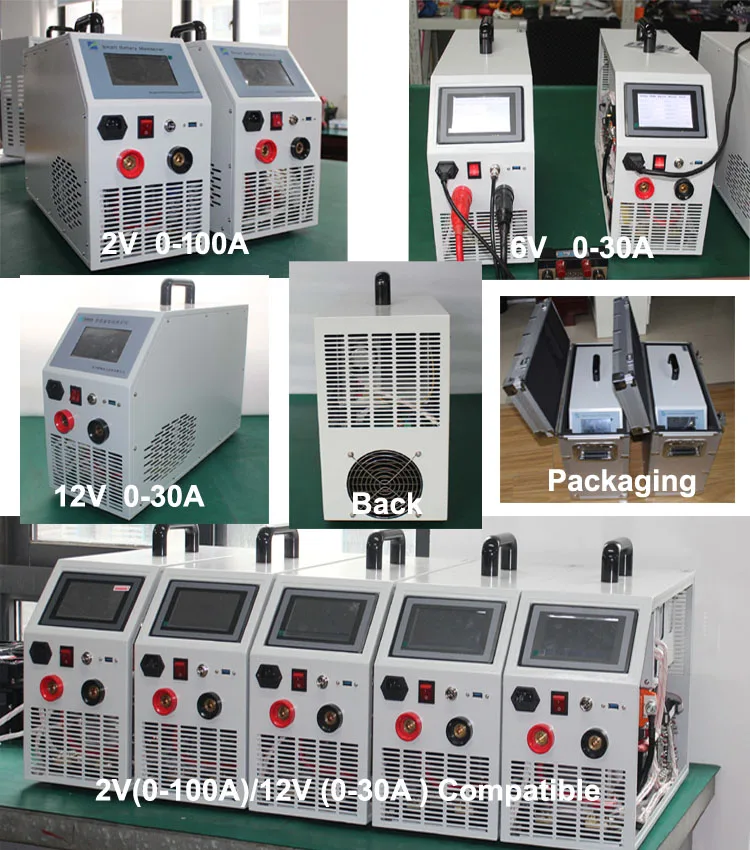

Details Images
Our Advantages
The Schematic diagram of three-stage charging Process
Stage I: Constant-current limit voltage charge.
Stage II: Constant-voltage limit current charge.
Stage III: Floating charge.
Stage II: Constant-voltage limit current charge.
Stage III: Floating charge.
The Operation Systerm
Click “Curve” button and it will display as shown
The pulse activation mode of the battery activitor
Select any mode to enter the corresponding operating interface

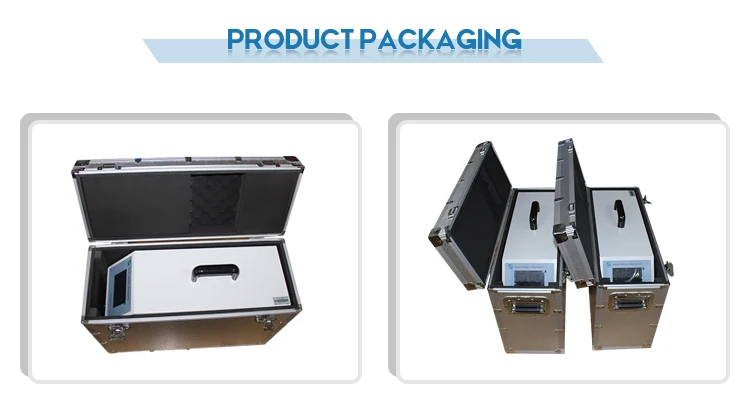

Product packaging
Company Introduction
Hangzhou Zhechang Power Equipment CO.,LTD Is a research & development, production and sales of high-tech enterprises. We are professional manufacture for Battery Tester , focus on battery capacity test, repair and maintenance solution .Our Main products are Battery Monitoring System, Intelligent battery discharger ,Intelligent Battery Maintenance Instruments and so on .
Contact info
Shirley Shi
Hangzhou Zhechang Power Equipment CO. LTD
Tel:0086-571-87561959 Email:Sales@zhechang.net
Skype:Shirleysuuny Mobile&wechat&Whatapp:0086-18958106655
Website: www.zhechang.net
Add:Building 1, 1418-60, Moganshan road, Hangzhou city, Zhejiang Province, China.310011
Hangzhou Zhechang Power Equipment CO. LTD
Tel:0086-571-87561959 Email:Sales@zhechang.net
Skype:Shirleysuuny Mobile&wechat&Whatapp:0086-18958106655
Website: www.zhechang.net
Add:Building 1, 1418-60, Moganshan road, Hangzhou city, Zhejiang Province, China.310011
FAQ
Q1.Why need battery Activator?
The battery activator has three independent USES: battery discharge, battery charge and battery activation. According to the actual situation of different backward batteries, capacity tests can be carried out for backward batteries, low-voltage constant current charging, or multiple cycle cycles can be set to charge (discharge) the battery with the minimum capacity for multiple cycles, so as to activate the battery by activating the active substances that fail to work on the battery plate and improve the capacity of backward batteries.
Q2. What about the lead time?
The battery activator has three independent USES: battery discharge, battery charge and battery activation. According to the actual situation of different backward batteries, capacity tests can be carried out for backward batteries, low-voltage constant current charging, or multiple cycle cycles can be set to charge (discharge) the battery with the minimum capacity for multiple cycles, so as to activate the battery by activating the active substances that fail to work on the battery plate and improve the capacity of backward batteries.
Q2. What about the lead time?
A:Sample needs 5-10 days, mass production or custom product need 2-4 weeks.
Q3. How do you ship the goods and how long does it take to arrive?
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-8 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
Q4: Do you offer guarantee for the products?
A: Yes, we offer 12 months warranty to our products.
