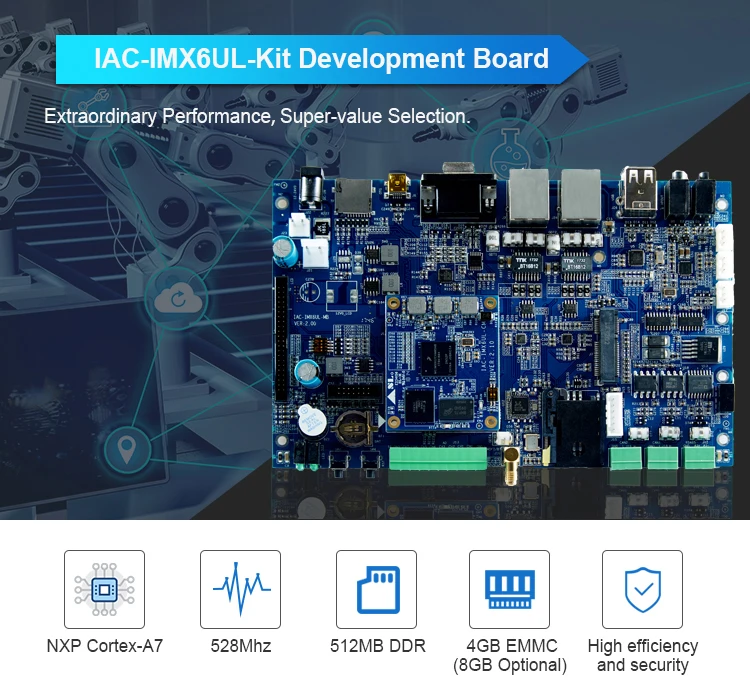

Высокая Эффективность функции безопасности linux доска IAC-IMX6UL-Kit макетная

Hardware

Resources

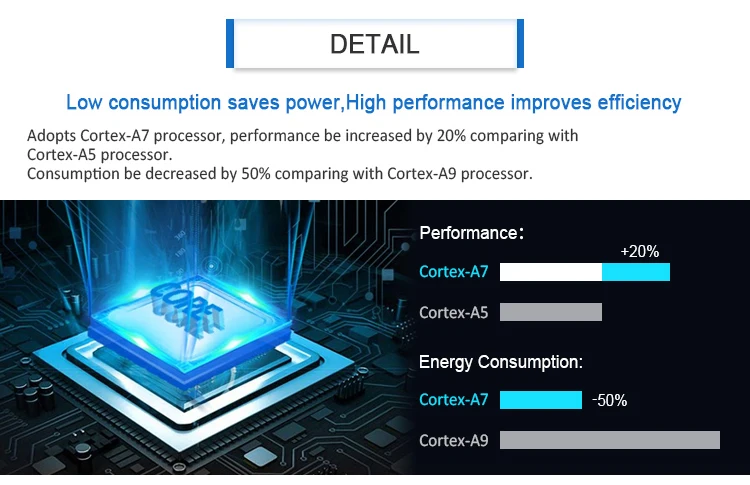

CPU

NXP i.MX6UL-2 CPU,ARM Cortex-A7 kernel, Main Frequency: 528Mhz

RAM

Single DDR3 SDRAM, standard capacity: 512MB

FLASH

4GB eMMc(8GB Optional)

System Power

+5V power input, output all voltages that core board required.

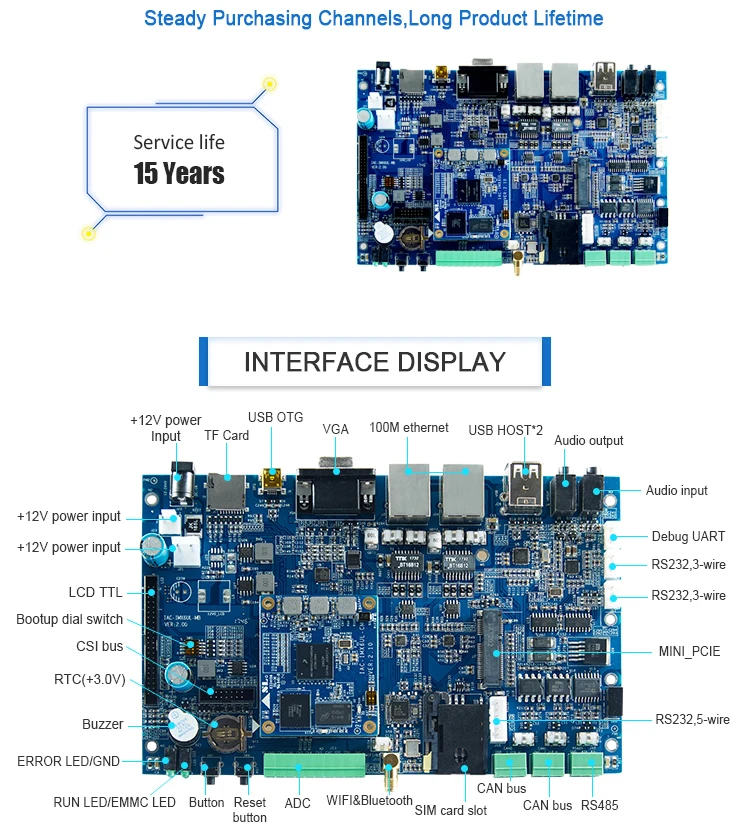

Communication Interfaces

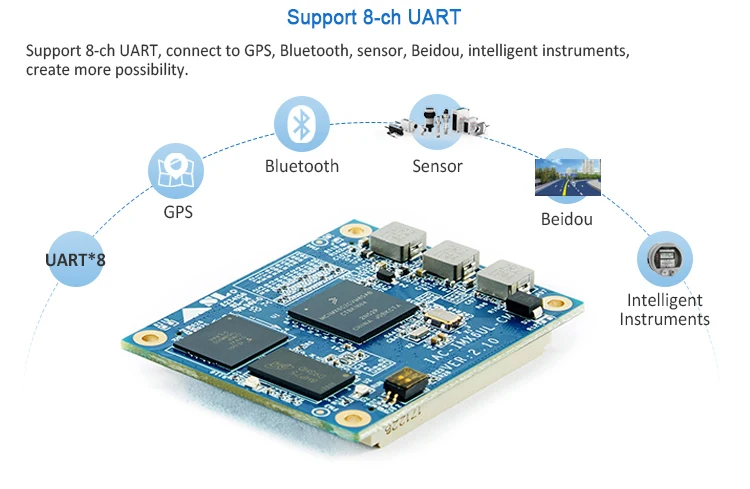

4-CH RS232 serial ports, among which one is debug serial port; 1-CH 5-wire serial port, 2-CH 3-wire serial ports

1-CH USB rapid OTG, 4-CH USB2.0 HOST

2-ch industrial 10/100Mbps Ethernet, RJ45 connector type, with ACT,LINK indictor

1-ch mini PCI-e connector, with SIM card socket, to connect external 3G/4G module

2-ch CAN BUS, isolated, entirely support CAN2.0A and CAN2.0B protocol

1-ch RS485 BUS interface, isolation.

8-ch 12bit ADC

Display

18-bit TFT-LCD, highest resolution ratio: 1366*768

VGA , to connect general displayer.

Audio

MsASP audio interface, dual-channel output, MIC audio input

Input

4-wire resistive touch screen interface

Camera interface, support 8/10/16 bit CSI imaging sensor

Storage Interface

1-CH TF card interface

Others

Bootup Switch, reset circuit, RTC, Watchdog, buzzer

Power Input

+12V, +5.5V~+28V wide voltage supported.

Software Resource

OS

Linux4.1.15

Electrical Specification

Drawings

Baseboard schematic diagram (PDF), PCB, IO comparison table

SOM size

55mm*46mm

Driver software

Interface drivers and driver source code

Interface Board size

185mm*110mm

Testing Software

Interface drivers, test program and source code

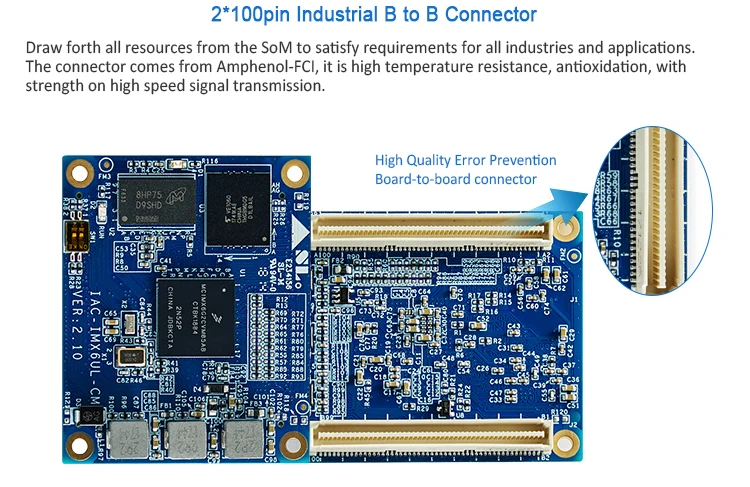

Board to Board connector

2*100pin B to B

Development Tool

gcc-linaro-arm-linux-gnueabihf-4.7-2012.12-20121214_linux.tar.bz2

Power Consumption

<2W

Startup Code

Uboot

Operation Temperature

-20℃~+70℃,

-40℃~+85℃(optional)

GUI

QT4.8/5.9

Humidity

5%~95%, non-condensing
