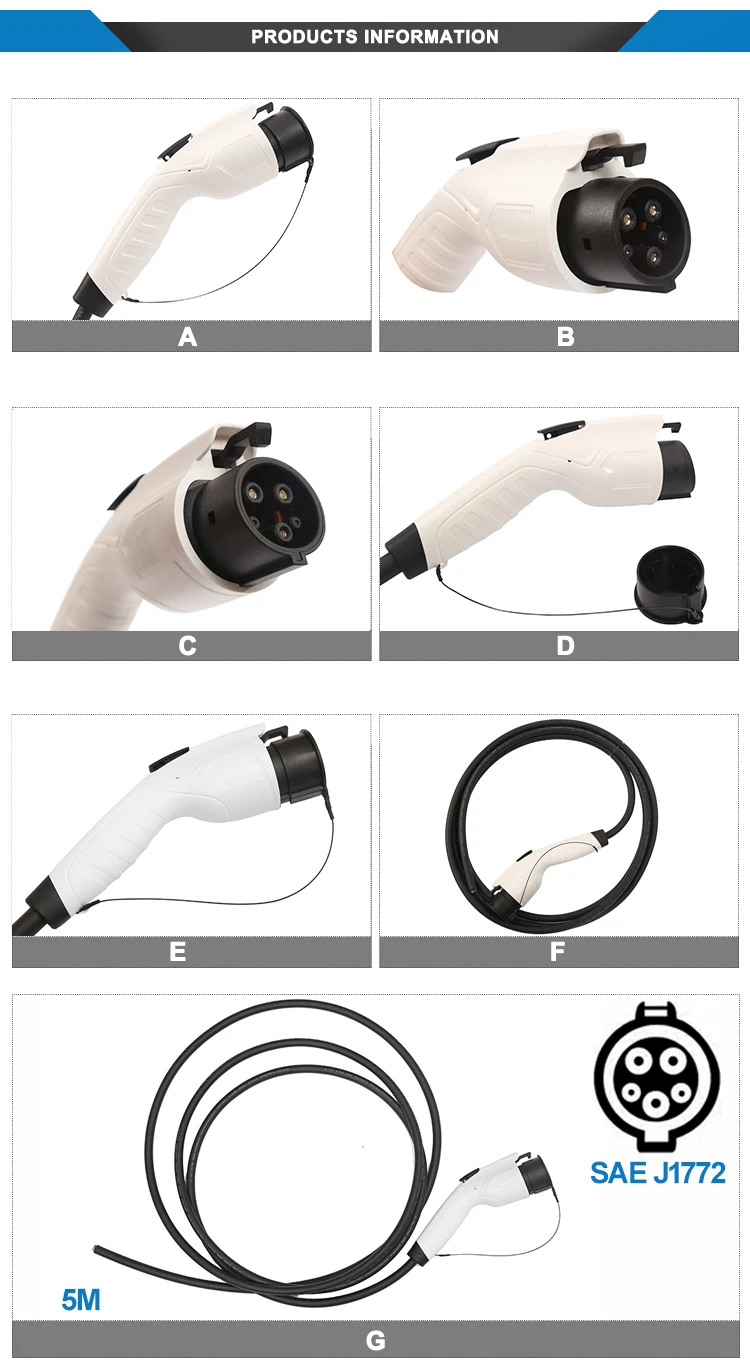

SAE J1772 тип 1 32A зарядный штекер переменного тока силовой заводской кабель для

SAE J1772 тип 1 32A зарядный штекер переменного тока силовой заводской кабель для

Категории: Portable Charging Stations >>>
Поставщик: Fisher,Electonic,Technology,Co.,Ltd.

Цена:46,00 $ - 52,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Current:32A	Voltage:240V
Withstand voltage:2000V	*Mechanical life: No-load plug in/pull out>10000times
Impat of external force:can afford 1m drop and 2t vehicle run over pressure	*Coupled insertion force:>45N<80N
Insulation resistance:>1000MΩ(DC500V)	Terminal temperature rise:<50K
Charging standard:SAE J1772	Contact Resistance:<0.5mΩ Max
contact bush:Copper alloy, silver plating	Operating temperature:-30℃~+50℃
Cable specification:sing phase 36mm²+20.5mm²	Cable color:black or other
Certificate:CE TUV ROHS	OEM:OK

Fisher Electronic Technology Co., LTD., founded in 2007, located in the beautiful scenery of the Jiangnan water village - Changzhou, Jiangsu province, our company is a high tech enterprises research, development, production and sales as a whole, Always with a strong sense of responsibility and mission committed to technology research and development and manufacturing of electric vehicles and charging, battery connection system. Industrial chain mature and complete, from product design, mold design and manufacturing, plastic molding, machining, precision casting and assembly line, on-line testing capabilities fully complete; product line covers: AC EV charging cable, AC portable EV charger(charging box)
