Мини турбины колесо водяное Колесо генератор турбины воды крыльчатки
US $38000-$45000
Прямая продажа с завода прочный 50 кВт 1500 об/мин постоянный генератор переменного тока магнитный
- Категории: Alternative Energy Generators >>>
- Поставщик: Tai'an,Sunshine,Power,Electric,Machinery,Co.,Ltd.Tai'an,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Details Show
Product Parameters

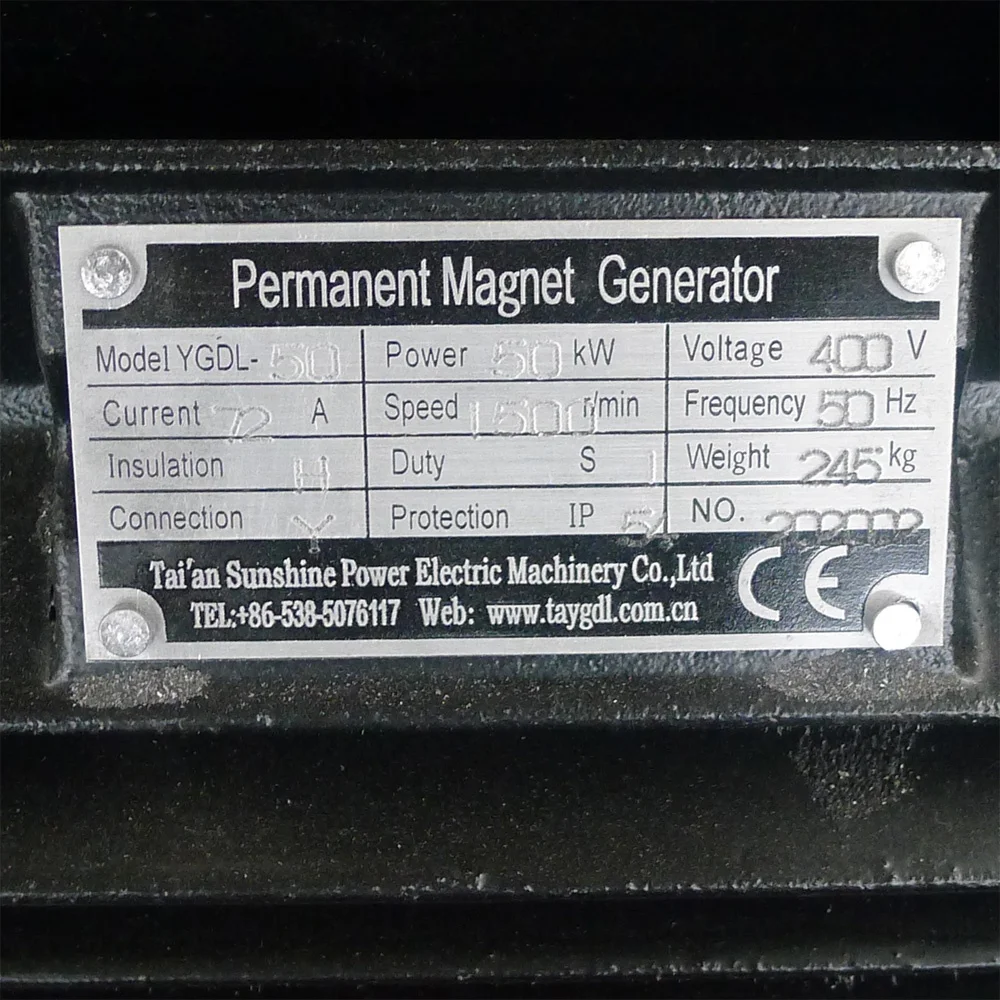

Main specifications | ||
Rated power (kW) | 50kW | |
Rated speed (rpm) | 1500rpm | |
Rated torque (Nm): | 338Nm | |
Rated voltage (V): | 400VAC | |
Rated current (A): | 72.2A | |
Startup torque (Nm) | 7Nm | |
Number of poles | 4 | |
Frequency (Hz) | 50Hz | |
Phase | 3-phase | |
Insulation Class: | H | |
Protection Class | IP54 | |
Efficiency(﹥%) | 94% | |
Power factor | 1 | |
Cooling | Air cooling | |

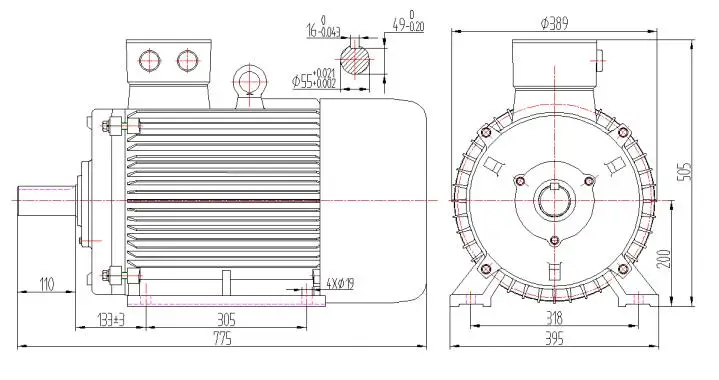

Mechanical specifications | ||
Installation | Horizontal | |
Frame size | 200 | |
Weight (Kg) | 240kg | |
Materials | ||
Shaft material | Steel | |
Bearings | SKF | |
Housing material | Casting iron | |
Winding material | Copper | |
Winding temperature level | 180℃ | |
Magnet | NdFeB | |
Magnet temperature level | 150℃ | |
Core | High quality cold rolled silicon steel sheet | |
Why Choose Us
HOT SEL LING PRODUCTS
COMPANY STRENGTH
PRO DUCTION PROCESS
Trade Assurance Supplier
TRANSPORT EXPRESS
FAQ
1.What are your company’s main products?
Our main products are permanent magnet synchronous generators(alternators), permanent magnet synchronous motors(PMSM),controllers, inverters, load box and other corollary equipment and accessories.
2.What is the delivery time?
Usually the delivery time is 10-20 days.
3.Could you do customized products or OEM?
Yes, we have design ability and we are factory. We could make the generator and motor with different rpm, kW, voltage, frequency as you need. We could also do OEM or ODM if you need.
4.How does the your permanent magnet generator work?
Our permanent magnet generator are usually used for wind generation, hydro generation or other new energy generation. The permanent magnet generator itself does not create energy. It just turns mechanical energy to electrical energy. The generator always need a prime mover such as wind turbine, hydro turbine, diesel engine or other running machine to drive the generator, then the generator consume the mechanical energy from the prime mover and output electricity.
We could make low speed and high speed generators, the prime mover could directly drive our generator without gearbox or pulley, which makes the system more efficient and reliable.
5.How does the your permanent magnet motor work?
The permanent magnet motor need a Variable Frequency Drive (some people also call it inverter) to start the motor and adjust the motor speed. We could make low speed motors, could directly drive your low speed machine without gearbox or pulley, increase the system efficiency a lot, and save maintenance cost.
Our main products are permanent magnet synchronous generators(alternators), permanent magnet synchronous motors(PMSM),controllers, inverters, load box and other corollary equipment and accessories.
2.What is the delivery time?
Usually the delivery time is 10-20 days.
3.Could you do customized products or OEM?
Yes, we have design ability and we are factory. We could make the generator and motor with different rpm, kW, voltage, frequency as you need. We could also do OEM or ODM if you need.
4.How does the your permanent magnet generator work?
Our permanent magnet generator are usually used for wind generation, hydro generation or other new energy generation. The permanent magnet generator itself does not create energy. It just turns mechanical energy to electrical energy. The generator always need a prime mover such as wind turbine, hydro turbine, diesel engine or other running machine to drive the generator, then the generator consume the mechanical energy from the prime mover and output electricity.
We could make low speed and high speed generators, the prime mover could directly drive our generator without gearbox or pulley, which makes the system more efficient and reliable.
5.How does the your permanent magnet motor work?
The permanent magnet motor need a Variable Frequency Drive (some people also call it inverter) to start the motor and adjust the motor speed. We could make low speed motors, could directly drive your low speed machine without gearbox or pulley, increase the system efficiency a lot, and save maintenance cost.
