ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator

Technical parameter

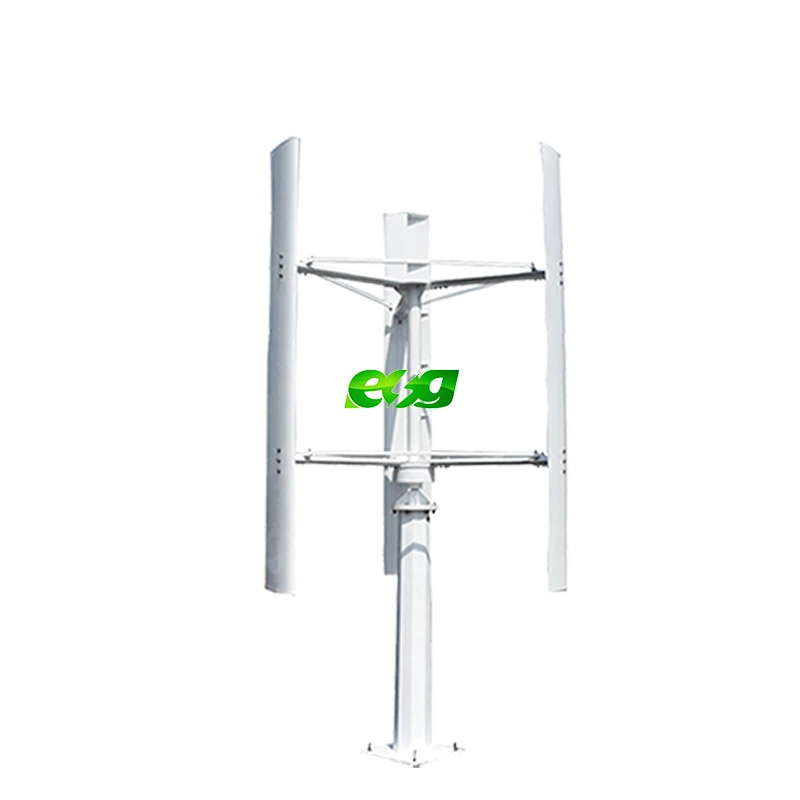

Wind turbine:

Model	ES-1000	ES-2000	ES-3000	ES-5000	ES-10kw
Rated power	1000w	2000w	3000w	5000w	10kw
Maximum power	1200w	2500w	3500w	5500w	12kw
Rated voltage	24v/48v	96v-220v	220v-380v	220v-380v	300v-380v
Start-up wind speed	2.5m/s	2.5m/s	3m/s	3m/s	3m/s
Rated wind speed	10m/s	10m/s	10m/s	10m/s	10m/s
Rated RPM	300	260	300	350	200
Wheel diameter	1.6m	2m	2	2.4m	5m
Blades height	2m	2.8m	3.2	3.6m	6m
Number of blades	3	3	3	3	3
Blades material	Aluminium alloy
Survival wind speed	45m/s
Generator type	3 phase permanent magnet AC synchronous generator
yaw mode	Electromagnet
Working temperature	-40°C-80°C

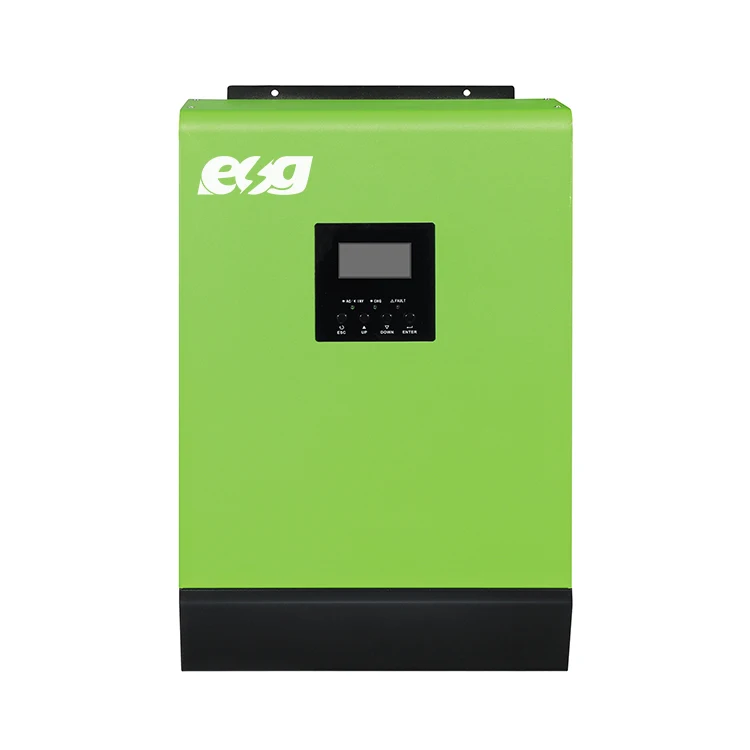

Inverter:SG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generato

Inverter	Model	ES-3000
	Rated power	3000W
	Electric Supply input range	145VAC-280VAC
	Direct current input	35A-45A
	DC input	24V/48V
	Input Frequency range	50/60Hz
	Stable pressure output	220V±5%
	Inverter output voltage	110V/220V
	Inverter output frequency	60Hz/50Hz
	Output sine wave	Pure sine wave
	distortion factor	≤3%
	Transform tiome	Within 4ms automatic change
	Inverter efficiency	85%
	Overload ability	120% 10min 150% 1min
	Cooling model	forced cooling
	Using altitude	≤1000M(elevation Height above 1000M can drop to use)
	Relative humidity	30%-90%
	Running temperature	0-40°C
	Product dimension	390*170*290mm
	Net Weight	29kg
	Noise(dB)	40-60
	Protection function	Battery overvoltage protection,battery undervoltage protection,overload protection,short circuit protection,overtemperature protection,etc.

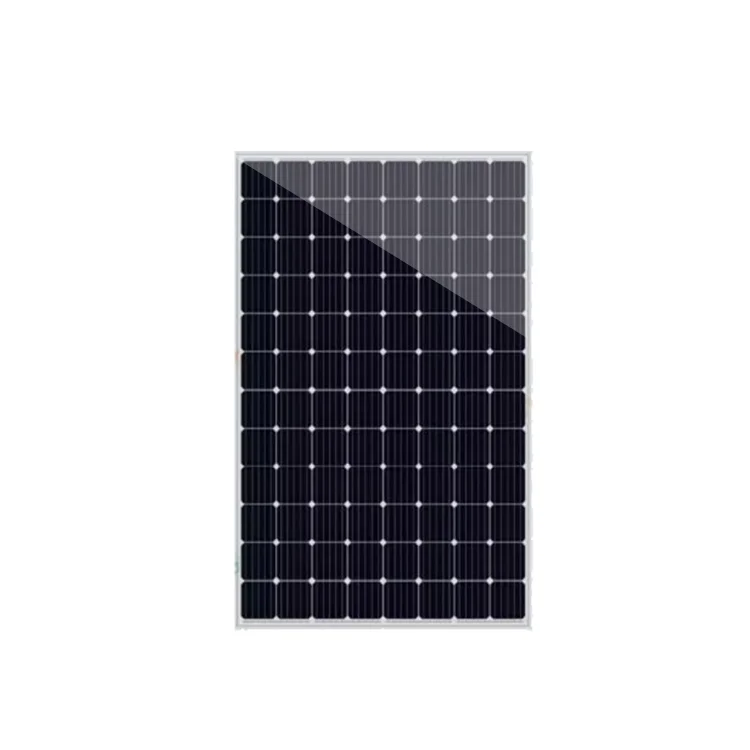

Solar Panel:

Model	ES480W	ES490W	ES500W	ES510W
Peak Power Watts(Pmax/W)	480	490	500	510
Tolerance (%)	0~+3%
Open Circuit Voltage(Voc) [V]	58.44	58.68	58.92	59.4
Short Circuit Current(Isc) [A]	10.35	10.52	10.68	10.81
Maximum Power Voltage (V)	48.7	48.9	49.1	49.5
Maximum Power Current (A)	9.86	10.02	10.18	10.3
Maximum system voltage (V)	1000V
Operating Temperature(℃)	-40 -- +85 ℃

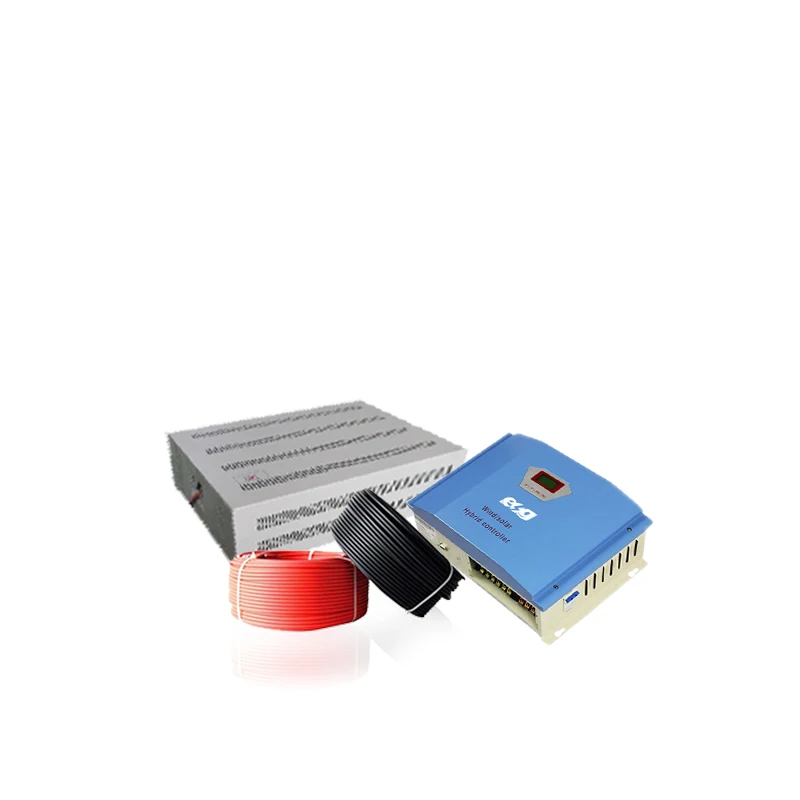

ES-3kW PitchControlled Wind Turbine	Wind Turbine Body	DC48V
	Tower&Accessory	Guyed tower, 9M
	controller	DC48V
	inverter	2KVA, DC48/AC220V
	battery	12v, 200ah



ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator

ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator

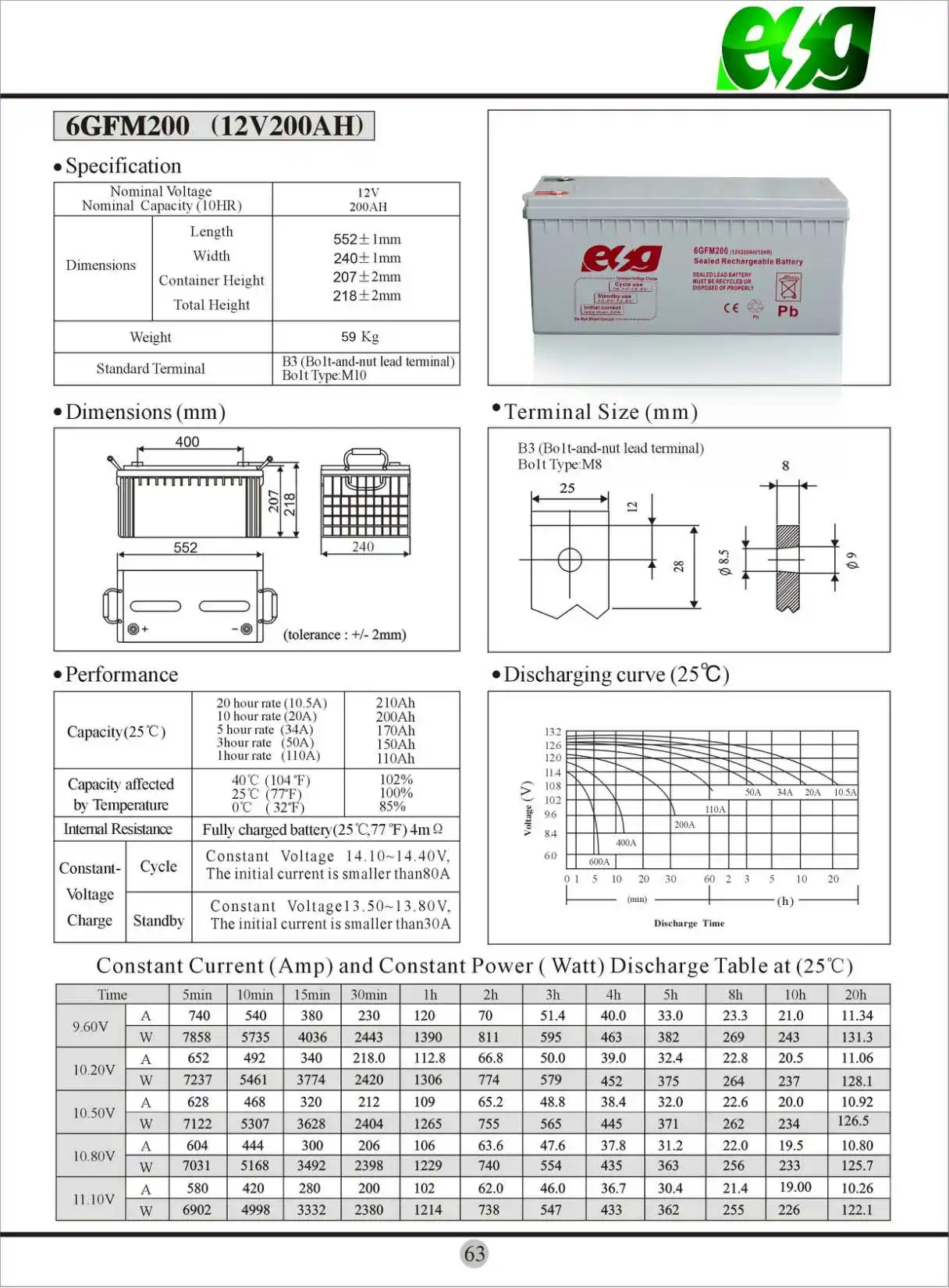

Battery

ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator



ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator



 ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator

Production & QC

ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator

ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator

Certification and reporting

ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator

MSDS

Packaging and transportation

ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator

ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator

Project display

ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator

Exhibition

Team

 ESG Hot sell Wind power system 24v 48v 240v 380v off grid 2500w 3000w wind turbine generator

FAQ

1.  Q:  Does installation Easy ?
    A: Very easy, every customer can do it by themselves, we will supply all the components for installation and very details installation manual.

2.  Q:  Does our wind is enough for a wind generator ?
    A:  As our wind generator can start running at low wind speed2.5m/s. so your average annual wind speed is more than 5m/s then you can use it .
3.  Q:  Which model of wind generator is suitable for me?
    A: Please contact our sales with following points :
    1. What appliance do you want to running by the system?  How many watts are they and their working time .
    2. Your annual wind speed .
    3. What kinds of system do you want ? On-grid or off-grid
4. Q:  Can I only buy parts not whole system?
A: Yes, for example you can manufacture tower on local , we can supply you tower drawing.
5.  Q:  For horizontal axis wind turbines VS vertical axis wind turbines, which kind of efficiency is better.
A:  For same model at same wind speed, the output of horizontal axis wind turbines is more efficient than that of vertical axis wind turbines
