Product Description
Support for custom

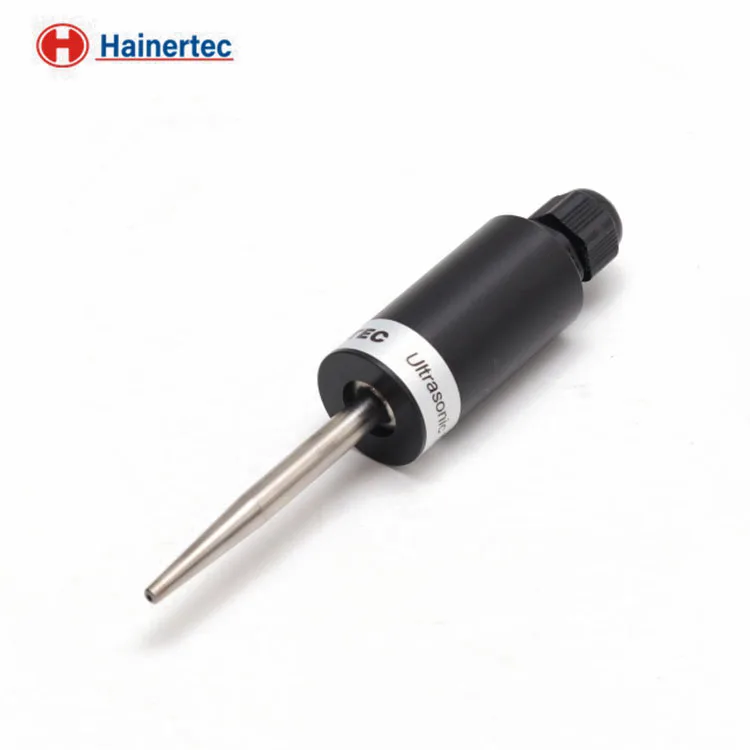

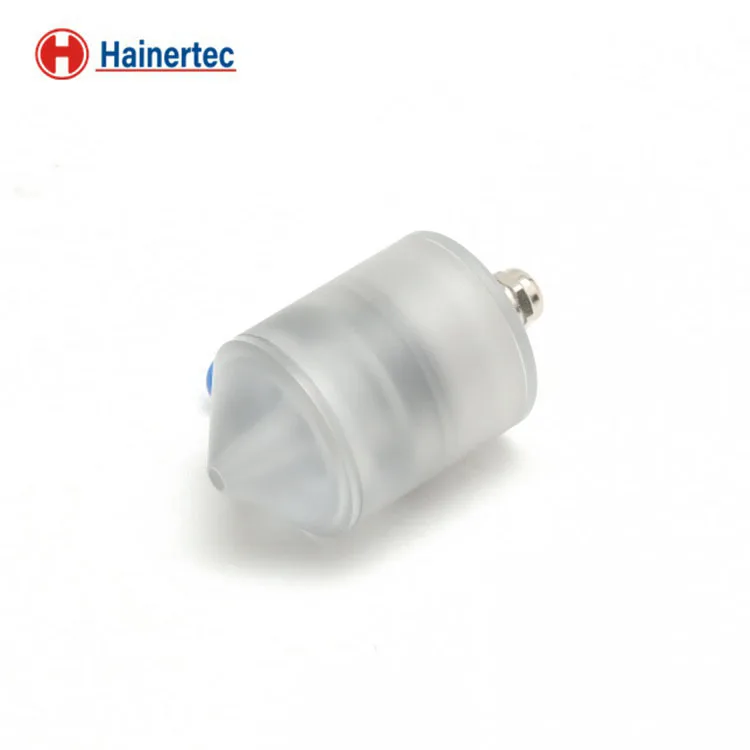

Technical parameters of ultrasonic spraying transducers for atomizing
Model | Frequency （KHz） | Power (W) | Size OD50 (um) | Max Flow (ml/min) | Structure | Notes |
HNN-4SE-13100 | 100.0±10% | 18 | 30±10% | 10 | Through the hole | Jet Peel 2 |
HNN-4P1-25100 | 1670±10% | 28 | 8±10% | 5 | The patch type | Jet Peel 2 |
HNN-4P1-20100 | 2500±10% | 20 | 3±10% | 3 | The patch type | Jet Peel 2 |
Note: We can provide different type driving circuit with 24-48 VDC or 110-220VAC input voltage, and accept R&D and customization.
Principle: Ultrasonic atomization micron particles, combined with pulse hyperbaric oxygen technology, drug essence can be introduced into the dermis, the dose is precise and controllable, for the second generation of water oxygen meter.
Supporting Euipment Parameters

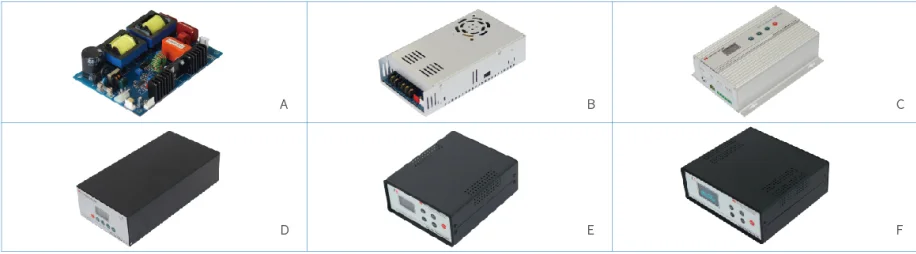

Technical parameters of ultrasonic drive circuit.
Model | Frequency (KHz) | Power (W) | Size L*W*H (mm) | Related functions | Encapsulation |
HNE-FP-SS | 20~200 | ≤200 | 150*108*36 | Seperate excitation and sweeping frequency, small signal remote control. Over temperature over current protection, adjustable power. | circuit board |
HNE-FP-SP | 20~200 | ≤200 | 150*108*36 | Seperate excitation, phase lock, small signal remote control. Over temperature over current protection, adjustable power. | Power Box |
HNH-FP-SS | 20~200 | ≤200 | 215*114*51 | Seperate excitation and sweeping frequency, small signal remote control. Over temperature over current protection, adjustable power. | Power Box |
HNH-FP-SP | 20~200 | ≤200 | 215*114*51 | Seperate excitation, phase lock, small signal remote control. Over temperature over current protection, adjustable power. | Power Box |
HNH-FP-S | 500~1000 | ≤150 | 203*147*61 | Seperate excitation, small signal remote control. Over temperature over current protection, adjustable power. | Power Box |
HNH-FP-S | 500~1000 | ≤200 | 110*80*36 | Seperate excitation, small signal remote control. Over temperature over current protection, adjustable power. | Power Box |
HNH-FP-A | 500~1000 | ≤20 | 110*80*36 | Auti excitation, 24VDC direct power supply. | Power Box |
Note: Model HNE-FP-SS( F stands frequency, P stands power).
Company Profile
Hainertec (Suzhou) Co., Ltd. Was founded in 2004, focusing on ultrasonic technology, it is a collection R&D, design manufacture and sales of the technology-based enterprises.
The company is mainly engaged in the development and manufacture of ultrasonic devices, accessory parts and system equipment. The main products include Piezoelectric Ceramics, Ultrasonic transducers, Ultrasonic generators and Ultrasonic system equipment. These products are widely used in medical apparatus, biological instruments, precision spraying beauty and health care, biochemical environmental protection, biological extraction, ultrasonic catalysis, industrial screening, jet printer oscillator, ultrasonic cleaning household appliances, military industry and other fields.
The company has been cooperating with famous enterprises and university at home and abroad, and 60% of our products are exported to more than 60 countries and regions such as Europe, America, Australia, Middle East and southeast Asia.
The company has passed ISO9001 Quality System Certification. Also, it is a high-tech enterprise but also a postgraduate workstation and industry university research base, having obtained several patent at the same time.
