1.The mechanism is incorporated that the handle is forced out by pressing the button.
2.Waterproof. (Using O-ring and sheet packing )
3.For both left-hand and right-hand use. (The left-hand or right-hand use can be changed by reversing the cam and stopper plate)
4.Please specify satelite chrome plating or chrome plating when ordering.
Material | Zinc Alloy(ZDC) |
Finish | Satellite chrome plating/ Chrome plating |
Specific Use | electrical box, distribution box, various cabinet |
Remarks | Key NO/ H200 Baked finish of the black type is collected |

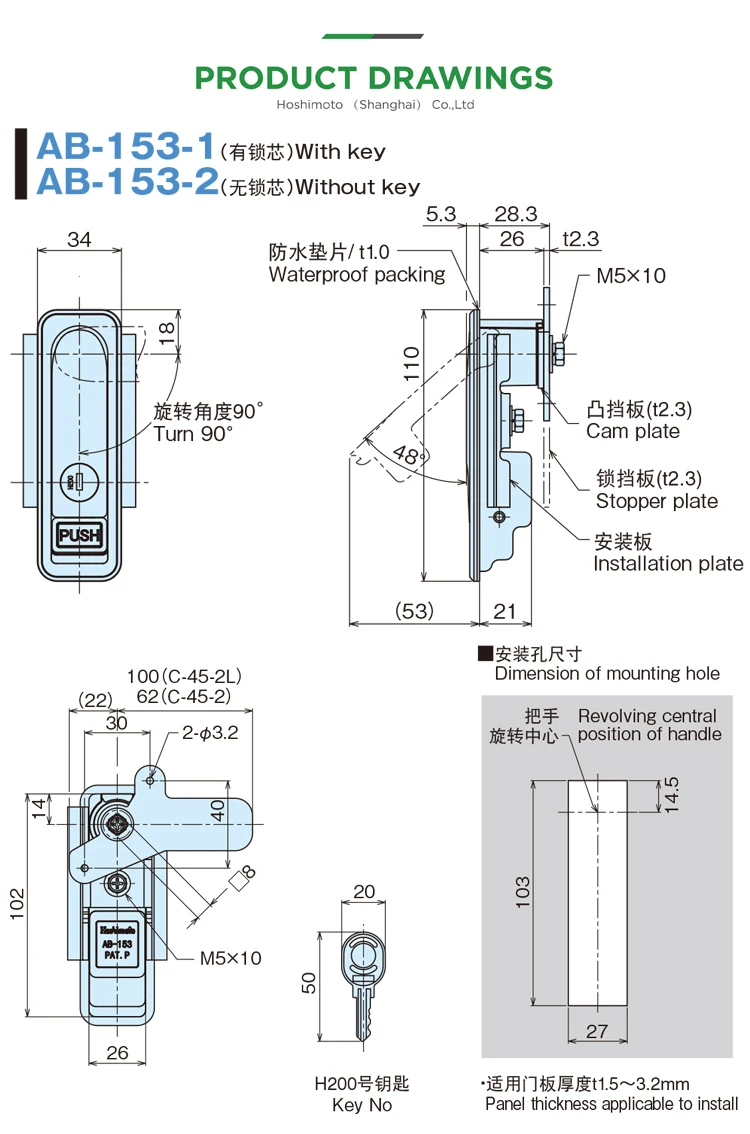

Products No | Remarks | Weight (g) | Lot |
AB-153-1-1 | Chrome plating/With key | 390 | 40 |
AB-153-1-2 | Chrome plating/Without key | 425 | 40 |
AB-153-2-1 | Chrome plating/Without key | 390 | 40 |
AB-153-2-2 | Satellite chrome plating/Without key | 425 | 40 |
