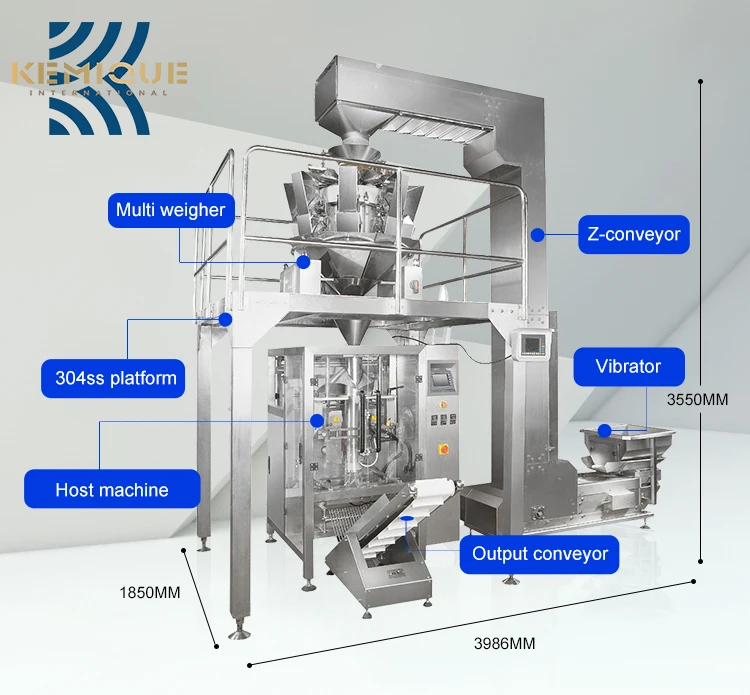

Automatic Food Multihead Snacks Weigher Packing Machine

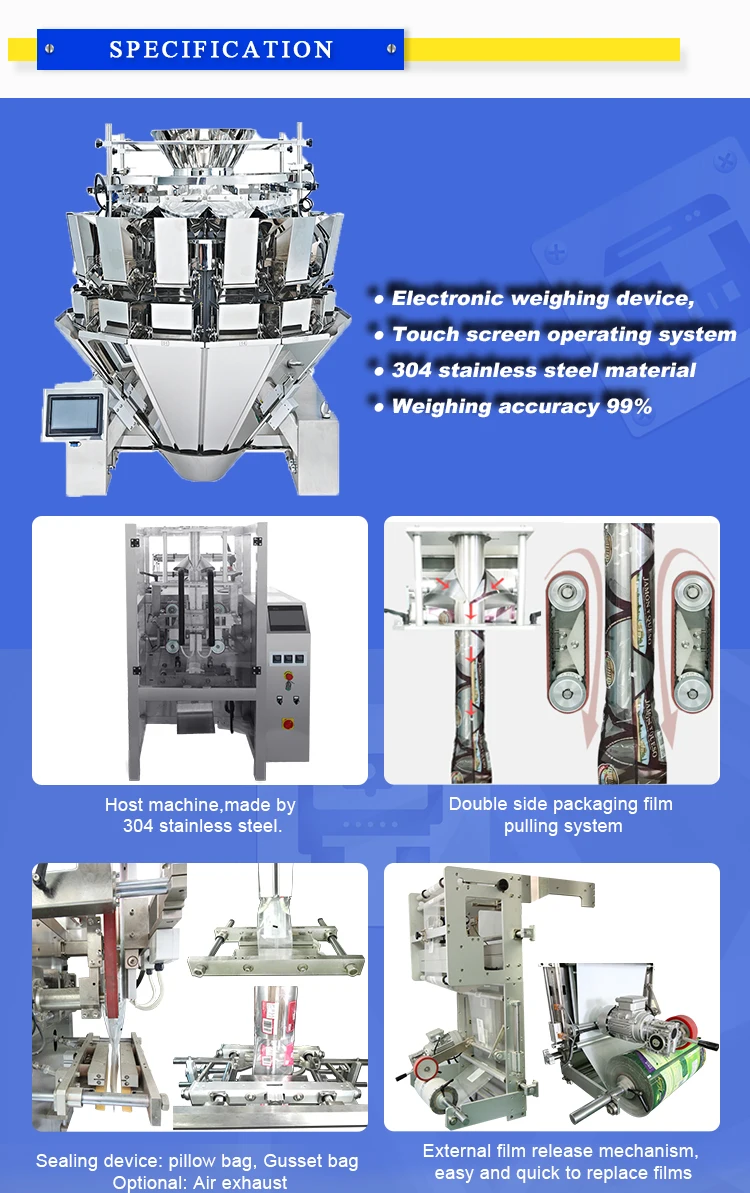

MAIN FEATURES



1. Multi-head combined weigher, improve metering speed and accuracy.


2. 7 inches touch screen, easy operation and multiple language for choice.


3. Imported PLC equipment, machine performance is stable and easy for parameters adjusting.


4. With a memory function for storage 10 sets of parameters. Easy to change different packing product and package sizes.


5. Separate PID temperature controller, suitable for various packing materials.


6. Multi-union roll film pulling system makes film running more smooth.


7. Double servo film-dragging structure, enable stable bag forming for perfect bag shape.


8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

Model	KM-L350W	KM-L450W	KM-L550W	KM-L650W	KM-L850W
Film Width	Max.350mm	Max.450mm	Max.550mm	Max.650mm	Max.850mm
Bag Length	80-240mm	80-300mm	80-400mm	80-500mm	100-600mm
Bag Width	60-165mm	65-215mm	80-265mm	100-315mm	120-415mm
Packaging Speed	15-75 bags/min	15-75 bags/min	10-60 bags/min	10-60 bags/min	5-30 bags/min
Range of Metering	50-1000 ml	50-1500 ml	100-2600 ml	150-3000 ml	500-5000 ml
Film Thickness	0.04-0.12 mm	0.04-0.12 mm	0.04-0.12 mm	0.04-0.12 mm	0.04-0.12 mm
Power	220V 50Hz 5KW	220V 50Hz 5KW	220V 50Hz 5KW	220V 50Hz 5.5KW	220V 50Hz 6.5KW
Dimension	1121×1034×1200mm	1480×1120×1470mm	1660×1200×1780mm	1740×1290×1950mm	1990×1620×2340mm
Net Weight	About 350 KG	About 400 KG	About 450 KG	About 550 KG	About 800 KG

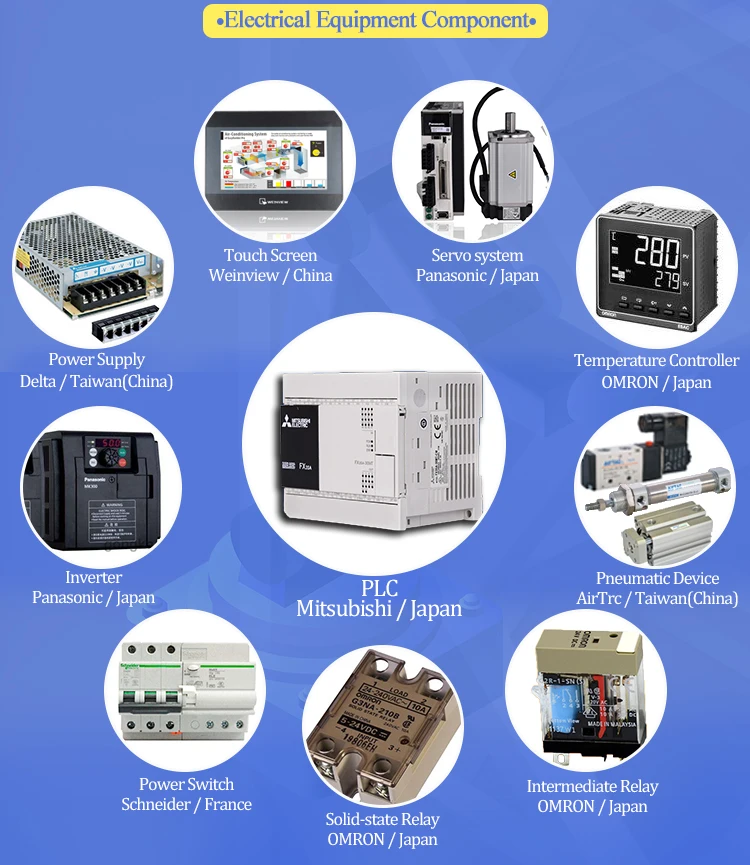

NO.	Items	Brand/Origin	Brand/Origin
1	Touch Screen	Weinvien/China(Taiwan)	Siemens/Germany
2	PLC	Mitsubishi/Japan	Siemens/Germany
3	Servo Motor	Panasonic/Japan	Panasonic/Japan
4	Servo Driver	Panasonic/Japan	Panasonic/Japan
5	Converter	Panasonic/Japan	Panasonic/Japan
6	Pneumatic Device	AirTAC/China(Taiwan)	AirTAC/China(Taiwan)
7	Solenoid Valve	AirTAC/China(Taiwan)	AirTAC/China(Taiwan)
8	Solid State Relay	Omron/Japan	Omron/Japan
9	Intermediate Relay	Omron/Japan	Omron/Japan
10	Temperature Controller	Omron/Japan	Omron/Japan
11	Power Supply	Schneider/France	Schneider/France
12	Power Switch	Schneider/France	Schneider/France
13	Proximity switch	Autonics/Korea	Autonics/Korea
14	Photocell	SICK/Germany	SICK/Germany

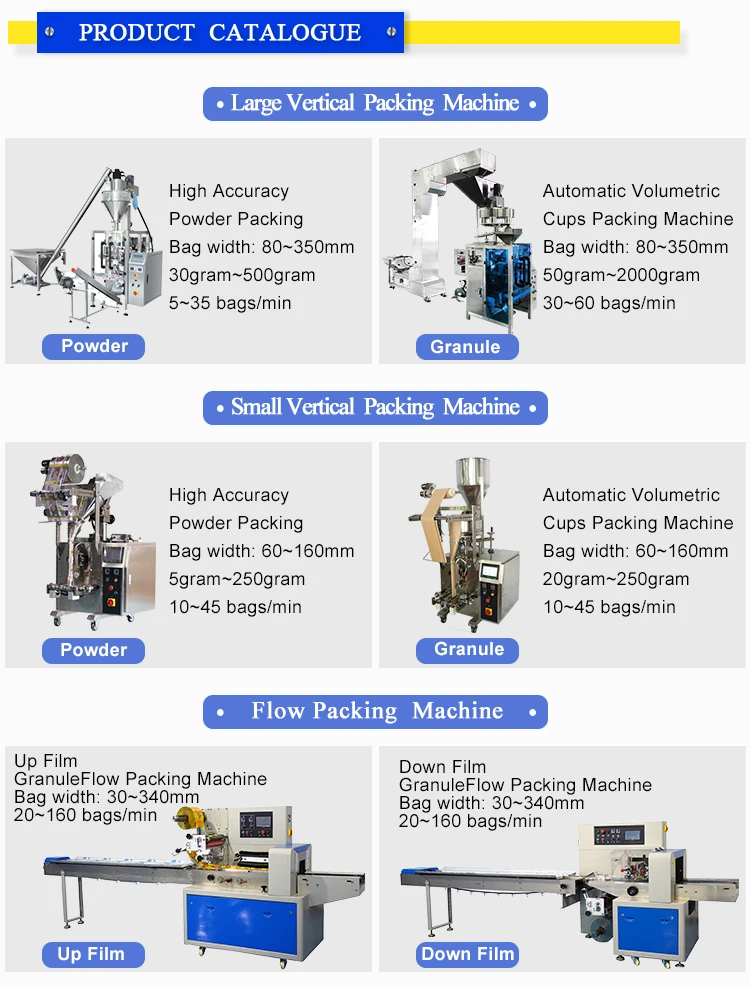

Note: We have several models. Please tell us: Materials, Packing weight, bag width /length, we will customize a suitable solution for you according to your requirment.

Service:

·        Debugging of equipment until everything is functional;

·        If any issues happened, you can contact us to fine out a solution by phone call or online face to face communication in 12 hours;

·        Training of equipment maintenance and operating personally;

·        Our engineers & technician are available to be send to your countries for services if you agree pay the expenditure;

      ·        12 months warranty (Electric accessories)
