Product Name | Msr reader pocket mini magnetic strip card reader with usb |
Interface | USB, RS232C, TTL |
Encode Mode | F2F |
Standard | ISO7810,ISO7811-1/2/3/4/5, IBM, AAMVA, JIS-2 |
Swipe derection | Bi-direction |
Operation system | Windows, Linux, Android |
Data Format | According with the requirement of user |
Card Swipe Speed | 10-140cm/s |
Life circle of the Head | 》1,000,000 times |
Working Temperature | 0--40℃ |
Working Humidity | 10%-- 90%RH |
Working Voltage | DC+5V ±5% |
Working Current | ≤50mA |
Storage Temperature | -20 --60 |
Dimension | (L×W×H)90x22x24mm |
Coercive Force | 300-4000oe |
◆ Single track, dual track, three track
◆ Connected with computer or terminal
◆ Good Anti-interference, and excellent reading
◆ Operation response is combine of diode and buzzer, reading successfully when the buzzer ring
◆ The Density of Magnetic Stripe:
Track 1--210BPI with max 76 characters
Track 2--210BPI with max 104 characters or 75BPI with 37 characters;
Track 3--210BPI with max 104 characters
Single size | 90*27.5*27.5mm(L*W*H) | |
Inner Box | 120* 90*45mm(L*W*H) | |
G.W/N.W | 120/102g | |
Master Box | 455* 235*260mm(L*W*H) | |
G.W/N.W | 6.5/5.5KG | |

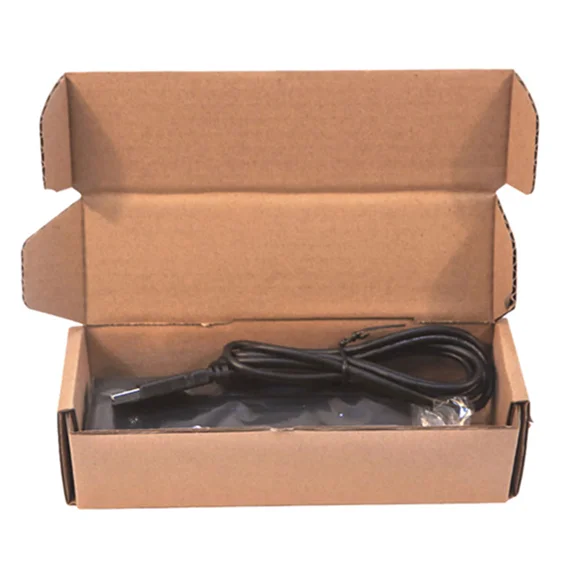

Every single product in a inner box then 50 pieces in a master carton | ||
LIF was built in September 2007 by a group of senior experts who in love with technological research and development. It is a manufacturer which combine R&D,production and sale.The main business covers financial electronic equipment, commercial R&D, electronic products manufacture and the OEM/ODM services of related products. It has got the certification of IOS 9001:2000 in 2009, and now it is honored with the Nation High-tech Enterprise and the Shenzhen High-tech Enterprise.
◆ Address: Longhua,shenzhen
◆ Area: 3000 square meters
◆ Product line: 5-6 lines
◆ R&D team: 15 people
◆ QC team: 10 people
◆ Staff: ≥100 people
◆ For about ten years in the R&D and manufacture the programmable keyboard and magnetic card reader, LIF has great product design capacity and rapid reaction capacity, we not only manufacture the products which could satisfy our clients, but also repose the demands of clients quickly.
◆ Every production through rigorous labor and accurate equipment testing before leaving the factory.
