Яркий наружный светодиодный рекламный дисплей P5 True color модуль SMD

Описание и отзывы

Характеристики

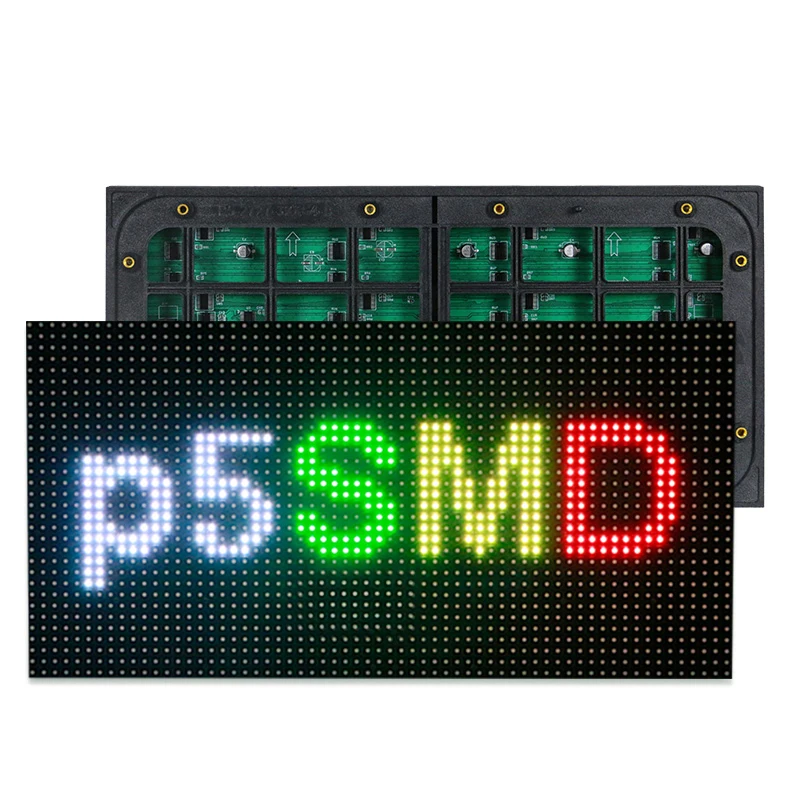

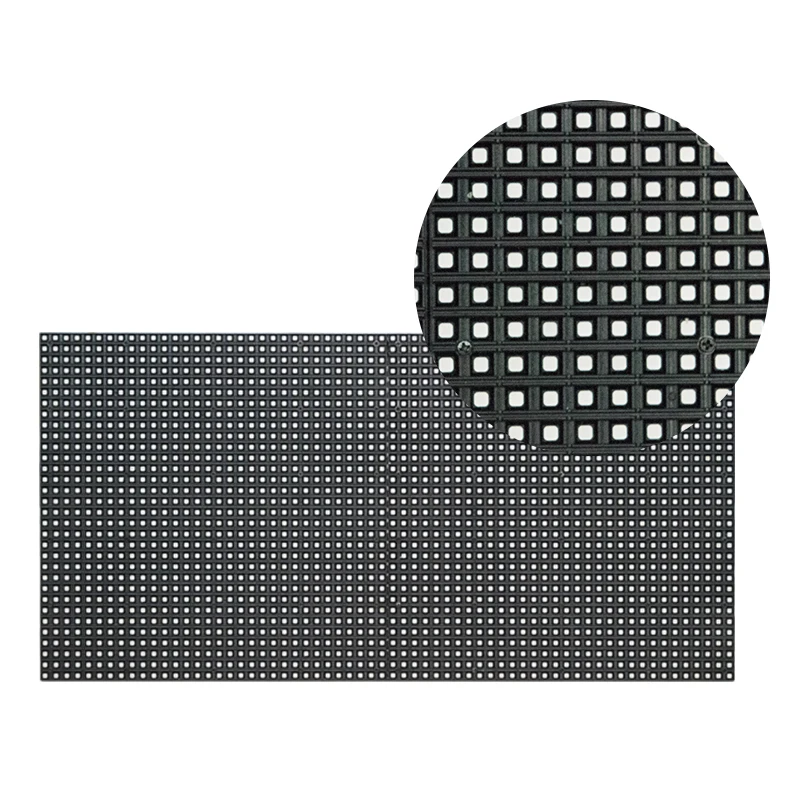

True color High Brightness P5 Outdoor LED Advertising Display IP65 SMD LED Module

Fixed cabinet Advantages:



 Using LED modular cabinet, it allows you to increase your LED screens' work-life thanks to their high reliability and advanced features. Light weight, slim and seamless installation, LED display cabinet with conveniences over the conventional fixed led screen, it makes things easier for stack or hanging installation without any tools.





Application:

1,Stage led screen: easy to hanging install and fast assembly for the background video panel ,suitable to stage setting .

2,Conference & Board Rooms led screen : install in Conference & Board Rooms for meeting or stage background.

3.Stadiums & Gymnasiums  led screen : install in the Stadiums & Gymnasiums to live sports event, as video wall panel

4.Meeting room & Auditoriums led screen : install with a portable section aluminum structure ,as a mobile led screen .

5.Banquet led screen: install in the banquet hall for music video or events video panel as setting.

6.Airport led screen : install in airport for festival advertisement or special video display .

Item	Para Name	Parameter
Module	Module No:	P5 outdoor
	Pixel pitch	5mm
	Module size	320mm x 160mm
	Module resolution	64 x 32
	Pixel density	40,000  pixels/square meter
	LED package	SMD
	Module wieght	0.5kg

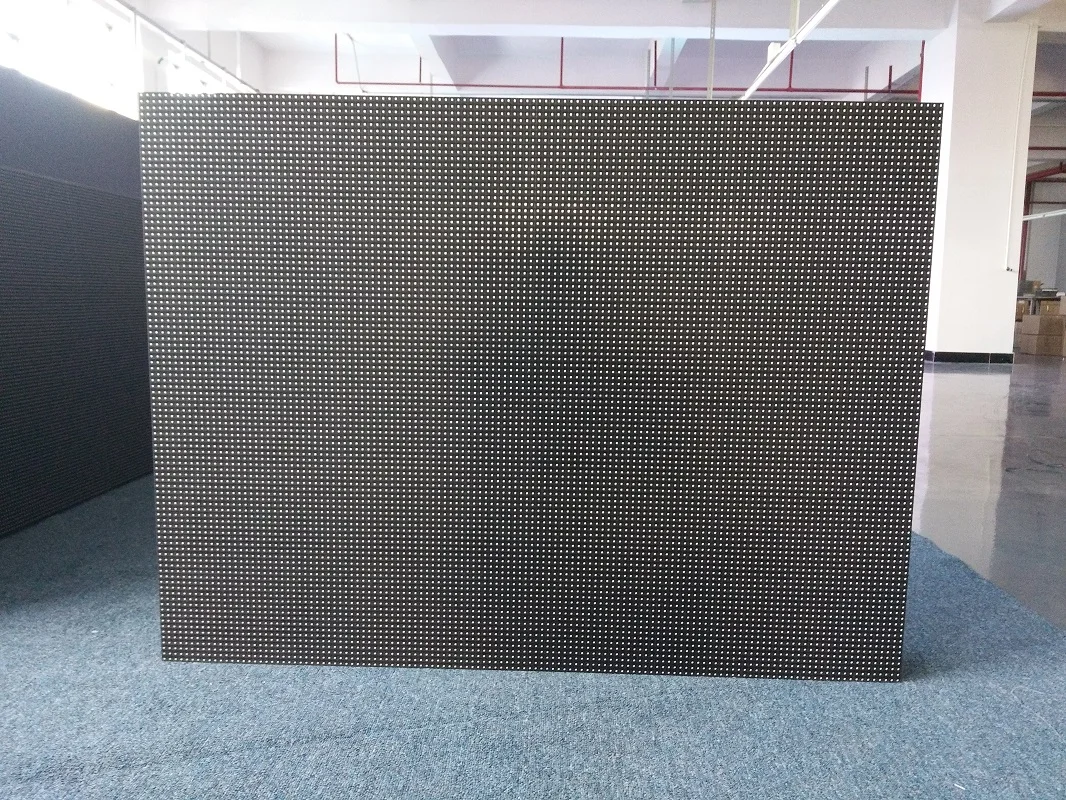

Cabinet	cabinet size	960mm x 960mm  /Customized Size
	Cabinet depth	150mm
	cabinet resolution	192 x 192
	Cabinet weight	38kgs
Technique	Brightness	6,000nits
	Scan mode	1/8 Scaning
	Refresh rate	over 1,920hz
	Power consumption	Max: 760 W/Sqm; Average: 300 W/Sqm
	Ingress Protection	IP65
	System Operation Platform	WINDOWS(WINXP/7/8/10)
