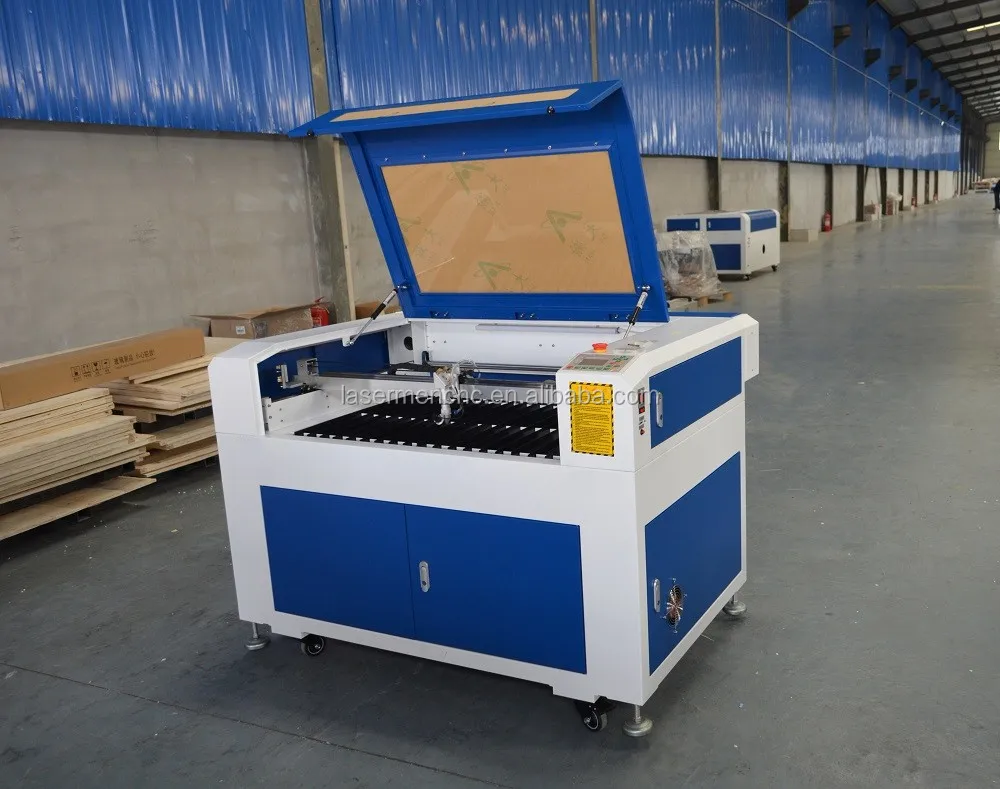

900 x 600mm wood mdf plywood laser cutter machine for architecture model making LM-9060
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
LM-9060 laser engraving machine is a simple and useful laser processing device that we developed for the needs of advertising,gift packing and other relevant industries.LM-9060 is able to engrave and cut various non-metal materials.It's features are fast working speed,easy to use,low cost,reliable engraving/cutting effects,and burr-free cut edges.Engraving depth can be adjusted with high precision.
Applicable Materials
non-matal materials such as acrylic,glass,double-color sheets,wood,paper,leather,rubber,marble,granite,tile,etc.
Applicable Industries
billboards,artistic gifts,crystal ornaments,bamboo embossment,printing,garments and leather industries,photo frame,etc
Technical parameters
Machine description: | LM-9060 Laser Machine | ||||
Work area size | 900*600mm | ||||
Laser type: | Hermetic and detached CO2 laser tube | ||||
Laser power: | 40/60/80/100 / 150 watt | ||||
Cooling mode: | Circulating-water-cooling | ||||
Power adjustment: | 0-100% controlling, no segment and adjusting by software | ||||
Machine control and drive: | Speedy DSP controlling, stepper motor | ||||
Max engraving speed: | 60000mm/min | ||||
Max cutting speed: | 50000mm/min | ||||
Repeating location: | 0.01mm | ||||
Minimum character: | Chinese character: 1.5mm; crisscross-row: 1mm | ||||
Working voltage: | AC220V 50Hz / 110V 60Hz | ||||
Working environment: | Temperature: 0-45℃, Humidity: 5%-95%, and congeal-water removed | ||||
Controlling software language: | English, Chinese | ||||
Dictate format: | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD,CoreDraw direct outputting | ||||
Detailed Images
Machine Parts

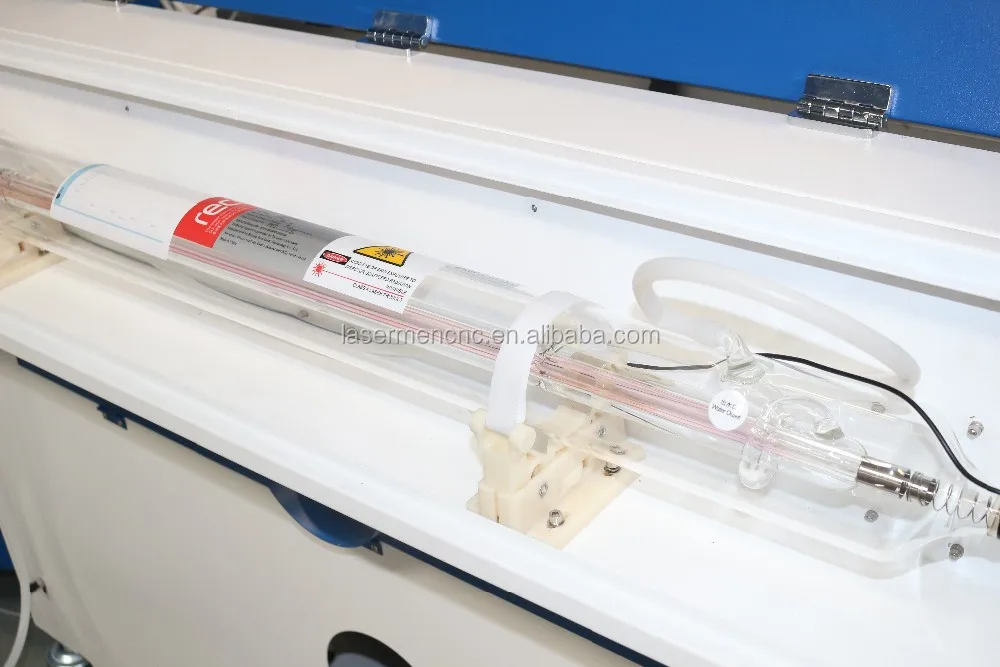

Name: CO2 laser tube
High efficiency co2 tube with stable laser path ,life time more than 10000 hours
Machine Parts
Name: Reflector and Focus lens
Brand: II-VI
Origin: US
1 lens and 3 reflectors
Machine Parts

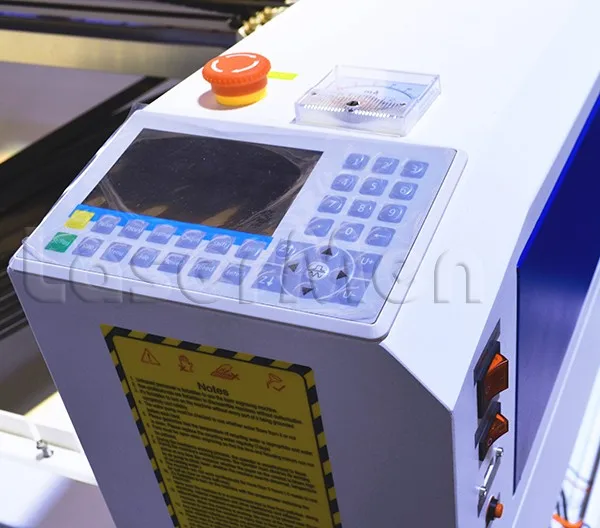

Name: Front panel of control system
Brand: Ruida
Origin: Shenzhen,CHINA
Easy to operate and good route optimization

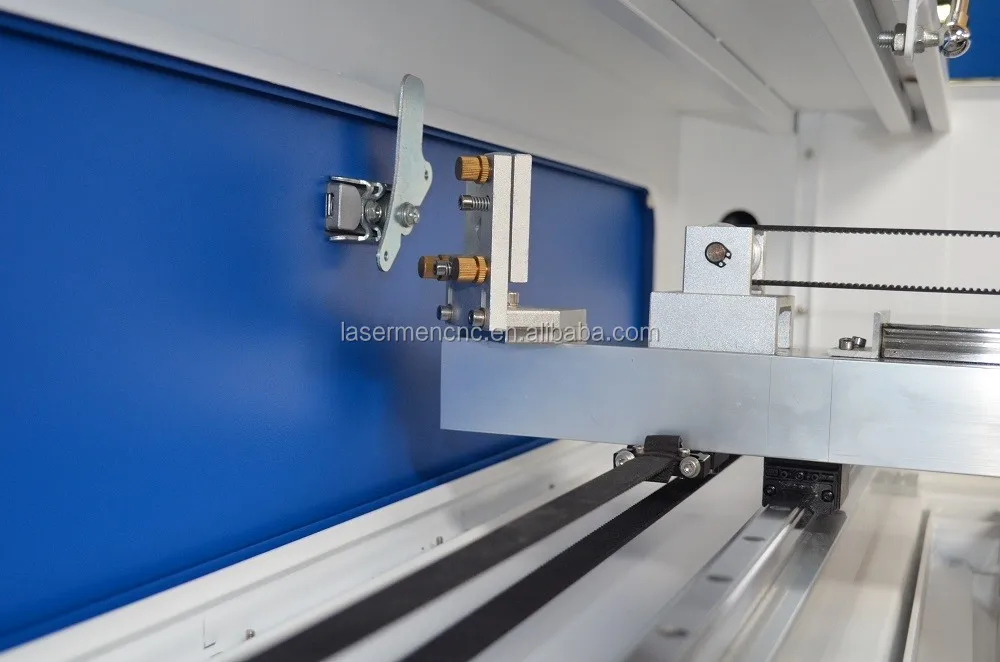

Machine Parts

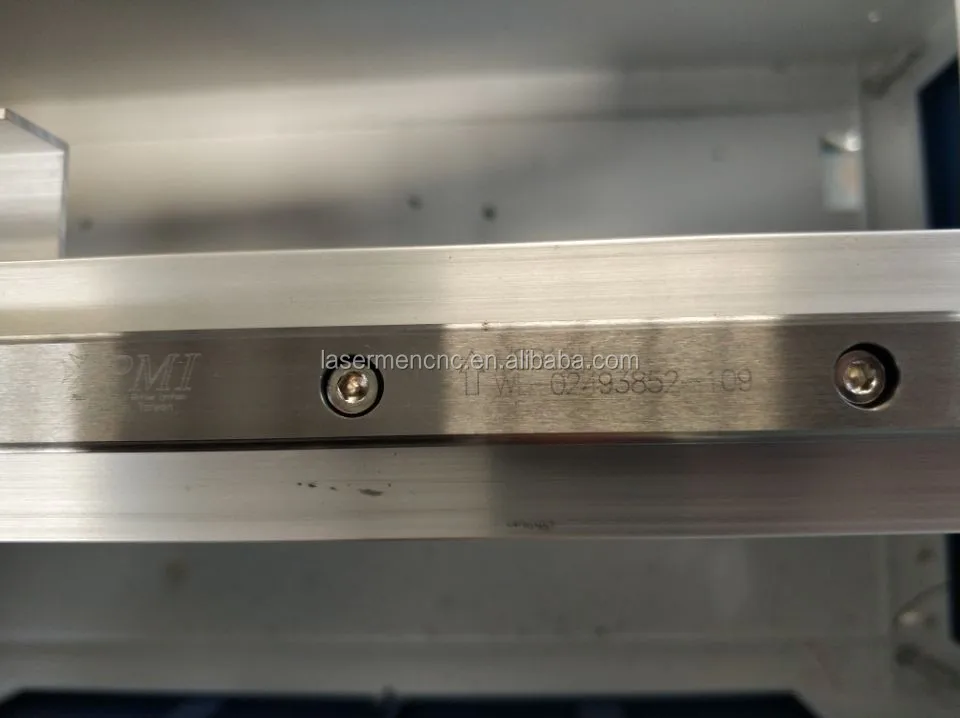

Name: Rail
Brand: PMI
Origin: Taiwan
High positioning accuracy for high speed work
Machine Parts

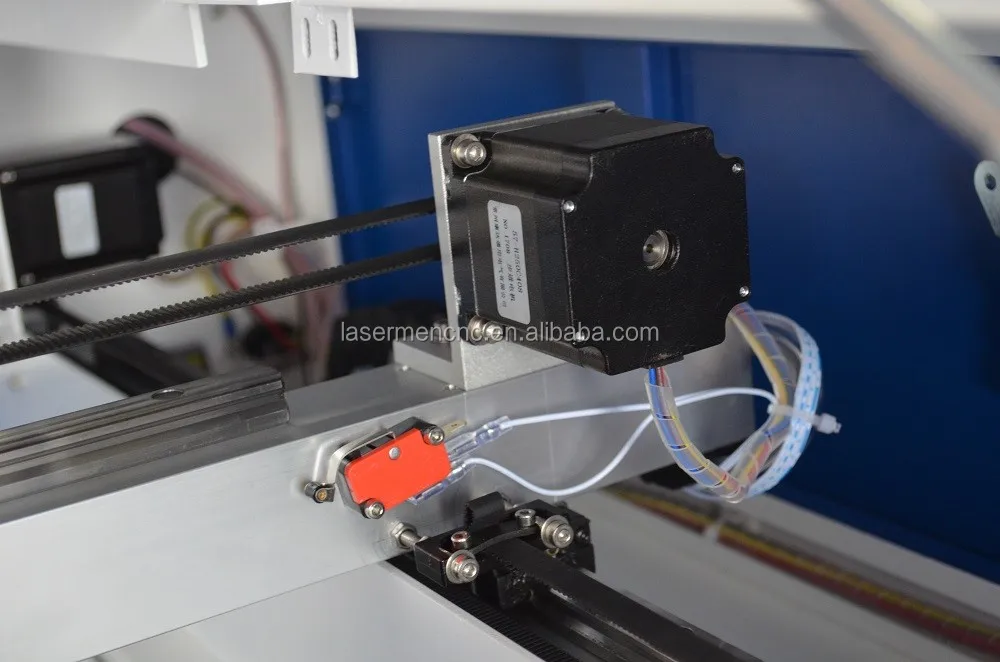

Name: Stepper motor
Brand: YAKO
Origin: Shenzhen,CHINA
High accuracy
Water chiller
cools and protects laser tube, Constant water temperature ensures laser tube a longer service time and high stability
Exhaust fan
removes smell, smoke and dust caused during engraving and cutting, protecting the machine user healthy.
Tool box
Air pump
(1). Push fumes away from the focal lens to protects the lens from contaminants which could damage the lens.
(2). Blow compressed air to the material during engraving and cutting, cools the material, protect it from burning.
Rear opening allowing long material to pass through
Machine allowing working area is 900 x 600 mm, but material longer than 600 mm is able to pass through this rear opening.
Options
Up-down worktable
For materials. It is a must if you want to use rotary
Honeycomb worktable
For soft materials like cloth, leather, etc
Rotary A
To etch and cut cylindrical objects.Type A is for cylindrical and hard objects.
Rotary B
To etch and cut cylindrical objects. Type B is for bottles, cups, etc
Red light pointer
It makes the laser visible.
Auto focusing
Find the suitable focus by adjusting up-down worktable.
\t\t\t\t\t\t\t\t\tSamples \t\t\t\t\t\t\t

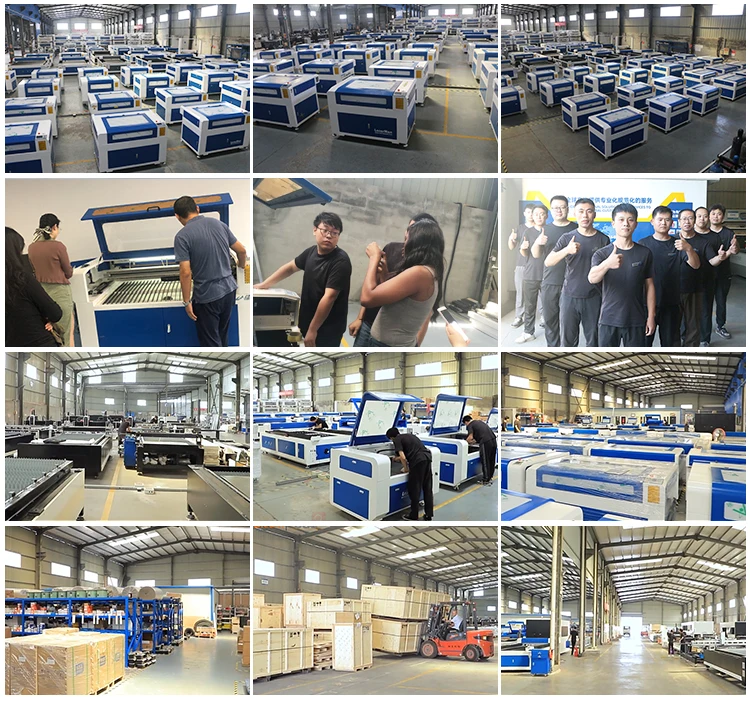

Company information
900 x 600mm wood mdf plywood laser cutter machine for architecture model making LM-9060
Service
Warranty for laser cutting machine
1. Two year for the machine, except for consumables.
2. Laser tube warranty:
60W: 3 months;
80W: 6 months;
100W, 150W, 180W: 8 months.
3. Lens and mirrors are not within warranty scope.
Pre-Sales Service for laser cutting machine
1.Inquiry and consulting support
2.Sample testing support
3.View our Factory
After-Sales Service for laser cutting machine
1.24 hours online and offline after sales service
2.One on one professional technical support
3.Secure after-sales guarantee
4.Engineer available to service machine oversea
Customer and machine management system

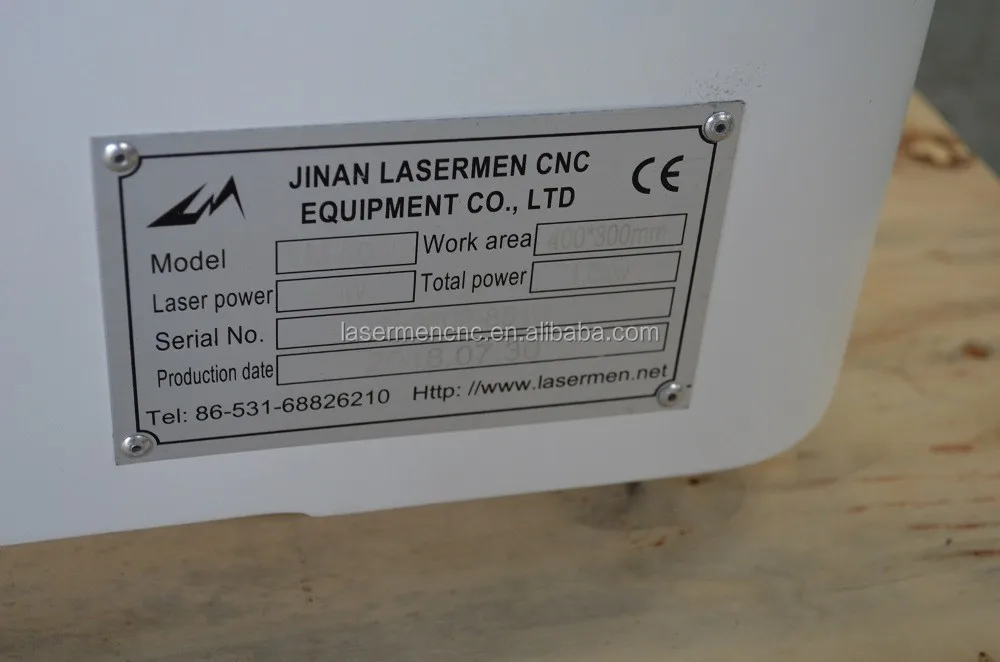

Every machine is labeled and has its Serial Number.
The machine data and information all are recorded in company system for lifetime. If there would be any problem with your machine even after 5 or 10 years, it is still easy to track the machine details and provide fast solution.

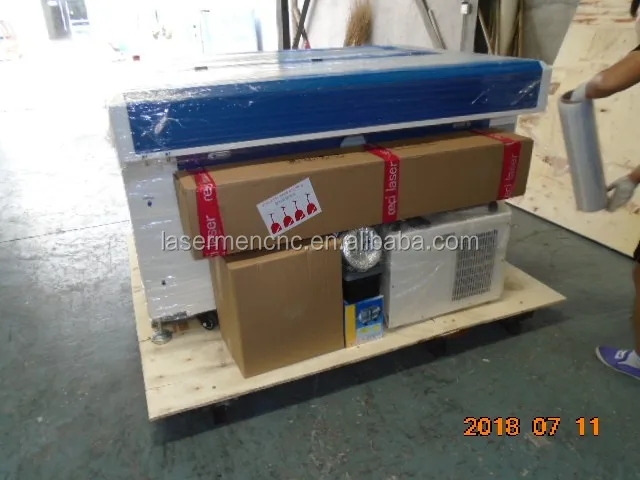

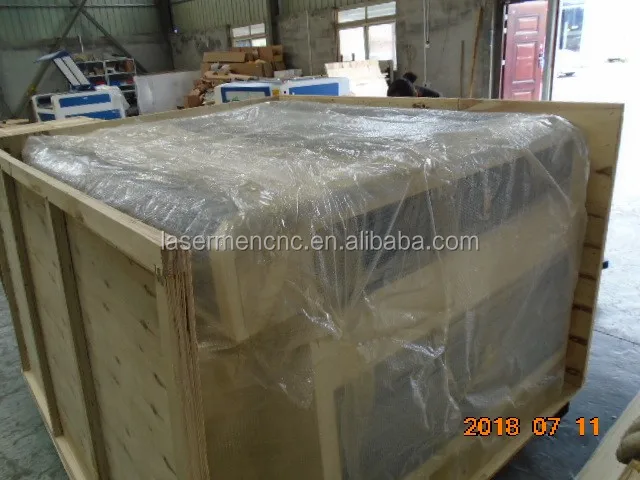

Packing&Shipping
