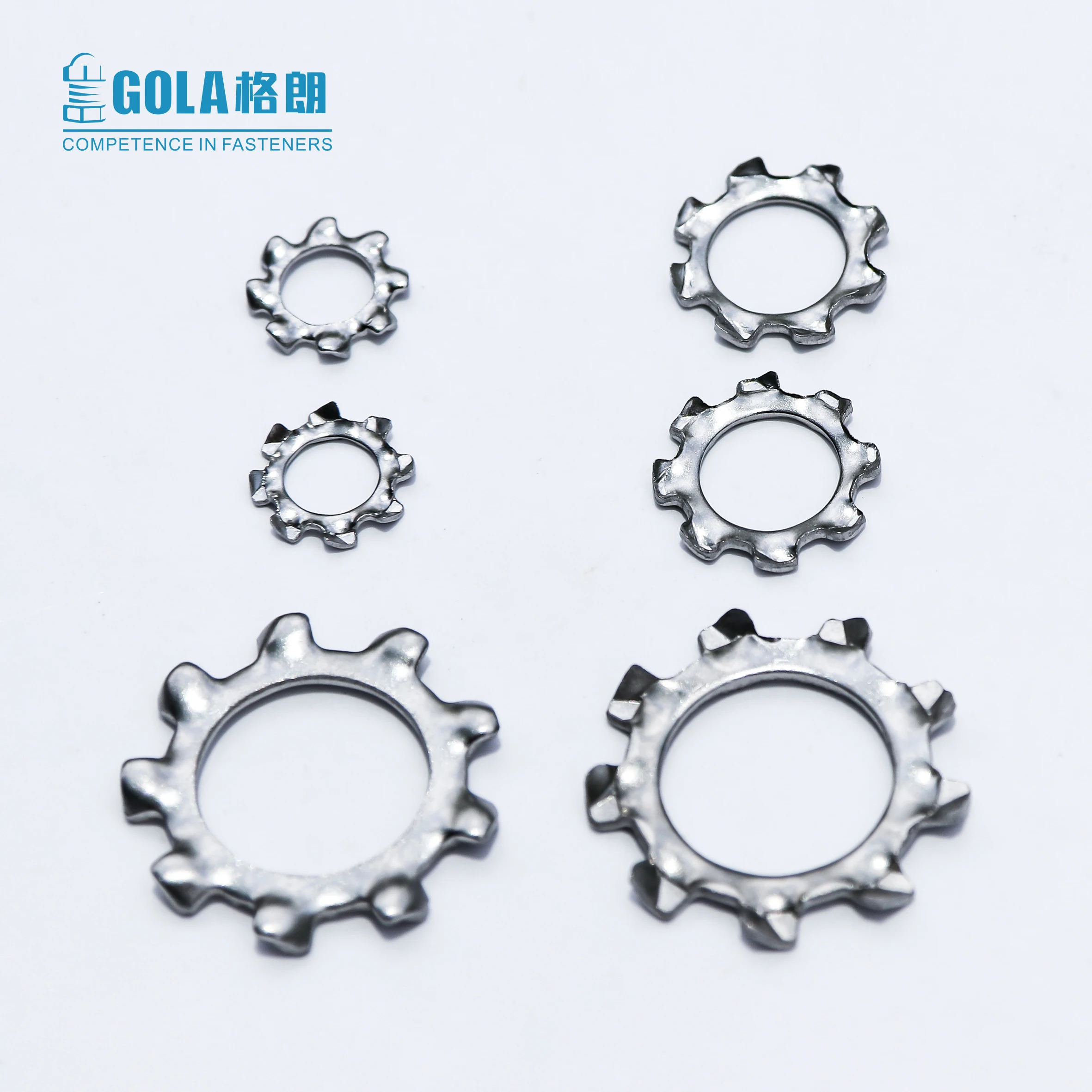

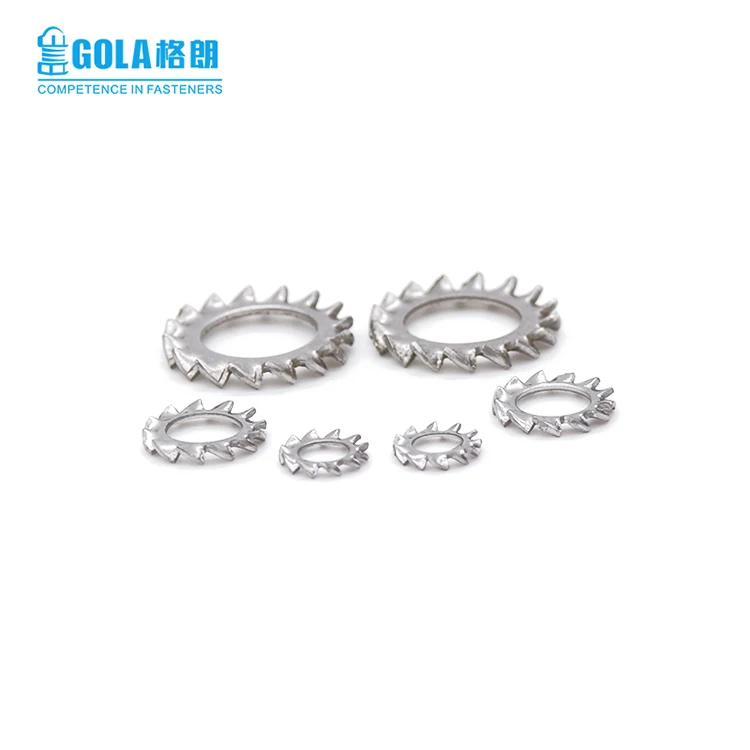

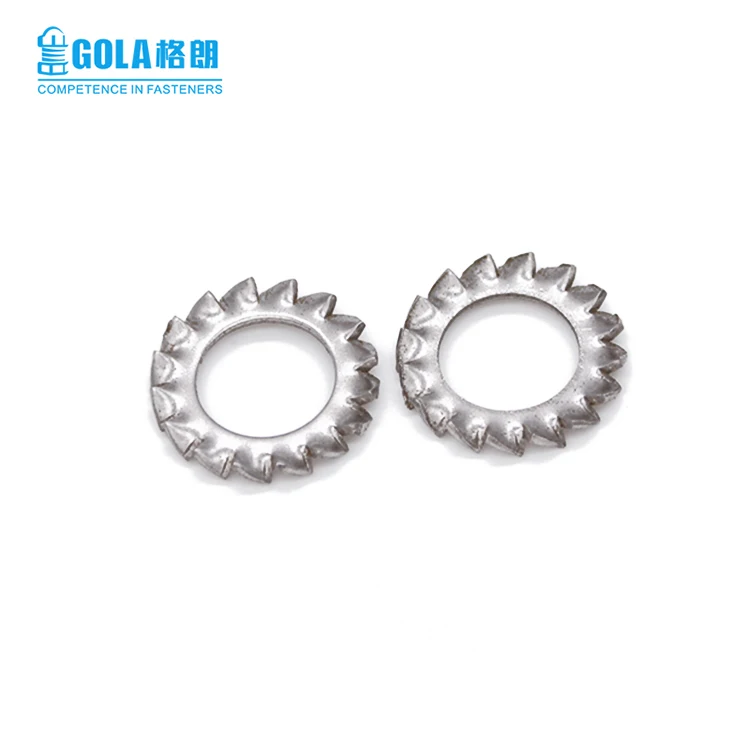

Product | External Serrated Lock Washer |
Material | SS304, SS316, Carbon Steel |
Standard | DIN, GB/T |
Size | M2 M3 M5 M6 M10 M12 M16 M20 |
Finish | Nature or as required |
Package | Carton( 6 packs in one carton, and weight is around 22-25kg) |
Lead time | 5 to 15 working days |
Customize | Available |
MOQ | No MOQ for standard item, negotiable for customized item. |

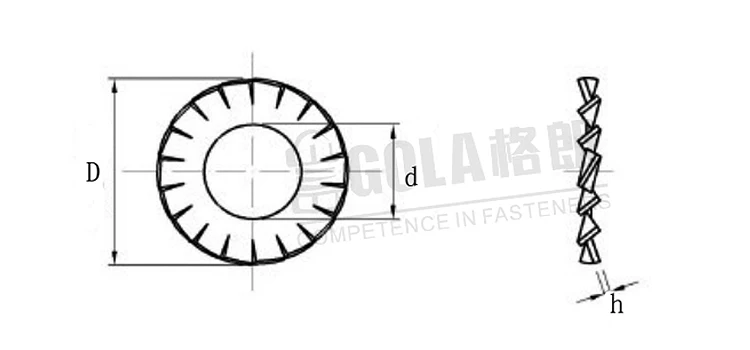

Size | M2 | M3 | M5 | M6 | M10 | M12 | M16 | M20 | ||
d (diameter) | min | 2.20 | 3.20 | 5.30 | 6.40 | 10.50 | 12.50 | 16.50 | 21.00 | |
max | 2.45 | 3.50 | 5.60 | 6.76 | 10.93 | 12.93 | 16.93 | 21.52 | ||
D (external size) | min | 4.20 | 5.70 | 9.60 | 10.57 | 17.57 | 19.98 | 25.48 | 32.38 | |
max | 4.50 | 6.00 | 10.00 | 11.00 | 18.00 | 20.50 | 26.00 | 33.00 | ||
h (thickness) | 0.30 | 0.40 | 0.60 | 0.60 | 1.00 | 1.00 | 1.20 | 1.50 |
ITEM | CHEMICAL ELEMENTS COMPOSITION | ||||||||||||||
C(%) | Si(%) | Mn(%) | P(%) | S(%) | Ni(%) | Cr(%) | Mo(%) | ||||||||
SS304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0-11.0 | 18-20 | ||||||||
SS316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16-18 | 2.0-3.0 |
