Кондиционер или холодильник холодный воздух/провод трубки конденсаторов машинного производства производство
- Категории: Other Refrigeration & Heat Exchange Equipment >>>
- Поставщик: BOBO,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
We can supply the products according to clients' drawings or samples, also can help the clients design and produce different condnesers.
If you are interesting in the items, feel free to contact us,we will reply you as soon as possible.
If you are interesting in the items, feel free to contact us,we will reply you as soon as possible.
Main production process:
1. Wire straigthening and cutting
2. Bundy steel tube straigthening and cutting
3. Steel Serpentin tube bending
4. Wire on tube resistance welding
1. Wire straigthening and cutting
2. Bundy steel tube straigthening and cutting
3. Steel Serpentin tube bending
4. Wire on tube resistance welding
5. Inspection
6.Package
6.Package

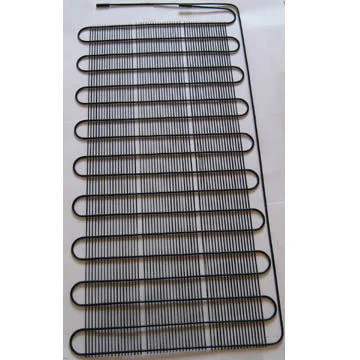

Product name | Wire on tube condenser |
Material | Bundy tube/ steel wire |
Usage | Air Conditioner or Refrigerator |
Diameter | Customized |
Size | Customized |

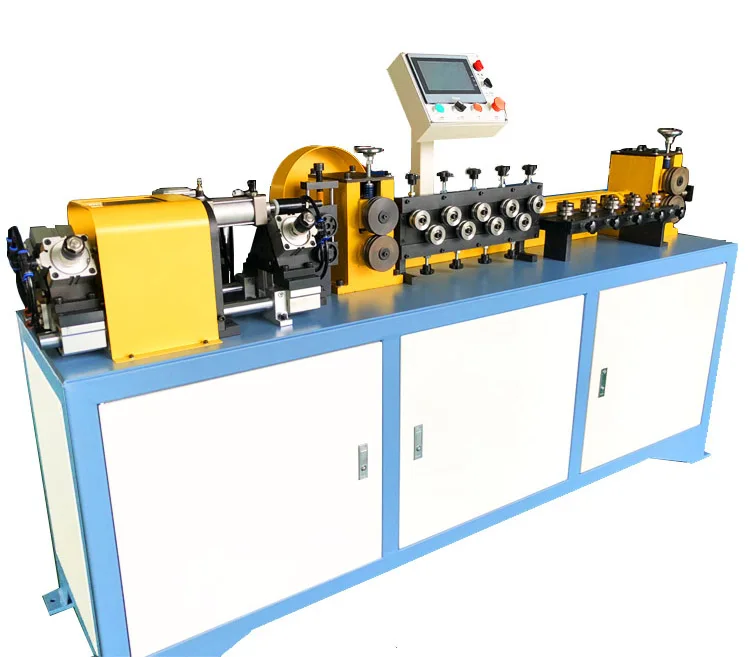

1. High speed steel wire cut to length machine
The high speed steel wire cut to length is special designed for wire on tube condenser making, the cutting wire diameter is 1.1-1.5mm.
With inverter control, the straightening wheel and cutting blade speed is adjustable.

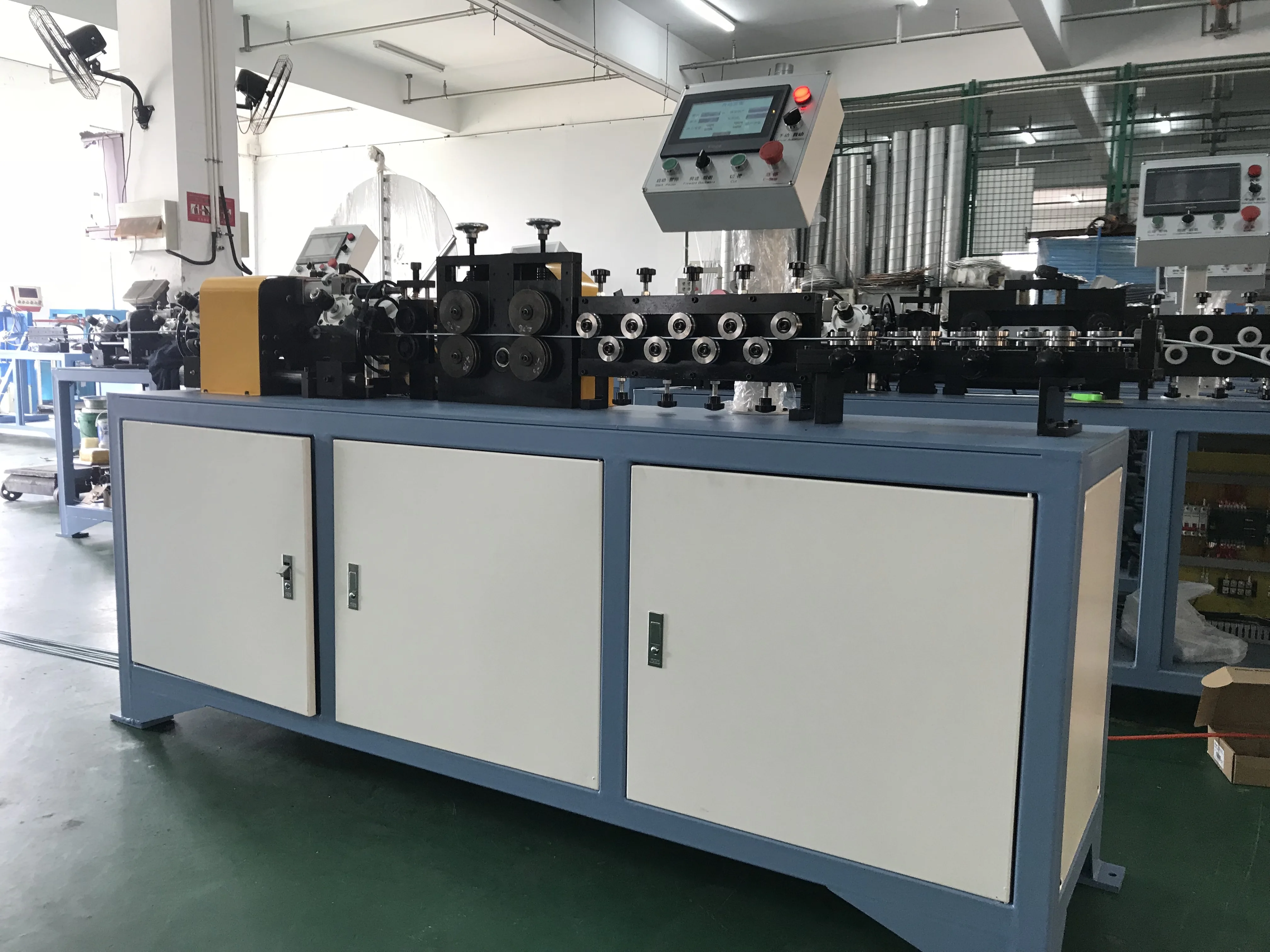

2. Bundy steel tube straigthening and cutting machine
The steel / bundy tube chipless cut to length machine is special designed for tube
straightening and cutting process before tube bending or welding process of condenser and evaporator. Compare to normal design
with two-half clamping die, we design the clamping die in three parts according to lathe chuck structure, which can minimize the
tube distortion during cutting, and the clamping die changing / adjustment will be more easier.
straightening and cutting process before tube bending or welding process of condenser and evaporator. Compare to normal design
with two-half clamping die, we design the clamping die in three parts according to lathe chuck structure, which can minimize the
tube distortion during cutting, and the clamping die changing / adjustment will be more easier.

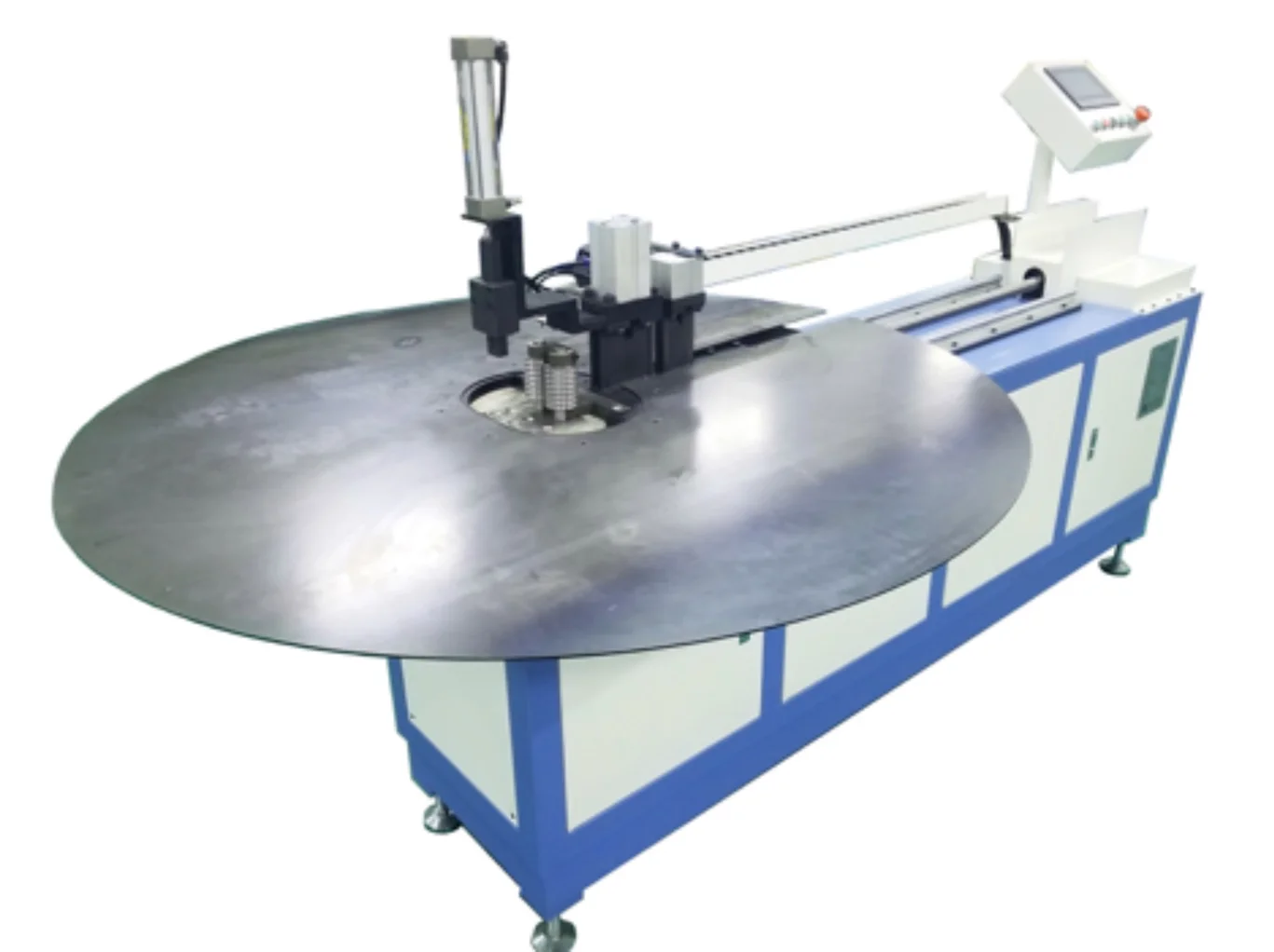

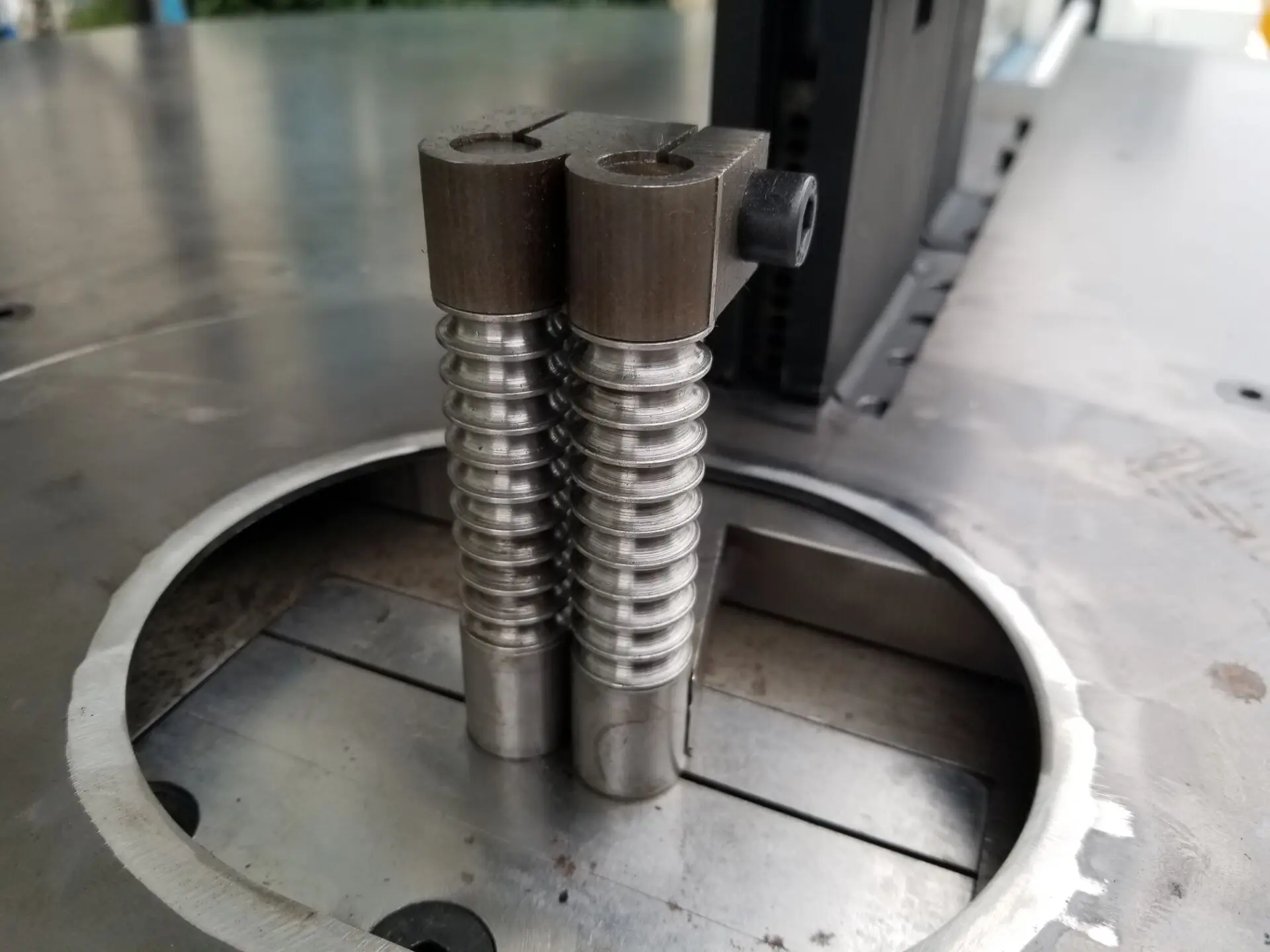

3. Steel Serpentine tube bending machine
The WA series serpentine bender is widely used for steel bundy tube bending process. Widely used for condenser, heat exchanger making. Compare to traditional manual bending work, the semi-automatic bending machine can process up to 10-12 grouped tubes in one time bending according to various tube diameters, the work efficiency is much more upgraded, and the finished tube presents good appearance as per requirements.

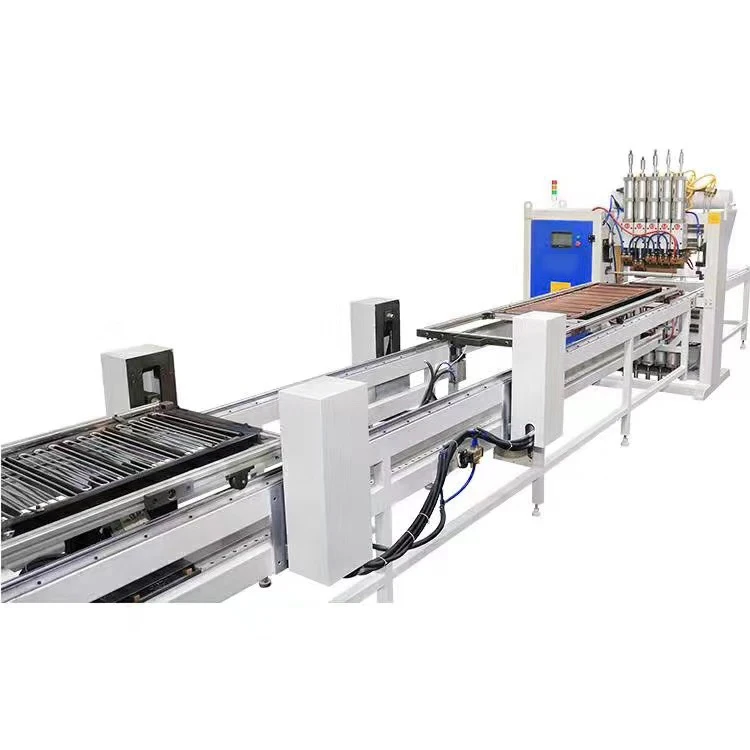

4. Wire on tube resistance welding
machine
The gantry type condenser wire and tube welding machine adopts 6 welding heads and automatic feeding system. The machine operator put the material onto the feeder and press the start button, then the machine will conduct welding automatically.
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other
payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other
payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
