Overview
FLUORESCENT SOMATIC CELL COUNTER
SCCS
SCCS-SCC Somatic cell counter is based on fluorescent image cytometry for counting cells in milk. It fully comply with the ISO 13366-1 IDF 148-1 Enumeration of somatic cells - Microscopic method (Reference method) with regard to the staining of cells, in the definition of cells to be counted depending on the size and the methodology of the counting.
The somatic cell counter offers visual control for excluding accidental errors. The measuring range of the counter is 2 to 30 µm and the results are expressed as number of cells per mL. The results are available within 20 to 60 seconds depending on the type of analysis.
There is no need of calibration, only a graduated scale on a LACTOCHIP is used for verification of the magnification as per requirements of ISO 13366-1:2008 (IDF 148-1:2008) Milk -- Enumeration of somatic cells -- Part 1: Microscopic method (Reference method).
Mode | SCCS | Analysis time | ＜ 1min | ||
Capacity | ＞ 60 tests per hour | Measuring range | 10 000 to 10 000 000 cell/mL | ||
Ambient air temperature | 10°C – 40°C | Milk temperature | 1°C – 40°C | ||
Relative humidity | 30% – 80% | Power Consumption | 60W | ||
AC Power Supply | 220V/110V | DC Power Supply | 12V, 5A | ||
Dimensions (W x D x H) | 390x300x260 mm | Weight | ＜7.3 kg | ||
Standard Accessories | SCC Somatic Cells Counter, SCC STARTER KIT, 12V power adapter ,Quick start guide, Automatic pipette 10 -100 µL – set at 8 µL , Automatic pipette 20 - 200 µL – set at 100 µL, Mini Vortex , USB wireless keyboard with batteries , USB wireless mouse with batteries | ||||
Product Feature
* High-end direct fluorescent, low magnification microscope with fast autofocus and cell counting software
* Fast, accurate, reliable somatic cells analysis of cow, sheep, goat, buffalo and human milk.
* Possibility of reference analysis
* Detects subclinical and clinical mastitis
* Lowest cost per test for Somatic Cell Counts
* Easy readable results within 20 to 60 seconds
* Takes up to 60 images by computer controlled X:Y movements and then processes these with special image analysis
* Fast, accurate, reliable somatic cells analysis of cow, sheep, goat, buffalo and human milk.
* Possibility of reference analysis
* Detects subclinical and clinical mastitis
* Lowest cost per test for Somatic Cell Counts
* Easy readable results within 20 to 60 seconds
* Takes up to 60 images by computer controlled X:Y movements and then processes these with special image analysis
software
* Stores unlimited number of record in the database
* Results are color coded
* Automatic software update and remote service
* Portable and compact design
* 10'' fully functional touchscreen tablet
* Embedded printer
* Wireless keyboard and mouse
* Use of 4 channel disposable LACTOCHIPS
* Low power consumption
* Stores unlimited number of record in the database
* Results are color coded
* Automatic software update and remote service
* Portable and compact design
* 10'' fully functional touchscreen tablet
* Embedded printer
* Wireless keyboard and mouse
* Use of 4 channel disposable LACTOCHIPS
* Low power consumption
DEMO SOFTWARE
Fully functional demo software with results from real tests of milk samples from animals suffering from subclinical, clinical,
yeast and mycoplasma mastitis.
MASTITIS TYPES
The analysis gives information about cell size thereby differentiation of different mastitis can be done.
SIMPLE & ЕASY RECORD KEEPING

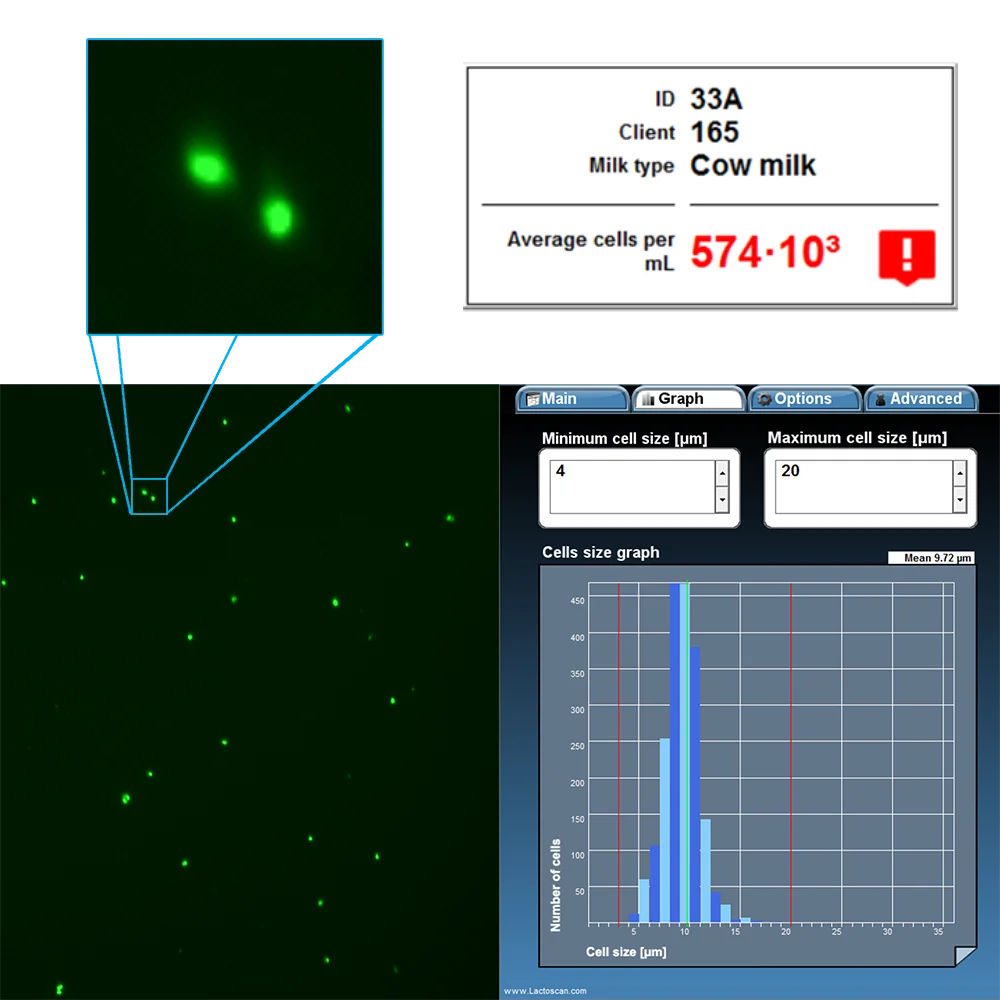

Results from the analysis can be printed to the inbuilt printer in short report or exported in pdf and excel in extended report with images and graphs.
Working principle

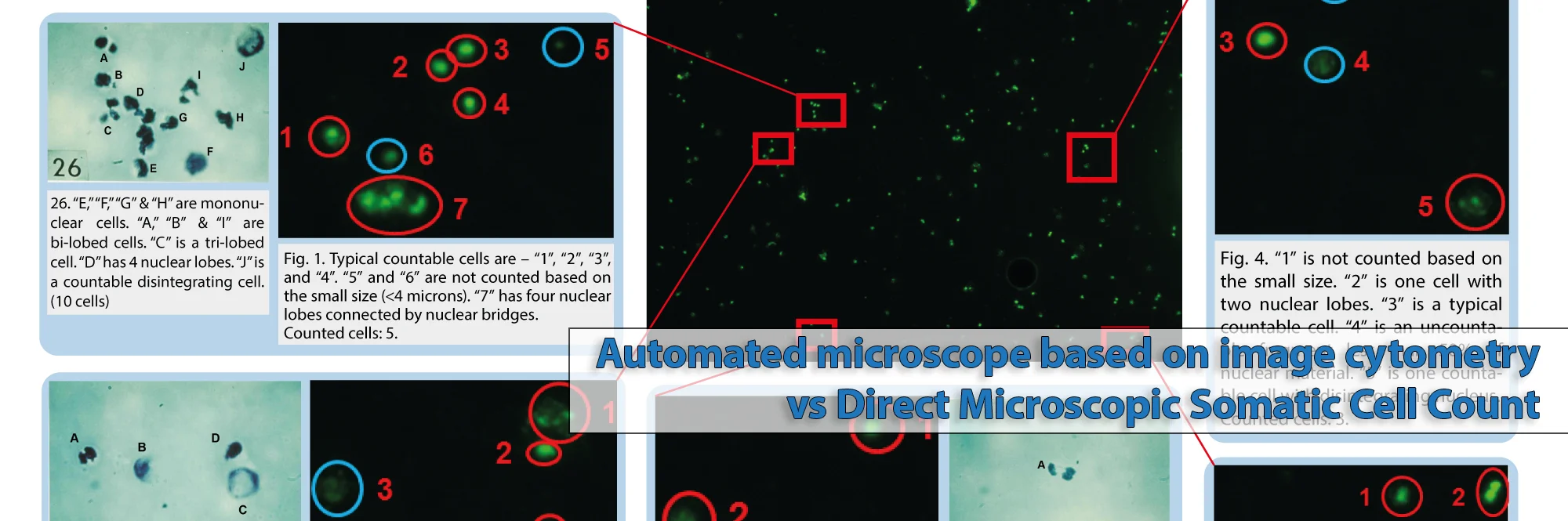

SCC is an automated microscope based on image cytometry for counting cells.
The analysis of the milk is precise,
reliable and fast - thanks to the fluorescent dye, laser diode, optics and CMOS imaging sensor, the analysis of the milk is
precise, reliable and fast.
reliable and fast - thanks to the fluorescent dye, laser diode, optics and CMOS imaging sensor, the analysis of the milk is
precise, reliable and fast.

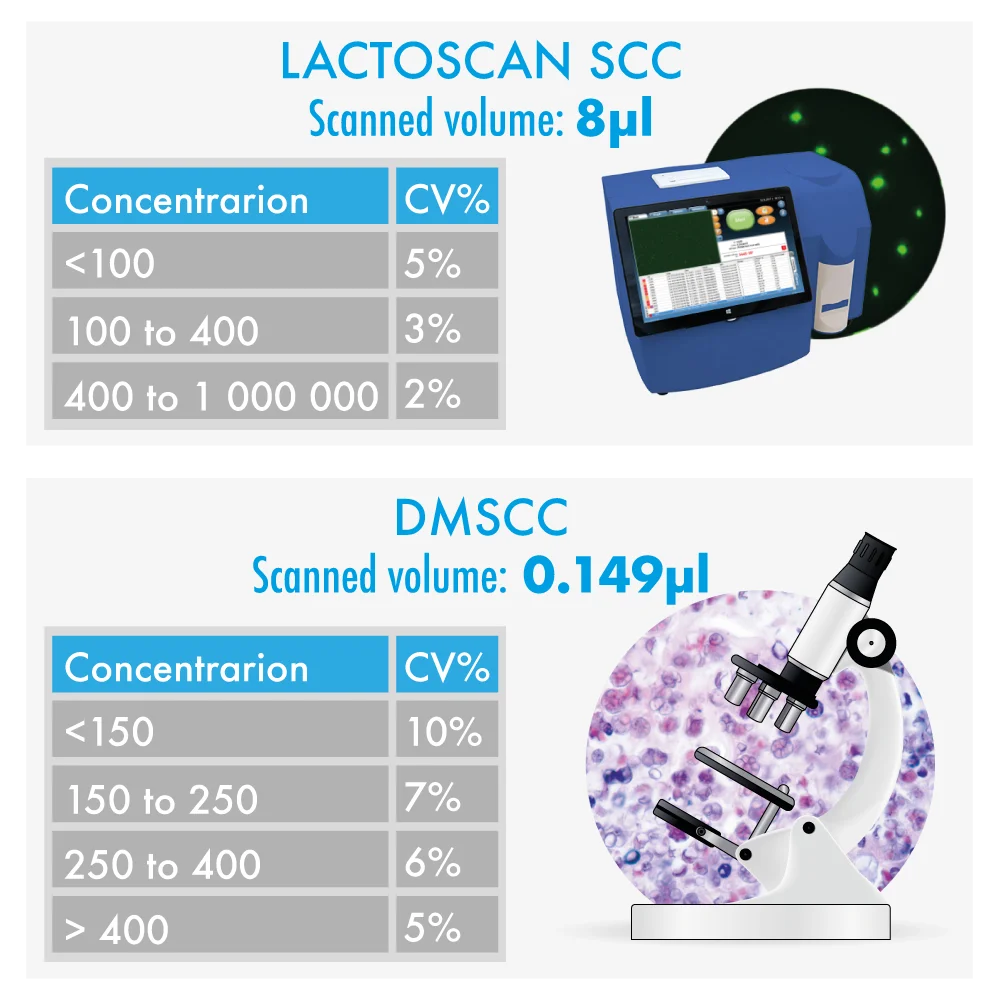

LACTOSCAN SCC possesses the largest volume of scanned sample up to 9 µl that guarantee low coefficient of variation, better than
the direct microscopic counting.
the direct microscopic counting.

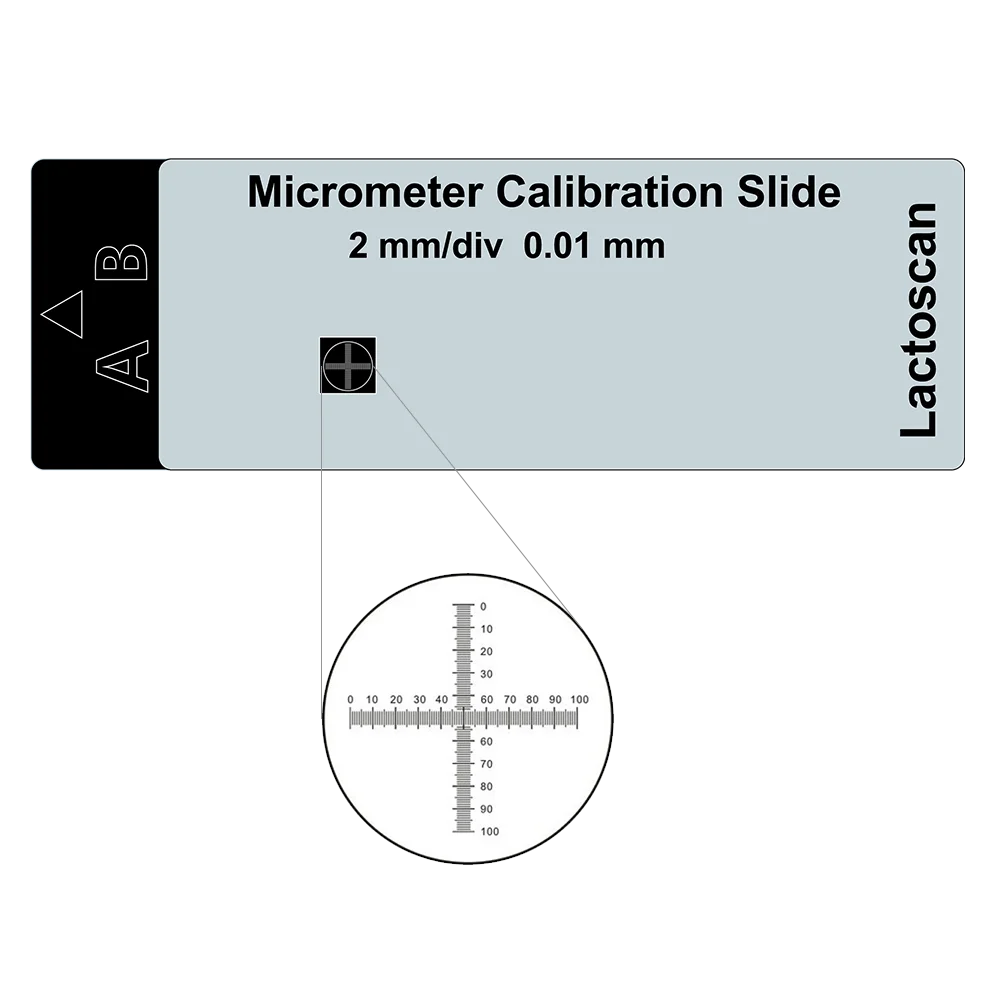

Verification as microscope
There is no need of calibration, only a graduated scale on a LACTOCHIP is used for verification of the magnification as per
requirements of ISO 13366-1:2008 (IDF 148-1:2008) Milk -- Enumeration of somatic cells -- Part 1: Microscopic method (Reference
method).
requirements of ISO 13366-1:2008 (IDF 148-1:2008) Milk -- Enumeration of somatic cells -- Part 1: Microscopic method (Reference
method).

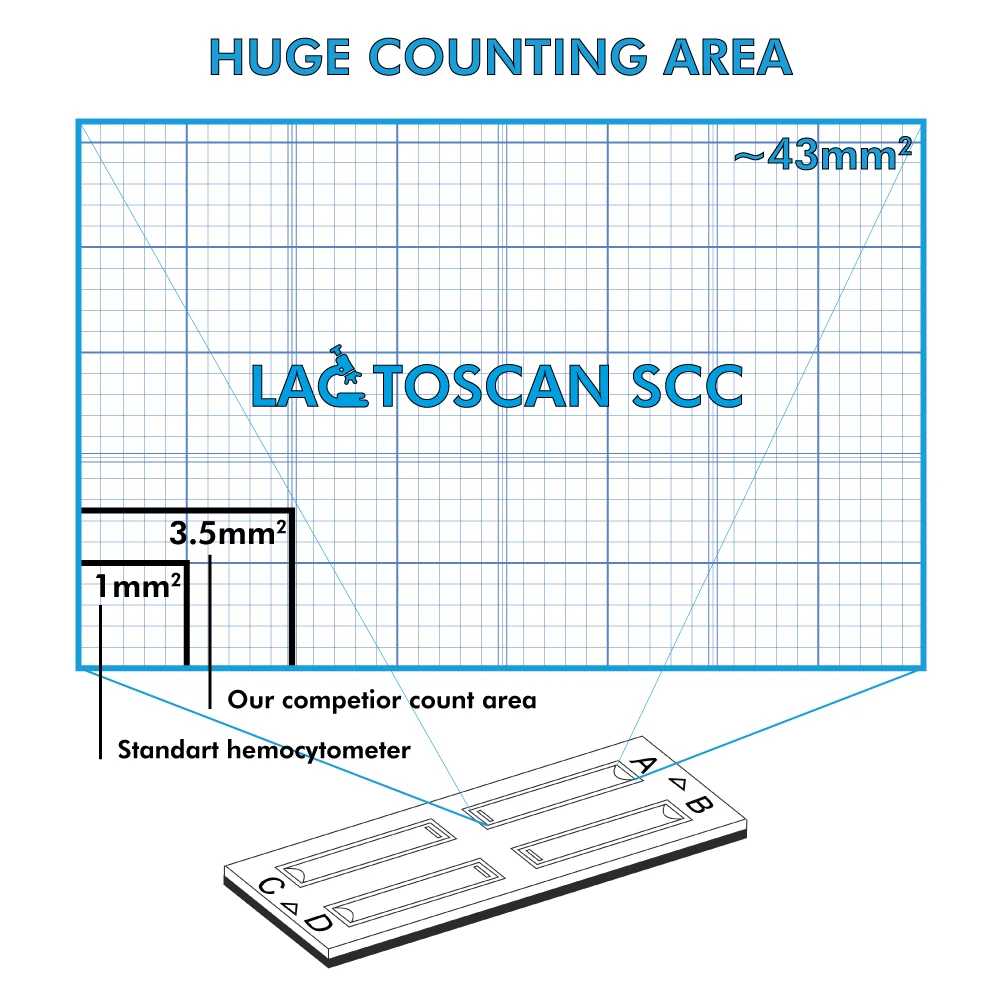

The counting area of the LACTOSCAN SCC has:
43 times larger area than a standard hemocytometer and
12 times larger area than similar instruments.
43 times larger area than a standard hemocytometer and
12 times larger area than similar instruments.
Analysis time: 20-60 sec
Measuring range: 0 - 10 000 000 cell/ml
Measuring cell size range: 2-30 µm
Colour indication for sub-clinical and clinical mastitis.
Measuring range: 0 - 10 000 000 cell/ml
Measuring cell size range: 2-30 µm
Colour indication for sub-clinical and clinical mastitis.
Product Series
SCCC-FLUORESCENT SOMATIC CELL COUNTER COMPACT
MCCC--FLUORESCENT SOMATIC CELL COUNTER + ULTRASONIC MILK ANALYZER
