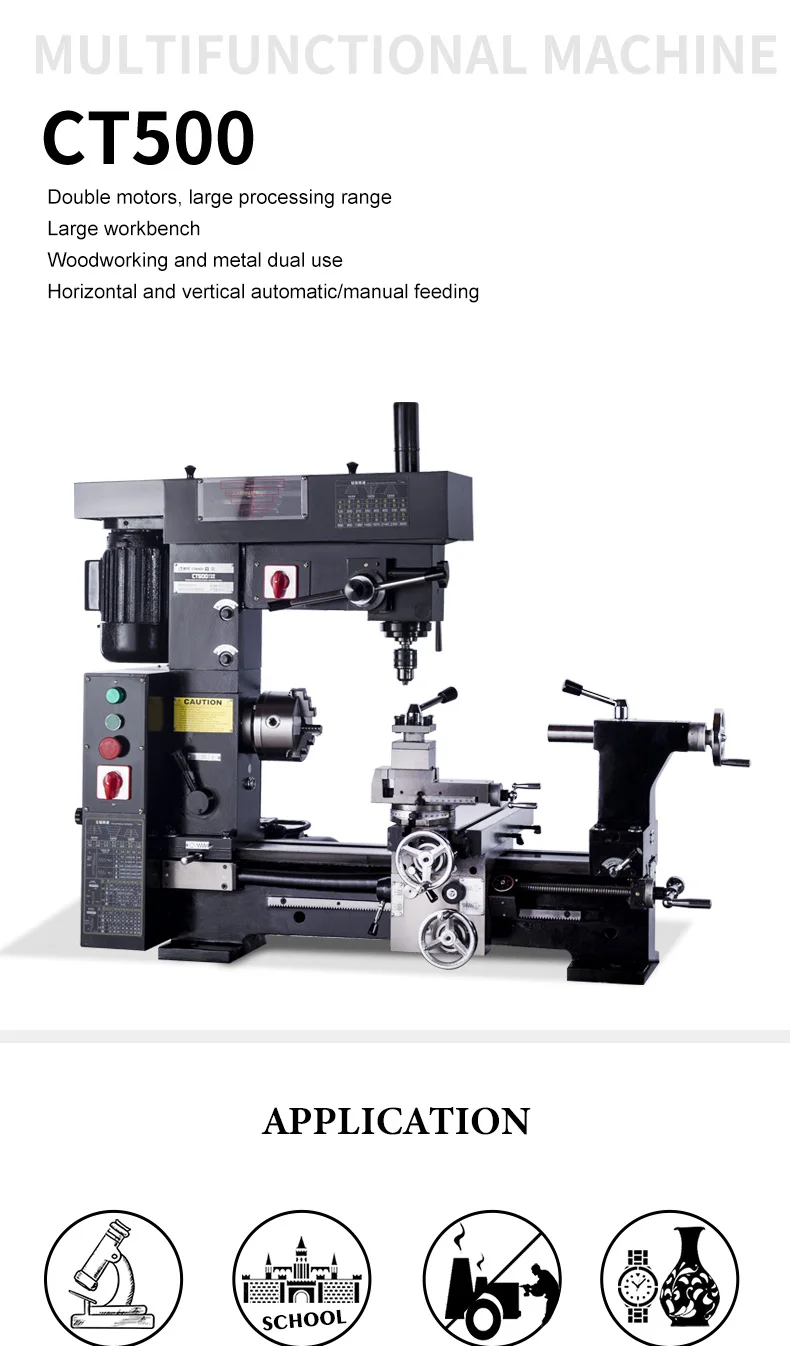

Многоцелевой комбинированный токарный станок CT500 3 в 1 с CE от китайского завода
- Категории: Другое станочное оборудование >>>
- Поставщик: Anhui,Citie,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

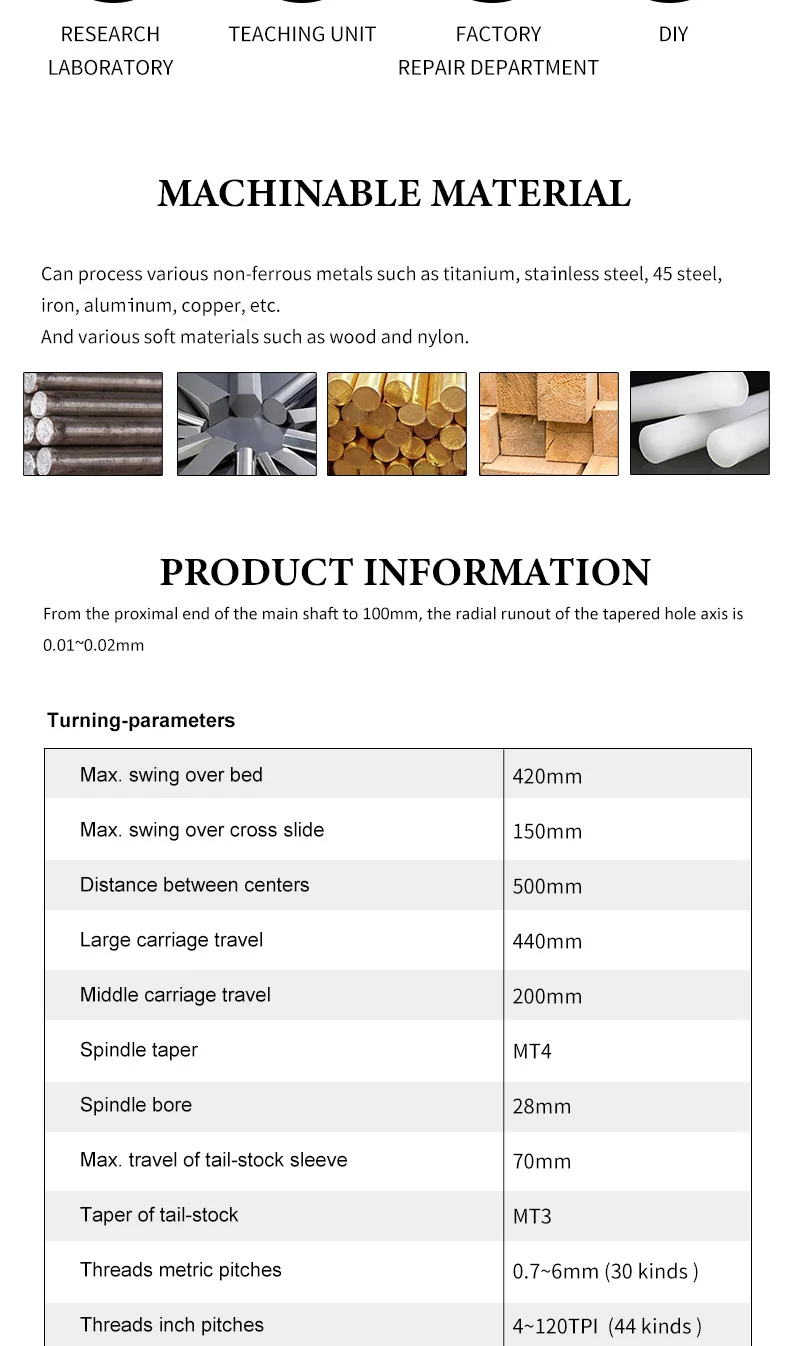

| lathe | |
| Maximum workpiece turning diameter of the bed | 420mm |
| Two of the top distance | 500mm |
| Maximum workpiece turning diameter of tool post | 150mm |
| Spindle hole diameter | 28mm |

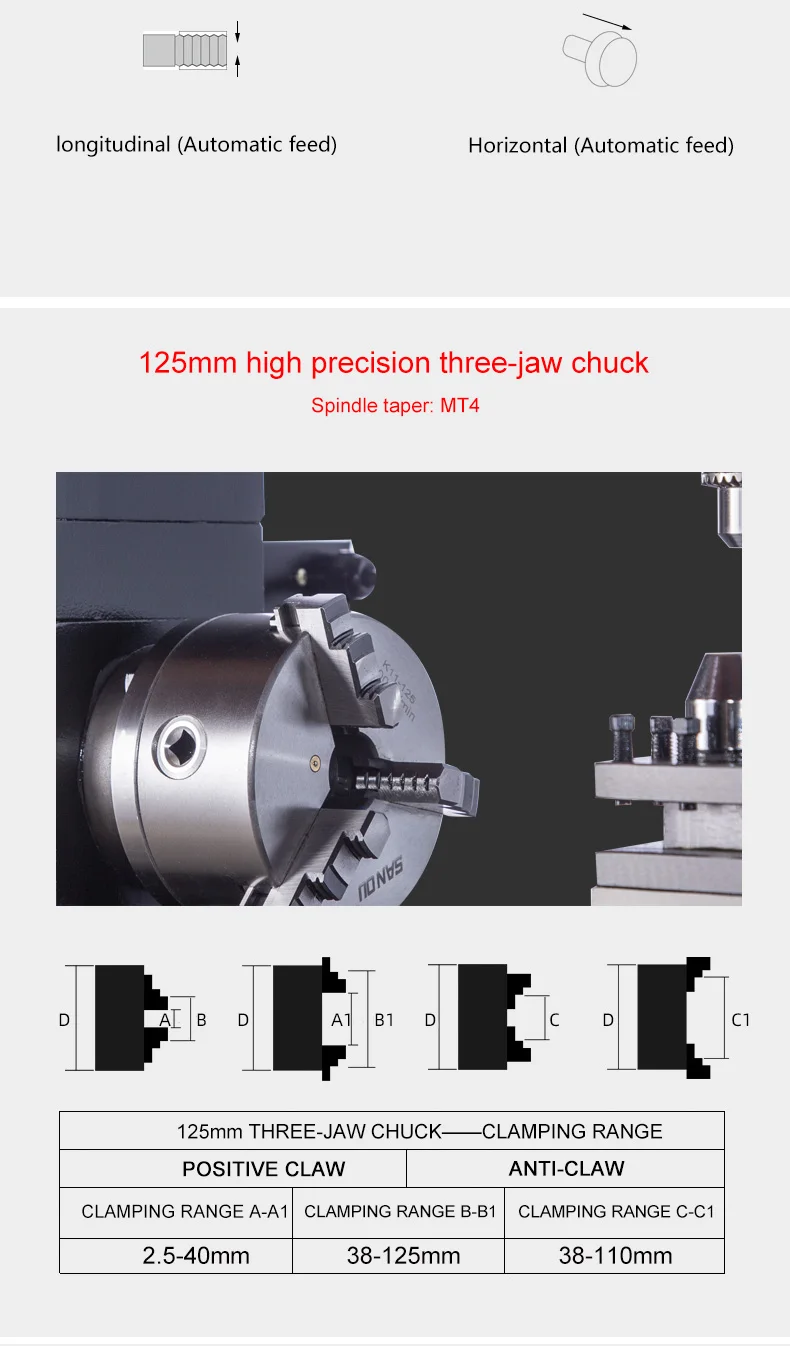

| Spindle taper | MT4 |
| Maximum longitudinal stroke | 440mm |
| Maximum lateral stroke | 200mm |
| Processing metric thread pitch range/species | 0.7-6mm |
| Processing inch thread pitch range/species | 4-120TPI |

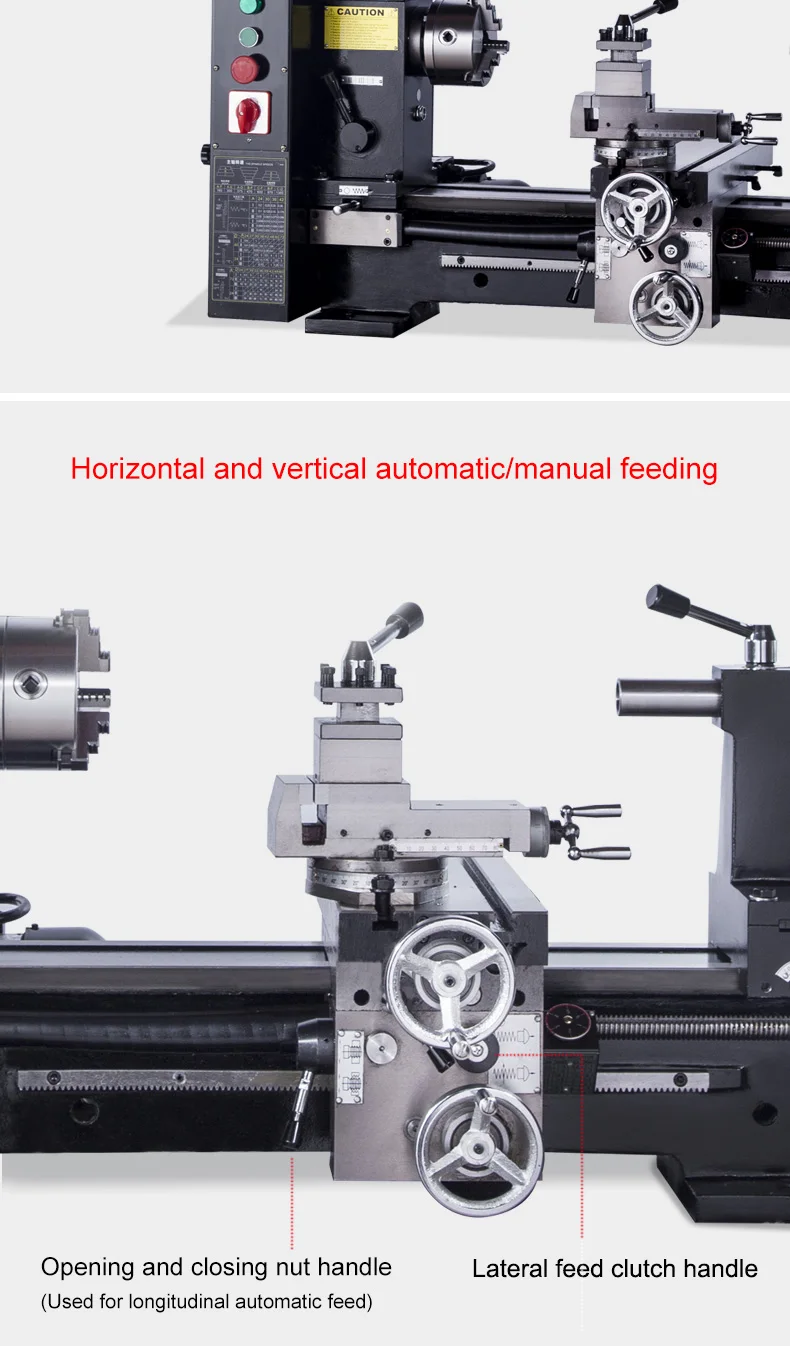

| Longitudinal feed level | 12 |
| Horizontal feed level | 12 |

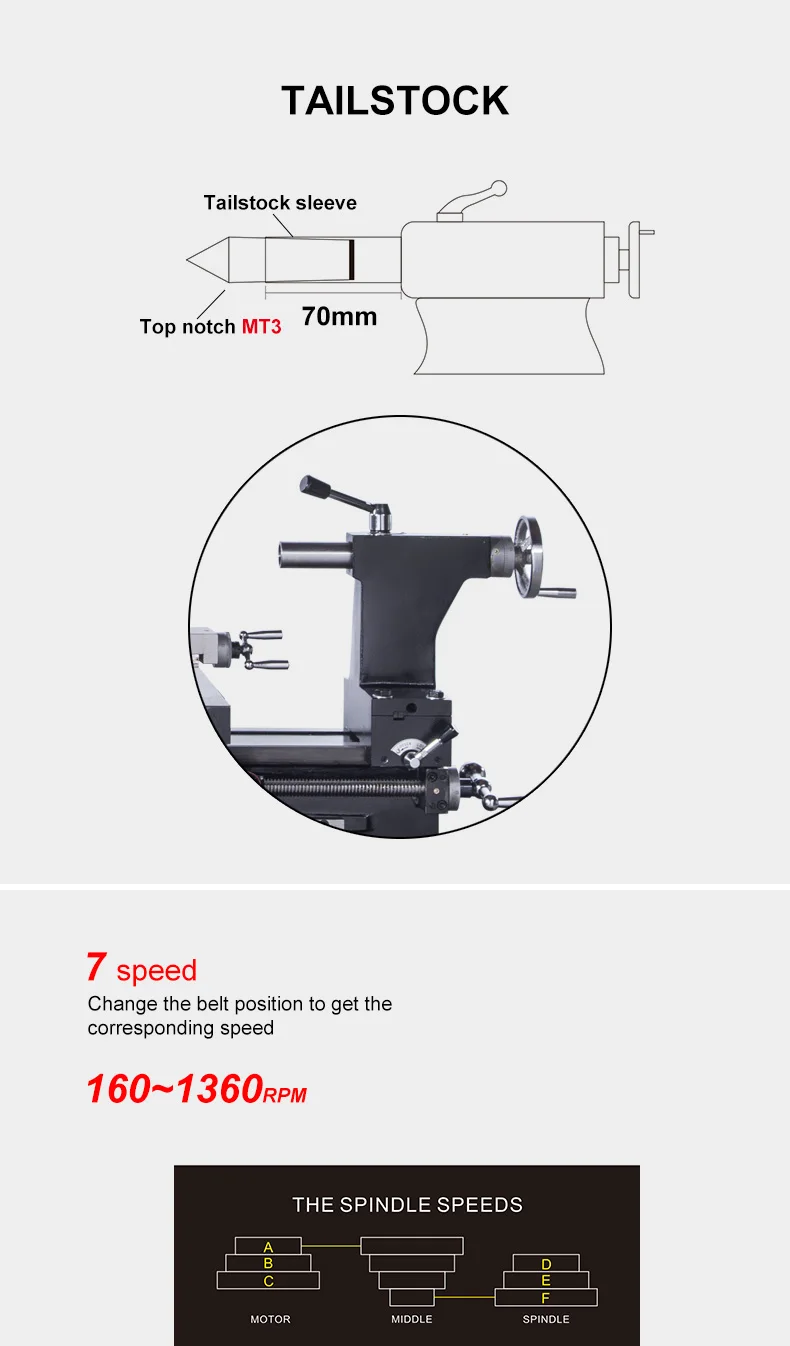

| Tailstock quill stroke | 70mm |
| Tailstock sleeve taper | MT3 |
| Spindle speed range/level | 160-1360rpm/7 |

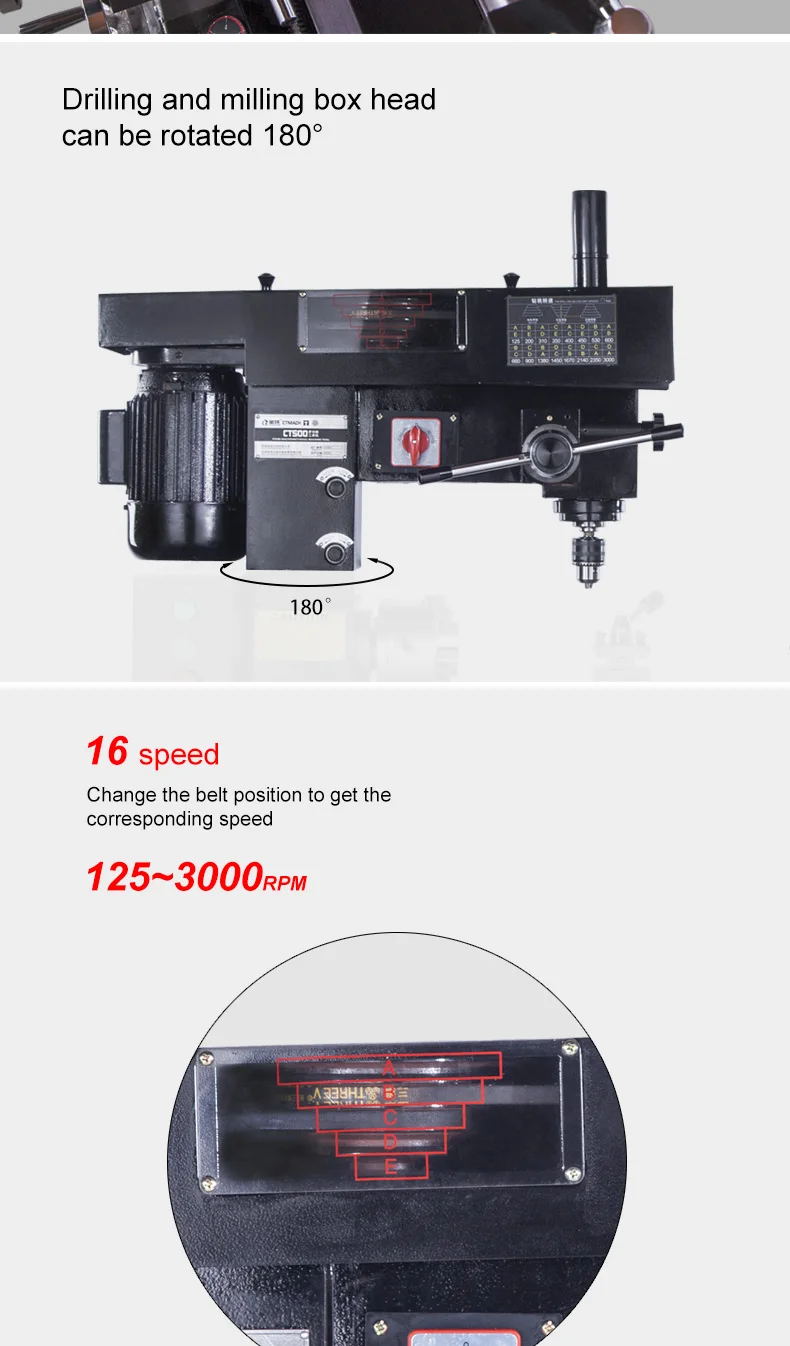

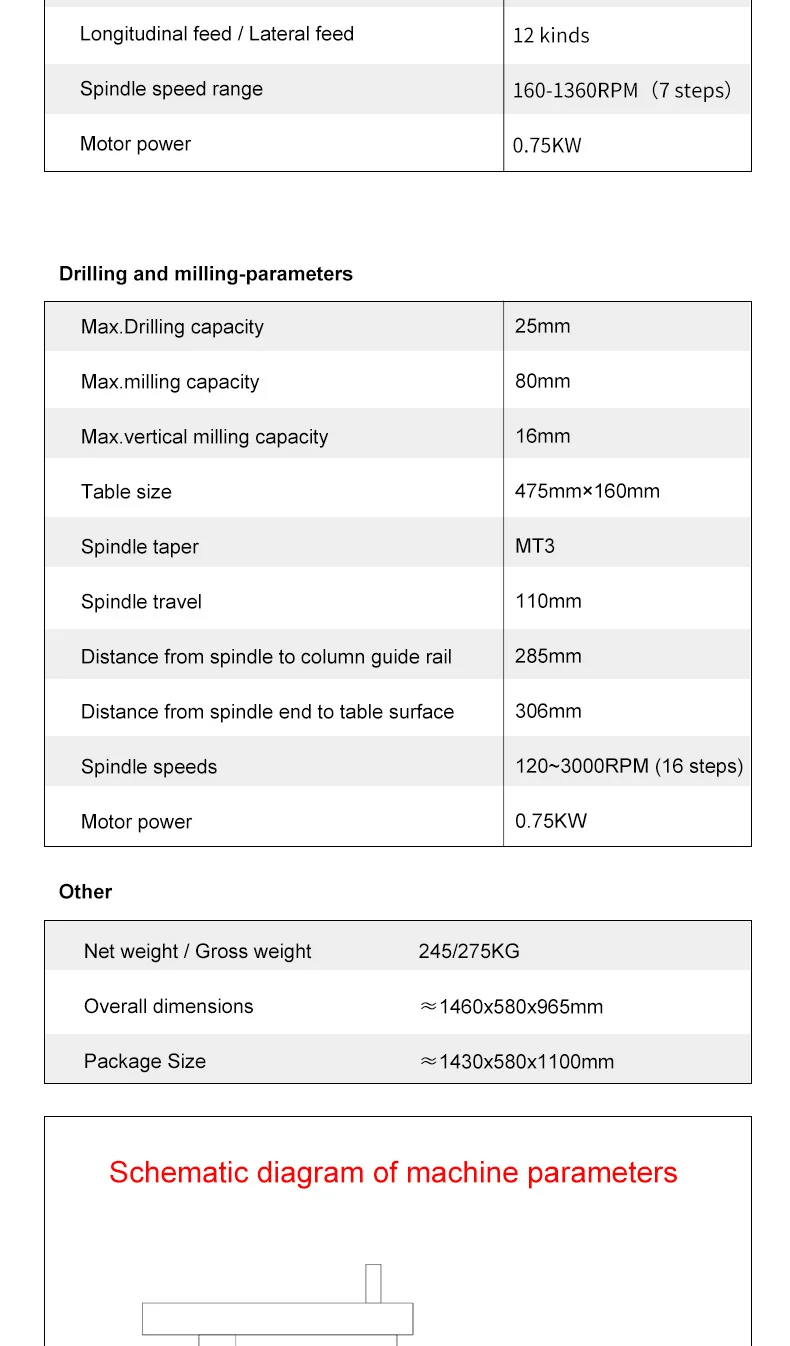

| Drilling and milling | |
| Maximum drilling diameter | 25mm |
| Diameter of end mill | 16mm |
| Maximum face milling cutter diameter | 80mm |

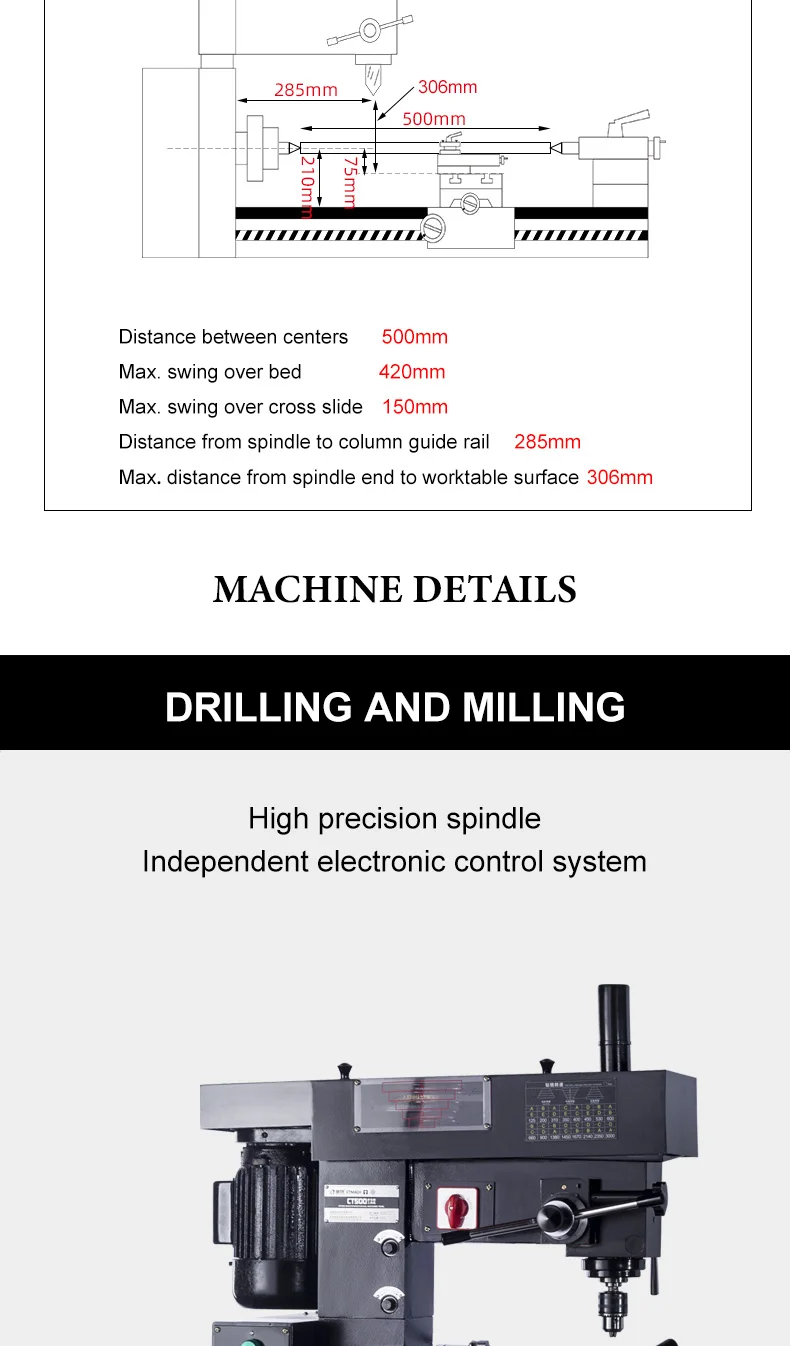

| Distance from spindle end to worktable | 306mm |
| Distance from spindle center line to column surface | 285mm |
| Drilling and milling spindle taper | MT3 |
| Spindle speed range/level | 120-3000rpm |

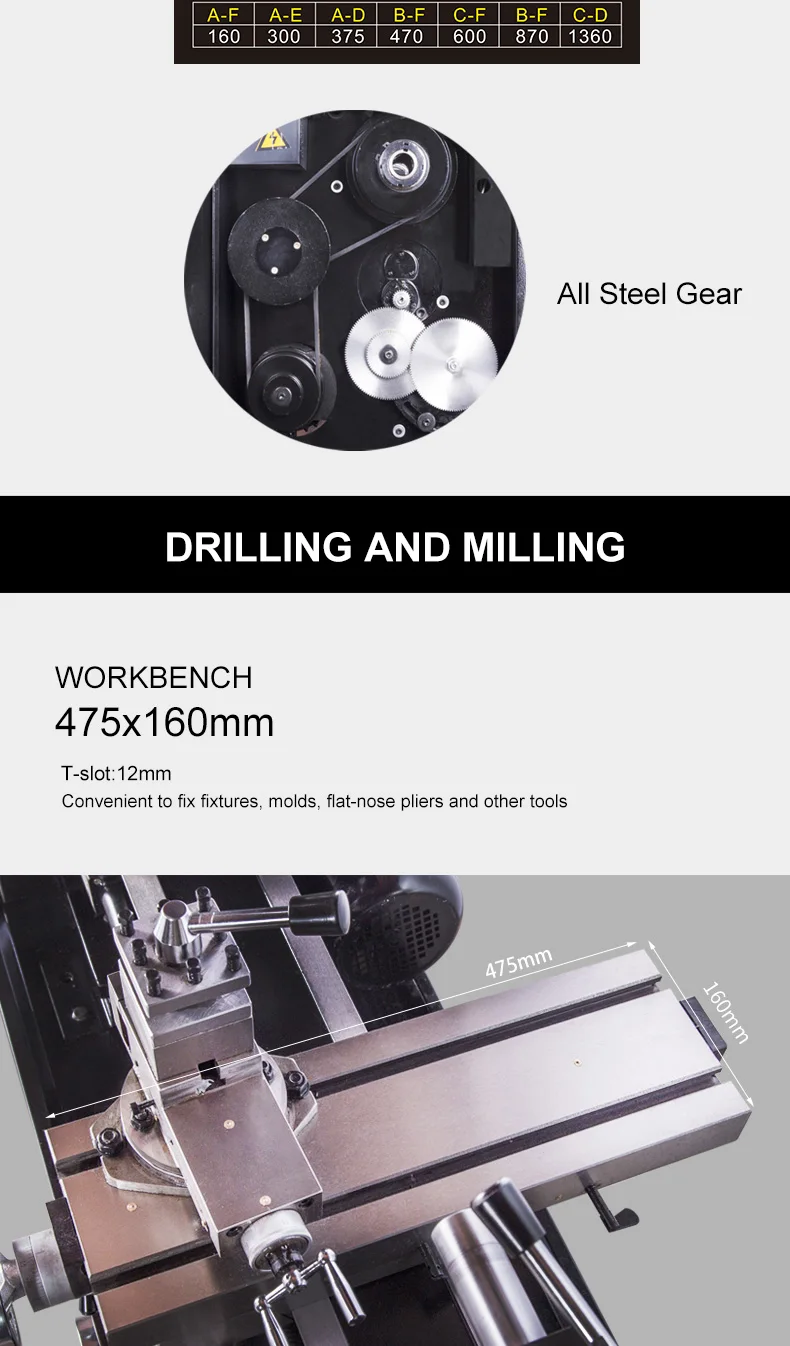

| Working surface width | 160mm |
| Length of working surface | 475mm |
| Maximum stroke of drilling and milling axis | 110mm |

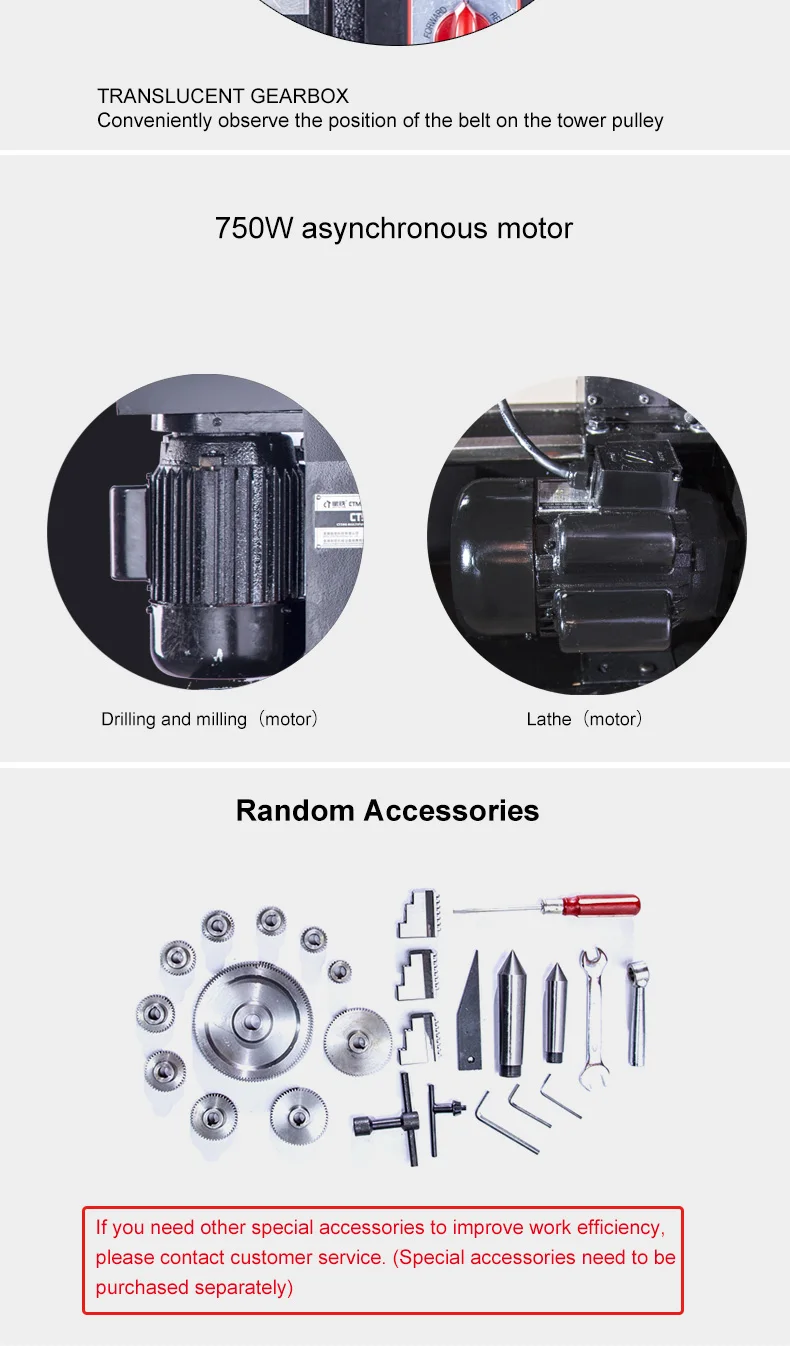

| Motor | 0.75kw/220v |
| N.W./G.W. | 245/275kg |
| Machine size | 1460×580×965mm |
| Packing size | 1430×580×1100mm |
