Стальная машина для полировки квадратных труб для алюминиевых труб
US $46000-$50000
Полировальная машина из нержавеющей стали для полировки поверхности квадратной
- Категории: Metal Polishing Machine >>>
- Поставщик: Foshan,YXH,Tube,Mill,&,Mould,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

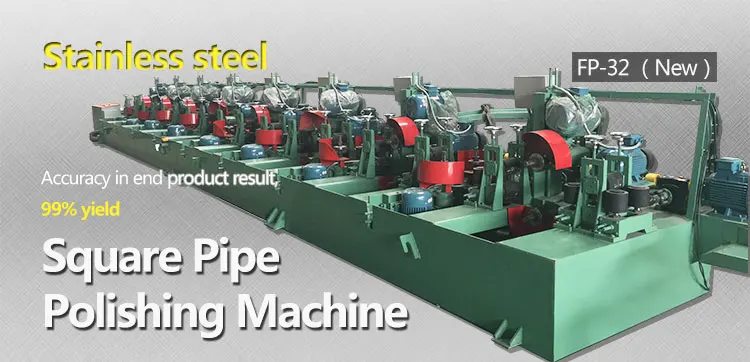

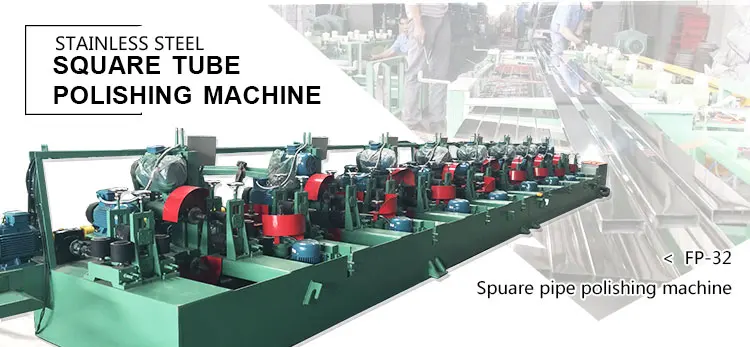

Automatic SS Square Pipe Polishing Machine Used for Polishing Square Box tubes

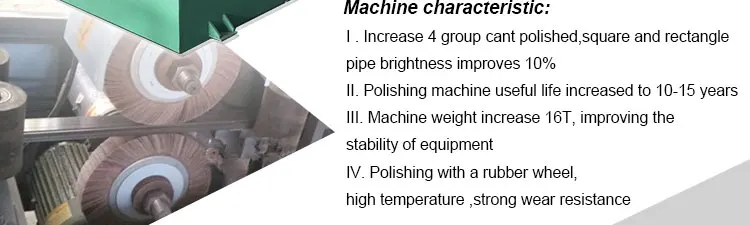

√ Increase 4 group cant polished,square pipe brightness improves 10% √ Polishing machine useful life increased to 10-15 years √ Machine weight increase,16T, improving the stability of equipment √ Polishing with a rubber wheel, high temperature ,strong wear resistance
Passed the IS09001:2000 international standard certification |
Parameter

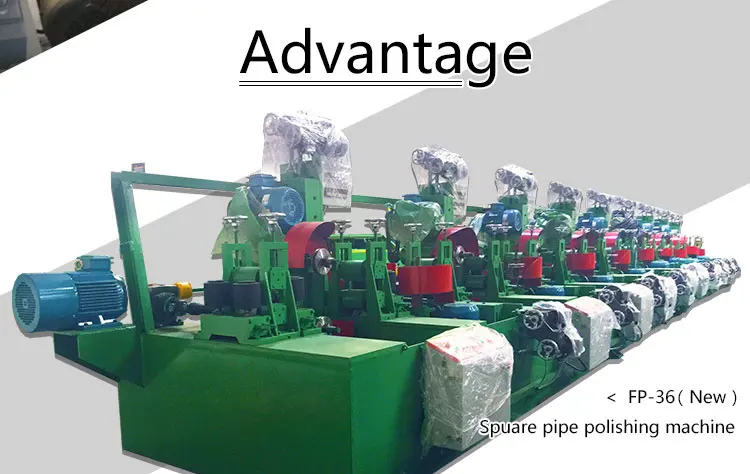

| Technical data | FP-32 | FP-32 (New) | FP-36 | FP-36(New) |
| Model(Unit) | 32 | 32 | 36 | 36 |
| Working range(mm) | 13*13~100*100 | 13*13~100*100 | 13*13~100*100 | 13*13~100*100 |
| Polishing speed | 2~30M/NIM | 2~30M/NIM | 2~40M/NIM | 2~40M/NIM |
| Rated power(KW) | 4kw=24,others=5.5kw; | 5.5KW=12, 4KW=20; | 5.5KW=16, 4KW=20 | 5.5KW=24, 4KW=12 |
| Motor power(KW) | 5.5kw VFD | 5.5kw VFD | 5.5kw VFD | 5.5kw VFD |
| Total power(KW) | 145.5 | 151.5 | 173.5 | 185.5 |
| Voltage(V) | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Machine size (L*W*H MM) | 13040×1500×1350 | 13040×1500×1350 | 14500×1500×1350 | 14500×1500×1350 |

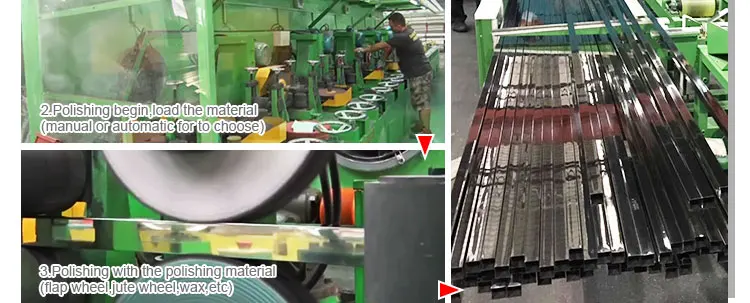

The Square Pipe Polishing Machine is Mainly used for polishing the surface of square and rectangle pipes .It offers economic solution for mirror polishing ,sand polishing and matte polishing of tubes ,using flap wheels ,cloth wheel ,sisal mixed ,cloth wheels and polishing wax.

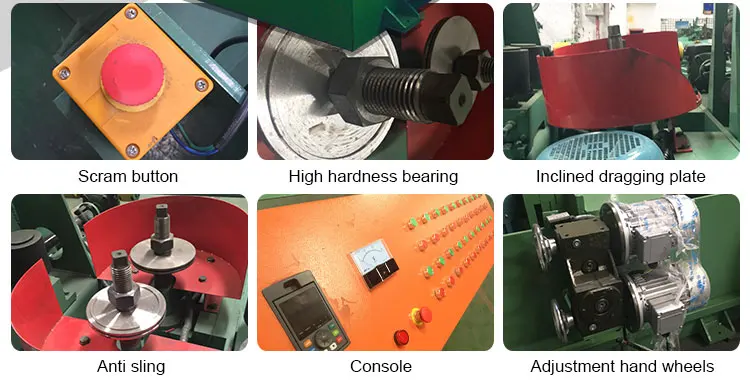

Detail

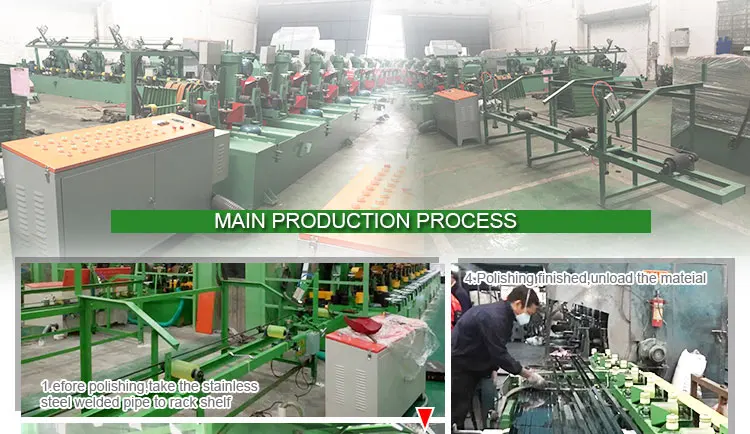

Application
Click here to order and have your free to contact us
Your order are safer with Alibaba Trade Assurance
- On- Time shipment and per-shipment product quality safeguards
- Refund up the covered amost agree with us

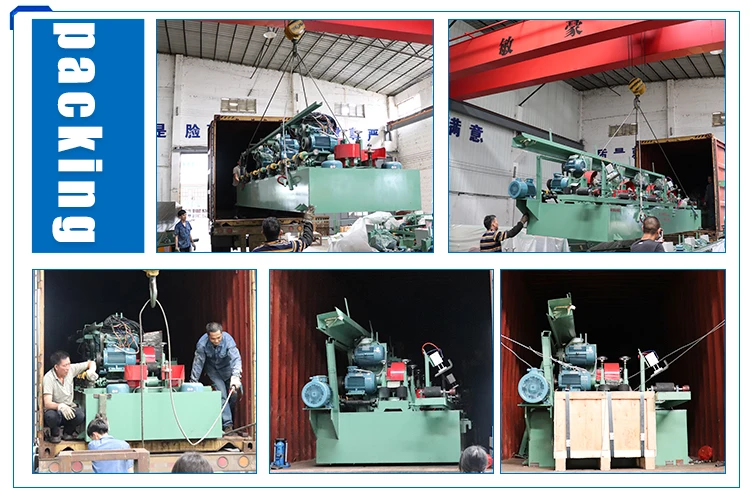

Packaging & Shipping
We use steel wire and wooden frame to fix the stainless steel square pipe polishing machine;
In addition, used shockproof film to protect the main motors.
We use the container to deliver goods to our customer.
Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
Our Services
- Offer the technology for free.
- Help you train your staff.
- Offer plant designing and calculate power consumption.
- Send engineers to help you install the machines and train your staff online, until you can produce qualified pipes.
- Special notice: The warranty period is one year, except man-damage. If you have any question in operation in operating the machines, you can call us or send emails, we will solve the problem for you asap.
Customer case:
