Product Description
* It is composed of A Feeding Unit, A Screen Printing unit, and a Hot Air Dryer
* An automatic registration system with three sensors to ensure high printing precision for multicolor
* Mitsubishi and Yaskawa Servo Motors guarantee the stability of the screen printing machine
* The excellent wear-resisting guide rail ensures accuracy.
* Humane mechanism ensures high precision
* Automatic alarm when an error occurs and offers the solution
* Vacuum suction table for efficient workpiece fixing, with blowback function
* solvent ink, water-based ink, and plastisol ink are OK including UV ink
* 30-meter, 60-meter and 80-meter tunnel oven for option
* An automatic registration system with three sensors to ensure high printing precision for multicolor
* Mitsubishi and Yaskawa Servo Motors guarantee the stability of the screen printing machine
* The excellent wear-resisting guide rail ensures accuracy.
* Humane mechanism ensures high precision
* Automatic alarm when an error occurs and offers the solution
* Vacuum suction table for efficient workpiece fixing, with blowback function
* solvent ink, water-based ink, and plastisol ink are OK including UV ink
* 30-meter, 60-meter and 80-meter tunnel oven for option
Technical Data | ||
Name | Automatic Screen Printing Machine | |
Model | LTA-5070 | |
Print Area | 500*700mm | |
Print Speed | 0-2500 t/h | |
Screen Frame Area | 800*1100mm | |
Max. Paper Width | 520mm | |
Frame Regulating Variable | 60mm | |
Printing Material Thickness | 0.02-0.5mm | |
Weight | 1700kg | |
Machine Size | L2950*W1160*H1865mm | |
Application:

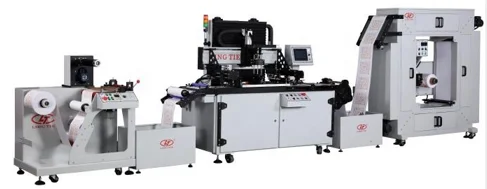

The Roll to Roll Screen Printing Machine is specially designed for printing film or paper material in roll form.
Such as PET, PVC, PE, PV, PP, BOPP film, which has been widely used in heat transfer label, adhesive sticker, Vulcanizing label, membrane switches, soft circuit board (flexible printed circuit ), printed electronics, control panels, graphics overlay, IMD (In-mold decoration label, IML, RFID antenna, FPC, ceramic decals, motorcycle helmet decals, nameplate, etc industry.

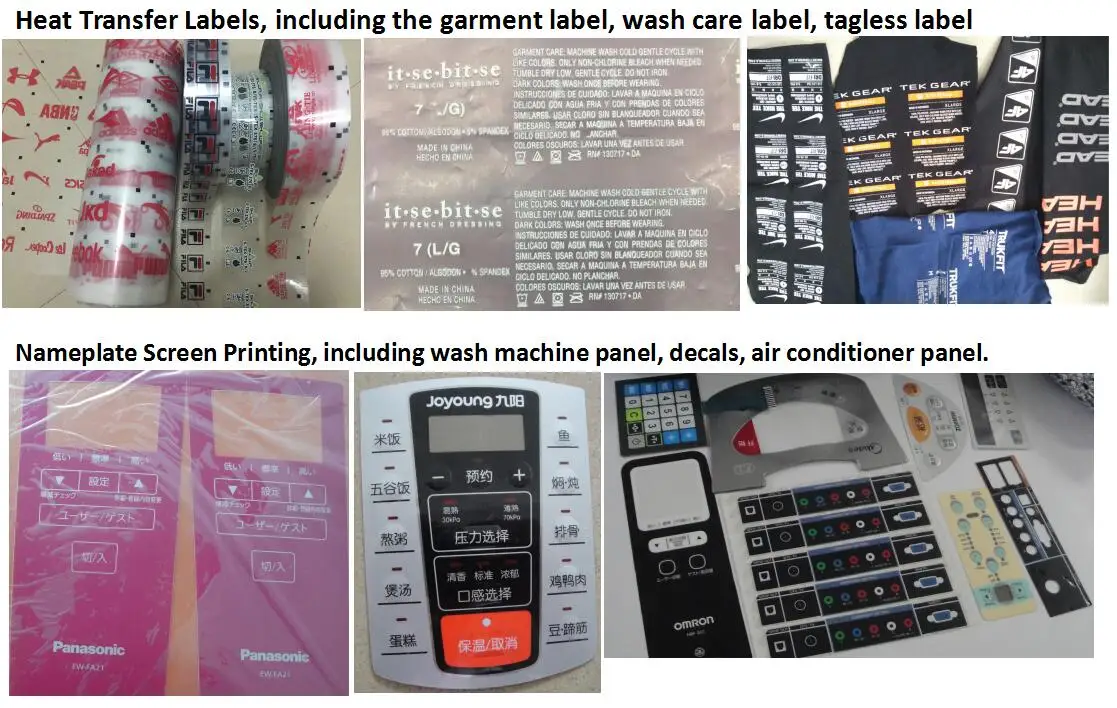

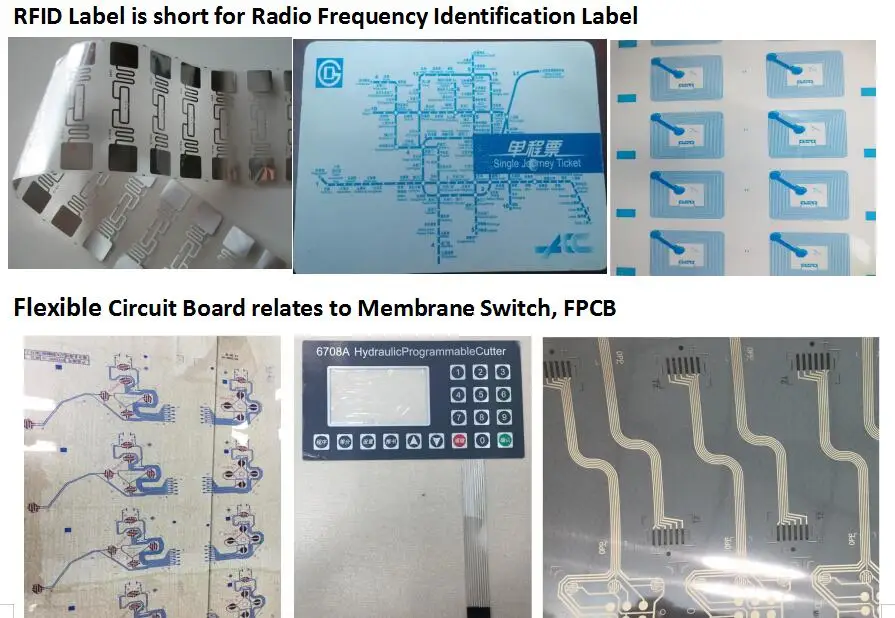

Some Printed Label Samples Images: like the heat transfer, nameplate, RFID & Flexible circuit board
Introduction of the Three Components
Automatic Feeding Machine
1. It is mainly used to feed all kinds of roll material and cooperate with automatic screen printer.
2. The feeding and winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
3. Adopting Japan Mitsubishi frequency converter, automatic control the feeding speed.
4. The feeding machine adopts imported photoelectric switch control, avoid scratching material, and can automatically adjust the feeding length.
Optional functions:
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device
2. The feeding and winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
3. Adopting Japan Mitsubishi frequency converter, automatic control the feeding speed.
4. The feeding machine adopts imported photoelectric switch control, avoid scratching material, and can automatically adjust the feeding length.
Optional functions:
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device
Automatic Printing Machine
1. The printing seat adopts 4-column precise linear guide rail, with high repeatable positioning accuracy, strong stability and durability.
2. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
3. With anti-drip ink function, prevent color difference between ink with ink, to achieve high quality printing.
4. Equipped with a man-machine system.
5. It features an automatic registration system with three sensors to ensure high printing precision for multi color overprint.
Optional functions:
1) Automatic punching function
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device
2. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
3. With anti-drip ink function, prevent color difference between ink with ink, to achieve high quality printing.
4. Equipped with a man-machine system.
5. It features an automatic registration system with three sensors to ensure high printing precision for multi color overprint.
Optional functions:
1) Automatic punching function
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device

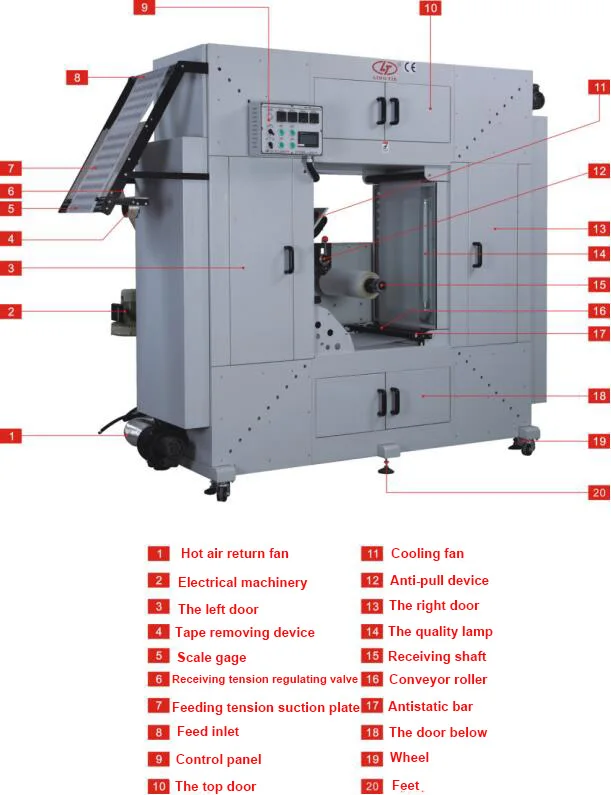

Hot Air Dryer
1. Adopts uniform speed function to ensure that the material stays in the oven at any position for the same time and rewinding speed.
2. Oven with 4 sides, 4 sides heating, air circulation more smooth.
3. Equipped with heat insulation layer, so as not to scald the operator, saving electricity, energy saving and environmental protection.
4. The suction tension can be arbitrarily stepless adjustment, convenient to control the material tension, to ensure that the printing material does not stretch deformation.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
6) Laminating device
2. Oven with 4 sides, 4 sides heating, air circulation more smooth.
3. Equipped with heat insulation layer, so as not to scald the operator, saving electricity, energy saving and environmental protection.
4. The suction tension can be arbitrarily stepless adjustment, convenient to control the material tension, to ensure that the printing material does not stretch deformation.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
6) Laminating device
