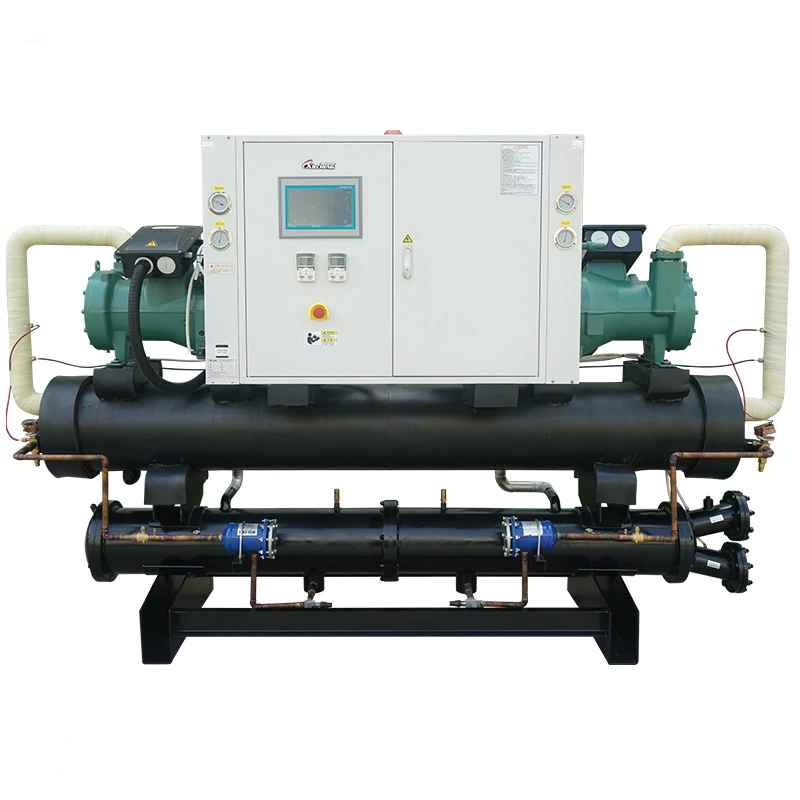

Высокоэффективная система охлаждения жидкостью кВт винтовой охладитель с водяным
- Категории: Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Jiangmen,Xiecheng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

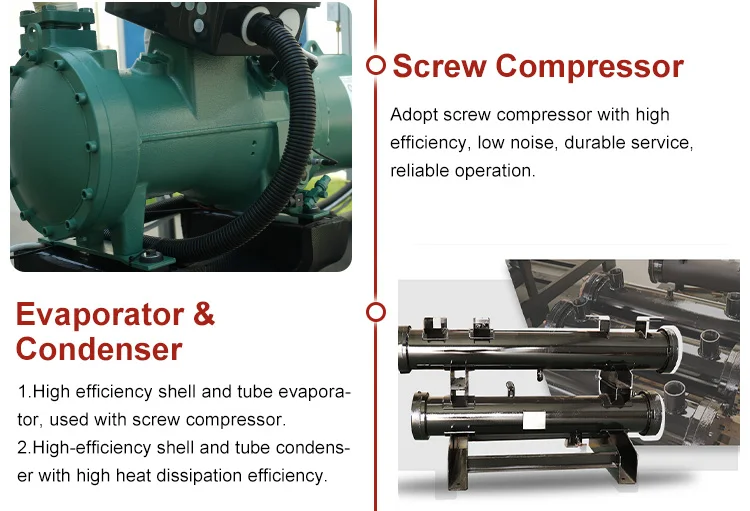

>Screw type chiller adopts screw compressor with high efficiency, low noise, durable service, reliable operation.
>The deviation of chilled water temperature is less than 0.5°C
>Optional for RS485 communication function to realize automatic running.
>Optional refrigerant：R407C，R410A，R314A，R404A
>The deviation of chilled water temperature is less than 0.5°C
>Optional for RS485 communication function to realize automatic running.
>Optional refrigerant：R407C，R410A，R314A，R404A
Products Specifications
Model | Unit | XC-L50WS | XC-L60WS | XC-L80WS | |||
Refrigerating Capacity | KW | 152 | 172 | 230 | |||
Kcal/h | 130720 | 147920 | 197800 | ||||
Input Power | KW | 37 | 45 | 60 | |||
Control Type | Expansion Valve | ||||||
Refrigerant | R22(R407C) | ||||||
Compressor | Type | Semi-hermetic Screw | |||||
Quantity | 1/2/4 | ||||||
Startup Mode | Y-△ | ||||||
Capacity Control (%) | 0-25-50-75-100 | ||||||
Power | 3PH-380V/50HZ(200V/220V/415V 50HZ/60HZ) | ||||||
Evaporator | Type | Shell and Tube Type | |||||
Cooling Water Flow(m3/h) | 26 | 30 | 39 | ||||
Water Pipe Diameter(inch) | 3'' | 3'' | 4'' | ||||
Condenser | Type | Shell and Tube | |||||
Cooling Water Flow(m3/h) | 33 | 40 | 45 | ||||
Water Pipe Diameter(inch) | 3'' | 4'' | 4'' | ||||
Safety Protection | High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc. | ||||||
Dinmensions (L*W*H) | mm | 2340*800*1670 | 2580*800*1720 | 3130*900*1860 | |||

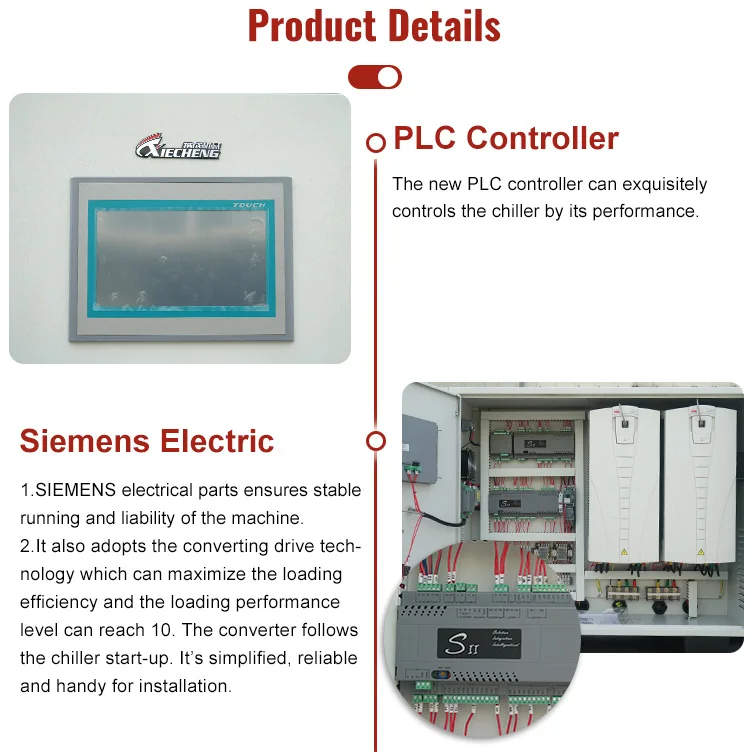

Products Description
Why Choose Us
FAQ Frequently asked questions when buying products Q: How many years have your factory been established? A:Our factory established from 2009, but most of our engineers are working in this industry over 15 year. Q: How long is your delivery time ? A:we have a few stock .but if produce, 1 set for normal machine need about 3-7 working days , if 1 or more containers, need about 15-20 working days. Q:how long is the warranty? A:Within 1 year from date of the factory, if parts failure or damage (because of the quality problem ,except wearing parts), our company provide these parts for free. Q:What is your payment term ? A:TT 100% before shipment ,LC at sign, Western Union or Trade Assurance order recommended. |
