Насадки из карбида бора только с алюминиевой оболочкой 50 мм грубая резьба для удаления

Описание и отзывы

Характеристики

Boron Carbide Nozzles Only With Aluminium Jacket 50mm coarse Thread For  Removing Dust

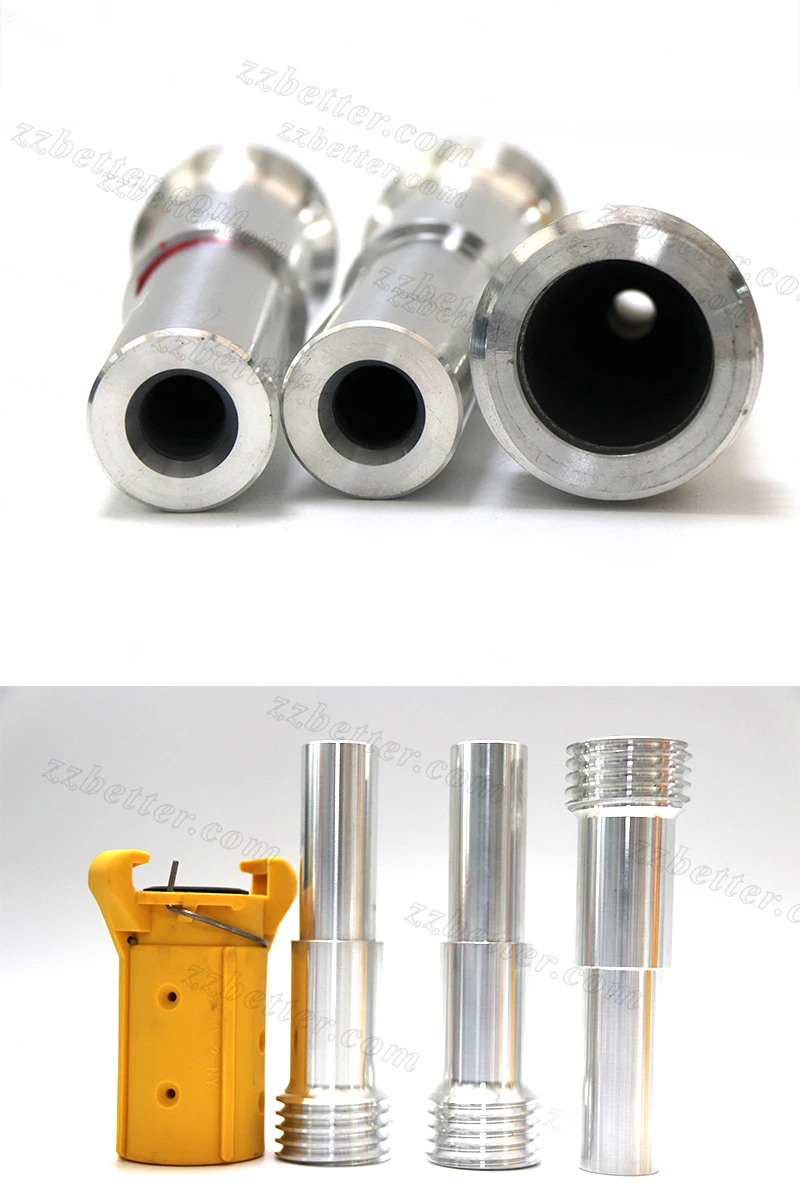

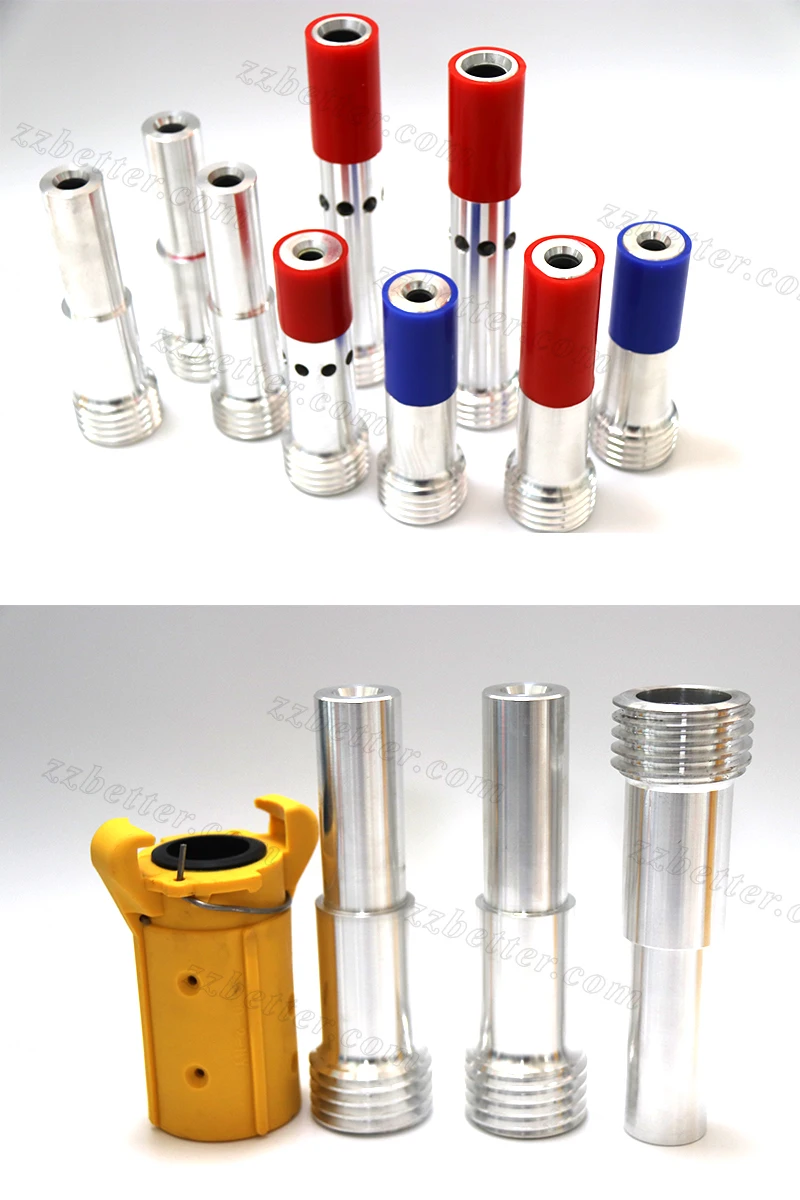

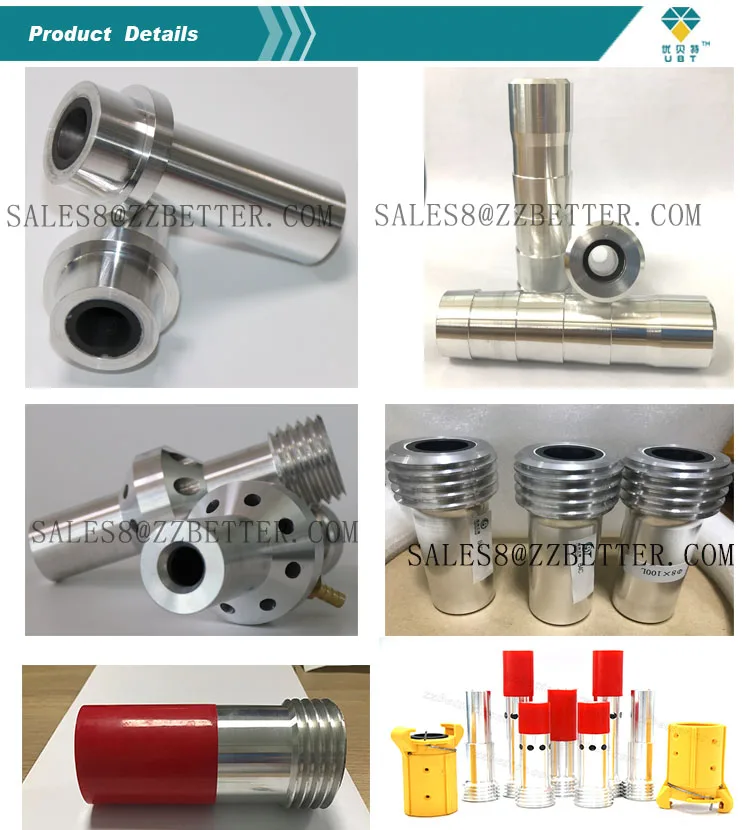

1,Description of the venturi nozzles



Wear-resistant Venturi blasting nozzles made of boron carbide (B4C). Service life: up to 1000 h. Cover: Aluminum/Polyurethane protector. Thread: Aluminum, 50 mm for NHP nozzle holder. Entry size: 25 mm.









2.Estimated Service Life of Nozzles (In hours)

Nozzle Material	Steel Grit/Shot	Silica Sand	Brown Aluminium Oxide
Alumina	20-40	10-30	1-4
Tungsten Carbide	500-800	300-400	20-40
Silicon Carbide	600-1000	400-600	50-100
Boron Carbide	2000-2500	1000-1500	500-1000







3,Full size for selection, with case or not.



 Also,we can provide according to your drawing.



• Nozzle throat diameter: 4.8 to 12.5 (mm)
• Nozzle length: 85 to 225 (mm).

• Part Number	Bore Diameter	Exit	Length
  USVC-4.8	4.8mm	9mm	140mm
  USVC-6.4	6.4mm	10.5mm	140mm
  USVC-7.9	7.9mm	12mm	145mm
  USVC-9.5	9.5mm	14mm	170mm
  USVC-11.0	11.1mm	15mm	195mm
  USVC-12.7	12.7mm	17mm	225mm









Other type for choose:



Venturi nozzle, boron carbide, 6.5 mm x 120 mm
Venturi nozzle, boron carbide, 8.0 mm x 130 mm
 Venturi nozzle, boron carbide, 9.5 mm x 150 mm

Venturi nozzle, boron carbide, 6.5 mm x 130 mm
 Venturi nozzle, boron carbide, 8.0 mm x 150 mm
Venturi nozzle, boron carbide, 9.5 mm x 170 mm
 Venturi nozzle, boron carbide, 11.0 mm x 200 mm
 Venturi nozzle, boron carbide, 12.5 mm x 210 mm
 Double Venturi nozzle, boron carbide, 6.5 mm x 130 mm
 Double Venturi nozzle, boron carbide, 8.0 mm x 150 mm
 Double Venturi nozzle, boron carbide, 9.5 mm x 170 mm
 Double Venturi nozzle, boron carbide, 11.0 mm x 200 mm
 Double Venturi nozzle, boron carbide, 12.5 mm x 210 mm
