1. Weichai-Deutz Deutz WP6G125E22 92KW Engine, low RPM speed Engine, strong power, energy conservation and environmental protection. DF-Cummins engine, Steyr engine, Shangchai engine is optional.
2. To adopt confluence of dual-pump confluence and diffluence technology, rational use of engine power, reduce energy consumption effectively. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
3. The maximum dumping height is 3300mm. Articulated frame with small turning radius makes the wheel loader flexible and convenient to operate.
4. Four wheel double-line caliper disc braking system with a gas container in the back to guarantee a more safety and reliable operation.

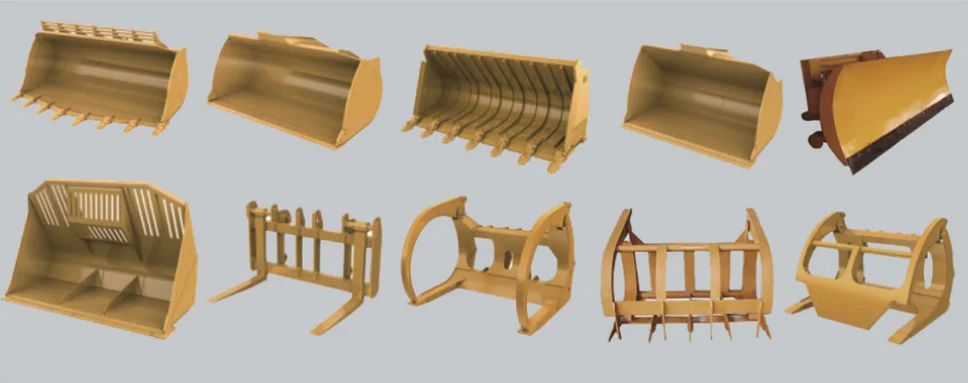

5. Optional attachment: floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.
Model | LT936 |
Operating weight | 9800kg |
Rated load | 3,000 kg |
Bucket capacity | 1.7m³ |
Engine model | Deutz WP6G125E22 |
Rated engine power | 92kw |
Rated rotate speed | 2200r/min |
Maximum torque | 500N.m |
Breakout force | 98KN |
Forward Ⅰ | 11km/h |
Forward Ⅱ | 38km/h |
Reverse Ⅰ | 16km/h |
Max.Gradeability | 28° |
Overall length | 7200mm |
Overall width | 2350mm |
Overall height | 3200mm |
Wheel base | 2850mm |
Track base | 1800mm |
Minimum ground clearance | 450mm |
Maximum dumping height | 3300mm |
Maximum dumping reach | 1250mm |
Raise time | ≤6.8s |
Total | ≤12.5s |
Fuel Tank | 180L |
Tire type | 17.5-25 |
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
LTMG Machinery Group(LTMG) was established in 2001. Since foundation, LTMG has always kept its professional role in Chinese Construction Machinery industry.
At present, LTMG owns 120,000 square meters production base and more than 20 effective authorization patents, among which 6 are invention patents. Some patents such as the auto-cooling brake systems decline much cost and make our machines more easy to use.
LTMG defines itself as the high cost-effective construction machine manufacturer. Beside meeting the demand of domestic market, over 30 LTMG overseas agents have been set up to provide global users with all-round marketing service, So far LTMG have exported to more than 100 countries and regions around the world.
