033 U-образная машина для производства питьевой соломы
US $9200-$9500
Гибкая U-образная биоразлагаемая машина для производства бумажных
- Категории: оборудование для производства соломы >>>
- Поставщик: Suzhou,Deedo,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Products Description
Paper straw bending machine machine can bend the straight straws to be flexible with corrugate shape.
Can use both paper. P.P and PLA(polylactic acid) raw material.
This production process is fully automated.
1. The operator simply places a straight paper straw into the hopper, then starts the machine. The flexible straw automatically comes out and falls onto the conveyor belt.
2. There are wheels and form pins which are used to press the indentations into the body of the paper straw.
3. Before pushing, insert a needle into the hole in the straw so as not to force the straw.
4. Finally, a flexible paper straw comes out on the conveyor belt.
There are two types of indentation. Please choose one type from one or two.
Can use both paper. P.P and PLA(polylactic acid) raw material.
This production process is fully automated.
1. The operator simply places a straight paper straw into the hopper, then starts the machine. The flexible straw automatically comes out and falls onto the conveyor belt.
2. There are wheels and form pins which are used to press the indentations into the body of the paper straw.
3. Before pushing, insert a needle into the hole in the straw so as not to force the straw.
4. Finally, a flexible paper straw comes out on the conveyor belt.
There are two types of indentation. Please choose one type from one or two.
Product Paramenters
Model | SS-B |
Capacity Max | 250-300pcs/min |
Straw Diameter | 6mm, ID(5.8mm) One machine one size |
Straw Length | 150-250mm adjustable |
Power consumption | 2 kw/h |
Motor | 1.5 kw |
Qty. of trans. rack | 12 groups |
Functions | counter, automatic stop |
Machine size(L*W*H) | 1.5m*1.8m*1.7m |
Machine weight | 850KG |
Voltage | 3 phases 380V, 50hz |
Details Images

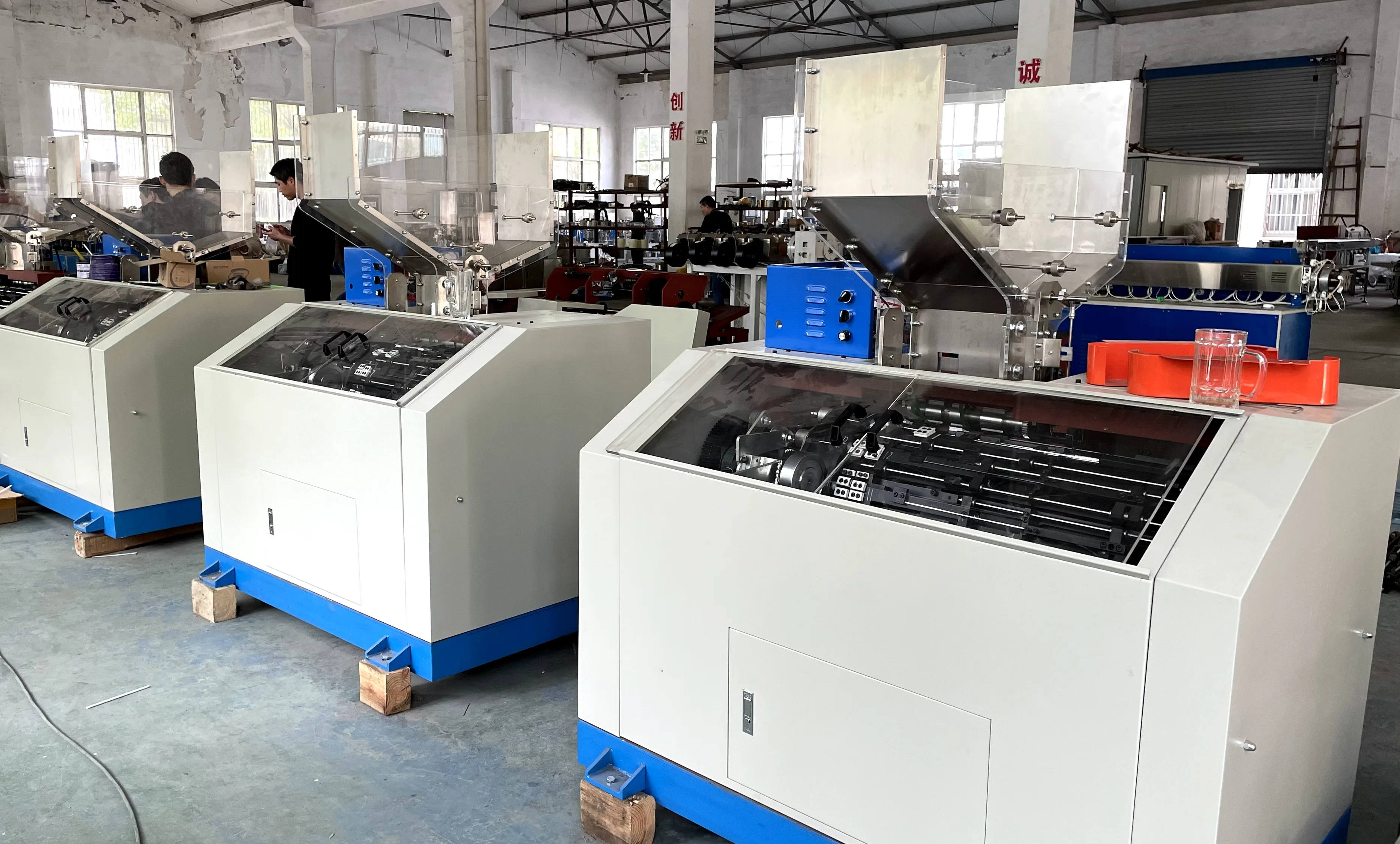

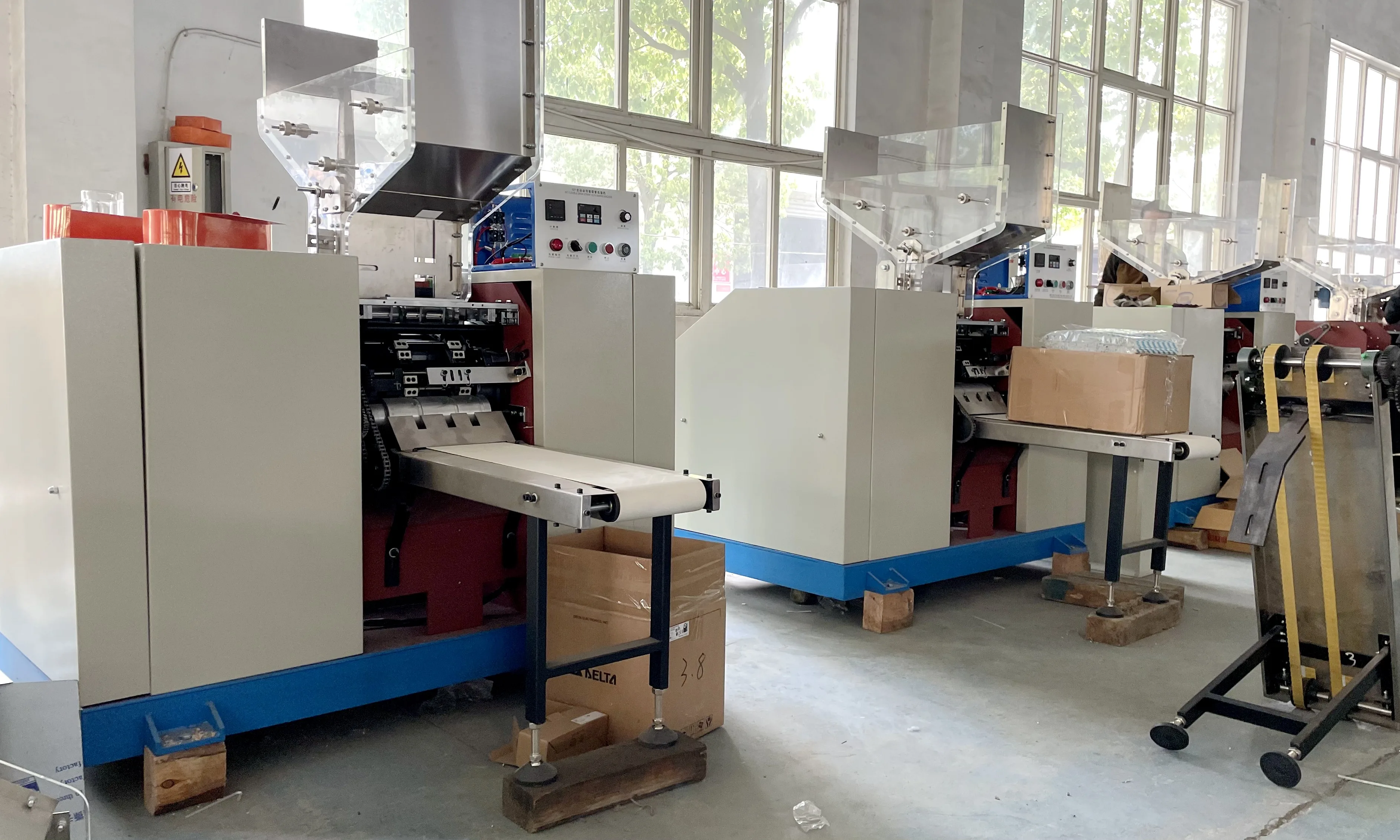

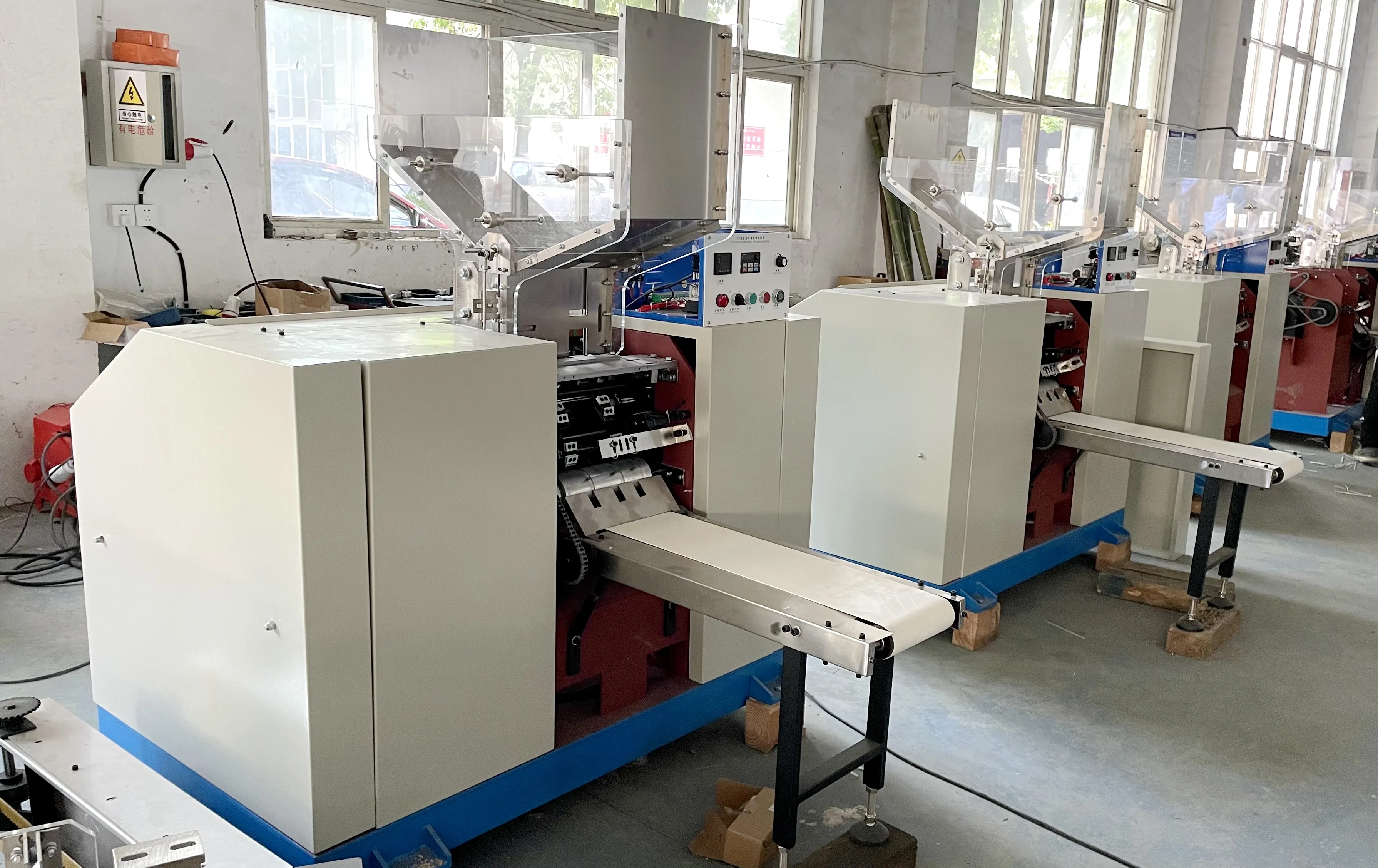

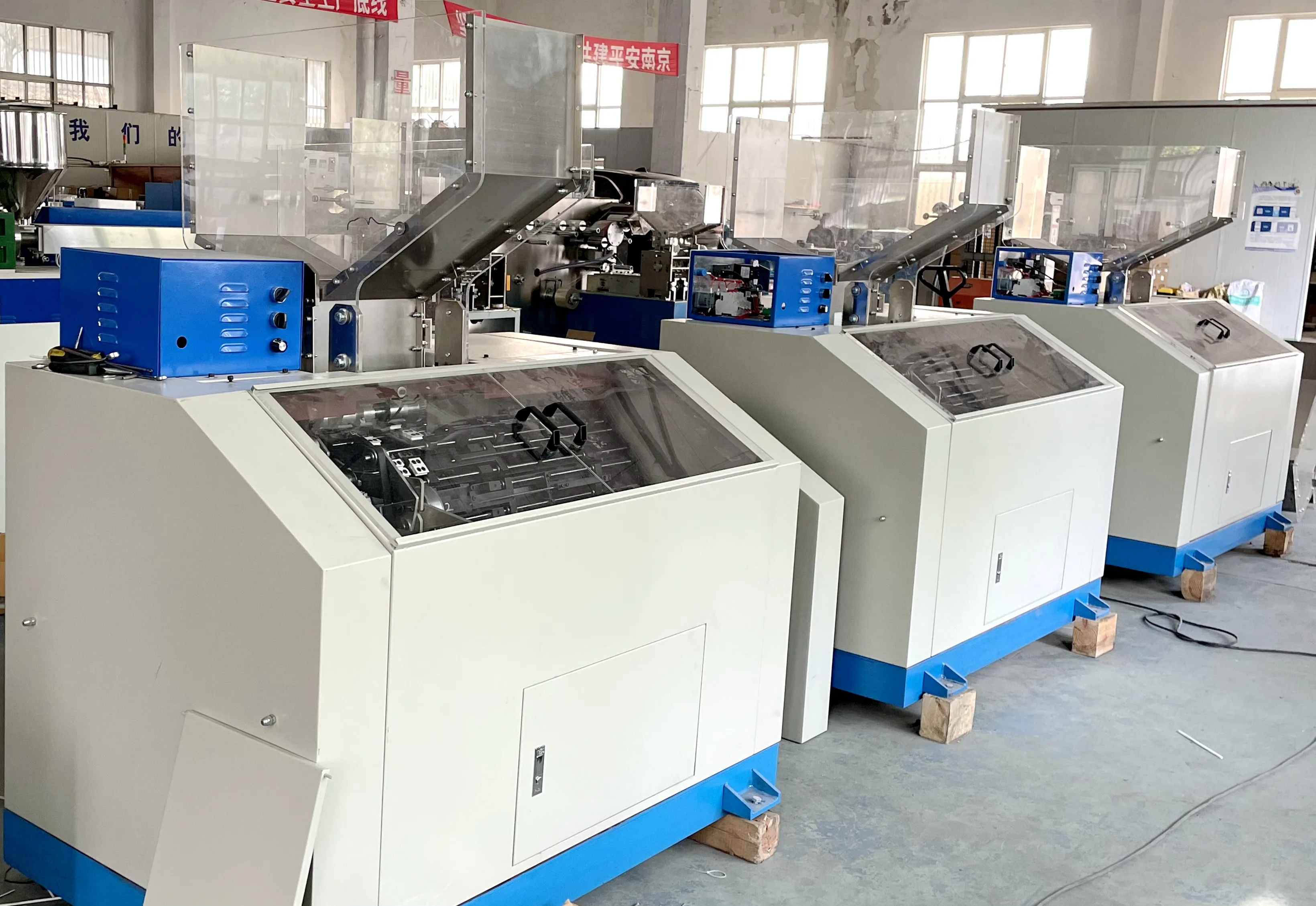

Workshop

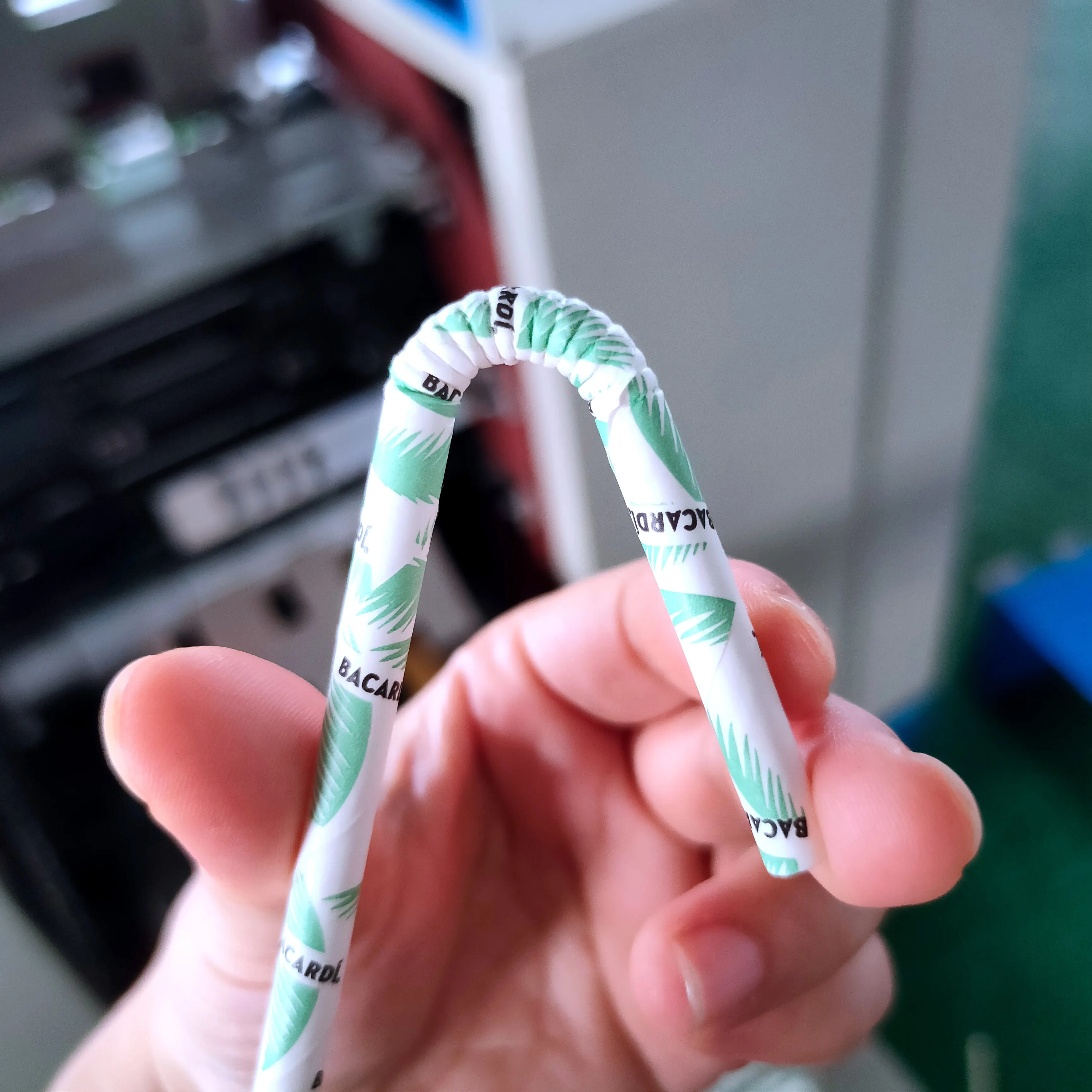

Bending Paper Straw Machine Finished product
Main Features
1) Whole process automatically;
2) mold can be heated, high production efficiency, one operator
3) Automatic production counting function;
4) Touch screen, human-machine interface, easy operate;
5) Automatic counting during production process and display on touch screen.
6) Automatic with automatic fault stop function
7）automatic counting, the specified batch alarms
2) mold can be heated, high production efficiency, one operator
3) Automatic production counting function;
4) Touch screen, human-machine interface, easy operate;
5) Automatic counting during production process and display on touch screen.
6) Automatic with automatic fault stop function
7）automatic counting, the specified batch alarms
Certifications
Software patent certificate
patent certificate
Company other certificates

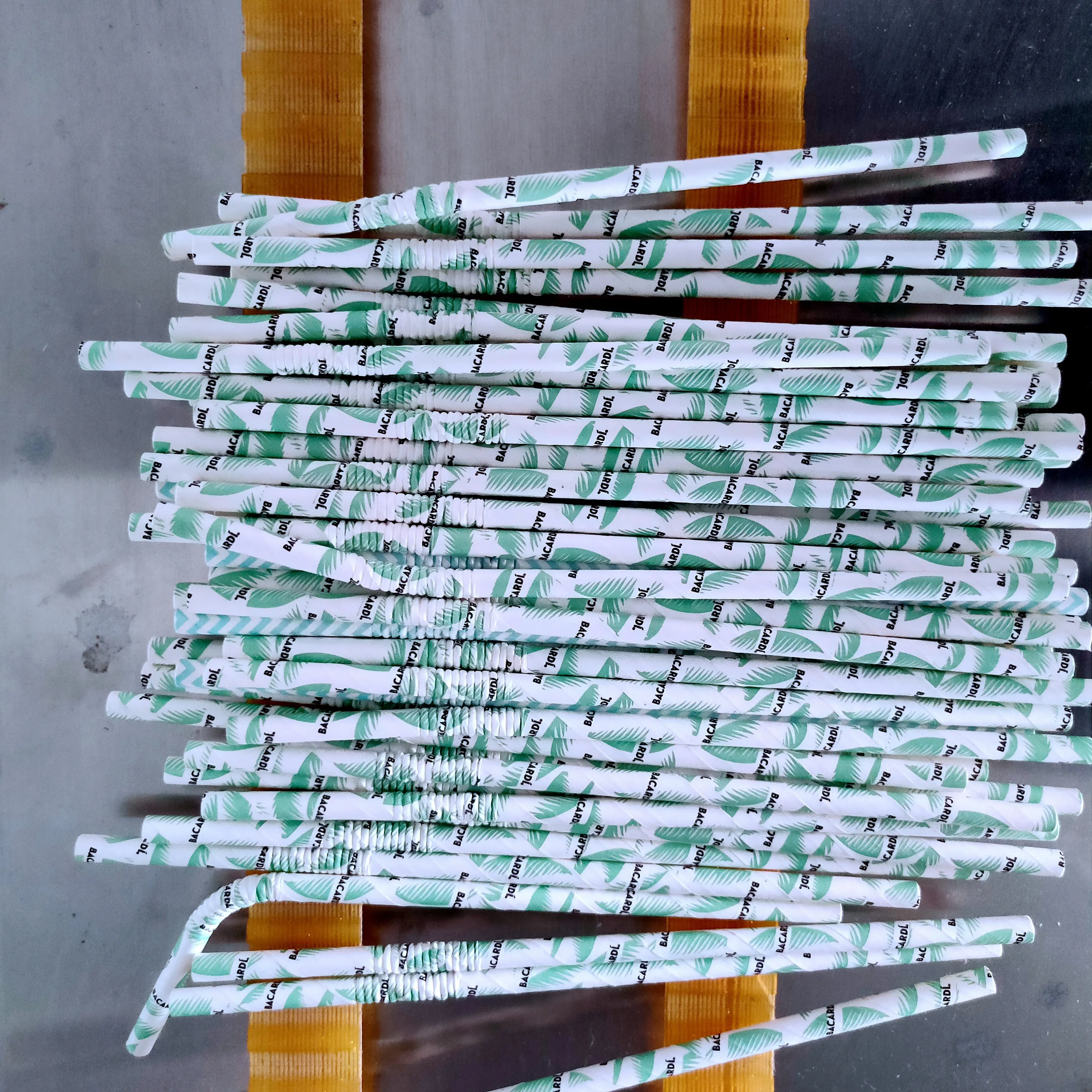

Final Product
Company Profile
Suzhou Deedo Machinery Co.,Ltd as a professional paper straw machines manufacturer is more than 10 years, we have much experience on paper straw & tube production line . Our main products are as below: --High speed paper straws production line --Jumbo paper slitting rewinding machine --Single straw packing machine --Group straw packing machine --Straw machine and packing machine connecting system Our machines have been exported to USA, UK, Bulgaria, Turkey, Croatia, Vietnam, India, Indonesia, Mexico,Ecuador, Lithuania, Ukraine, Brazil, Poland, Egypt, Sweden, Taiwan area. We have our experienced R&D team, strict quality control system and excellent after-sales service, aims to provide customers with high quality machines at a reasonable price.
We always believe: Quality & Service is the Key of Success!!!
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2014,sell to . There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Straw Production Line,Slitter Machine,Packing Machine: Extrusion Machine,Recycling Machine,Packing Machine,Extrusion Machine
4. why should you buy from us not from other suppliers?
Our machines have been exported to USA, UK, Bulgaria, Turkey, Croatia, Vietnam, India, Indonesia, Mexico, Ecuador, Lithuania,Ukraine, Brazil, Poland, Egypt, Sweden, Taiwan area. We have our experienced R&D team, strict quality control system and excellen.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Korean
We are based in Jiangsu, China, start from 2014,sell to . There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Straw Production Line,Slitter Machine,Packing Machine: Extrusion Machine,Recycling Machine,Packing Machine,Extrusion Machine
4. why should you buy from us not from other suppliers?
Our machines have been exported to USA, UK, Bulgaria, Turkey, Croatia, Vietnam, India, Indonesia, Mexico, Ecuador, Lithuania,Ukraine, Brazil, Poland, Egypt, Sweden, Taiwan area. We have our experienced R&D team, strict quality control system and excellen.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Korean
