10 inch event use line array speakers



Specification

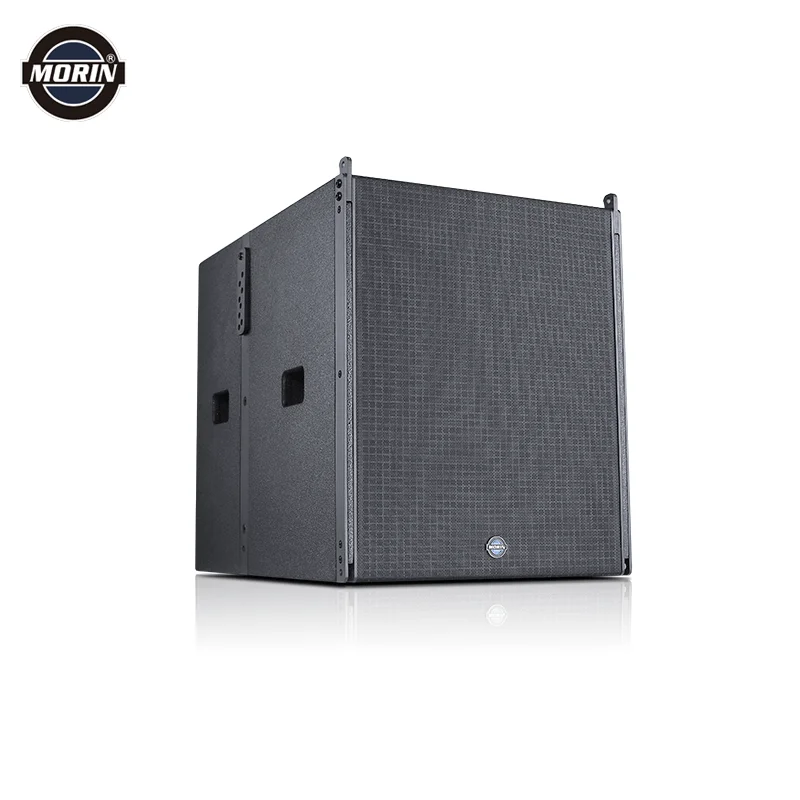

TW-10(Line Array box)		TW-SUB(Subwoffer,built in DSP)
MF rated power	350W AES	Rated power	800W AES
HF rated power	150W AES	Program power	1600W
Components	10''MF,2*1.75''HF(Neodymium)	Components	18'' Subwoofer
MF Sensitivity(1W/M)	104dB	MF Sensitivity(1W/M)	106dB
HF Sensitivity(1W/M)	114dB	Rated Maximum SPL	138dB peak,@1m
Rated Maximum SPL	135dB peak,@1m	Frequency Response	40Hz~200Hz(±3dB)
Frequency Response	60Hz~20Khz(±3dB)	Input Sensitivity	0.775V
Speaker Radiation Angle(1KHz)	H120°×V20°	Out Power	2400W
Input Impedence	20KΩ	Operating Voltage	195~240V
Color	Black	Color	Black
NW	20kg	NW	44KG
Dimension(L/W/H)	500*350*306mm	Dimension(L/W/H)	500*650*543mm



This type of speaker apply to the Theatre, Meeting Room FOH,Club FOH,Stage,Cinema,etc.









FAQ

Q1: Can we print our logo or company information ?
A1: Of course. We accept OEM / ODM orders. Your logo can be printed.



Q2: Are you a professional audio manufacturer or a trading company?

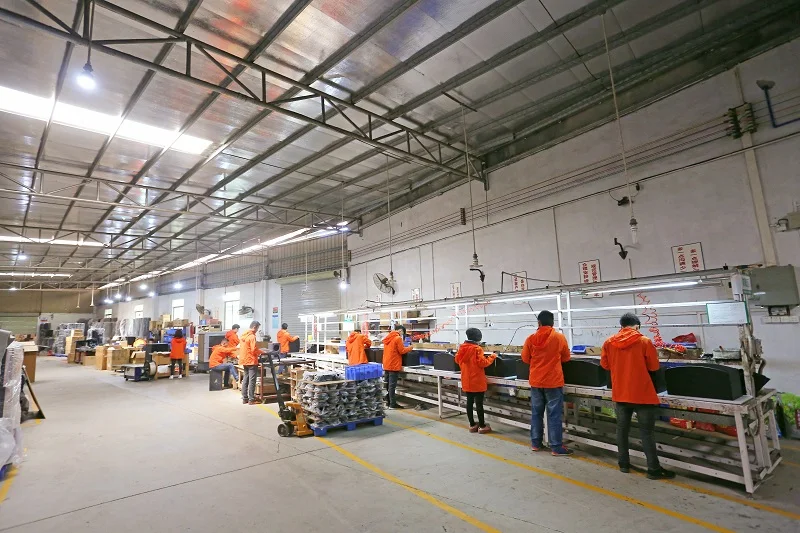

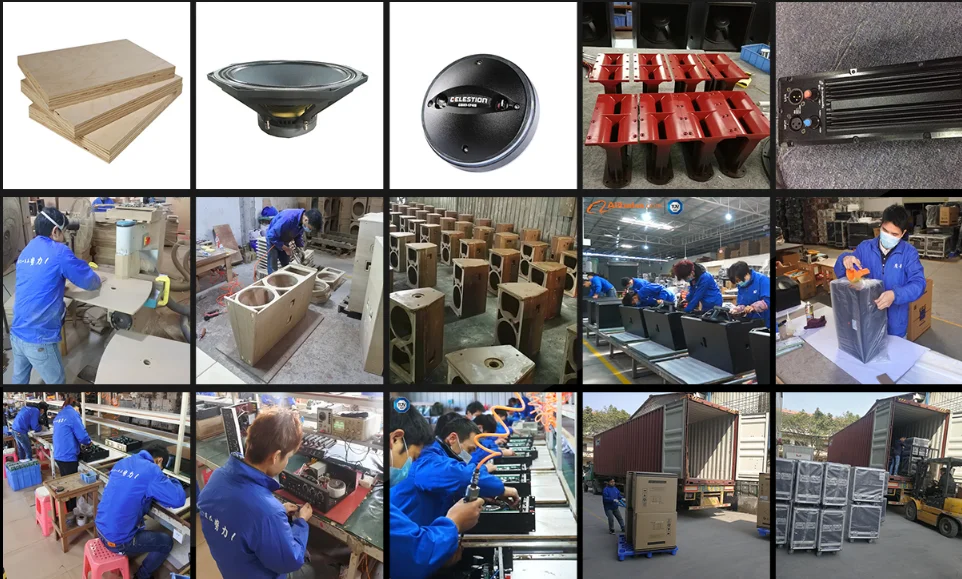

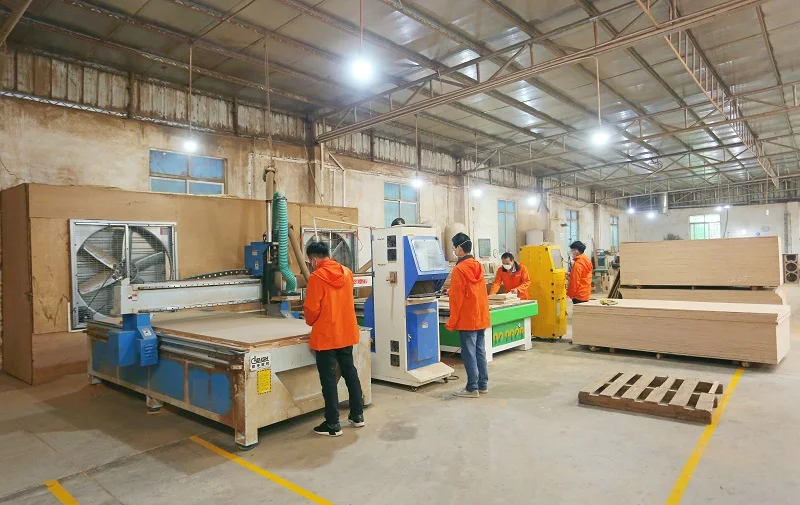

A2: We are the 100% manufacturer in Guangzhou, southern China. We specialize in the R & D, manufacturing, sales, system integration and technical support of the live audio industry.



Q3: How about product warranty?
A3: The product has a one-year warranty, this warranty applies to parts damaged, free replacement. If the purchase order is large, we also provide some spare parts for back-up.



Q 4: delivery time?
A4: stock products for 3 days; a lot of about 15 days or special models



Q5: What is the minimum order? Payment terms?
A5: One set MOQ to test sound for cusomters. Payment terms accept cash, T / T, L / C and Western Union.
