MJ3971x250 Band Saw Machine For Wood Cutting





2. Sawing width is controlled by the combine use of rotary high precise encoder and rigid ball screwod, to provide higher accuracy.

3. Our band saw machine use asisted reefed system, save time, save labor and free from worry.

4. PLC intergrated controlsystem, save and reliable.

5. Hydraulic saw blade tension auto-compensation system ensure the saw blade is always staying a bes tension status and provides a longer service life.

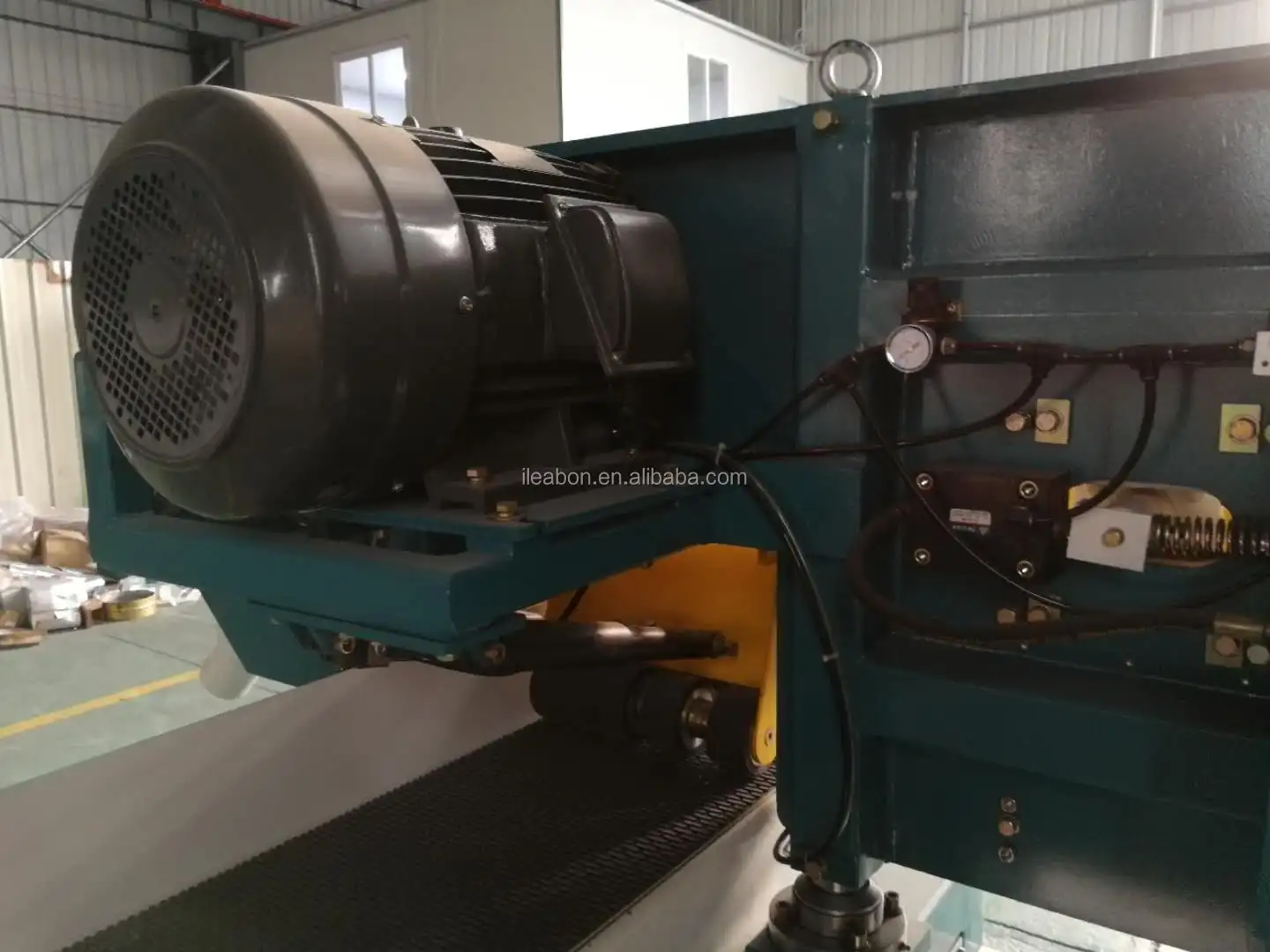

6. The conveyer belt is driven by hydraulic motor, which provides steady operation, constant and powerful driving force, so as to ensure the workpiece is smooth.

7. Band saw machine's thickness tolerance 0.1mm-0.2mm,  no gap  between interface.

8. Saw route in 1.5-1.8mm, 20% save  compared with other cutting methods, effectively reduce costs.

9. All ready-to-ship machines inspected by overseas dept. staff indepedently with detail photo and video to customers. We are trying all the best to insure your worry-free on both purchasing and running of all our machines.

Max.working size (mm)	250X300mm
Distance from band saw blade to worktable(mm)	3~200mm
Conveyer belt width (mm)	235mm
Power of saw wheel(kw)	15kw
Diameter of saw unit gear(mm)	711mm
Feeding speed (m/min)	0~12m/min
Hydraulic pressure (kg/cm²)	55kg/cm²
Dust outlet diameter	102mmX2
Size of saw blade (LxWxH) (mm)	4572x27x0.9mm
Saw kerf (mm)	1.5~1.8mm
Overall dimensions(LxWxH) (mm)	3000x2250x2000
Net weight (kg)	1900kg
